19" outdoor IP55 rack cabinet, 15U, made of white stainless steel SOHORack GO 600x600x815 mm
19" outdoor IP55 rack cabinet, 15U, made of white stainless steel SOHORack GO 600x600x815 mm
REF: WX174
NEW
Specifications
- Structure made entirely of high-strength stainless steel, which guarantees superior immunity against corrosion and rust in outdoor environments.
- Professional finish with RAL 7035 polyester paint with high resistance to UV rays and weather degradation (complies with UNE-EN 62208 standard).
- IP55 protection rating guaranteed by a cord-type injected polyurethane sealing gasket around the entire frame.

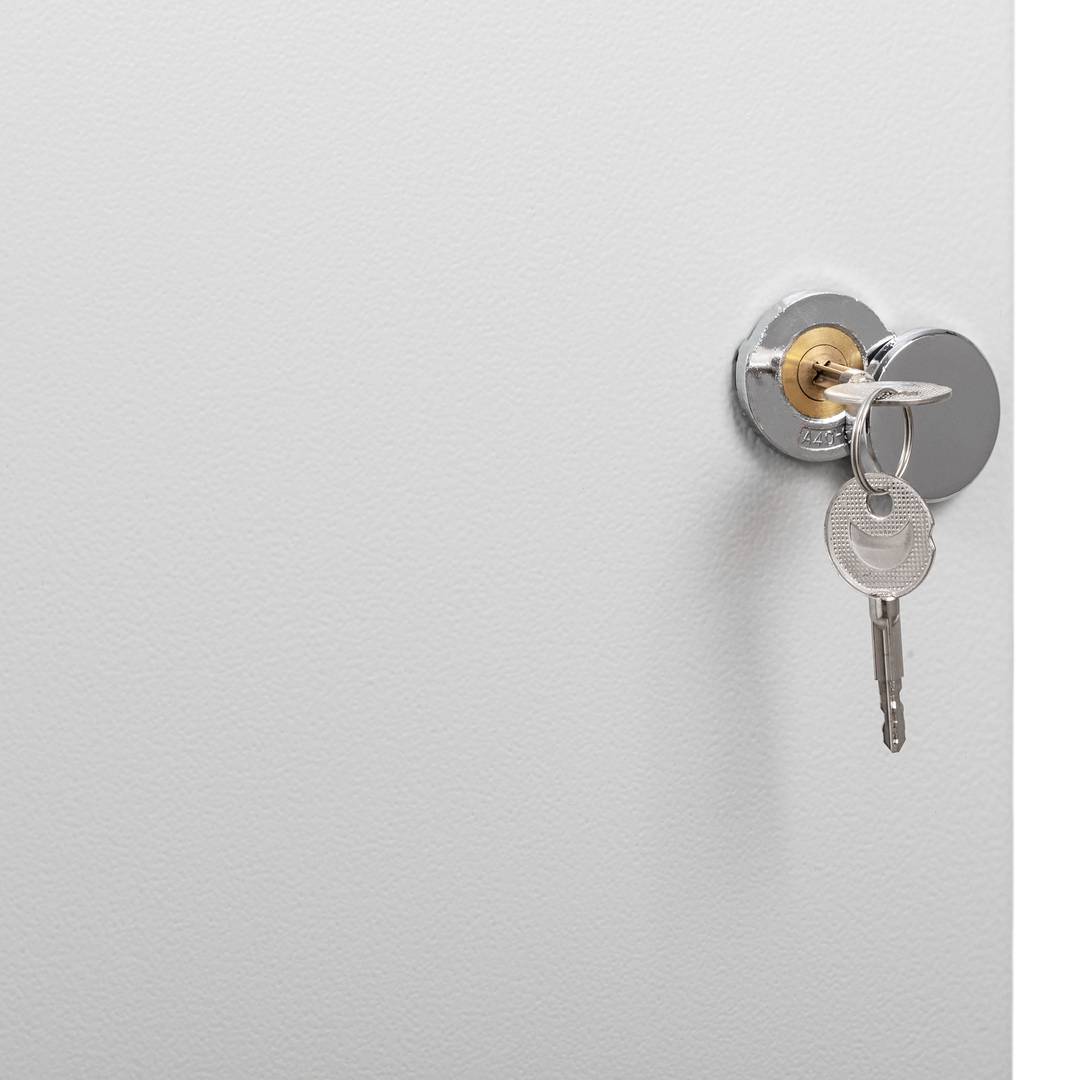

- Reversible opaque door with opening above 110º, equipped with a keyed security lock and integrated protective cover against weather impacts.
- For cable passage, holes must be made in the desired location and diameter, and the use of cable glands is recommended to maintain maximum watertightness.
PVP
€963.01
Price including VAT:
€963.01
PVD
€752.35
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
NEW
Specifications
- Structure made entirely of high-strength stainless steel, which guarantees superior immunity against corrosion and rust in outdoor environments.
- Professional finish with RAL 7035 polyester paint with high resistance to UV rays and weather degradation (complies with UNE-EN 62208 standard).
- IP55 protection rating guaranteed by a cord-type injected polyurethane sealing gasket around the entire frame.
- Reversible opaque door with opening above 110º, equipped with a keyed security lock and integrated protective cover against weather impacts.
- For cable passage, holes must be made in the desired location and diameter, and the use of cable glands is recommended to maintain maximum watertightness.
Related products
More info

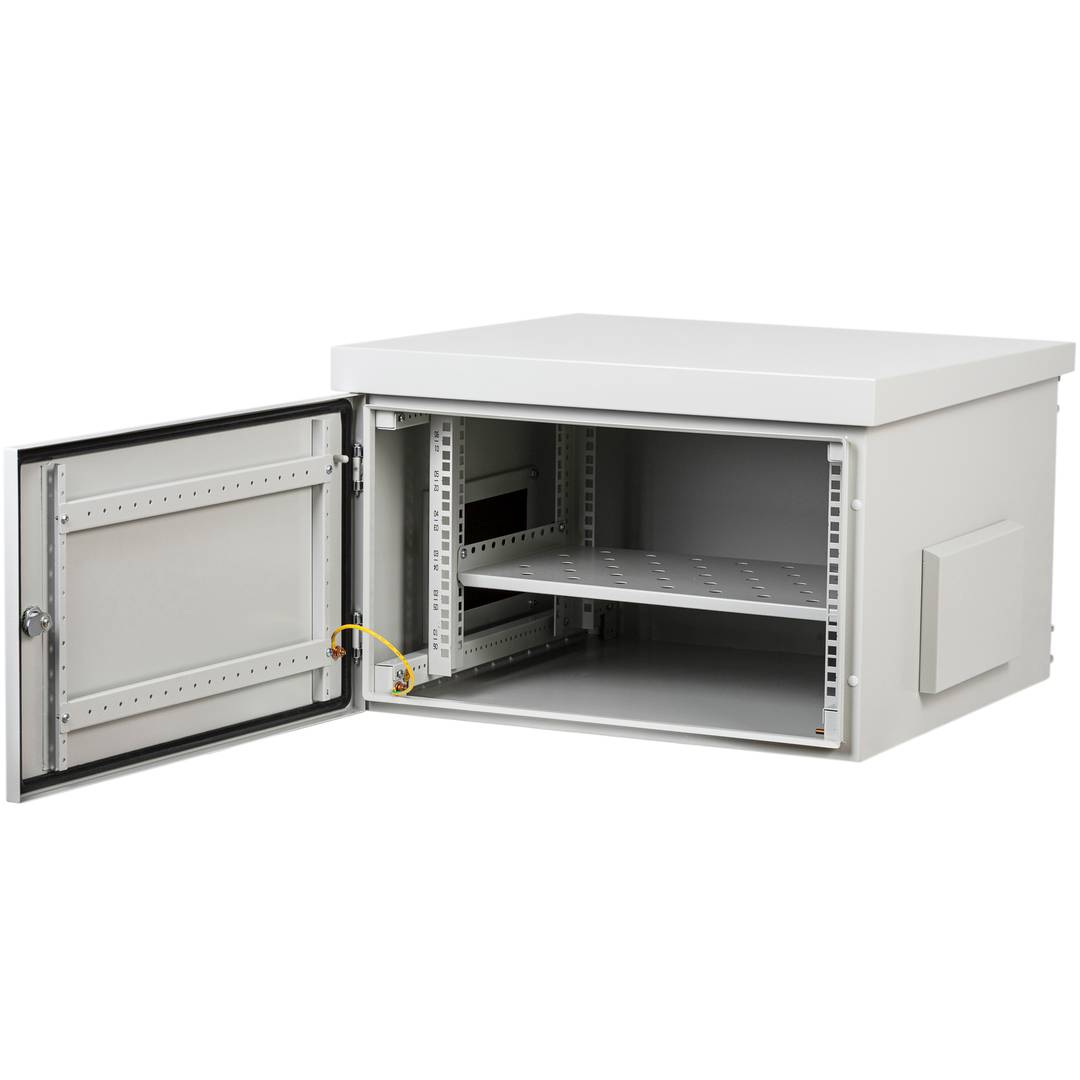

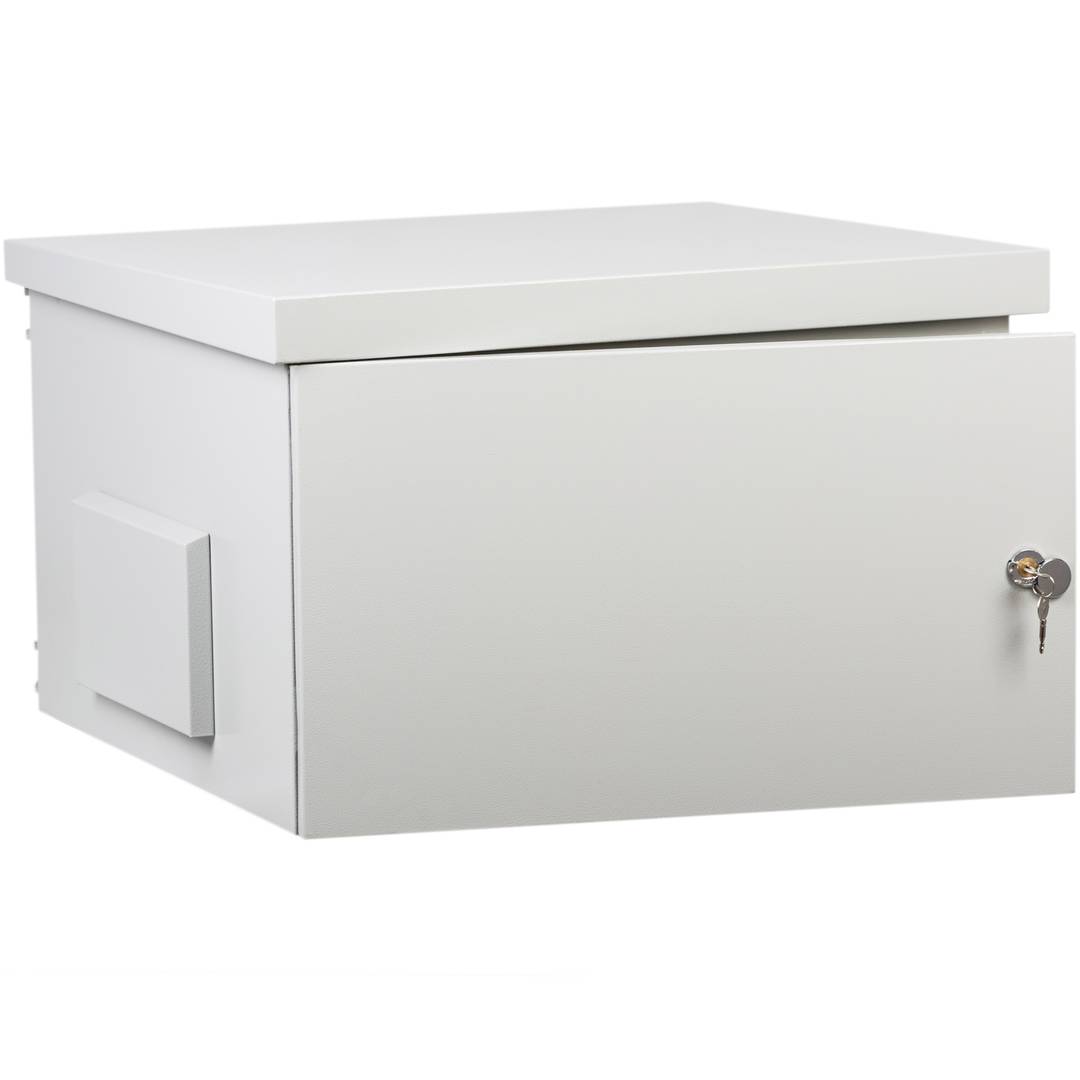

The SOHORack GO 19" rack cabinet is specifically designed for outdoor installations. This 15U wall-mounted model measures 600 x 600 x 815 mm (width x depth x height). Constructed from high-strength stainless steel, it features a robust welded internal structure capable of supporting up to 100 kg of static wall load and guaranteeing complete weather protection thanks to its IP55 rating. Designed to house cabling, telecommunications, IT, and industrial equipment in outdoor environments. It is supplied fully assembled and ready for installation.
Specs- Structure made entirely of high-strength stainless steel, which guarantees superior immunity against corrosion and rust in outdoor environments.
- Professional finish with RAL 7035 polyester paint with high resistance to UV rays and weather degradation (complies with UNE-EN 62208 standard).
- IP55 protection rating guaranteed by a cord-type injected polyurethane sealing gasket around the entire frame.
- Reversible opaque door with opening above 110º, equipped with a keyed security lock and integrated protective cover against weather impacts.
- For cable passage, holes must be made in the desired location and diameter, and the use of cable glands is recommended to maintain maximum watertightness.

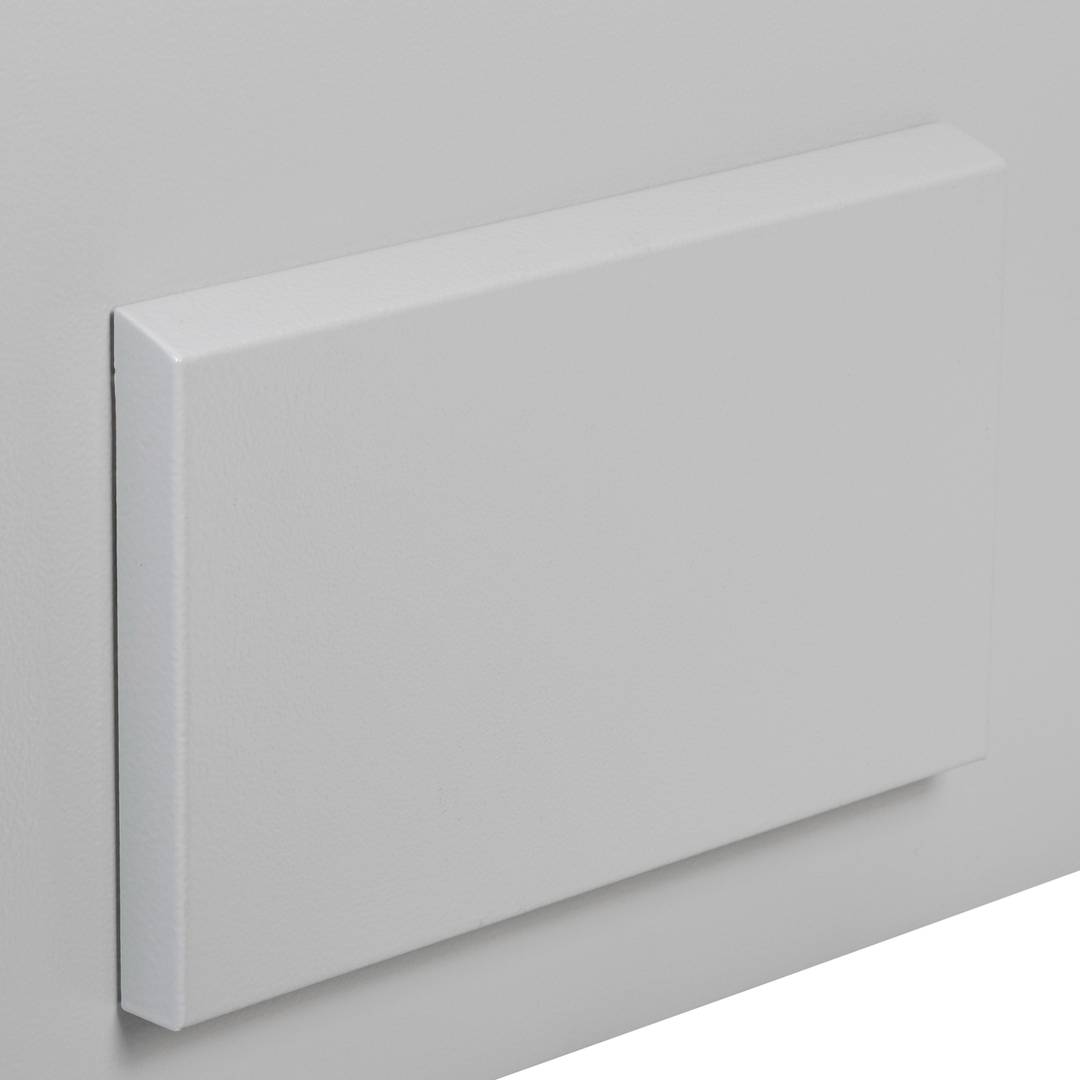

- Passive ventilation system using side windows equipped with internal insect-proof protective mesh.
- Ideal for industrial applications, telecommunications, video surveillance and automation.

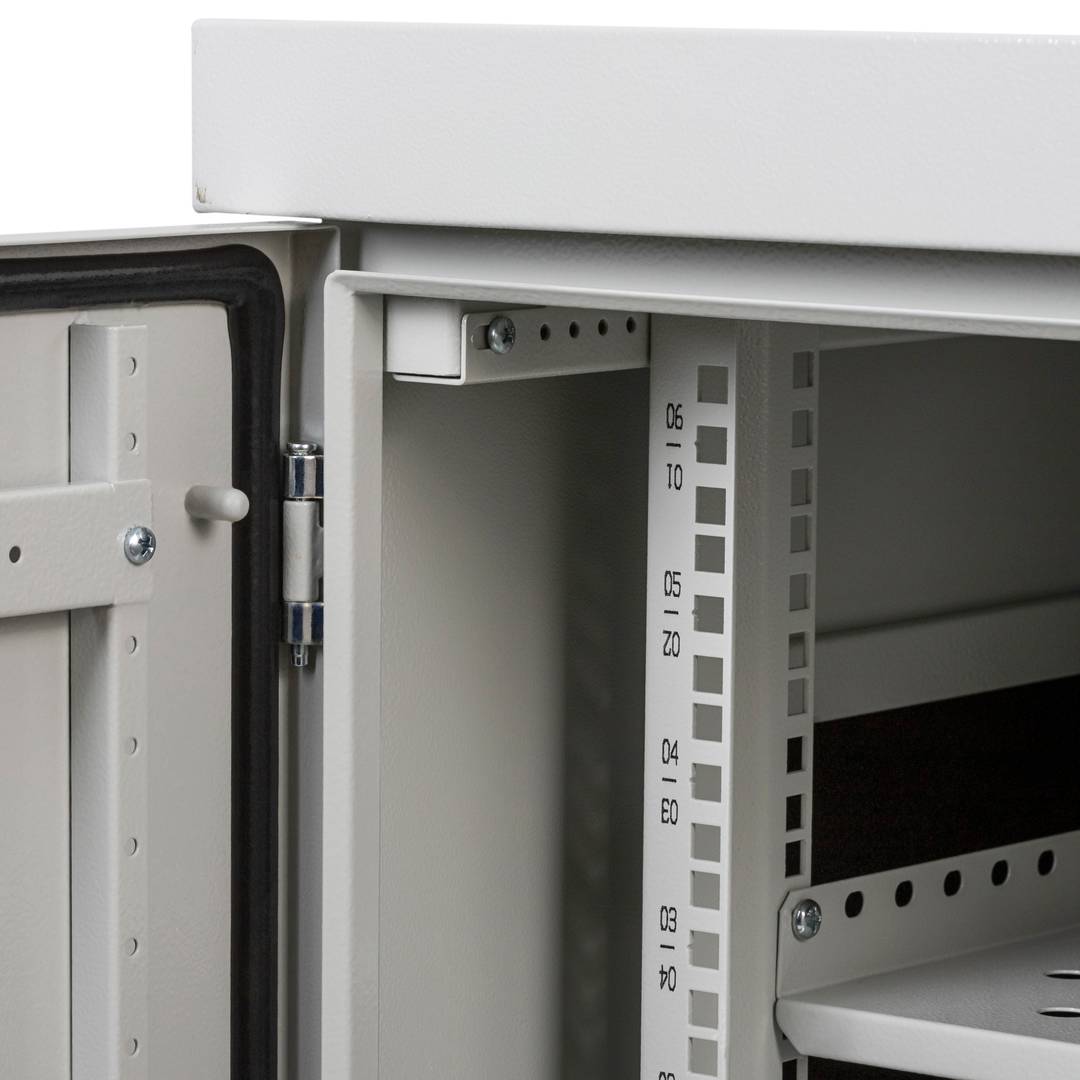

- High-rigidity welded metal internal structure optimized for a maximum static load of 100 kg, wall mounted.

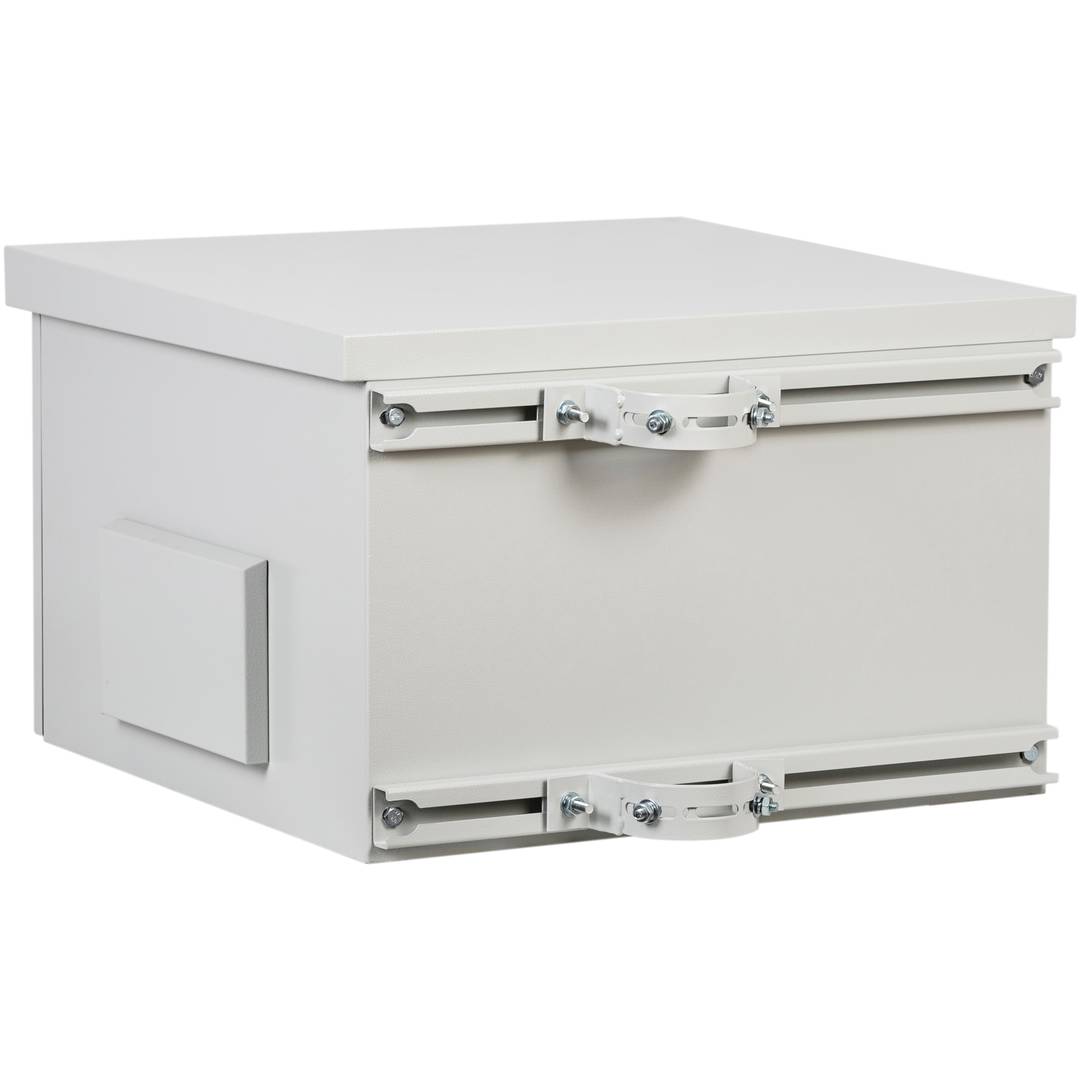

- Secure attachment to facades or structural supports using mounting hooks integrated into the back panel of the cabinet.
- The cabinet is delivered fully assembled, reducing the time and effort required for on-site installation.
- Overall dimensions: 600 mm (width) x 600 mm (depth) x 815 mm (height).
- It meets international manufacturing and mechanical resistance standards for outdoor electrical enclosures.
- Gross Weight: 41.0 kg
- Product size (width x depth x height): 80.0 x 63.0 x 93.0 cm
- Number of packages: 1
- Packages size: 80.0 x 63.0 x 93.0 cm
Technical terms
- RACK 19
- IP Protection
- Rack unit (U)
- Polyurethane (PU or PUR)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
