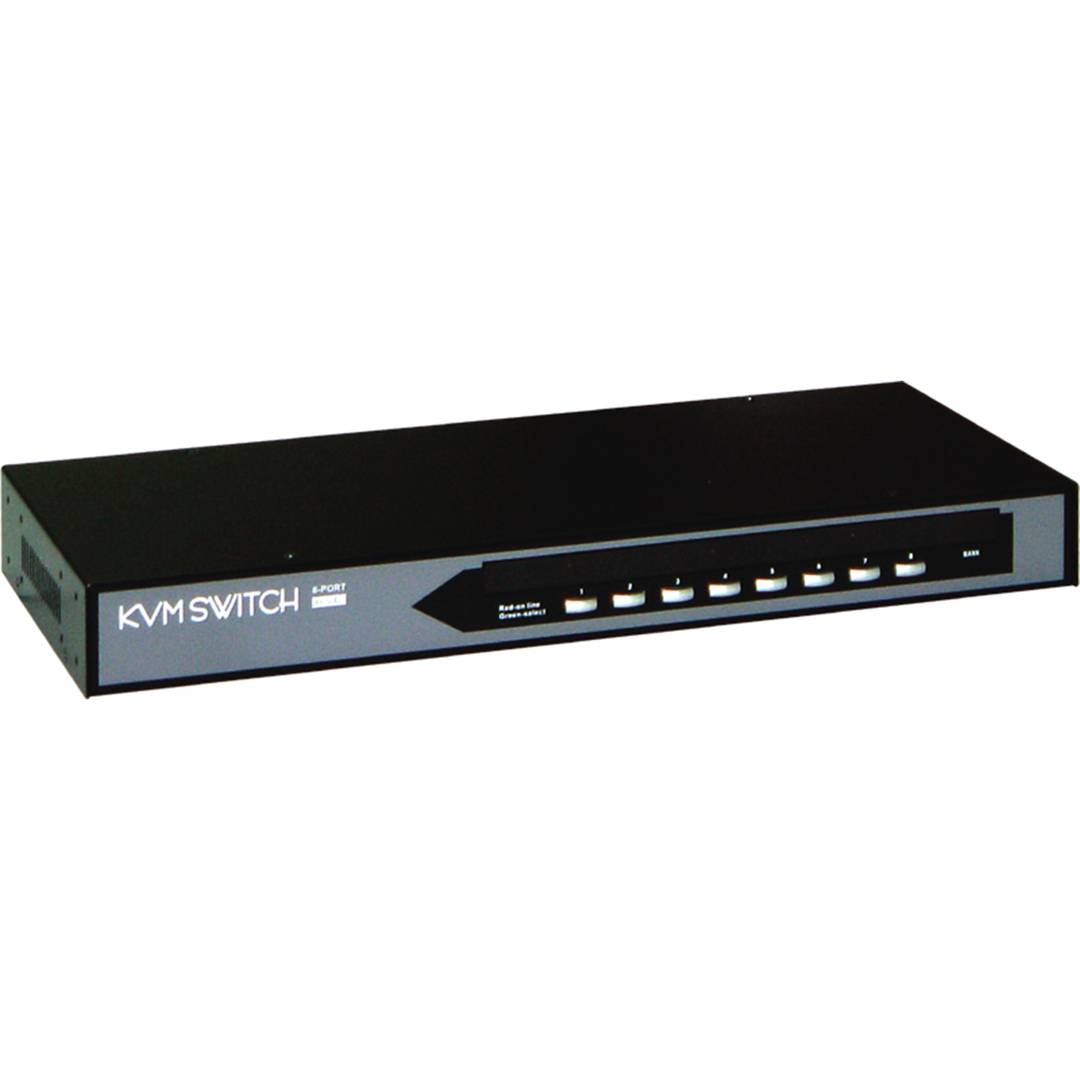

1U Rack Uniclass KVM Switch PS2 VGA OSD 1KVM to 8CPU
REF: UN045
Specifications
  • 8-port CPU switch with professional features that can be installed in desktop format or in a 19 "rack cabinet, incorporates OSD (Control On Screen Display) and can be chained in cascade to other switches in the same family (references #UN44 or #UN46) to achieve a maximum of 241 ports Robust, mounted in metal housing and with push buttons and LED indicators on the front panel for easy control of themutator.



  • Specifications
    - KVM Switch PS2 8 ports with OSD and chainable with other switches.

  • - Format 19 "and height 1U.

  • - For the 8 computers it has connectors 2xMinidin6-Female (keyboard/mouse) and 1xHD15-Female (VGA).

  • - For the control console it has connectors 2xMinidin6-Female (keyboard/mouse) and 1xHD15-Female (VGA).
More info
PVP 133.92
30.80
Price including VAT: 30.80
PVD 117.69
27.07
2 years
warranty
14 days
returns
OUTLET

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • 8-port CPU switch with professional features that can be installed in desktop format or in a 19 "rack cabinet, incorporates OSD (Control On Screen Display) and can be chained in cascade to other switches in the same family (references #UN44 or #UN46) to achieve a maximum of 241 ports Robust, mounted in metal housing and with push buttons and LED indicators on the front panel for easy control of themutator.



  • Specifications
    - KVM Switch PS2 8 ports with OSD and chainable with other switches.

  • - Format 19 "and height 1U.

  • - For the 8 computers it has connectors 2xMinidin6-Female (keyboard/mouse) and 1xHD15-Female (VGA).

  • - For the control console it has connectors 2xMinidin6-Female (keyboard/mouse) and 1xHD15-Female (VGA).

More info

8-port CPU switch with professional features that can be installed in desktop format or in a 19 "rack cabinet, incorporates OSD (Control On Screen Display) and can be chained in cascade to other switches in the same family (references #UN44 or #UN46) to achieve a maximum of 241 ports Robust, mounted in metal housing and with push buttons and LED indicators on the front panel for easy control of themutator.


Specifications
- KVM Switch PS2 8 ports with OSD and chainable with other switches.
- Format 19 "and height 1U.
- For the 8 computers it has connectors 2xMinidin6-Female (keyboard/mouse) and 1xHD15-Female (VGA).
- For the control console it has connectors 2xMinidin6-Female (keyboard/mouse) and 1xHD15-Female (VGA).
- Allows to chain up to 16 refere switches#UN44 or #UN46 to get a maximum of 241 ports (16 x #UN46).
- For the chaining of switches, the console port of the parent switch and the port-1 of the child switch are used.
- Port selection by push button or combination of keys.
- Programmable port scanning from 5 to 99 seconds.
- VGA resolution of 1920x1440 (max.).
- Size: 410 x 165 x 44.5 mm.
- Weight: 2200 g.
- AlFeeding through 9VDC power supply (included).
- Supports DOS, Windows and Linux environments.
- Includes keyboard cable, mouse and monitor to link this switch with others from the same family.
- The cable range #CC0x is recommended.
  • Gross Weight: 3.37 kg
  • Number of packages: 1

Technical terms

  • RACK 19
  • VGA
  • MiniDin
  • KVM
  • Rack unit (U)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
