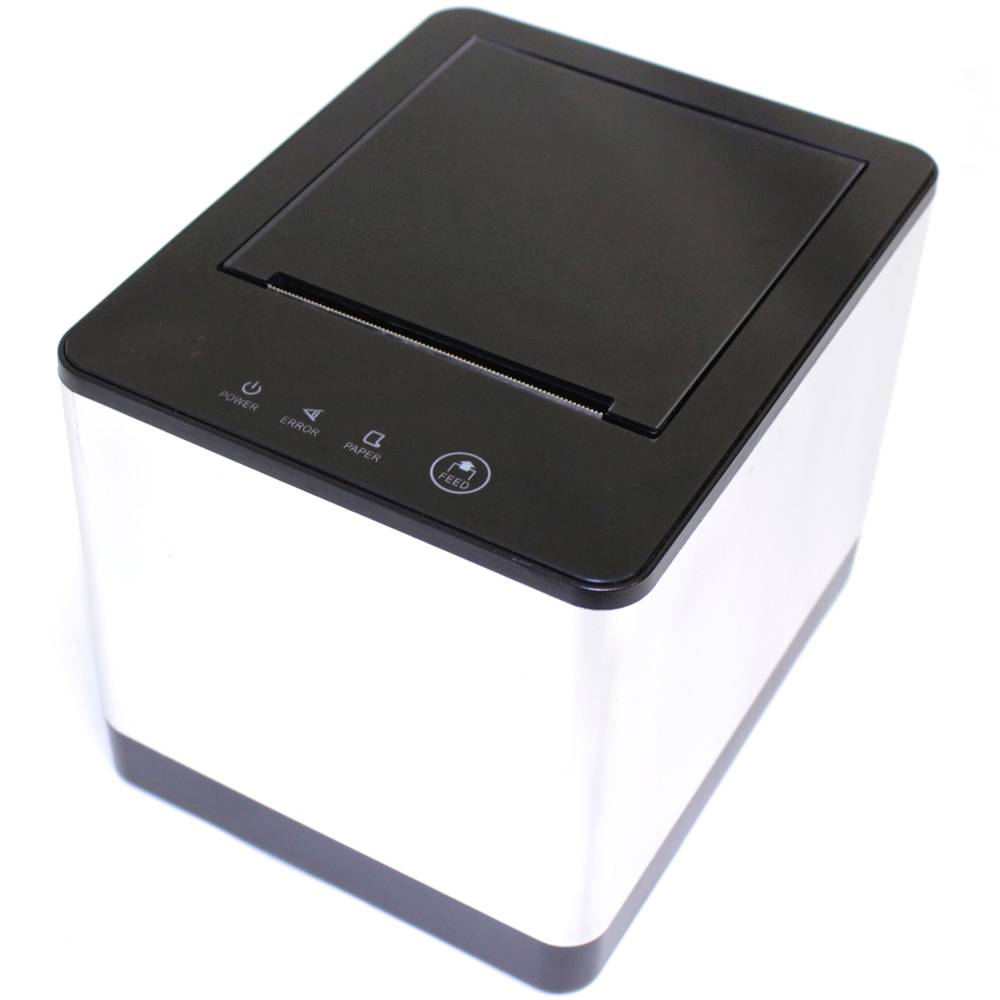

80mm thermal printer STP80 PARALLEL reacondicianada

REF: SA0B6

Product from return equal to our reference # BA73. Fully functional

Original product specifications

  • Web width of 80 mm.
  • Printer Size: 138 x 173 x 133 mm.
  • Elegant printercentral body with aluminum and black plastic top of glass imitation.
  • Print Speed: 120 mm/s.
  • Automatic or manual paper cutting (user configurable).

Go back to the new product simple_arrow_right

Your price

PVP

122.18

You save 22.99€

Price including VAT: 99.19

PVD

99.19
You save 22.99€


Why different prices? Which one is mine? Check rate type

In stock

Related products

Keywords

Did not find what you were looking for? These topic could help you

Related products

Keywords

Did not find what you were looking for? These topic could help you

12/09/2019 3:57 a.m.
https://cablematic.com/en/products/80mm-thermal-printer-stp80-parallel-reacondicianada-SA0B6/

80mm thermal printer STP80 PARALLEL reacondicianada

REF: SA0B6

Product from return equal to our reference # BA73. Fully functional

Go back to the new product simple_arrow_right

Your price

PVP

122.18

You save 22.99€

Price including VAT: 99.19

PVD

99.19
You save 22.99€


Why different prices? Which one is mine? Check rate type

In stock

Original product specifications

  • Web width of 80 mm.
  • Printer Size: 138 x 173 x 133 mm.
  • Elegant printercentral body with aluminum and black plastic top of glass imitation.
  • Print Speed: 120 mm/s.
  • Automatic or manual paper cutting (user configurable).

Original product info

Thermal Printer Thermal Paper Roll 80mm wide with automatic paper cutting. Printer for printing tickets in POS (point of sale). Model with parallel interface and RJ11 (cash drawer for connection that has this interface).

Specs
  • Web width of 80 mm.
  • Printer Size: 138 x 173 x 133 mm.
  • Elegant printercentral body with aluminum and black plastic top of glass imitation.
  • Print Speed: 120 mm/s.
  • Automatic or manual paper cutting (user configurable).
  • ANK characters Resolution: 12x24 and 9x17.
  • Effective printing width: 72 mm.
  • ASCII characters and GB2312-80 (Chinese).

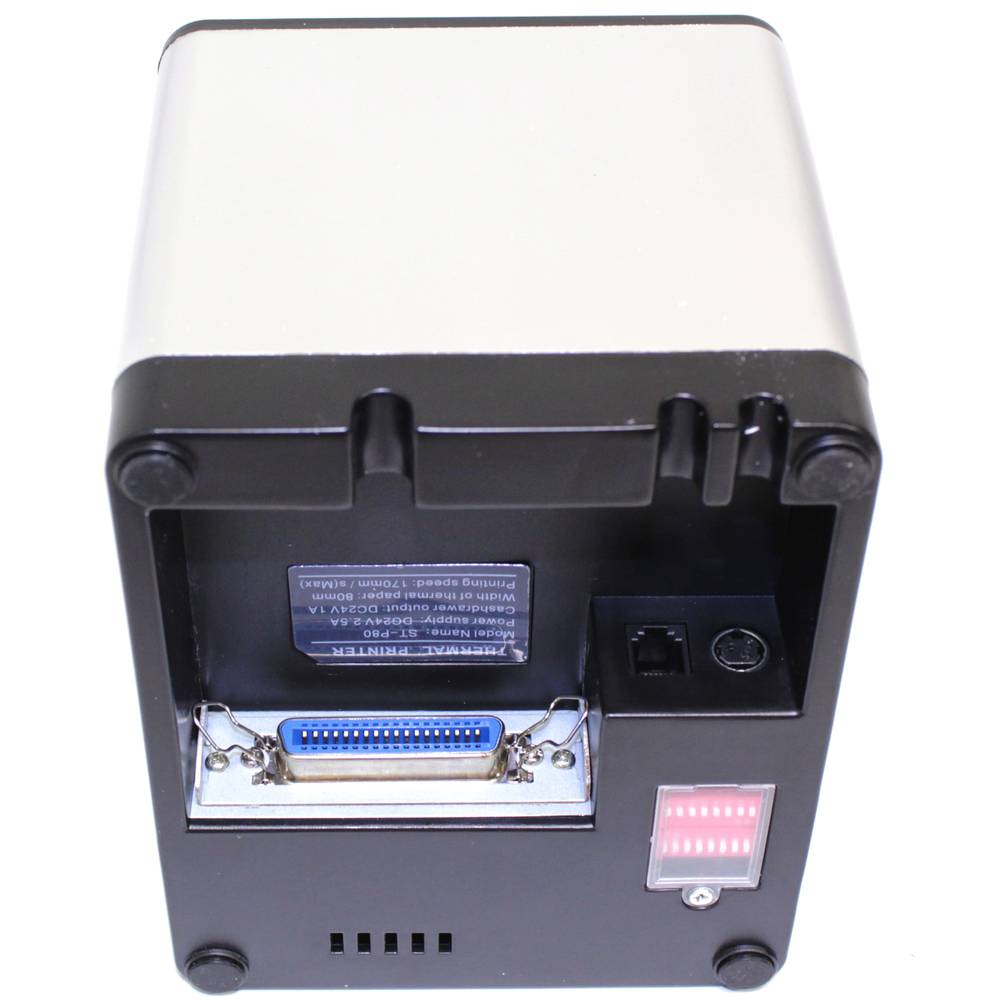

  • Parallel Interface. Centronics 36pin female connector. Includes cable parallel centronics 36pin male to DB25 male.
  • RJ11 Interface. RJ11 female connector for connecting a cash drawer (12 VDC at 1 A).
  • Commands Supported print POS/ESC.
  • Thermal paper width 79 mm maximum diameter and 80 mm high.

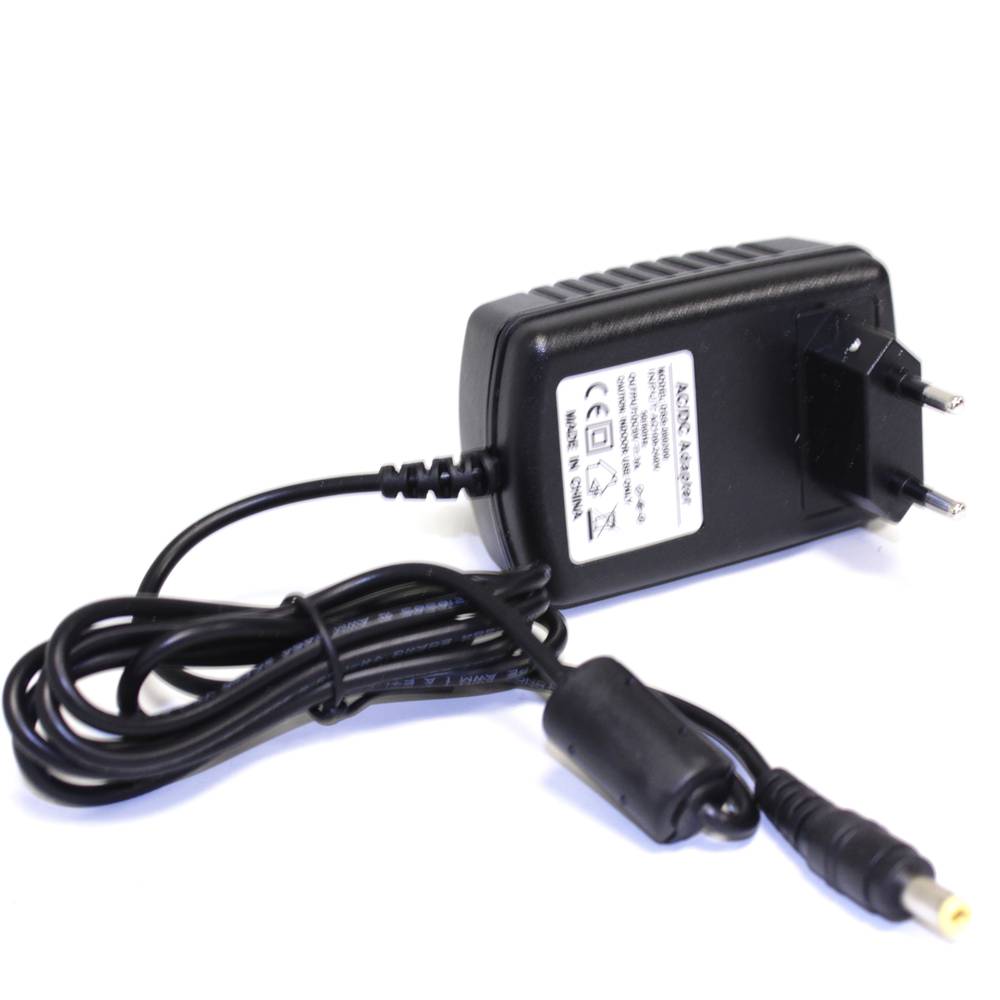

  • Power supply: 24 VDC. Power source is supplied 2.5 A.
  • TPH: 100km
  • FEED touch button on the front.

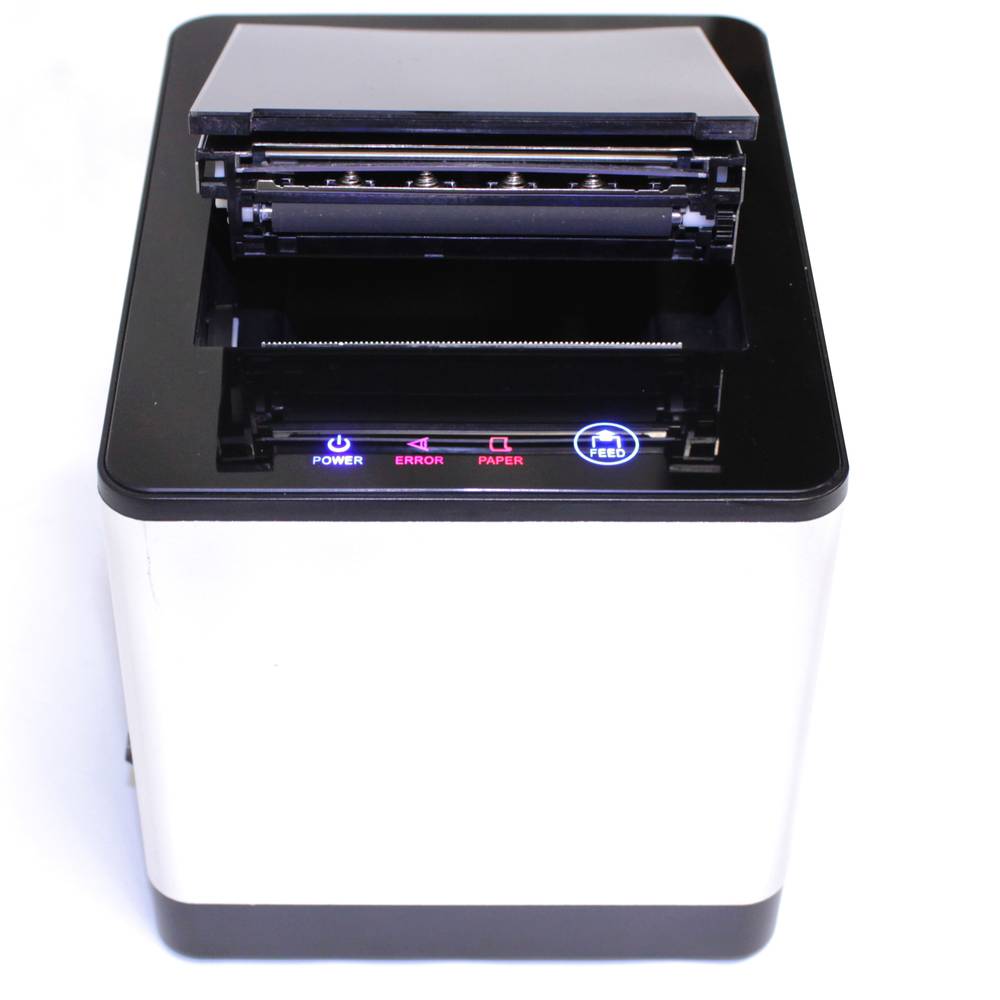

  • LEDs POWER, ERROR and PAPER on the front.
  • Includes thermal paper roll 78 mm sample.
  • Gross Weight: 2.37 kg
  • Number of packages: 1

Videos

Technical terms

  • Paper format
Paper format
We can define the paper formats according to their measures and these are defined in ISO standard 216 one, which in turn includes the standard DIN 476. This applies in most of the world. I there are plenty of measures for the role, but the most used are the Serie A and to a lesser extent Serie B.

In Serie A, the most widely used format is the A4 (210x297mm) or also called "sheet" used in most printers and fotocopiadoras.

Series B is defined for intermediate sizes Series A. For example, the B4 is the intermediate size between A3 and A4.
