Photograph Panel 1200LED 72W 3200K and 5400K with bi-angle visors
REF: JL014
Specifications
  • Square flat panel of 405x305mm. Approximate 50mm background.
  • It has spout of 5/8 "universal to fix to support.
  • Support that allows the orientation of the panel.
  • Panel of 1200 LEDs.

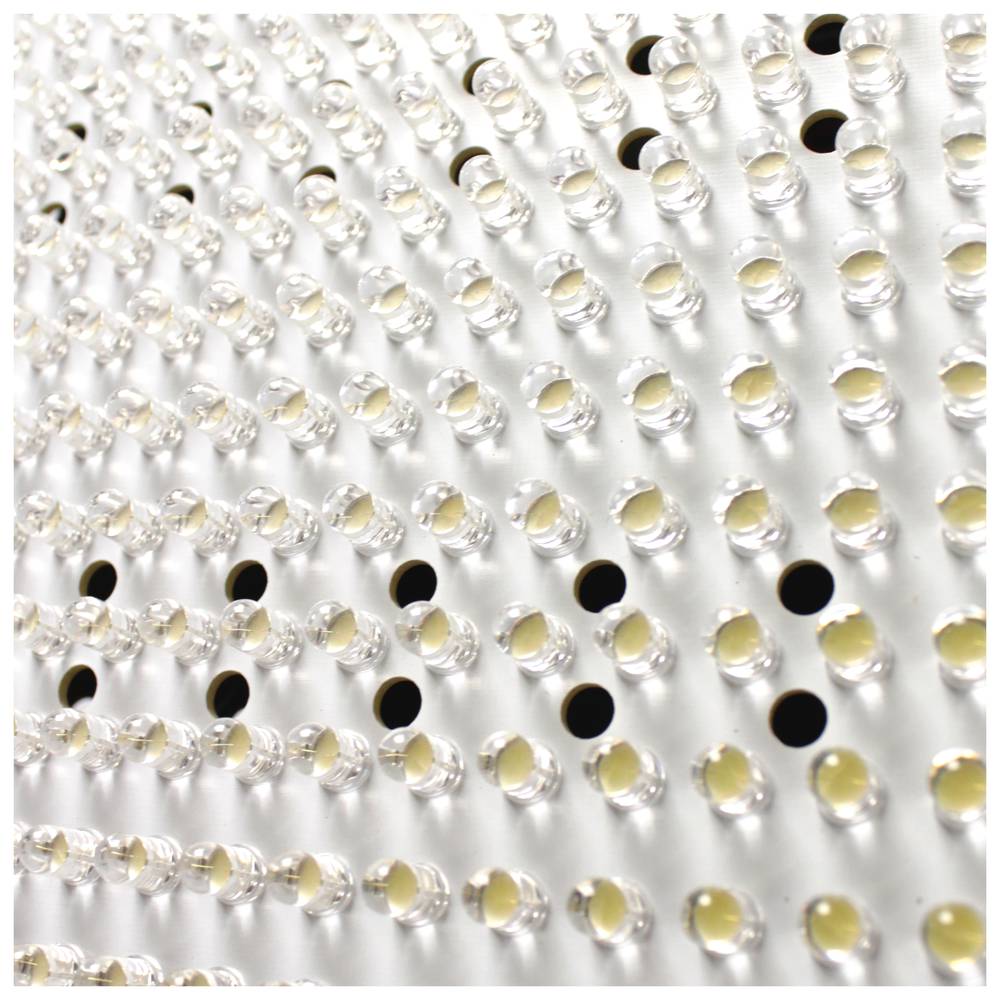

  • LED bi-angle technology. The panel incorporates 600 LEDs of angle 15 ° and 600 LEDs of angle 45 °. The combination of both types of LEDS with different light intensities, allows con Set the opening angle of the light beam. It has a potentiometer for the regulation of the beam angle.
play_button Watch video
More info
PVP 267.84
120.53
Price including VAT: 120.53
PVD 235.41
105.93
2 years
warranty
14 days
returns
OUTLET

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • Square flat panel of 405x305mm. Approximate 50mm background.
  • It has spout of 5/8 "universal to fix to support.
  • Support that allows the orientation of the panel.
  • Panel of 1200 LEDs.
  • LED bi-angle technology. The panel incorporates 600 LEDs of angle 15 ° and 600 LEDs of angle 45 °. The combination of both types of LEDS with different light intensities, allows con Set the opening angle of the light beam. It has a potentiometer for the regulation of the beam angle.

More info

Focus of study of continuous light based on a panel of LEDs. It is a matrix of 1200 LEDs mounted in a black metal casing and with a universal 5/8 "spigot fixation.It allows to regulate the light intensity through a potentiometer.It has side visors that allow to direct the light. color of 5400 degrees Kelvin that can be regulated by the filters provided.

Specsifications
  • Square flat panel of 405x305mm. Approximate 50mm background.
  • It has spout of 5/8 "universal to fix to support.
  • Support that allows the orientation of the panel.
  • Panel of 1200 LEDs.
  • LED bi-angle technology. The panel incorporates 600 LEDs of angle 15 ° and 600 LEDs of angle 45 °. The combination of both types of LEDS with different light intensities, allows con Set the opening angle of the light beam. It has a potentiometer for the regulation of the beam angle.
  • It has a potentiometer for the regulation of the light intensity of the panel.
  • Power: 72W.
  • Lighting (lux): 15000 (1m), 4600 (2m), 2000 (3m), 1100 (4m) and 720 (5m).
  • Lighting (lumens): 9500

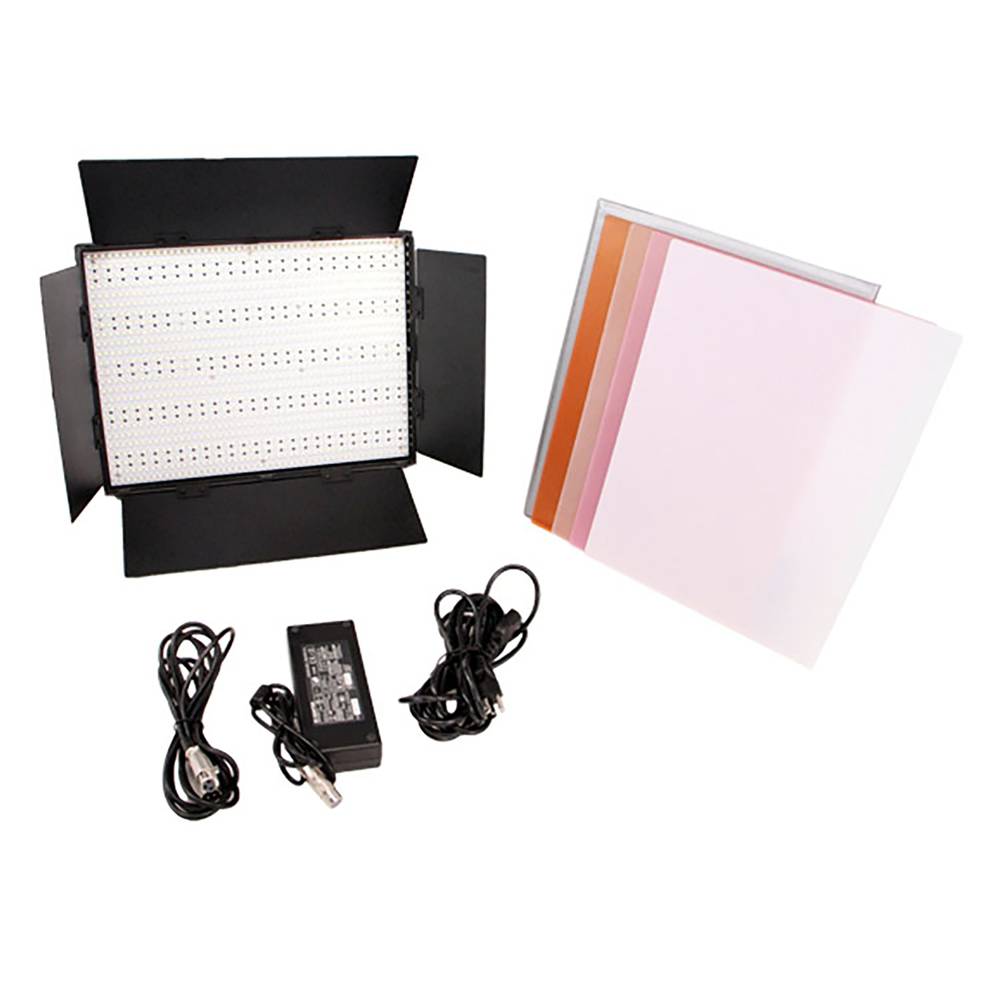

  • External power supply from 100 to 240 VAC to 15 V is suppliedDC (8A) and bipolar electric cable.
  • It has ON/OFF switch and potentiometer for the regulation of light intensity.

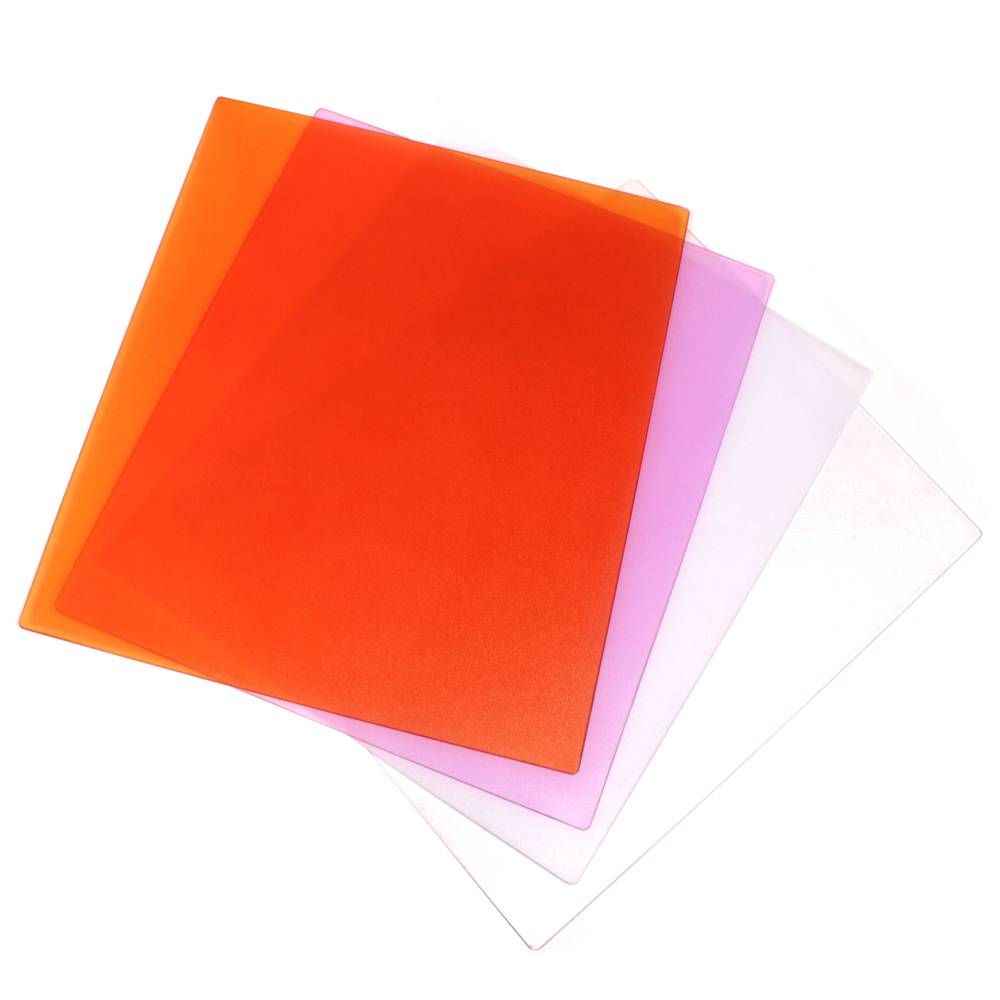

  • 3 filters are supplied: white diffuser, orange (change from 5600K to 3200 K) and magenta (suitable for portraits). They are presented in a case.
  • The filters are inserted in the front part of the panel at the top.

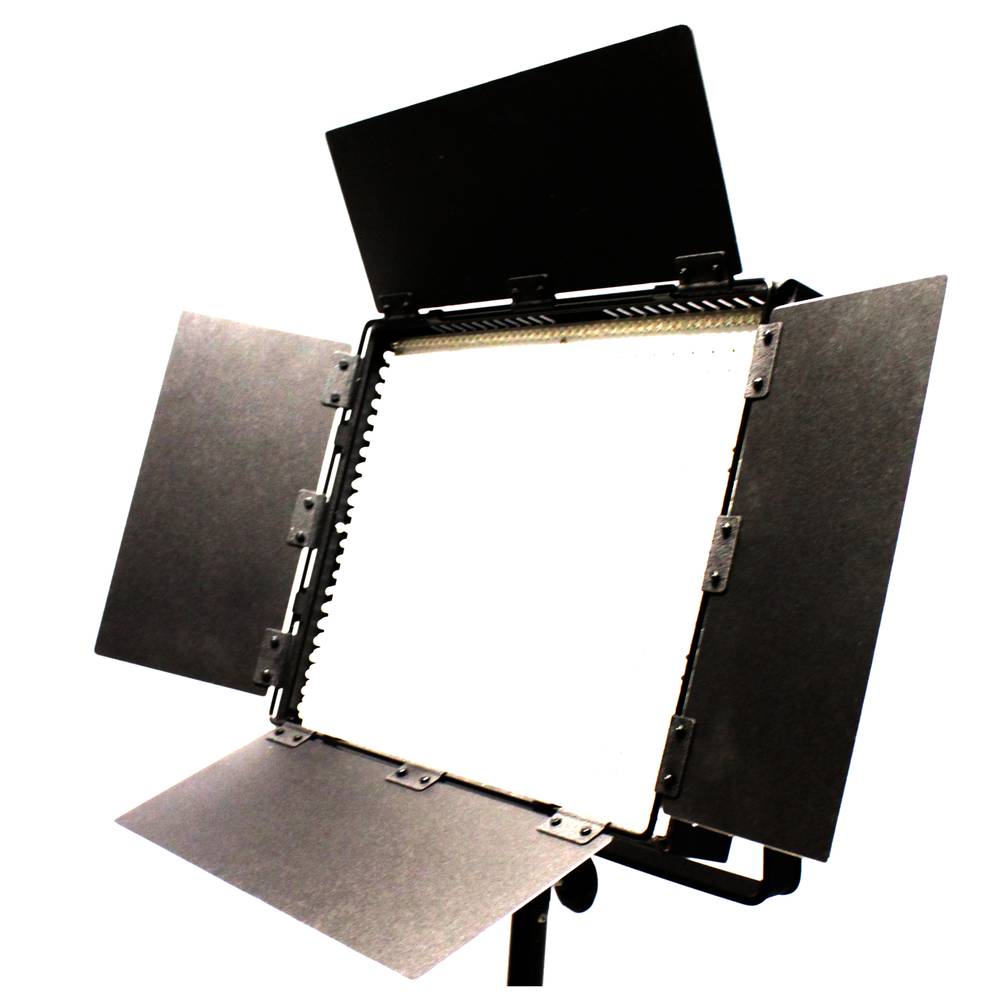

  • Model with adjustable visors that allow orientationof the light.

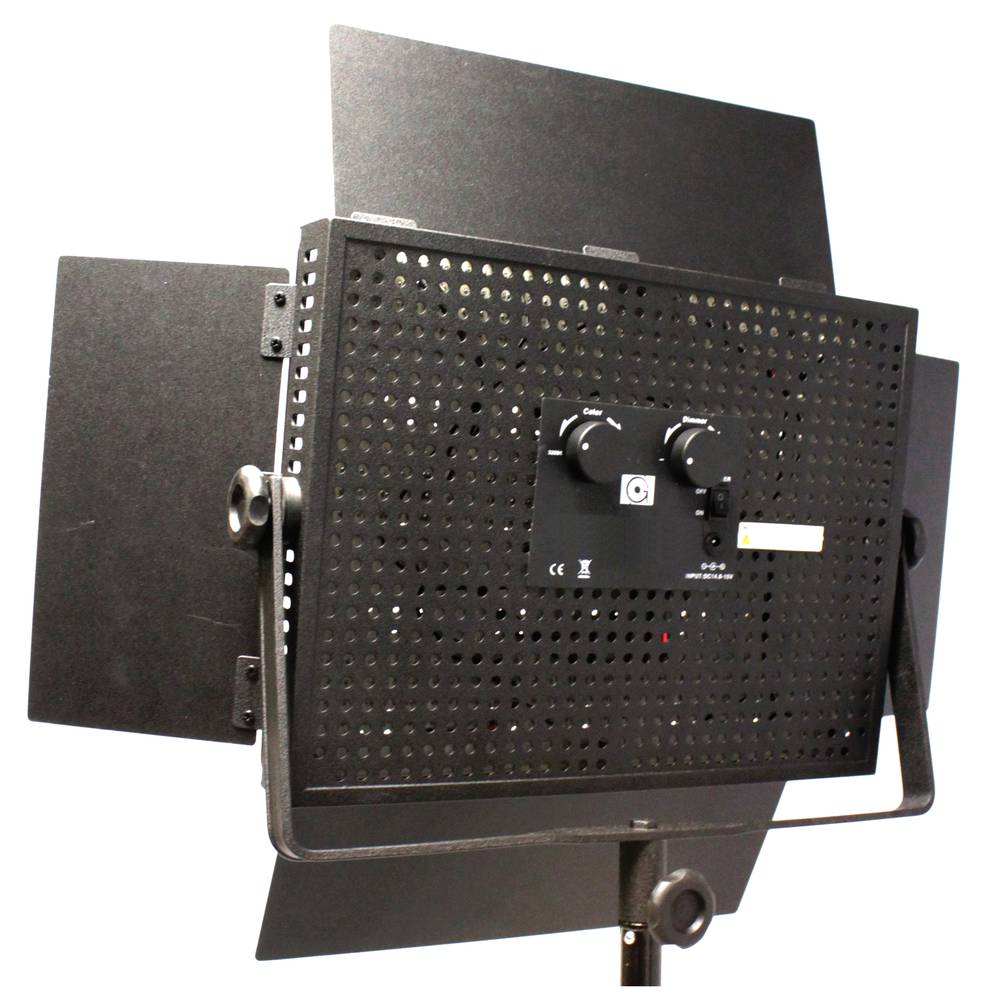

  • On the back it has a REMOTE connector (a 5-pin male aviation) for the connection of a remote control. This remote control allows the configuration of the light intensity. There are two models: with cable (model #JL21) and wireless (model #JL22).
  • Gross Weight: 5.9 kg
  • Number of packages: 1

Videos

play_button Watch video

Technical terms

  • Minijack 3.5
  • LED
  • Lumen
  • Lux
  • VDC
  • Electrical cable sections
  • Color temperature (K)
  • Colors of electric cables
  • Colors insulating tape
  • VAC
Minijack 3.5
The minijack 3.5mm is a popular connector used primarily for headphones although its functionality is much more varied.

It consists of a maximum of three connecting parts being the largest so-called mass or negative polarity and two of smaller size and located farther end of the connector, called living or positive that correspond to each channel, such three-part plug can transmit signals in two different channels, also known as stereo signals. It also exists in a mono minijack but version composed of only two parts, a body and a living or positive.
