Server rack cabinet 19 inch 15U 600x600x770mm swivel wallmount SOHORack by RackMatic

REF: WK045

Specifications

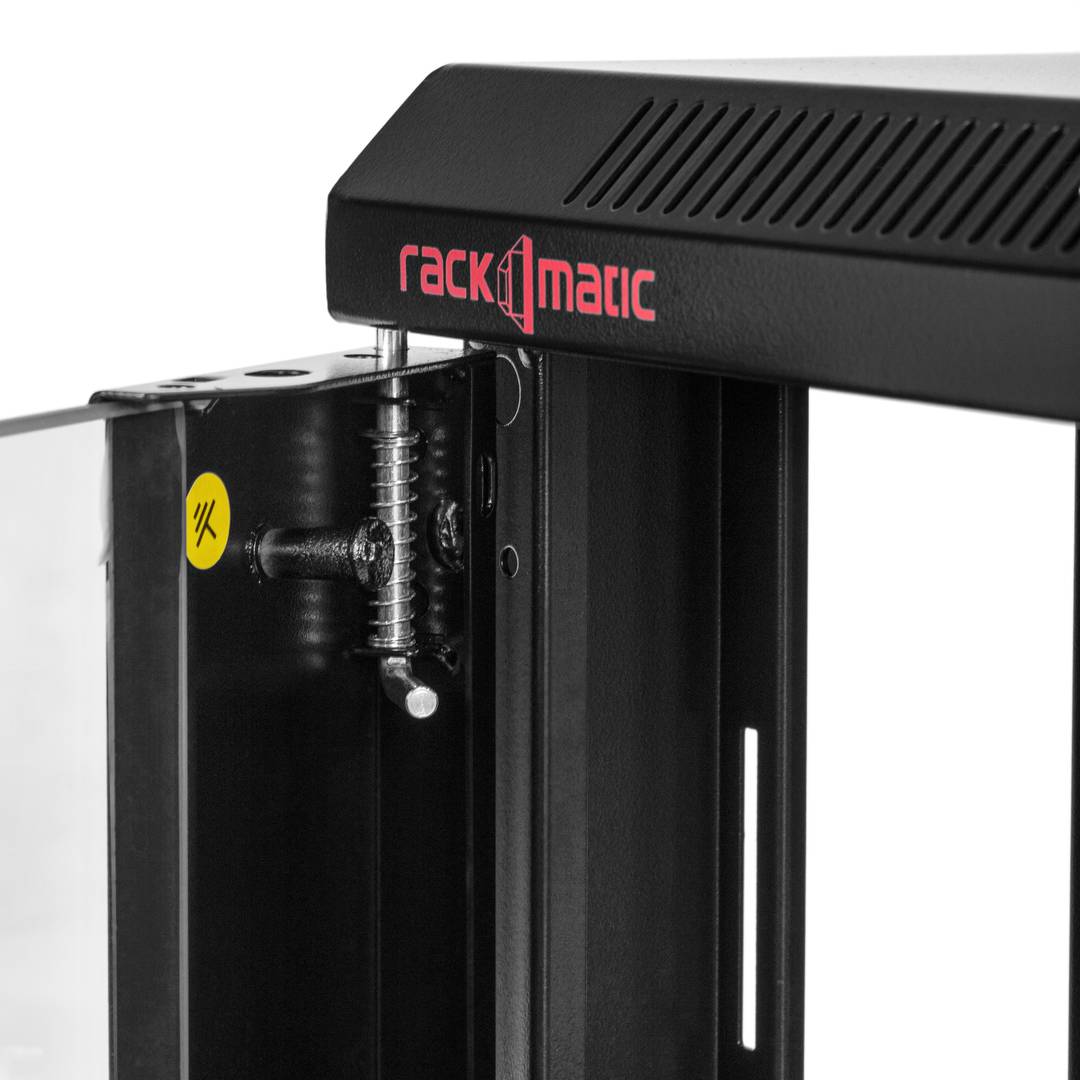

  • Wardrobe that pivots with respect to the wall, by system of strong hinges. This allows access to the back of the peripherals. Background of this part of 500 mm.
  • The interior frames (front and rear) are configurable in depth, although by default they are supplied installed at a distance of 270 mm between them. The distance from the front frame to the bottom of the cabinet (useful bottom) could reach up to 480 mm, advancing the front frame as much as possible. This frame also has cable glands (top and bottom cover).
  • Fixation frame. Framework on which the cabinet pivots and which is fixed to the wall. For this purpose, it has holes in the back plate. This frame also has cable glands (top and bottom cover) and frame rack 19 "fixed that can be used as a rear frame or as a vertical frame to attach accessories 19" shallow rack (eg: power strips, patch pannel, fans backs, etc.).
  • It has lock to block the pivoting of the closet. 100 mm frame background. It supports a maximum weight of 40 Kg in installed accessories.

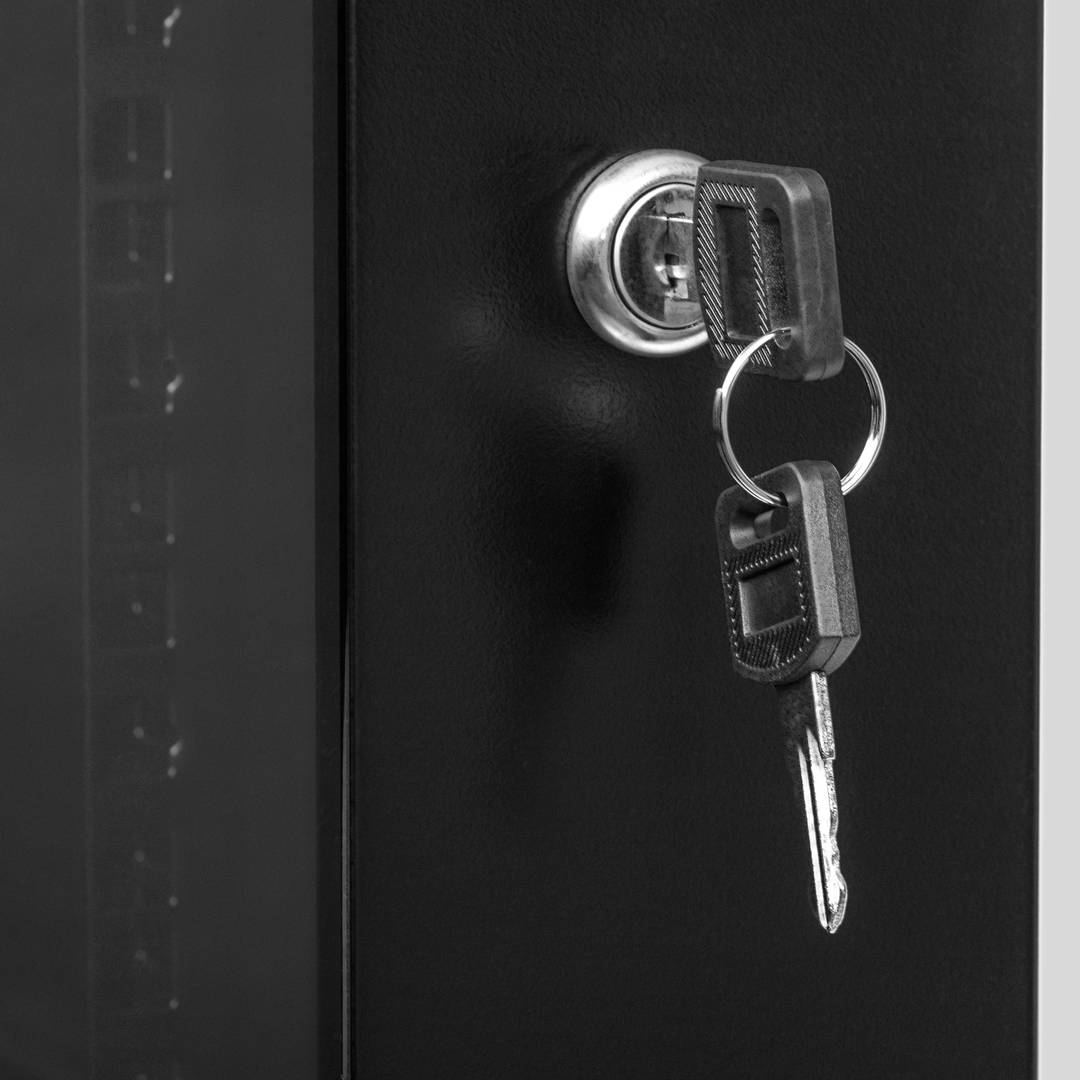

  • Wardrobe with frame that is fixed on the wall and allows pivoting the entire entire wall cabinet, making peripherals accessible from the rear. The frame has a key for more security. Opening of the cabinet of 120 degrees with respect to the wall.

Your price

PVP

201.75

Price including VAT: 201.75

PVD

168.91


Why different prices? Which one is mine? Check rate type

Shipping costs: 85,81 *
GB-SE1 1ES
04/04/2020 6:55 a.m.
https://cablematic.com/en/products/server-rack-cabinet-19-inch-15u-600x600x770mm-swivel-wallmount-sohorack-by-rackmatic-WK045/

Server rack cabinet 19 inch 15U 600x600x770mm swivel wallmount SOHORack by RackMatic

REF: WK045

Your price

PVP

201.75

Price including VAT: 201.75

PVD

168.91


Why different prices? Which one is mine? Check rate type

Shipping costs: 85,81 *
GB-SE1 1ES

Specifications

  • Wardrobe that pivots with respect to the wall, by system of strong hinges. This allows access to the back of the peripherals. Background of this part of 500 mm.
  • The interior frames (front and rear) are configurable in depth, although by default they are supplied installed at a distance of 270 mm between them. The distance from the front frame to the bottom of the cabinet (useful bottom) could reach up to 480 mm, advancing the front frame as much as possible. This frame also has cable glands (top and bottom cover).
  • Fixation frame. Framework on which the cabinet pivots and which is fixed to the wall. For this purpose, it has holes in the back plate. This frame also has cable glands (top and bottom cover) and frame rack 19 "fixed that can be used as a rear frame or as a vertical frame to attach accessories 19" shallow rack (eg: power strips, patch pannel, fans backs, etc.).
  • It has lock to block the pivoting of the closet. 100 mm frame background. It supports a maximum weight of 40 Kg in installed accessories.
  • Wardrobe with frame that is fixed on the wall and allows pivoting the entire entire wall cabinet, making peripherals accessible from the rear. The frame has a key for more security. Opening of the cabinet of 120 degrees with respect to the wall.

More info

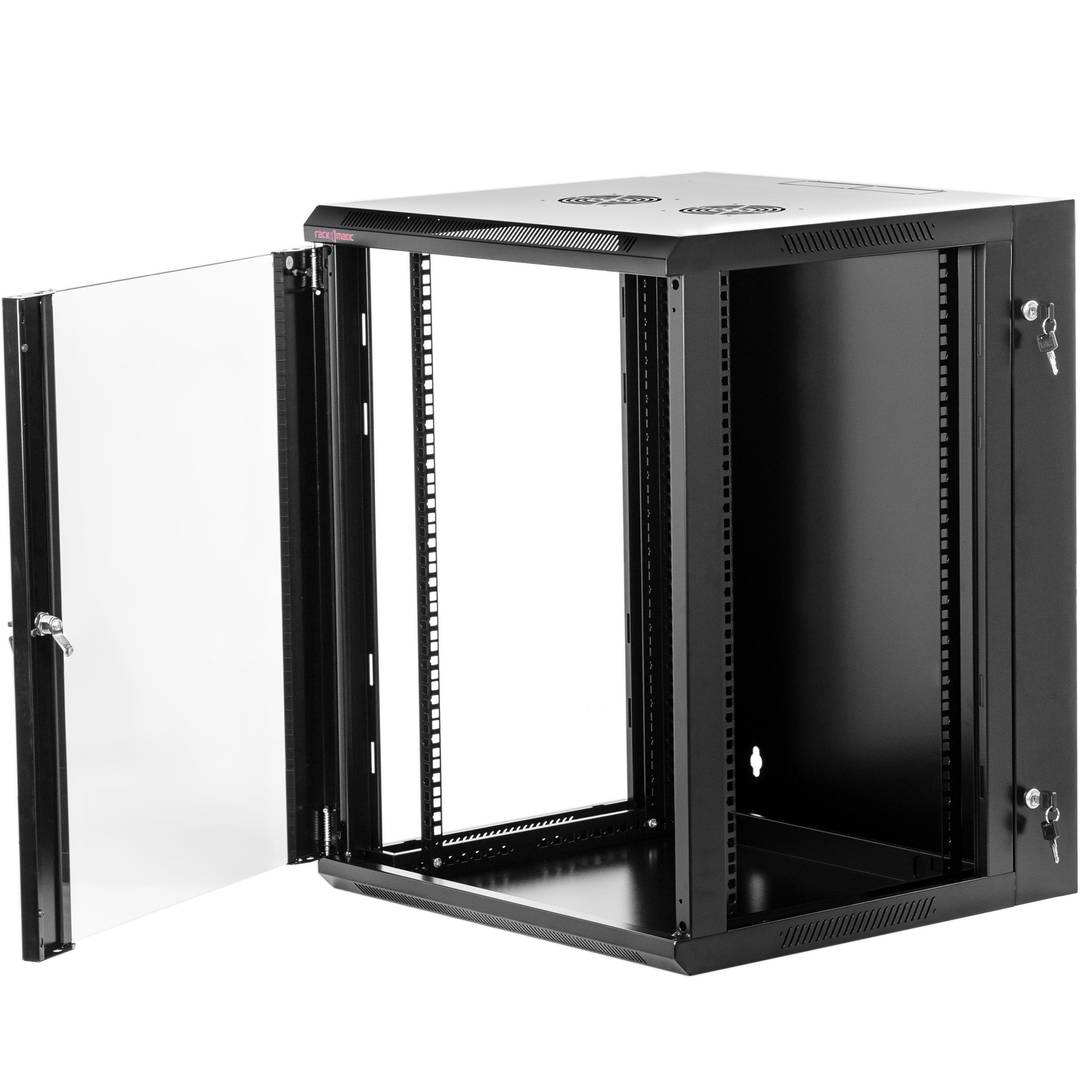

19 "RackMount RackMatic SOHORack Wall Cabinet Pivot cabinet with respect to the wall Height of rack peripherals of 15U and external size in mm of 600 (A) x 600 (F) x 770 (H). It is divided into two parts: Pivoting Cabinet and Wall Fixing Frame.

Specifications
  • Wardrobe that pivots with respect to the wall, by system of strong hinges. This allows access to the back of the peripherals. Background of this part of 500 mm.
  • The interior frames (front and rear) are configurable in depth, although by default they are supplied installed at a distance of 270 mm between them. The distance from the front frame to the bottom of the cabinet (useful bottom) could reach up to 480 mm, advancing the front frame as much as possible. This frame also has cable glands (top and bottom cover).
  • Fixation frame. Framework on which the cabinet pivots and which is fixed to the wall. For this purpose, it has holes in the back plate. This frame also has cable glands (top and bottom cover) and frame rack 19 "fixed that can be used as a rear frame or as a vertical frame to attach accessories 19" shallow rack (eg: power strips, patch pannel, fans backs, etc.).
  • It has lock to block the pivoting of the closet. 100 mm frame background. It supports a maximum weight of 40 Kg in installed accessories.
  • Wardrobe with frame that is fixed on the wall and allows pivoting the entire entire wall cabinet, making peripherals accessible from the rear. The frame has a key for more security. Opening of the cabinet of 120 degrees with respect to the wall.

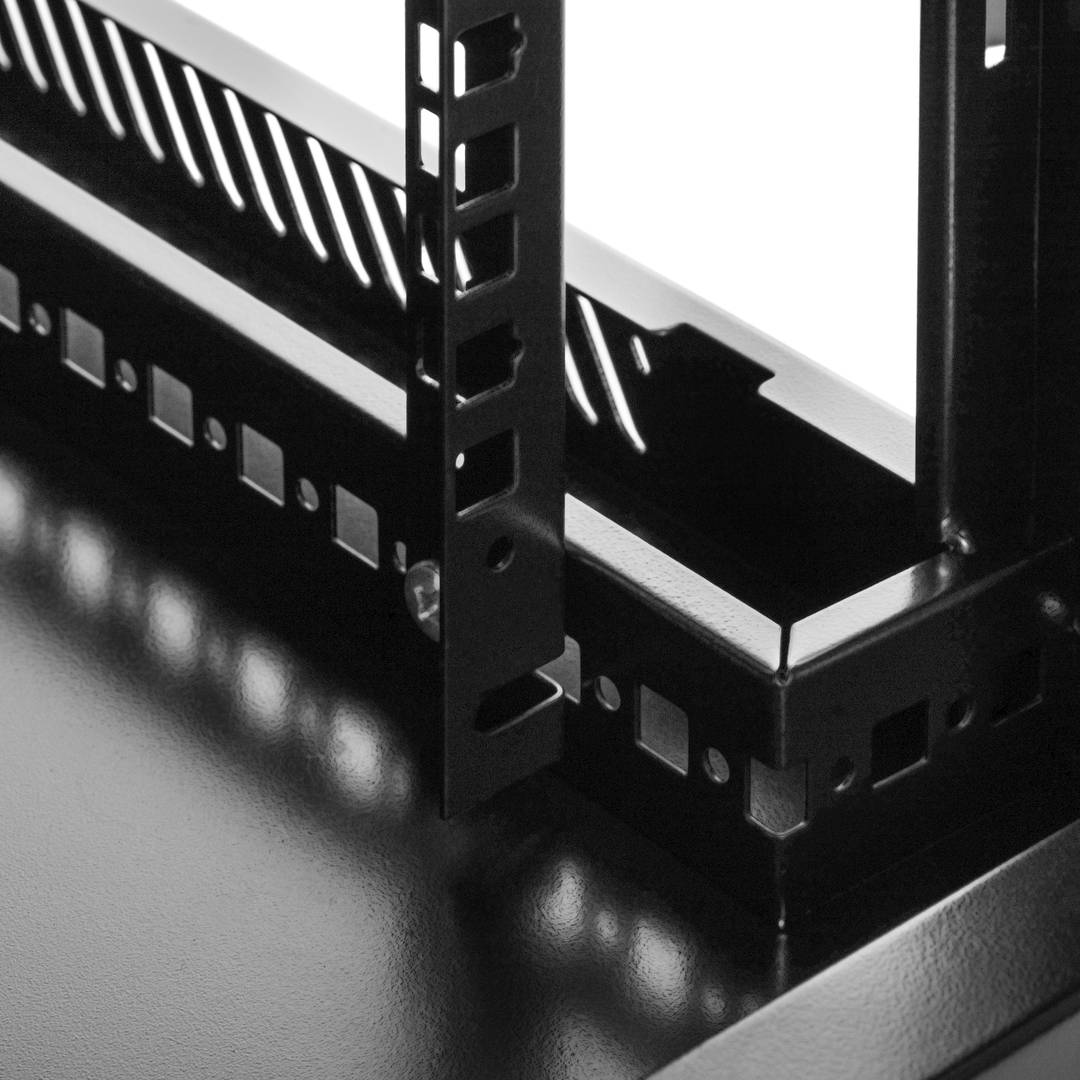

  • The complete structure and with the vertical guides (front and back) for the pivoting cabinet, adjustable in depth to adapt to any need.
  • The rear frame has rack racks 19 "own and fixed, to attach devices on the back (eg: power strip, patch pannel, etc.).
  • Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables, can be left open or closed with a metal plate.
  • Top panel with grid for installation of 12 cm fan (not included).
  • Holes in the back plate for fixing the cabinet to the wall.
  • 600 mm cabinet bottom.
  • Side panels with removable system without screws, for convenient lateral access to the wiring and the accessories housed. Optionally, a lock can be installed on the side panels, to avoid unwanted access.
  • They are delivered to the customer fully assembled and packed, ready to be installed.
  • Manufactured in SPCC steel, painted black. They comply with the most stringent standards and standards ANSI / EIARS-310-D, IEC297-2, DIN41491 (part 1, Part 7) and DIN41494.
  • Gross Weight: 41.5 kg
  • Product size (width x depth x height): 60.0 x 60.0 x 77.0 cm
  • Number of packages: 1
  • Packages size: 83.0 x 66.0 x 66.0 cm
  • Master-pack: 1
