Server rack cabinet 19 inch 4U 600x450x280mm wallmount SOHORack by RackMatic

REF: WK011

Specifications

  • Complete structure and with rack 19 "frontale guidess, adjustable in depth to adapt to any need. Optionally, rear guides #WO41 can be installed.
  • Door with safety glass that gives it a more attractive design and key lock. Opening the door 180 degrees.
  • Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables, can be left open or closed with a metal plate.

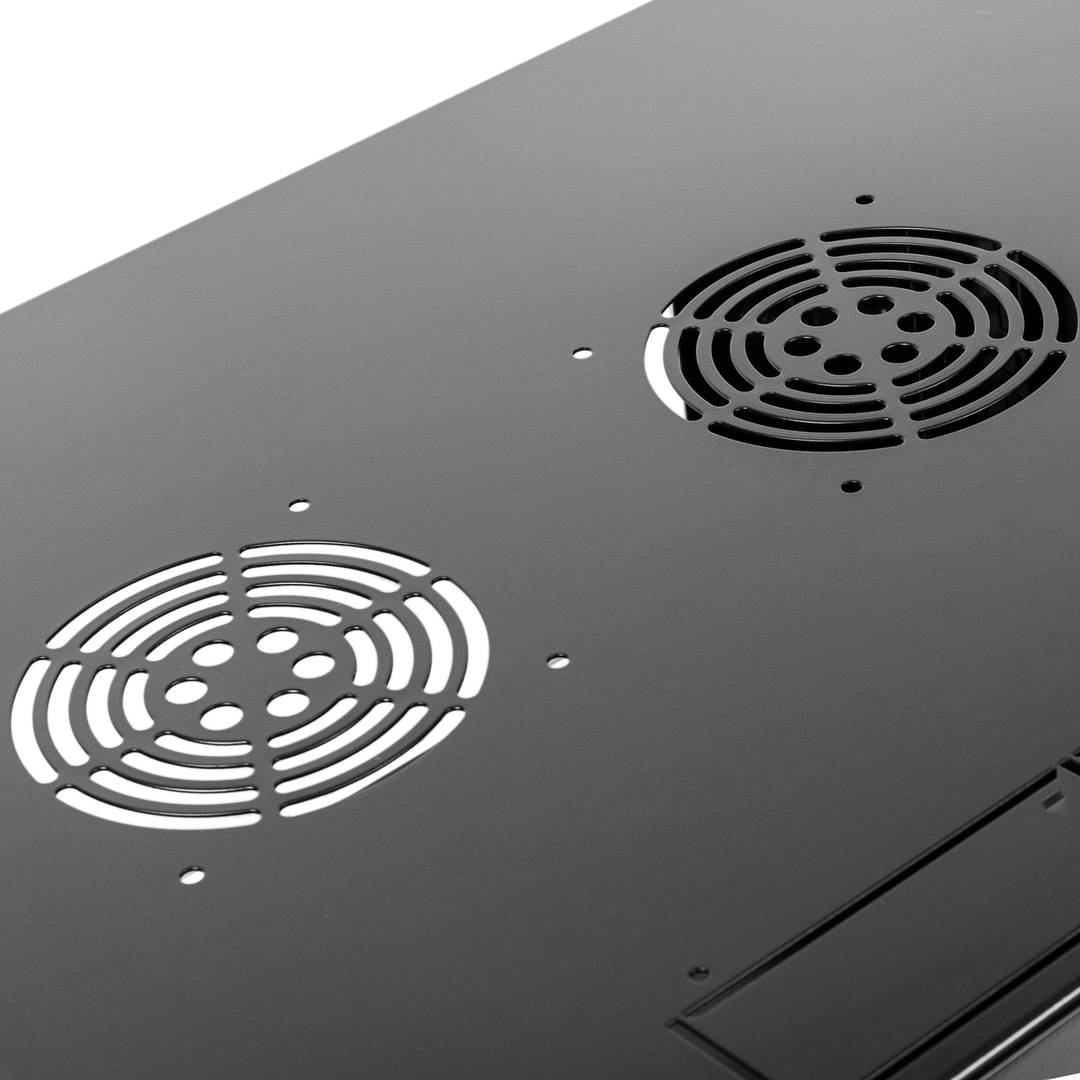

  • Drilling for up to two 12 cm fans on the top panel (fans not included).
  • Holes in the back plate for fixing the cabinet to the wall.

Your price

PVP

79.52

Price including VAT: 79.52

PVD

66.58


Why different prices? Which one is mine? Check rate type

In stock

Related products

Keywords

Did not find what you were looking for? These topic could help you

12/09/2019 3:51 a.m.
https://cablematic.com/en/products/server-rack-cabinet-19-inch-4u-600x450x280mm-wallmount-sohorack-by-rackmatic-WK011/

Server rack cabinet 19 inch 4U 600x450x280mm wallmount SOHORack by RackMatic

REF: WK011

Your price

PVP

79.52

Price including VAT: 79.52

PVD

66.58


Why different prices? Which one is mine? Check rate type

In stock

Specifications

  • Complete structure and with rack 19 "frontale guidess, adjustable in depth to adapt to any need. Optionally, rear guides #WO41 can be installed.
  • Door with safety glass that gives it a more attractive design and key lock. Opening the door 180 degrees.
  • Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables, can be left open or closed with a metal plate.
  • Drilling for up to two 12 cm fans on the top panel (fans not included).
  • Holes in the back plate for fixing the cabinet to the wall.

More info

Rack 19 "wall cabinet from the RackMatic SOHORack range, 4U wall cabinet and external size in mm 600 (A) x 450 (F) x 280 (H) .The interior frames are configurable in depth. front frame at the bottom of the cabinet (useful bottom) could reach up to 365 mm, advancing the front frame to the maximum.

Specifications
  • Complete structure and with rack 19 "frontale guidess, adjustable in depth to adapt to any need. Optionally, rear guides #WO41 can be installed.
  • Door with safety glass that gives it a more attractive design and key lock. Opening the door 180 degrees.
  • Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables, can be left open or closed with a metal plate.
  • Drilling for up to two 12 cm fans on the top panel (fans not included).
  • Holes in the back plate for fixing the cabinet to the wall.
  • 450 mm cabinet bottom.
  • Side panels with removable system without screws, for a convenient lateral access to the wiring and the accessories housed. Optionally you can install lock on the side panels, to avoidundesired access.
  • They are delivered to the customer fully assembled and packed, ready to be installed. Manufactured in SPCC steel, painted black.
  • They comply with the most stringent standards and standards ANSI/EIARS-310-D, IEC297-2, DIN41491 (part 1, part 7) and DIN41494.
  • Gross Weight: 13.0 kg
  • Product size (width x depth x height): 60.0 x 45.0 x 28.0 cm
  • Number of packages: 1
  • Packages size: 67.0 x 52.0 x 37.0 cm
  • Master-pack: 11

Videos

Technical terms

  • RACK 19
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
