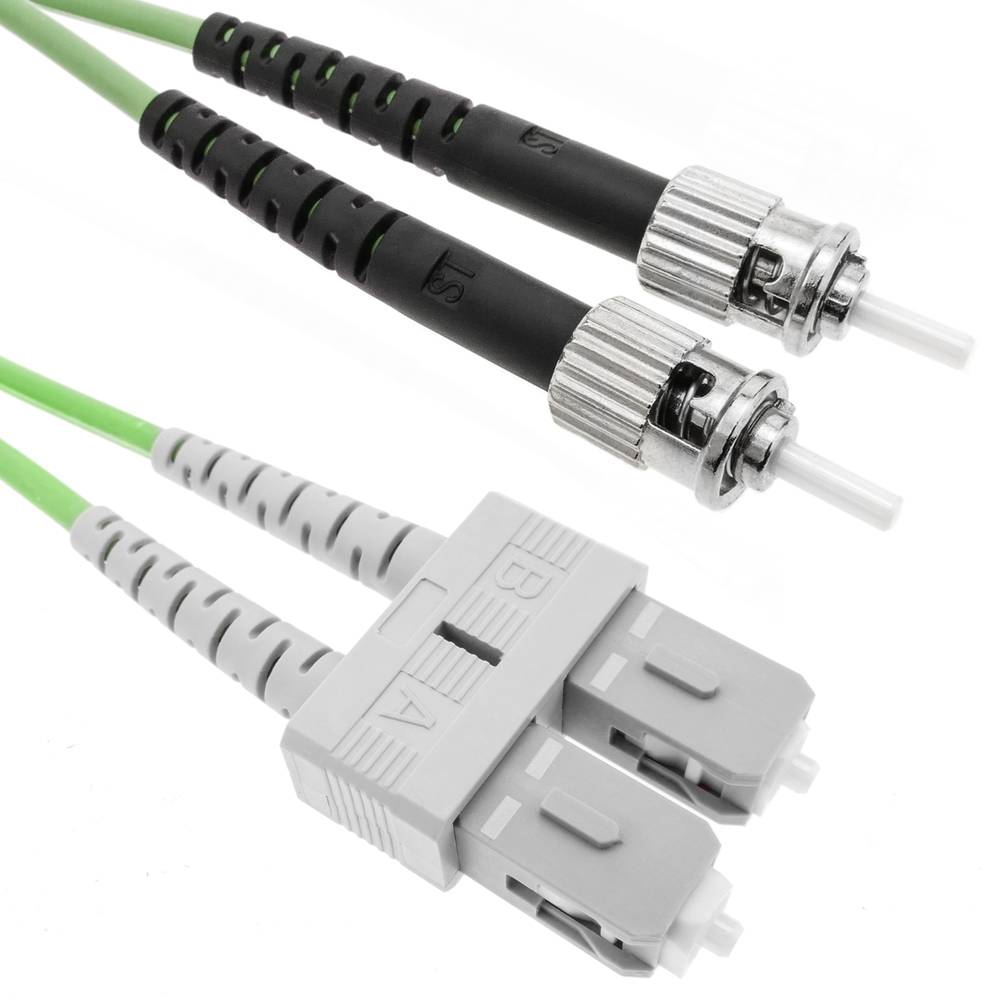

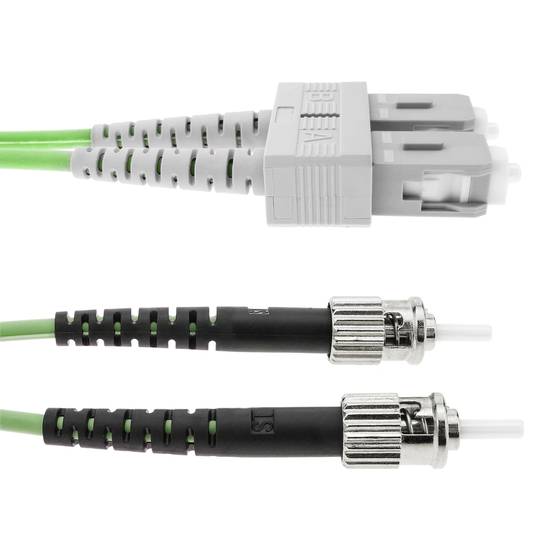

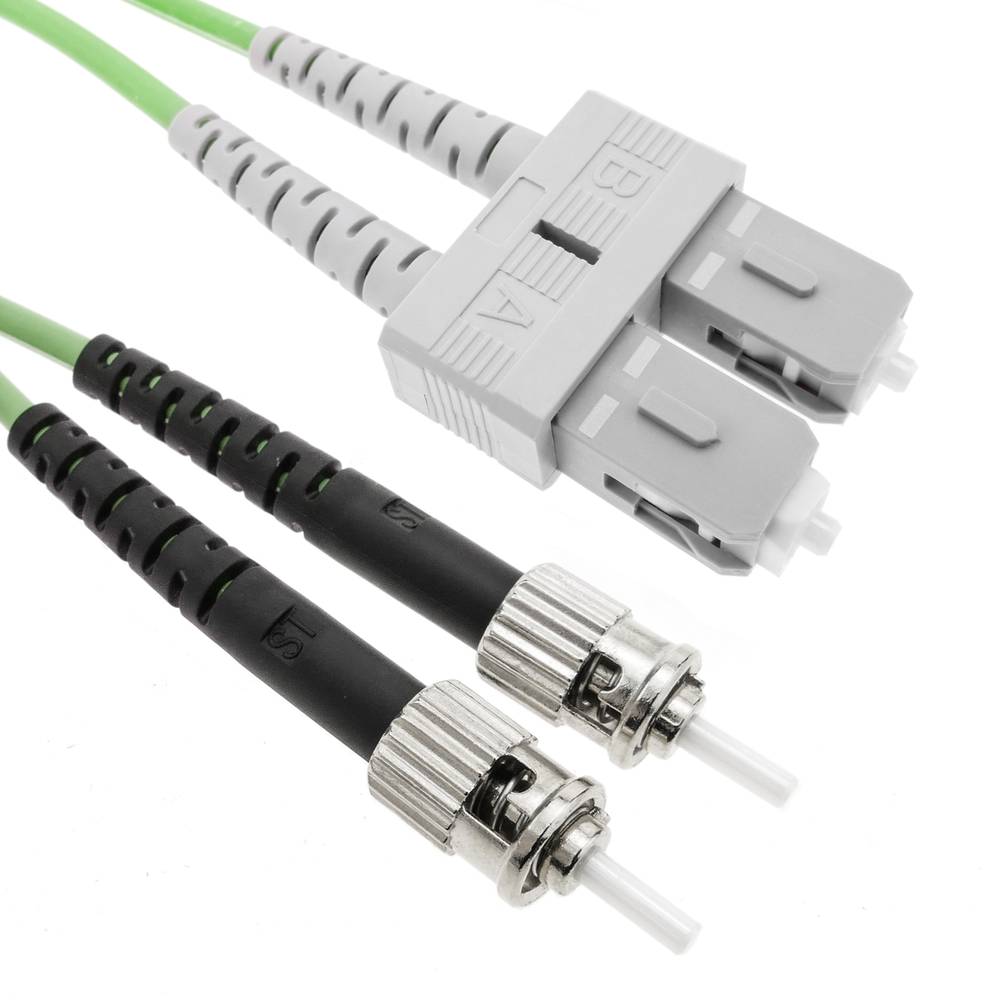

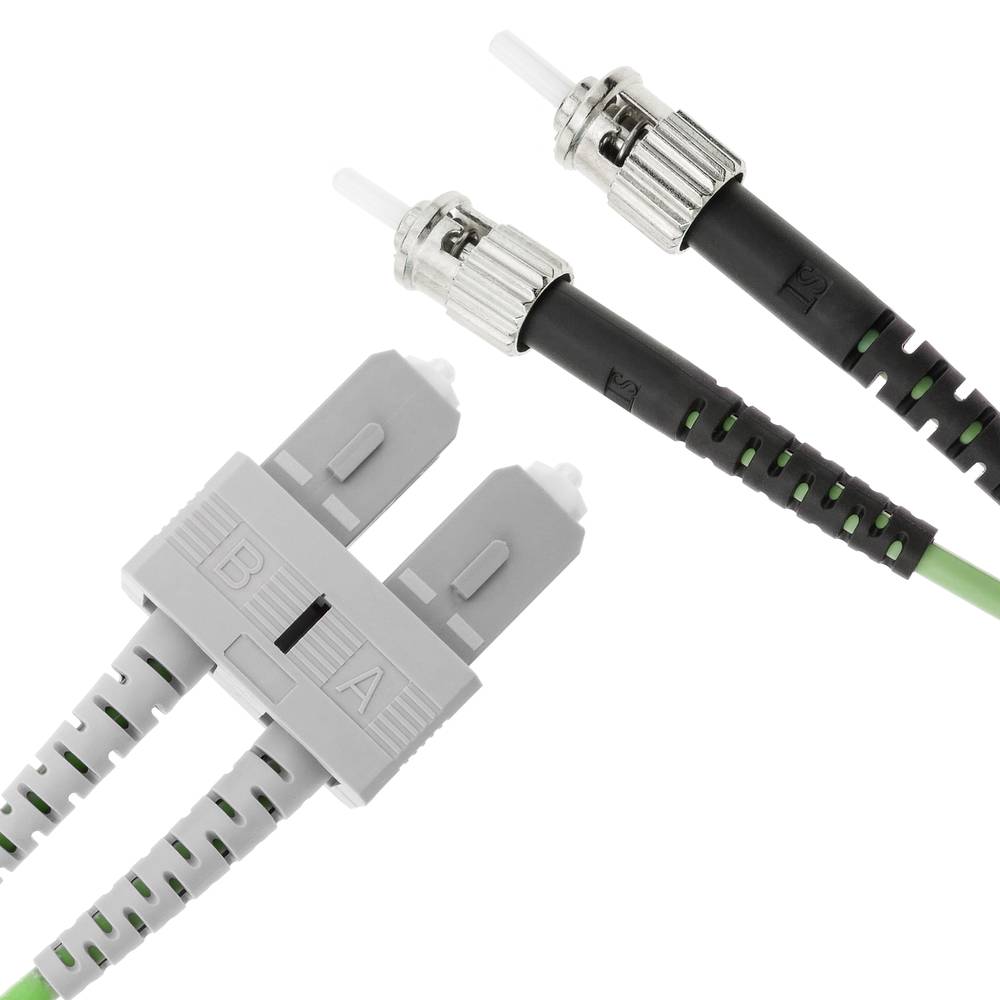

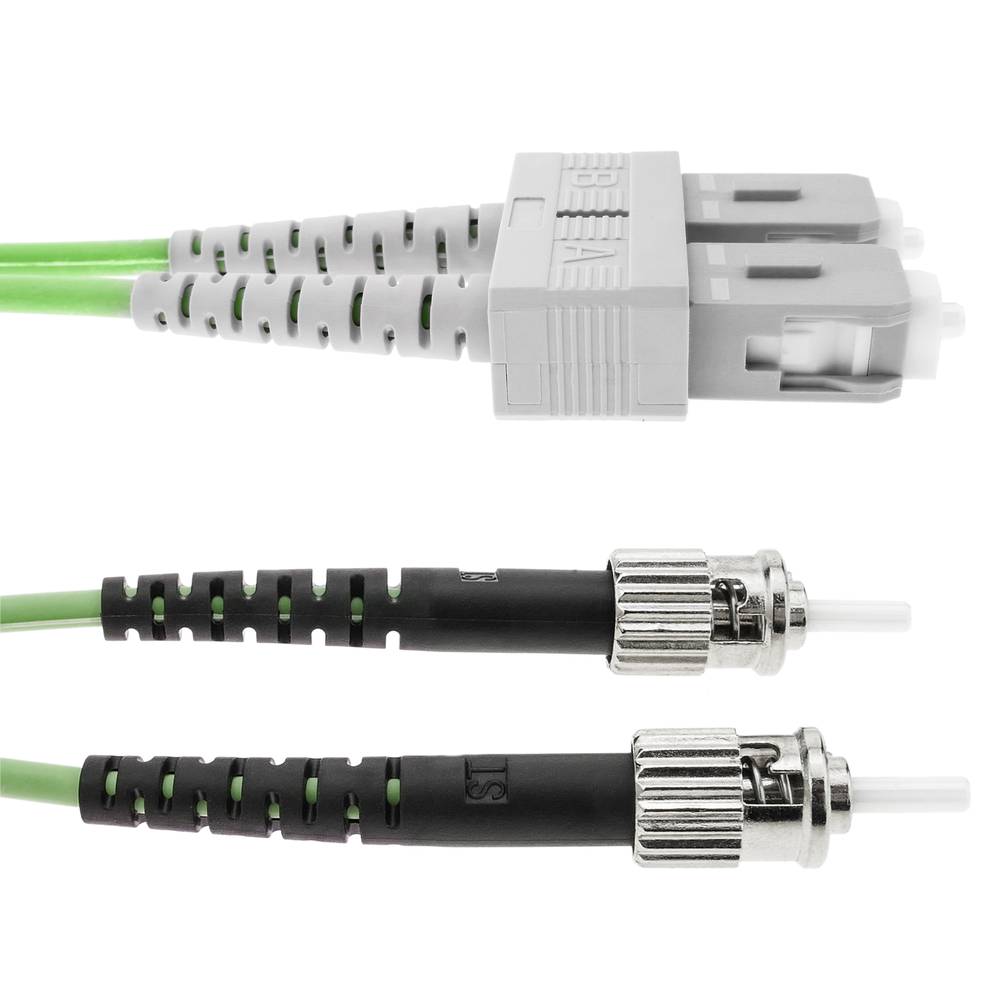

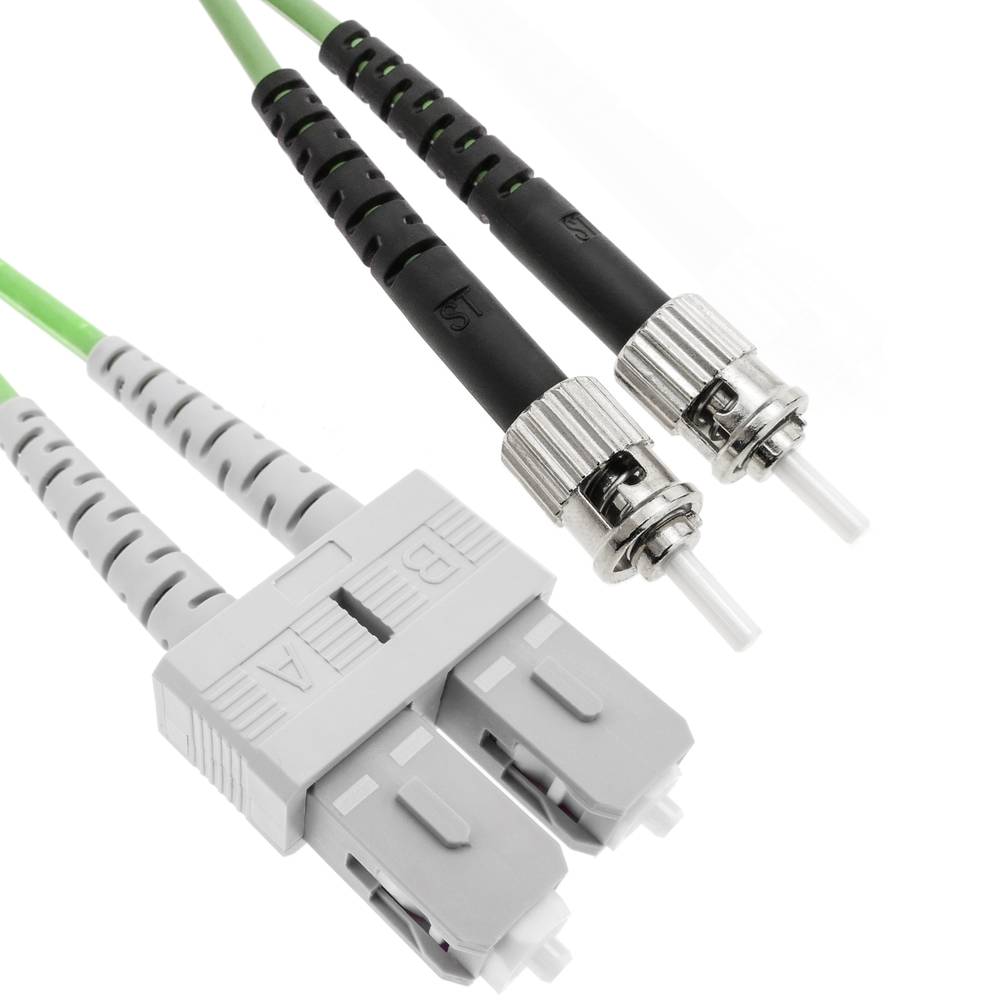

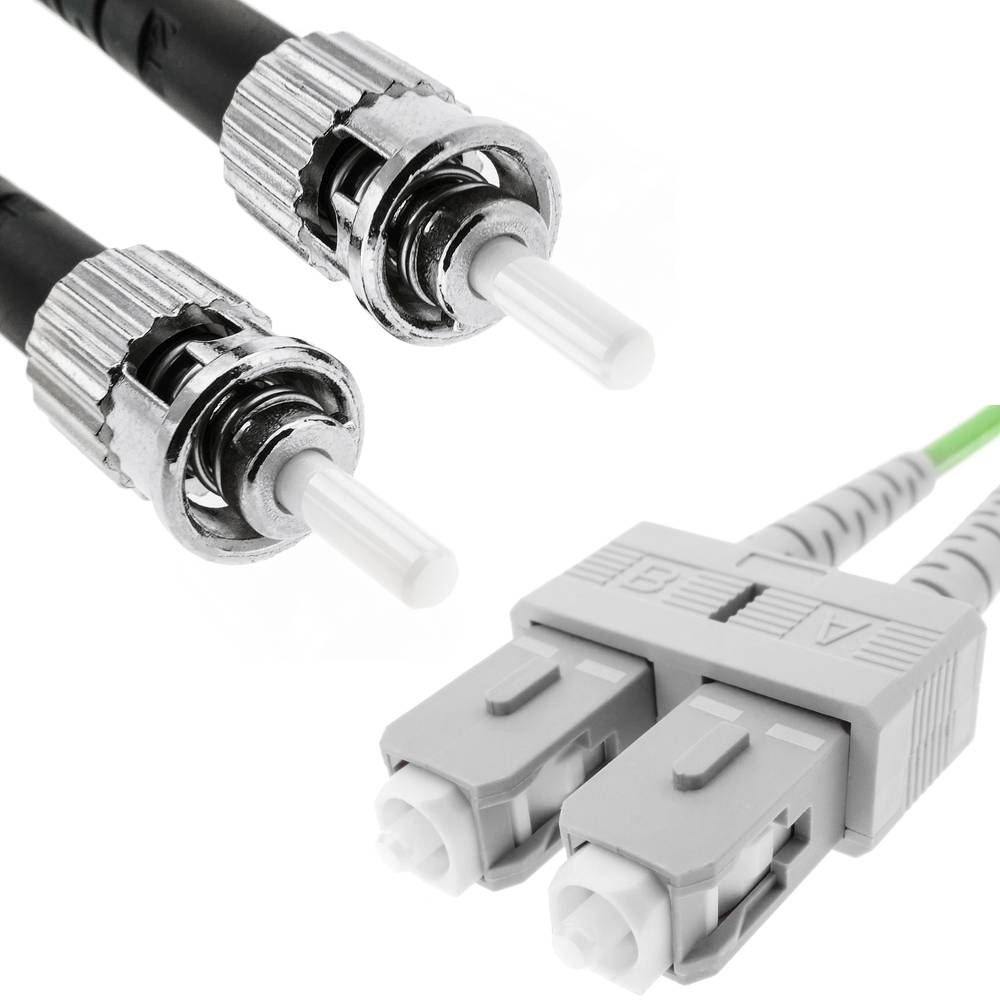

Fiber optic cable OM5 multimode duplex 50µm/125µm ST/PC to SC/PC 100Gb 15 m
Fiber optic cable OM5 multimode duplex 50µm/125µm ST/PC to SC/PC 100Gb 15 m
REF: GC058
Specifications
- Multi-mode duplex fiber optic cable (MM) that complies with the OM5 standard (ANSI/TIA 492AAE).
- OM5 cables use 50/125 ?m optimized multimode WBMMF type fiber, and allow a speed of up to 100 Gigabit at a distance of up to 100 m.
- It has a double SC/PC connector on one end, and a double ST/PC connector on the other end.
- Cable verified 100%, of first quality and LSZH (Low Smoke Halogen Free).
- Section of the central core and its rev50/125 micron (?m).
Watch video
PVP
€39.44
€19.72
Price including VAT:
€19.72
PVD
€35.50
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
13 business days
Delivery times are approximate. Cablematic is not responsible for delays.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Multi-mode duplex fiber optic cable (MM) that complies with the OM5 standard (ANSI/TIA 492AAE).
- OM5 cables use 50/125 ?m optimized multimode WBMMF type fiber, and allow a speed of up to 100 Gigabit at a distance of up to 100 m.
- It has a double SC/PC connector on one end, and a double ST/PC connector on the other end.
- Cable verified 100%, of first quality and LSZH (Low Smoke Halogen Free).
- Section of the central core and its rev50/125 micron (?m).
Related products
More info
Multi-mode duplex fiber optic cable (MM) that complies with the OM5 standard (ANSI/TIA 492AAE). OM5 cables use 50/125 ?m optimized multimode WBMMF type fiber, and allow a speed of up to 100 Gigabit at a distance of up to 100 m. It has a double SC/PC connector on one end, and a double ST/PC connector on the other end. Cable verified 100%, of first quality and LSZH (Low Smoke Halogen Free). Section of the central core and its rev50/125 micron (?m). Total section of each 3.0 mm cable (including kevlar fiber and green colored sheath). Cable length of 15 m.
- Gross Weight: 230 g
- Product size (width x depth x height): 20.0 x 20.0 x 3.0 cm
- Number of packages: 1
- Packages size: 20.0 x 20.0 x 3.0 cm
- Master-pack: 1
Technical terms
- Optic fiber
- LSZH - LSHF
- Gbps
- OM1, OM2, OM3, OM4
- MMF
- Types of fiber optic polishing
Optic fiber
It gives transmission distance. Types fiberoptic
- Single mode (single mode): Only one mode light propagates. Allow distances up to 400 km and very high speeds. The usual size of 9/125 microns fiber is.
- Multimode (multi mode): The light is spread by more than one way. . Used for transmission at close range, no more than 2 Km Typical multimode fibers are according to ISO: OM1 (62., Data transmission is changing direction. In a duplex system, each of the fibers is used for transmission in one direction. Therefore, the duplex installations are faster and more efficient.
