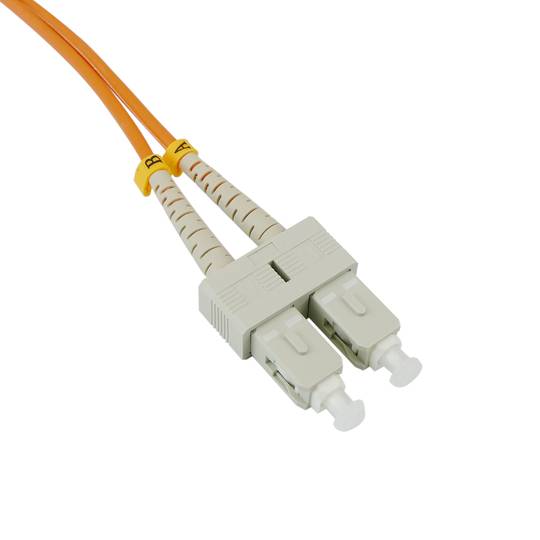

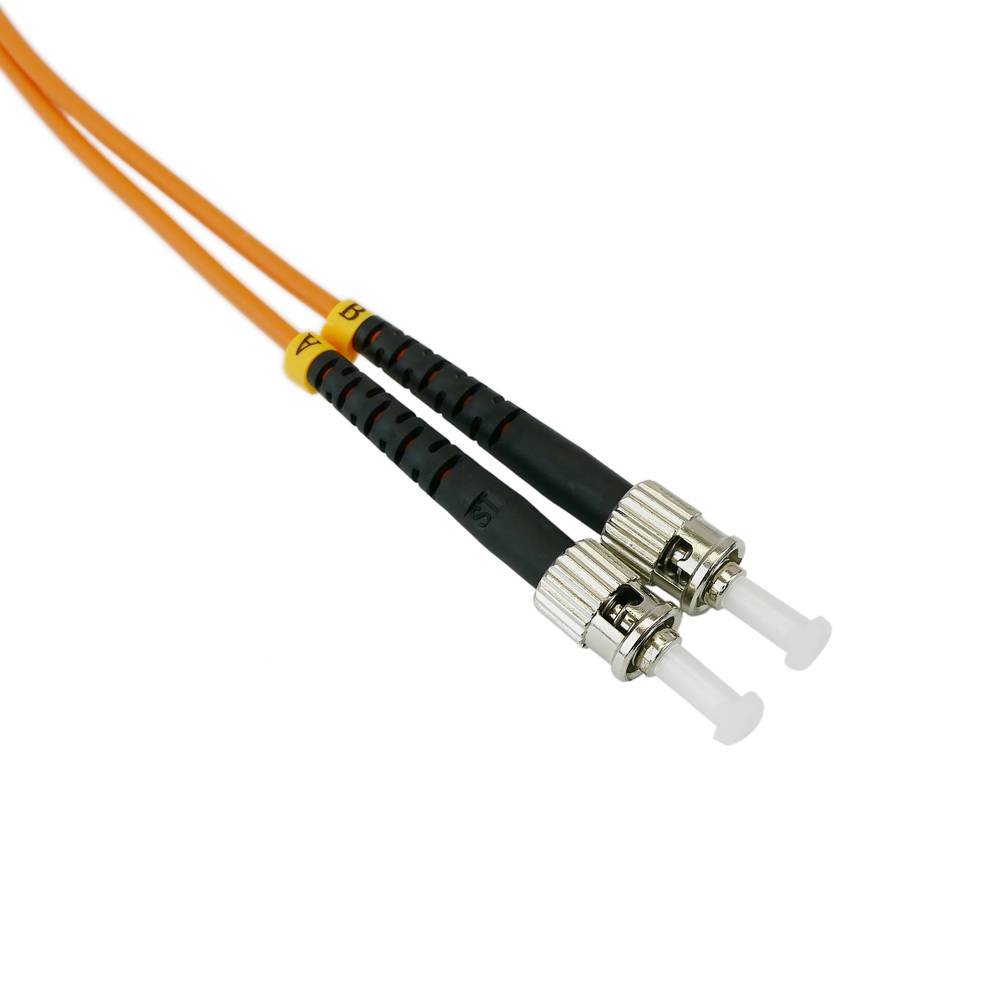

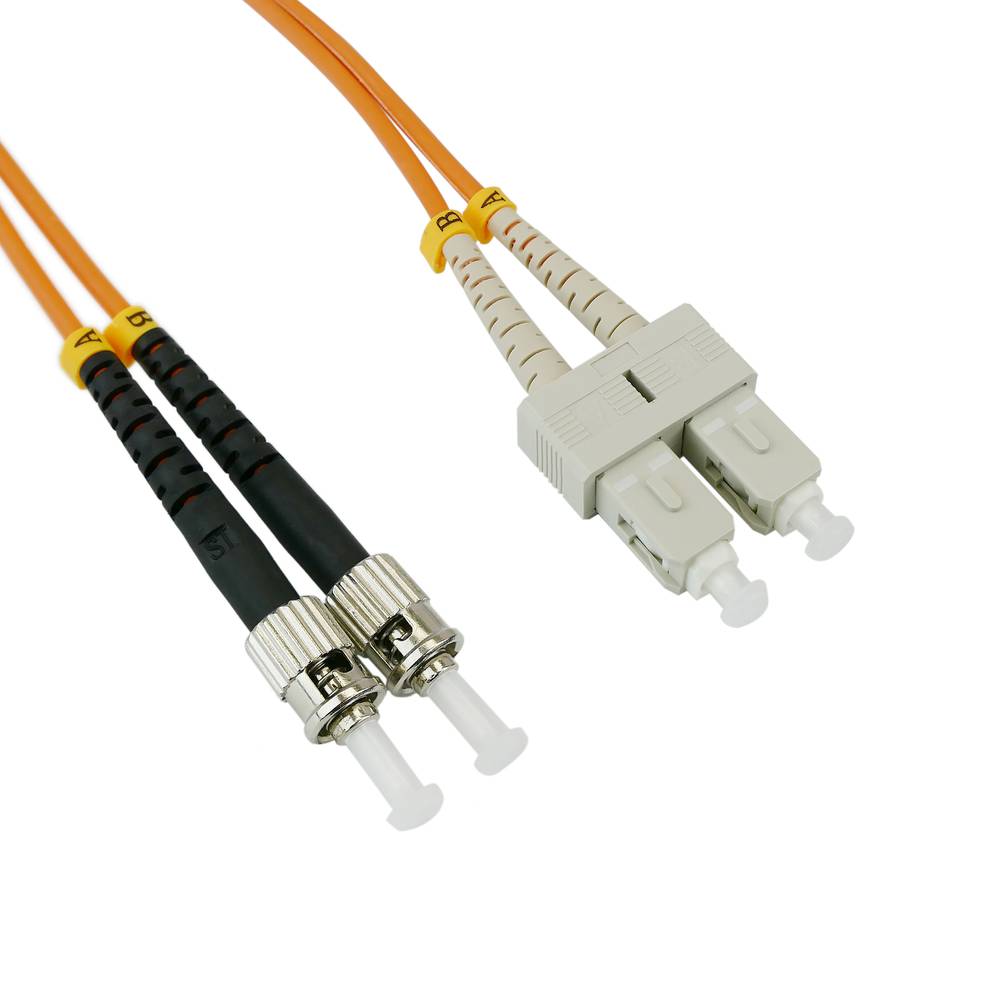

Fiber Optic Cable ST to SC duplex multimode 62.5/125 15 m
REF: FO087
Specifications
  • 15m ST to SC multimode duplex 62.5/125 fiber optic cable.
  • Duplex Multi-Mode (MM) fiber optic cable type.
  • 2 x ST/PC connectors on one end, 2 x SC/PC on the other end.
  • 100% verified cable.
  • LSZH (Low Smoke Halogen Free) classification.
play_button Watch video
More info
PVP
14.20
Price including VAT: 14.20
PVD
12.78
Shipping costs: 0,00 *
GB-SE1 1ES
Delivery times are approximate. Cablematic is not responsible for delays.
2 years
warranty
14 days
returns
100%
safe

In stock

More info
Specifications
  • 15m ST to SC multimode duplex 62.5/125 fiber optic cable.
  • Duplex Multi-Mode (MM) fiber optic cable type.
  • 2 x ST/PC connectors on one end, 2 x SC/PC on the other end.
  • 100% verified cable.
  • LSZH (Low Smoke Halogen Free) classification.

Keywords

Did not find what you were looking for? These topic could help you

More info

Duplex Multi-Mode (MM) fiber optic cable ideal for fiber network applications, data transmission systems, routers, servers and other fiber optic connections requiring high speed and low signal loss. Fiber cable that has two ST/PC connectors on one end and two SC/PC connectors on the other. LSZH (Low Smoke Halogen Free) rating ensures that in the event of a fire, the cable will not emit toxic fumes or halogen gases, making it a safe choice for use in indoor installations or in closed environments where smoke protection is essential.

Detailed specifications
  • 15m ST to SC multimode duplex 62.5/125 fiber optic cable.
  • Duplex Multi-Mode (MM) fiber optic cable type.
  • 2 x ST/PC connectors on one end, 2 x SC/PC on the other end.
  • 100% verified cable.
  • LSZH (Low Smoke Halogen Free) classification.
  • Core section 62.5/125 microns (µm).
  • Total cable section 3.0 mm (including kevlar fiber and sheath).
  • Orange pod color.
  • Cable length 15 meters.
  • Gross Weight: 250 g
  • Number of packages: 1

Videos

play_button Watch video

Technical terms

  • Optic fiber
  • LSZH - LSHF
  • OM1, OM2, OM3, OM4
  • MMF
  • Types of fiber optic polishing
Optic fiber
It gives transmission distance. Types fiberoptic
  • Single mode (single mode): Only one mode light propagates. Allow distances up to 400 km and very high speeds. The usual size of 9/125 microns fiber is.
  • Multimode (multi mode): The light is spread by more than one way. . Used for transmission at close range, no more than 2 Km Typical multimode fibers are according to ISO: OM1 (62., Data transmission is changing direction. In a duplex system, each of the fibers is used for transmission in one direction. Therefore, the duplex installations are faster and more efficient.
