Optical Power Meter from -70 dBm to +3 dBm
REF: CT034
Specifications
  • Fiber optic meter, range from -70 dBm to +3 dBm ± 5%.
  • Compatible with FC / SC connectors.
  • Wavelength range from 800 nm to 1700 nm.
  • Automatic self-calibration function.

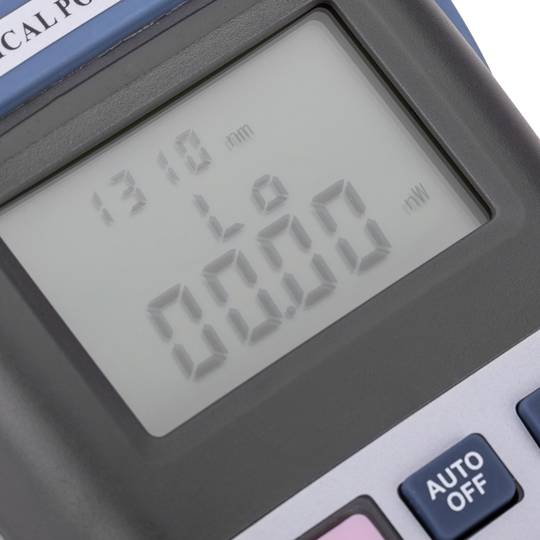

  • 4 digit LCD display, backlit for night viewing.
play_button Watch video
More info
PVP
53.72
Price including VAT: 53.72
PVD
48.44
2 years
warranty
14 days
returns
100%
safe

Out of stock

We will notify you when it is back in stock.
More info
Specifications
  • Fiber optic meter, range from -70 dBm to +3 dBm ± 5%.
  • Compatible with FC / SC connectors.
  • Wavelength range from 800 nm to 1700 nm.
  • Automatic self-calibration function.
  • 4 digit LCD display, backlit for night viewing.

More info

Optical Power Meter to perform power checks, adapting to different types of connectors. It has a light emitter and a screen where the power reading is expressed. The meter works by emitting a beam of light at a certain wavelength, the measurement will show the value of energy loss during transmission. Ideal for analyzing fiber optic networks or detecting attenuation faults in the installation.

specs

  • Fiber optic meter, range from -70 dBm to +3 dBm ± 5%.
  • Compatible with FC / SC connectors.
  • Wavelength range from 800 nm to 1700 nm.
  • Automatic self-calibration function.
  • 4 digit LCD display, backlit for night viewing.
  • Optical power measurements in non-linear indicators (dBm) or in linear indicators (mW).
  • Insertion loss measurements (“insertion loss”) in dB.
  • Detector type: InGaAs.
  • Automatic shutdown after 18 minutes of non-use.

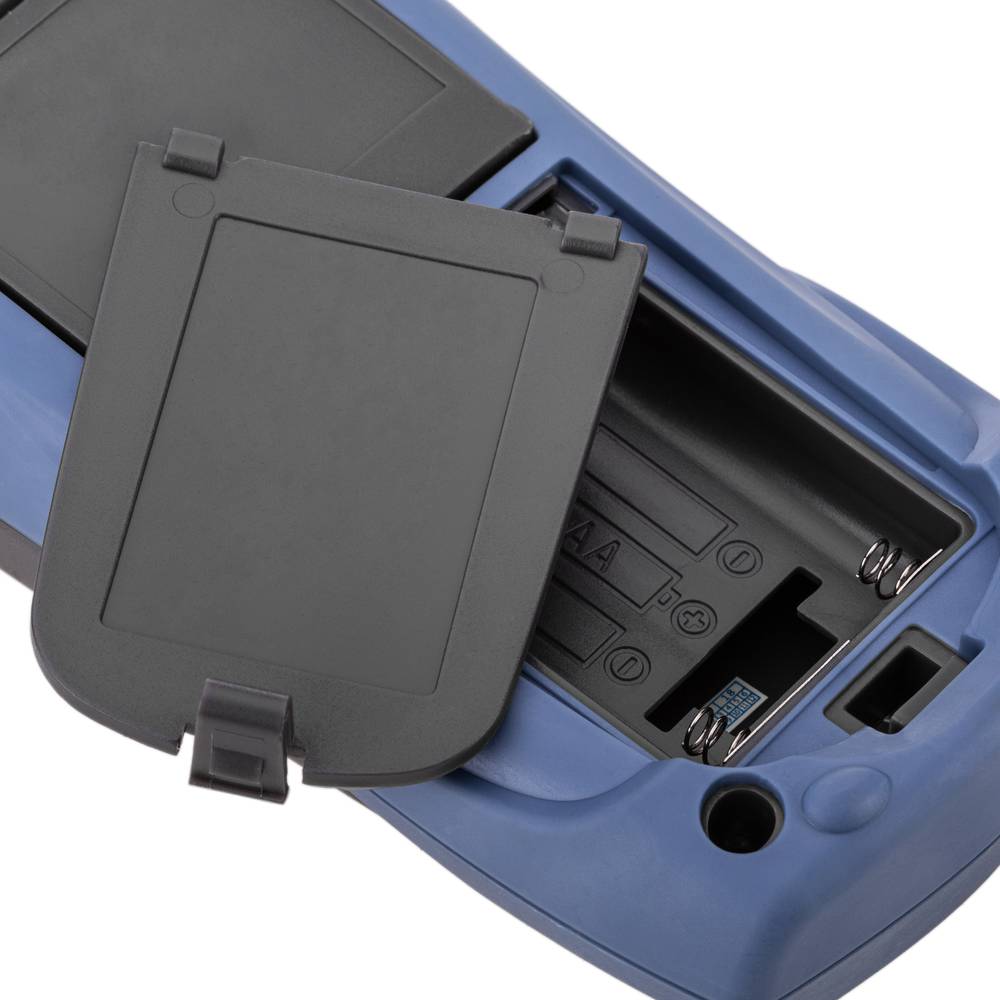

  • Operating time up to 48 hours. It works with 3 AA batteries.
  • Gross Weight: 650 g
  • Product size (width x depth x height): 19.0 x 4.8 x 10.0 cm
  • Number of packages: 1
  • Packages size: 21.2 x 10.8 x 5.0 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • dBm
  • dBm
  • Types of batteries
dBm
It is normally used dBm optical fiber, external radio networks, microwave. This measure, which also can be called dBmW is a measure that is in decibels relative to one milliwatt. The main idea is to measure dBm power factors.
