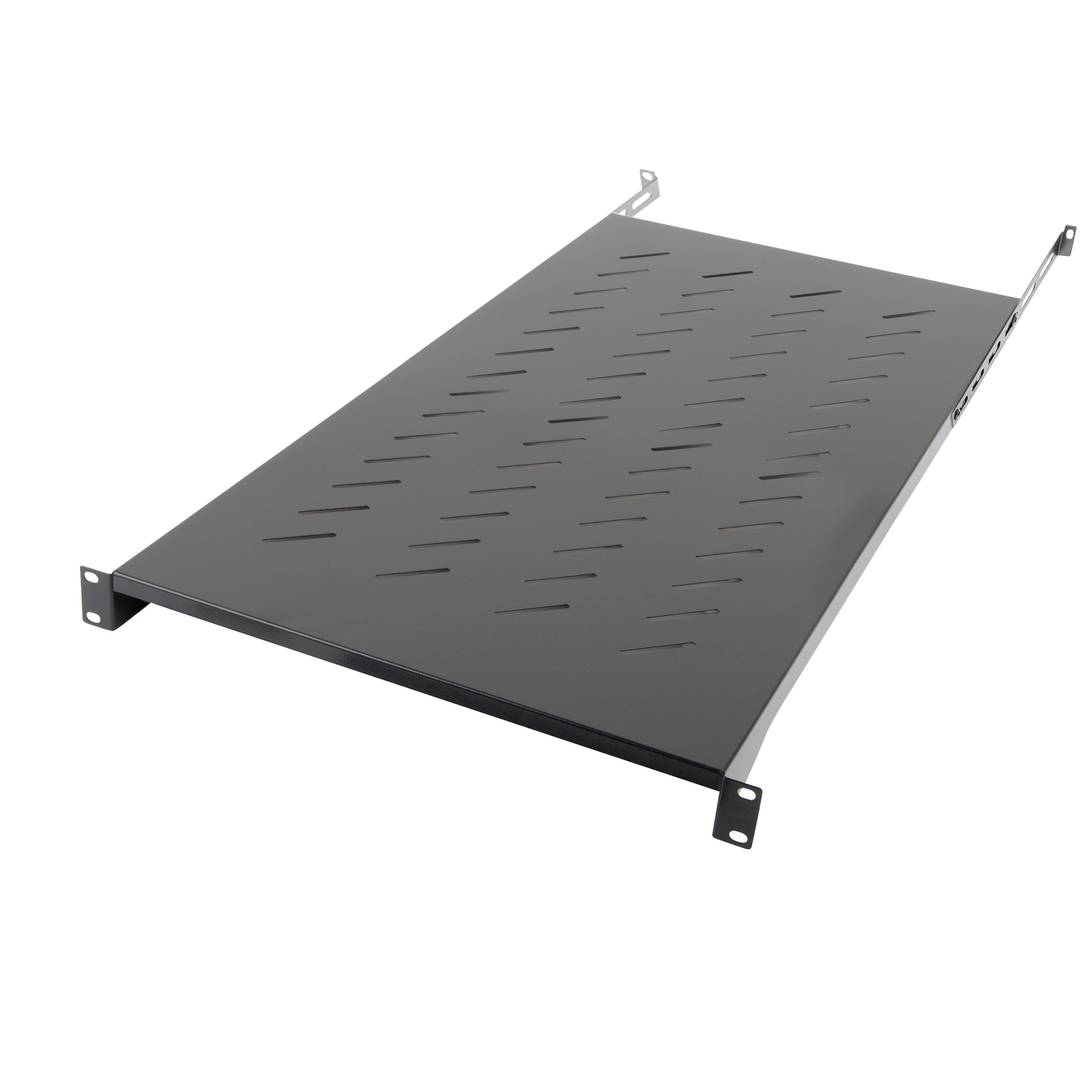

Rack tray 19" 1U 900mm adjustable in depth 910-1070mm
Rack tray 19" 1U 900mm adjustable in depth 910-1070mm
REF: WK200
Specifications
- Tray for 19" 1U rack cabinet with front and rear fixing.
- Tray measurement: 483 x 900 mm (width x depth).

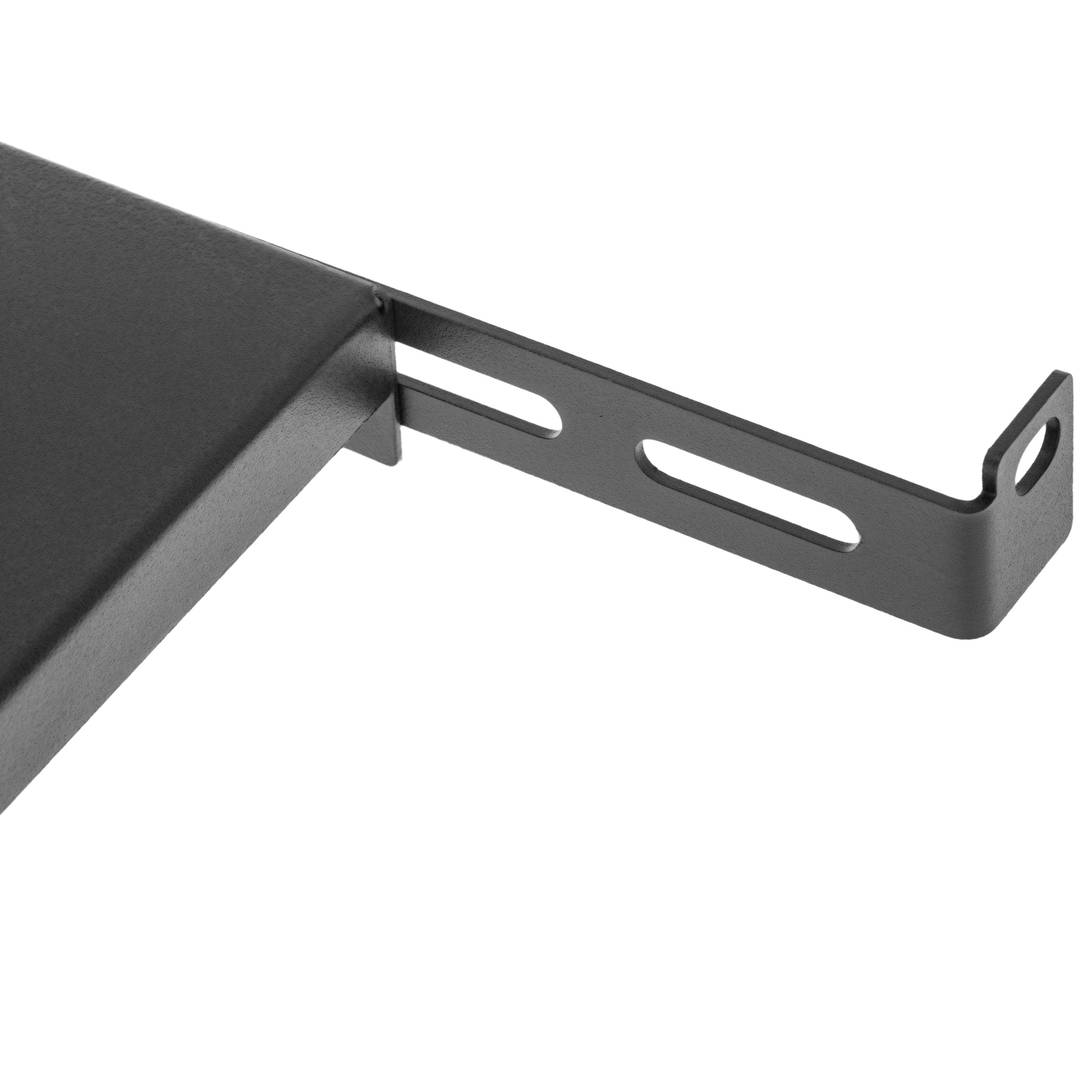

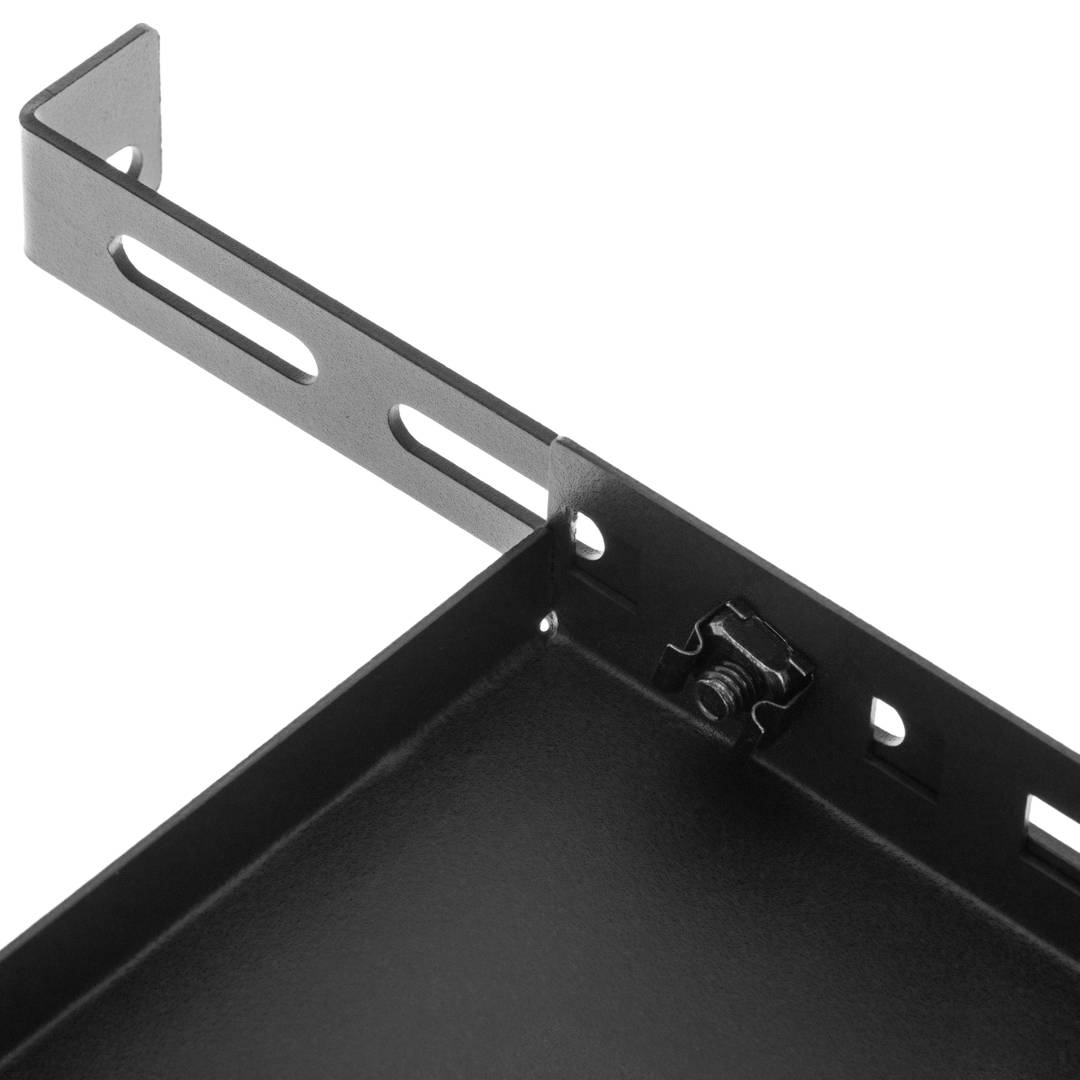

- It has anchors for the rear part. Allows you to adjust the depth from 910 to 1070 mm.
- Allows front fixation only or front and rear fixation using the supplied anchors.
- Maximum supported load: 25 Kg.
PVP
€52.79
Price including VAT:
€52.79
PVD
€51.64
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
Buy before:
Receive it:
14 business days
Delivery times are approximate. Cablematic is not responsible for delays.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Tray for 19" 1U rack cabinet with front and rear fixing.
- Tray measurement: 483 x 900 mm (width x depth).
- It has anchors for the rear part. Allows you to adjust the depth from 910 to 1070 mm.
- Allows front fixation only or front and rear fixation using the supplied anchors.
- Maximum supported load: 25 Kg.
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info

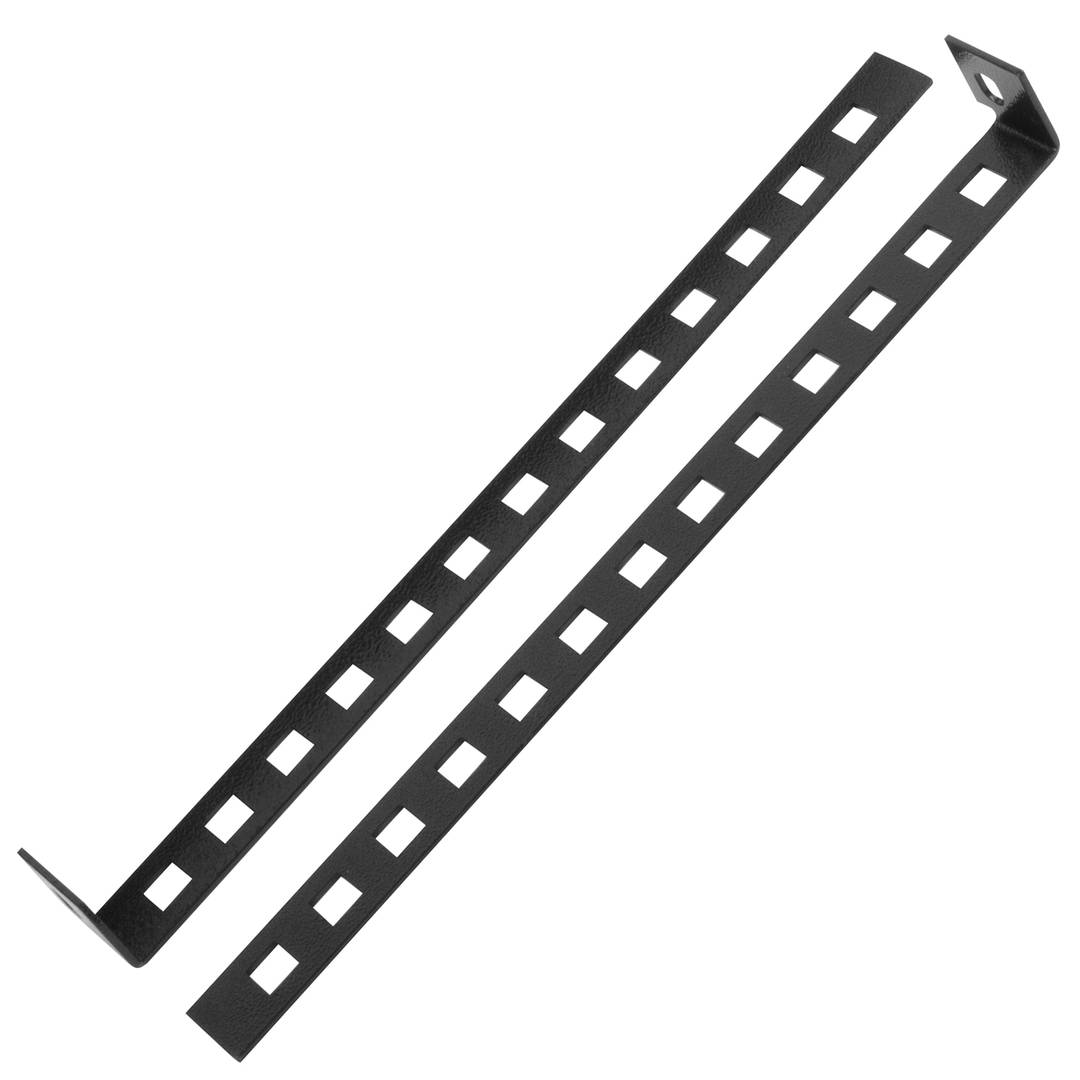

Tray compatible with a 19" rack cabinet. It is a black metal tray with fixed front and rear fixing, adjustable in depth. Unlike other trays for mounting in a 19" rack cabinet, this model is supplied with 4 anchors that allow fix the tray on the two front frames and on the two rear frames. These anchors allow them to be adjusted to the separation between racks, which makes this tray compatible with all types of 19" rack cabinets of different depths.
Specifications
Specifications
- Tray for 19" 1U rack cabinet with front and rear fixing.
- Tray measurement: 483 x 900 mm (width x depth).
- It has anchors for the rear part. Allows you to adjust the depth from 910 to 1070 mm.
- Allows front fixation only or front and rear fixation using the supplied anchors.
- Maximum supported load: 25 Kg.
- Black RAL9004 tray.
- Gross Weight: 4.615 kg
- Product size (width x depth x height): 49.0 x 91.0 x 5.0 cm
- Number of packages: 1
- Packages size: 91.0 x 50.0 x 5.5 cm
- Master-pack: 1
Technical terms
- RACK 19
- Rack unit (U)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
