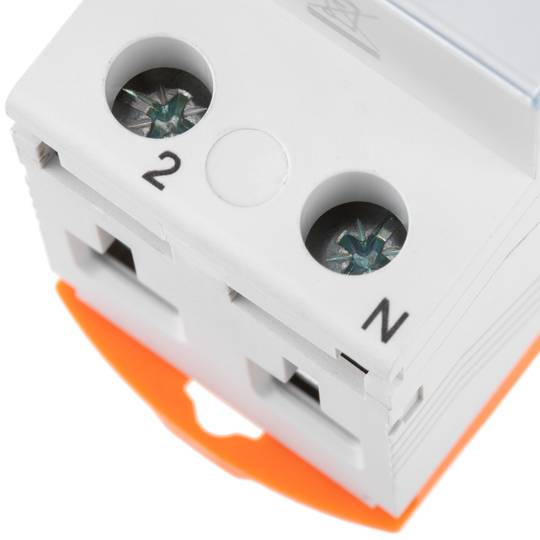

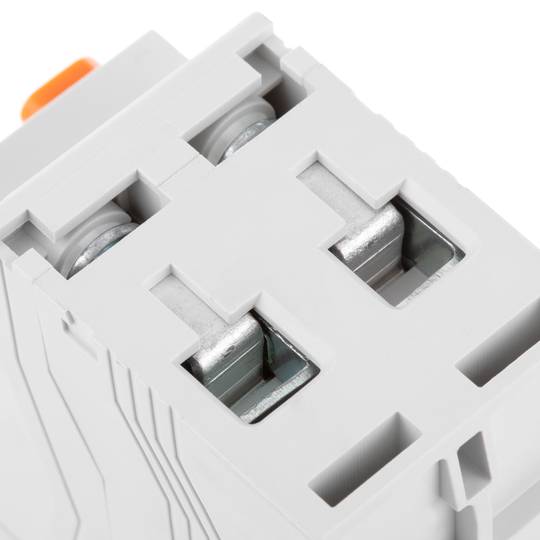

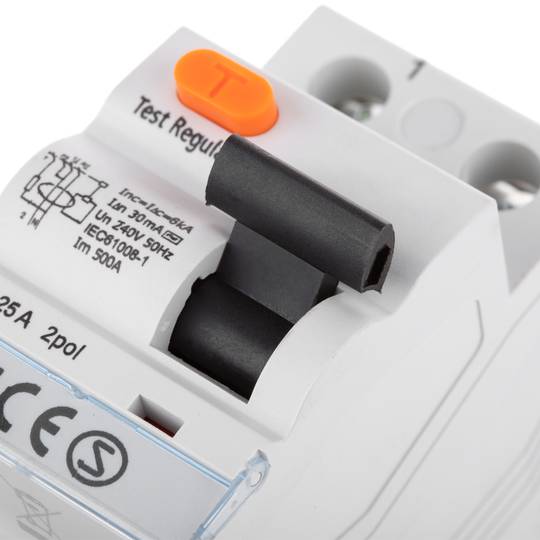

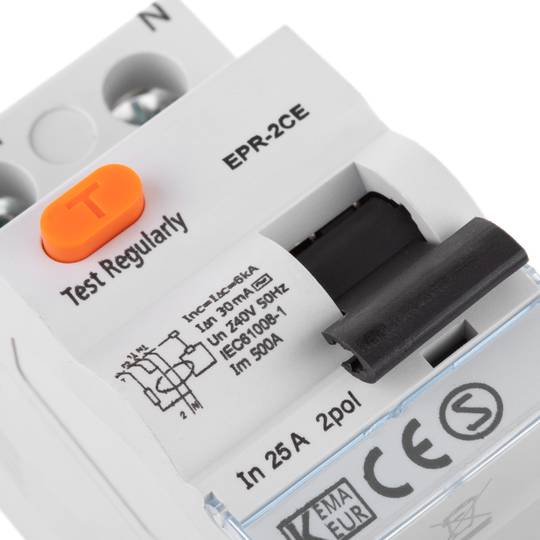

Residual current circuit breaker RCD 2P 25A 6kA
Residual current circuit breaker RCD 2P 25A 6kA
REF: JW030
Specifications
- Differential protection switch in electr installationsicas.
- Number of poles: 2P.
- Rated current: 25A.
- Sensitivity (I?n): 30mA.
- Rated voltage: 230 VAC.
Watch video
PVP
€23.49
Price including VAT:
€23.49
PVD
€19.22
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Differential protection switch in electr installationsicas.
- Number of poles: 2P.
- Rated current: 25A.
- Sensitivity (I?n): 30mA.
- Rated voltage: 230 VAC.
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info
Differential switch for the protection of residual currents in electrical installations. Suitable to protect people from direct and indirect contacts with any component or active part of the electrical installation. They also protect against a fire risk. Meets the IEC 61008 and EN 61008 standards.
Specifications
Specifications
- Differential protection switch in electr installationsicas.
- Number of poles: 2P.
- Rated current: 25A.
- Sensitivity (I?n): 30mA.
- Rated voltage: 230 VAC.
- Cutting capacity in short circuit: 6000 A (6kA).
- Terminal capacity up to 35mm².
- Meets the IEC/EN 61008 standards.
- Class AC differential switch.
- Manufactured in heat resistant thermoplastic.
- Compatible with DIN 3 rail5mm Connection by clip.
- Size: 36 x 85 x 75 mm (width x height x depth)
- Gross Weight: 230 g
- Product size (width x depth x height): 3.6 x 7.5 x 8.5 cm
- Number of packages: 1
- Packages size: 9.0 x 7.5 x 4.0 cm
Technical terms
- DIN
- VAC
DIN
The DIN is a standard that was developed by the "Deutsches Institut für Normung" (one might call the national standards organization in Germany). The DIN is facing many sectors, but we have tried to focus on the DIN-oriented electronics and computing. In the case of Enclosures means qualifying under the German legislation on racks and is standardized to DIN 41494-7.
