Scale for weighing pallets PCE-SD 1500F
Scale for weighing pallets PCE-SD 1500F
REF: PC074
Specifications
- Verifiable scale up to 1,500 kg
- Resolution from 0.5 kg
- IP67 load cells
- piece count
- sum function
PVP
€2,899.76
Price including VAT:
€2,899.76
PVD
€2,699.81
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Verifiable scale up to 1,500 kg
- Resolution from 0.5 kg
- IP67 load cells
- piece count
- sum function
Related products
More info

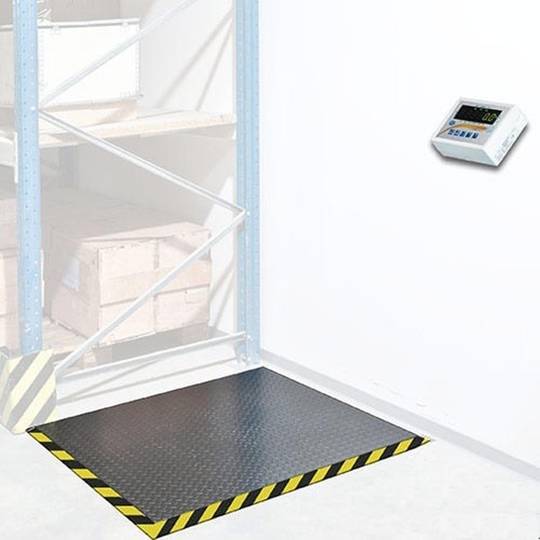

The verifiable scale weighs pallets embedded in the stainless steel floor, offers a weighing capacity of 1,500 kg with a resolution of 0.5 kg. It is equipped with IP67 weighing cells, which allows a safe and reliable use. The design of the balance also allows a comfortable counting of pieces, as well as a sum function. This scale has been manufactured with lacquered steel, which guarantees greater resistance to corrosion. The weighing pan is removable, allowing for convenient placement. The verifiable balance display has a bidirectional RS-232 interface, which allows connection to other IT systems. The balance is also available in a stainless steel version for special industrial uses. It has an analogue interface 4-20 mA or 0-10 V, as well as three potential-free ignition contacts. The verifiable scale is a multifunctional and safe equipment for freight traffic throughout the European Union, and is valid for 2 years. Manufactured by PCE with reference PCE-SD 1500F.
Specifications
Specifications
- Verifiable scale up to 1,500 kg
- Resolution from 0.5 kg
- IP67 load cells
- piece count
- sum function
- RS-232 interface
- lacquered steel

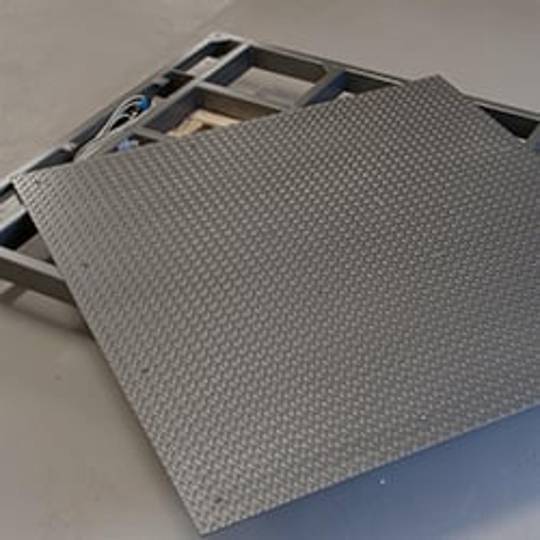

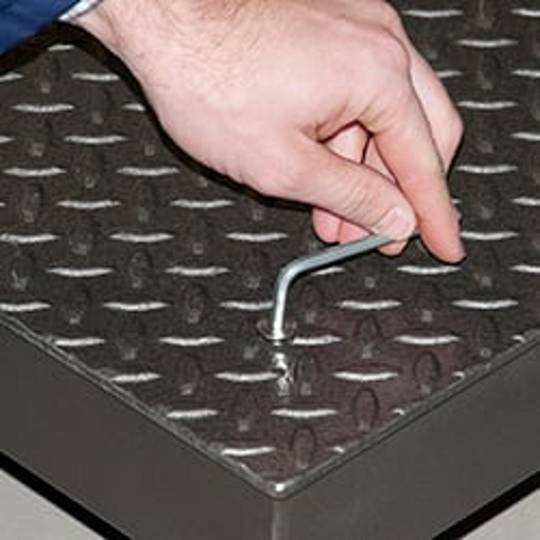

- Removable weighing pan
- Frame option to embed in the ground
- 5 m display cable with connector
- Screen with IP54 protection
- Possibility of mounting on a table or on the wall
- tripod option
- Available in different sizes
- Wide selection of functions
- Bidirectional RS-232 interface
- stainless steel version
- Analog interface 4-20 mA or 0-10 V
- Three potential-free ignition contacts
- Gross Weight: 240.0 kg
- Number of packages: 1
- Master-pack: 1
Technical terms
- Communication Series
- SD, MiniSD, MicroSD
- IP Protection
Communication Series
RS-232 (Recommended Standard 232, also known as EIA/TIA RS-232C) is an interface that designates a standard for the exchange of a series of binary data between a DTE (Data Terminal Equipment) and DCE (Data Communication Equipment , Data Communication Equipment), although there are others in which the RS-232 interface is also used. An equivalent definition published by the ITU is called V.24. The RS-232 is a connectorDB-25 type (25-pin), although it is normal to find the version of 9-pin (DE-9, or popularly also called DB-9), cheaper and even extended to certain types of peripherals (such as serial mouse PC).
