The BNC connector is a connector type, quick connect/disconnect, incoporando more security connector for coaxial cable. Initially designed as a miniature BNC Connector Type C is a type of connector used with coaxial cables like RG-58 and RG-59 RF applications that required a quick connector, suitable for UHF and constant impedance to over a wide range.

The lux (symbol lx) is the derivative unit of the International System of Units for the illuminance or lighting level. Equal to one lumen/m². It is used in photometry as a measure of luminance, taking into account the different wavelengths by the luminosity function, a standard model of the light sensitivity of the human eye.

Closed circuit television, or CCTV (stands for closed circuit television) surveillance is a technology designed to monitor a variety of environments and activities. It is called closed, that, contrary to what happens with the media, all components are linked. In addition, unlike conventional television, this is a security system designed to

A charge-coupled device or CCD (in Spanish "charge coupled device") is an integrated circuit containing a number of linked or coupled capacitors. Under the control of an internal circuit, each capacitor can transfer its electric charge to one or more of the capacitors that are at his side on the PCB. The digital alternative to CCD devices are the CMOS (complementary metal oxide semicondriver) used in some digital cameras and many webcams. Currently the CCD are much more popular in professional applications and digital cameras. In the diagram we can observe 1) photo-diode. 2) electron transfer register. 3) electric charge. 4) Horizontal Registry. 5) Output signal. 6) Amplifier. 7) Entry Light.

CVBS is the acronym by which composite video is often referred to. The idea of this definition means Color, Video, Erase and Synchronized.

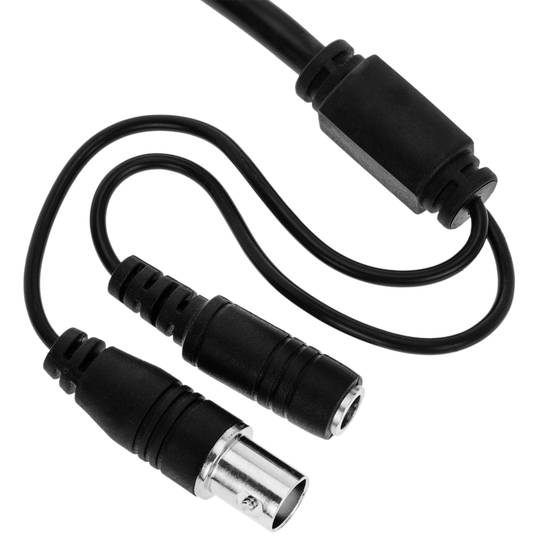

The most widely used cable is the already known coaxial cables with a BNC connector or RCA connector.

hen we talk about IP code (International Protection) we talk about an international standard (IEC 60529) which classifies the protection against external factors, solid or liquid, that has a component or electronic device; LED strips, controllers, meters, security cameras, etc.

This alpha-numerically standard has been designed to sort different levels of protection. Nomenclature starts with IP followed by two numeric values.

- Example IP68:

The first value ranges from 0 to 6 and indicates the protection against solid agents. In this case, strong protection against dust.

The second value is between 0 and 8 and indicates the protection against liquid agents. In this case the complete and prolonged immersion during the time specified by the manufacturer.

We could say that the larger the number is greater IP protection has a device.

In below table, we can see different IP protections levels available.

IPXX	First digit (IPxx)	Second digit (IPxx)
0	Unprotected.	Unprotected.
1	Protection against objects of> 50 mm diameter.	Protection against vertically dripping water.
2	Protection against objects of> 12.5 mm diameter.	Protection against inclined drip water up to 15°.
3	Protection against objects of> 2 mm in diameter.	Protection against water projected from any direction, up to 60°.
4	Protection against objects of> 1 mm in diameter.	Protection against splashing water any direction.
5	Ingress of dust is not entirely revented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment .	Protection against water jets.
6	Dust tight.	Protection against strong jets of water.
7		Protection against complete immersion up to 1 meter for 30 minutes.
8		Protection against complete and prolonged immersion.
