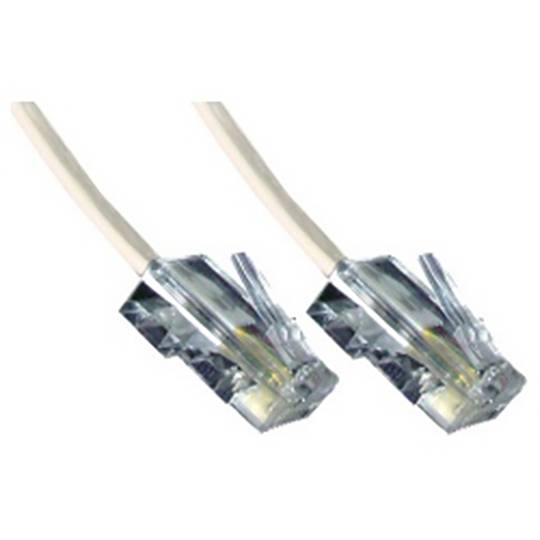

4-Wire Telephone Cable RJ11 LSHF (1.8m)

AWG stands for "American Wire Gauge" being this a measure used to represent the width and section measurements of cables.

Here is an AWG conversion table:

AWG	Diam. mm	Mm2 area		AWG	Diam. mm	Mm2 area
1	7.35	42.40		16	1.29	1.31
two	6.54	33.60		17	1.15	1.04
3	5.86	27.00		18	1,024	0.823
4	5.19	21.20		19	0.912	0.653
5	4.62	16.80		twenty	0.812	0.519
6	4.11	13.30		twenty-one	0.723	0.412
7	3.67	10.60		22	0.644	0.325
8	3.26	8.35		2. 3	0.573	0.259
9	2.91	6.62		24	0.511	0.205
10	2.59	5.27		25	0.455	0.163
eleven	2.30	4.15		26	0.405	0.128
12	2.05	3.31		27	0.361	0.102
13	1.83	2.63		28	0.321	0.0804
14	1.63	2.08		29	0.286	0.0646
fifteen	1.45	1.65		30	0.255	0.0503

LSHF Cable (Low Smoke Halogen Free Cable) or also called LSZH (Low Smoke Zero Halogen) is a type of international classification that is used to cover the wires in the cable industry both steel and other types. LSHZ has a thermoplastic coating that propagate little heat sources. Another carasterística do not emit toxic gases or fumes when exposed to flame. You have to take into account that surfacertas facilities may be required by the competent authority using these cables.

The RJ-11 is mainly used to link telephone networks connector. It is small and has four contacts measures to support 4-way 2 cables. It is the most widely used globally for connecting conventional telephones, which generally tend to use only the two central threads to a single line or a twisted pair connector. And the four wires are used only for telephony equipment special using double line or two telephone pairs. After crimp the cable, it is almost impossible to disarm the RJ-11 without causing its deactivation.
