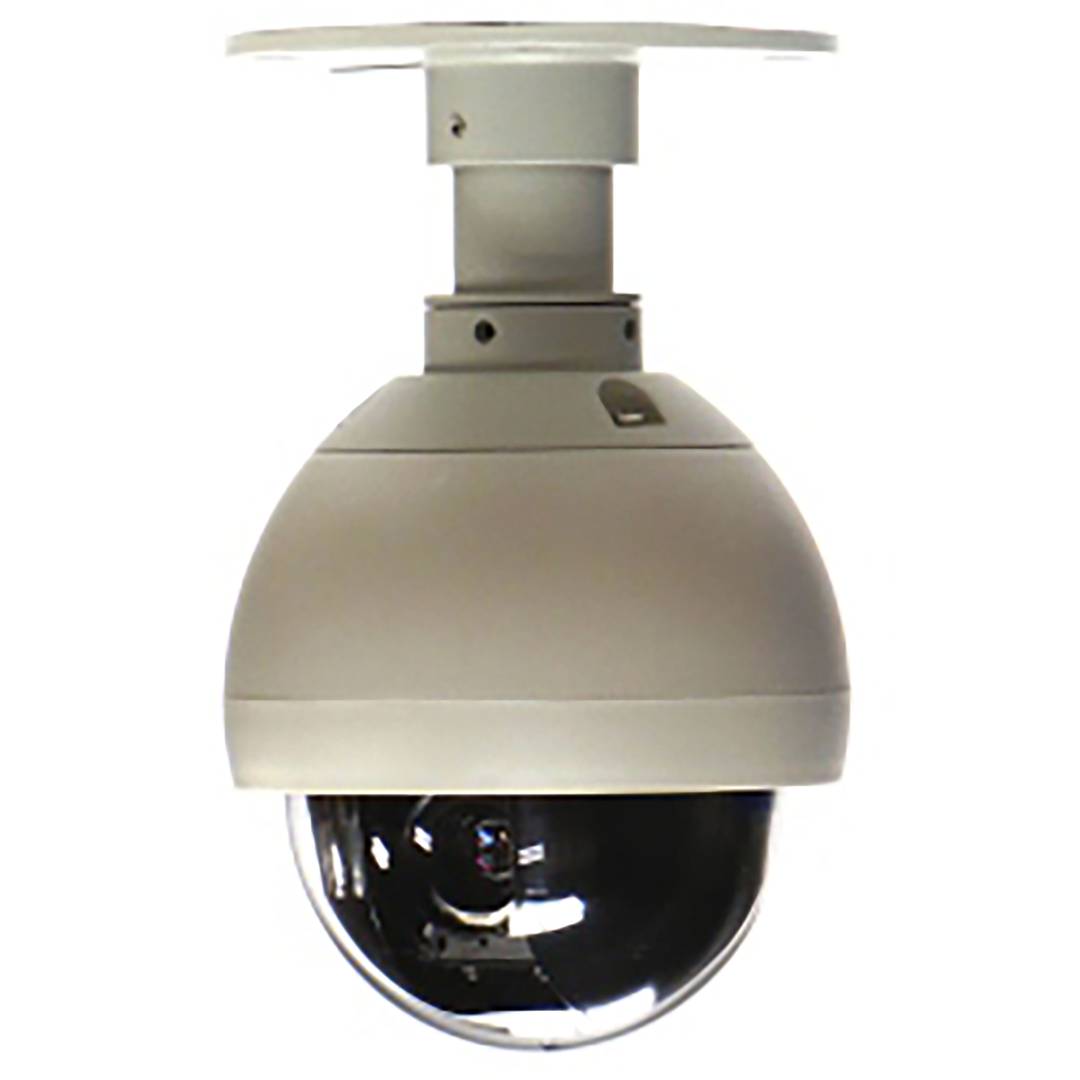

CCD dome camera with PTZ control (Hitachi 10X Zoom 540TVL Interior)

Video camera designed for applications closed circuit television (CCTV). Is a color camera based on CCD technology 1/3 "(Hitachi chipset) and 540TVL (TV line). Format dome to be recessed in a false ceiling or fixed directly to the ceiling. Camara with Pan functions, Tilt and zoom (horizontal, vertical displacement and zoom) allowing frame the picture in the range of action of the camera and perMiten zoom the image optically.

Specifications

• CCD 1/3 "Hitachi color.
• Format to be fixed spherical dome ceiling.
• Mounted beige plastic housing adapted to be installed indoors.
• Resolution: 540 TVL.
• CCIR standard output PAL/EIA.
• Varifocal lens 4.0 - 9.0 mm, manual adjustment.
• manual adjustmentsfor focal length and focus (Zoom and Focus).
• Shutter Auto: 1/50 s - 1/12,000 s.
• Compatible with the communications protocol Pelco-D and Pelco-D at speeds of 2400, 4800, 9600 and 19200 bps.
• 10x optical zoom.
• Horizontal rotation: 360 °.
• Vertical rotation: 90 °.
• It allows up to 32 preset focus positions.
• Allows movement between two points walkedtrol, the camera returns to the initial position (preset position 1).
• Power supply: 24 VAC (1000 mA).

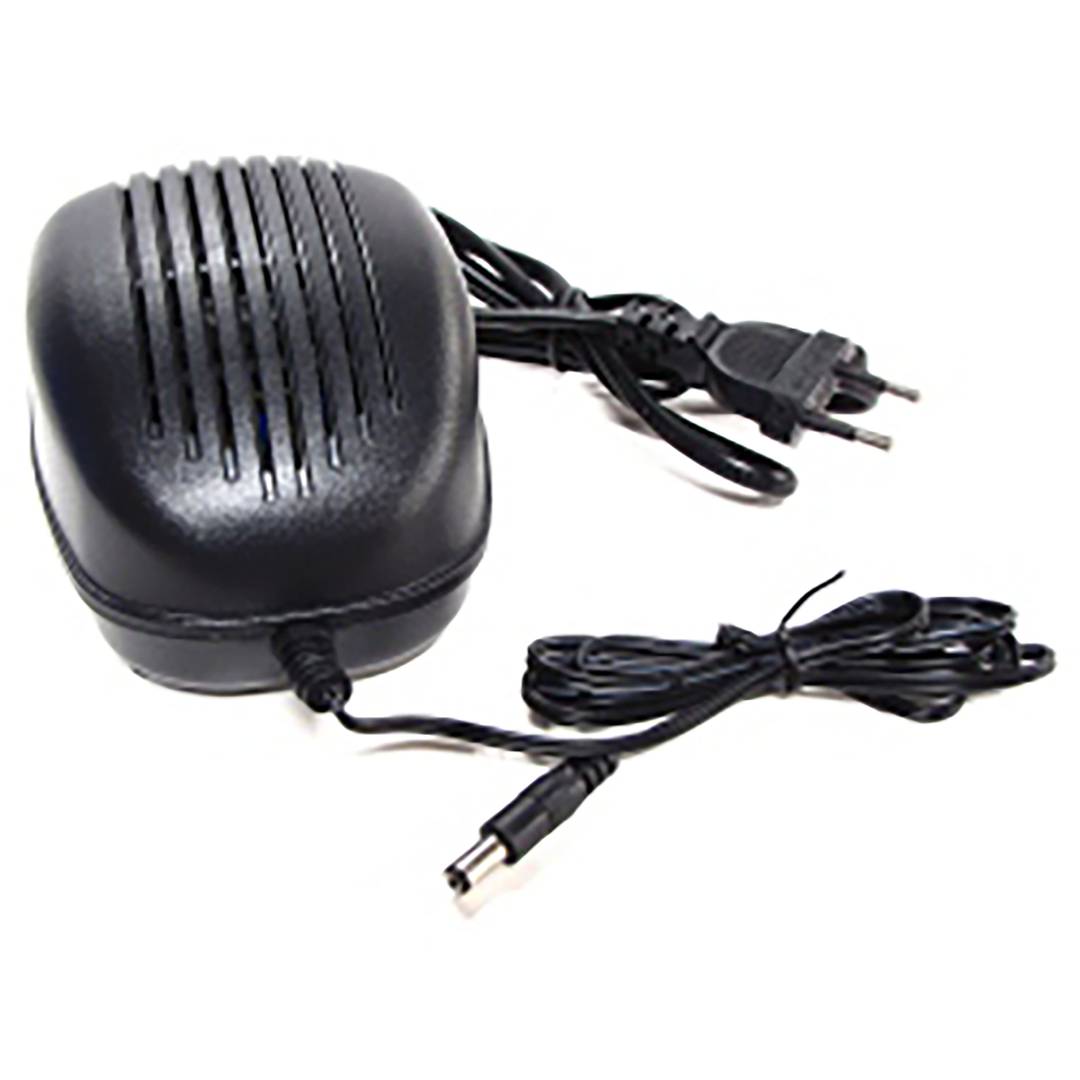

• It includes power supply with 24 VAC output (1500 mA).
• Automatic functions: exposure control, gain control, adjustable balance, frame synchronization, aperture adjustment and gamma adjustment.
• PAL TV system.

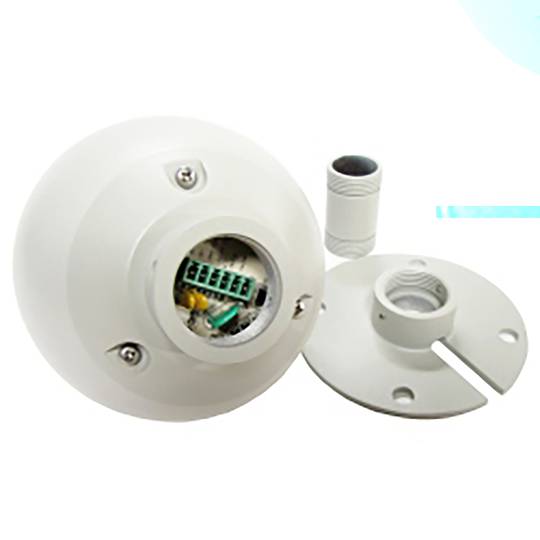

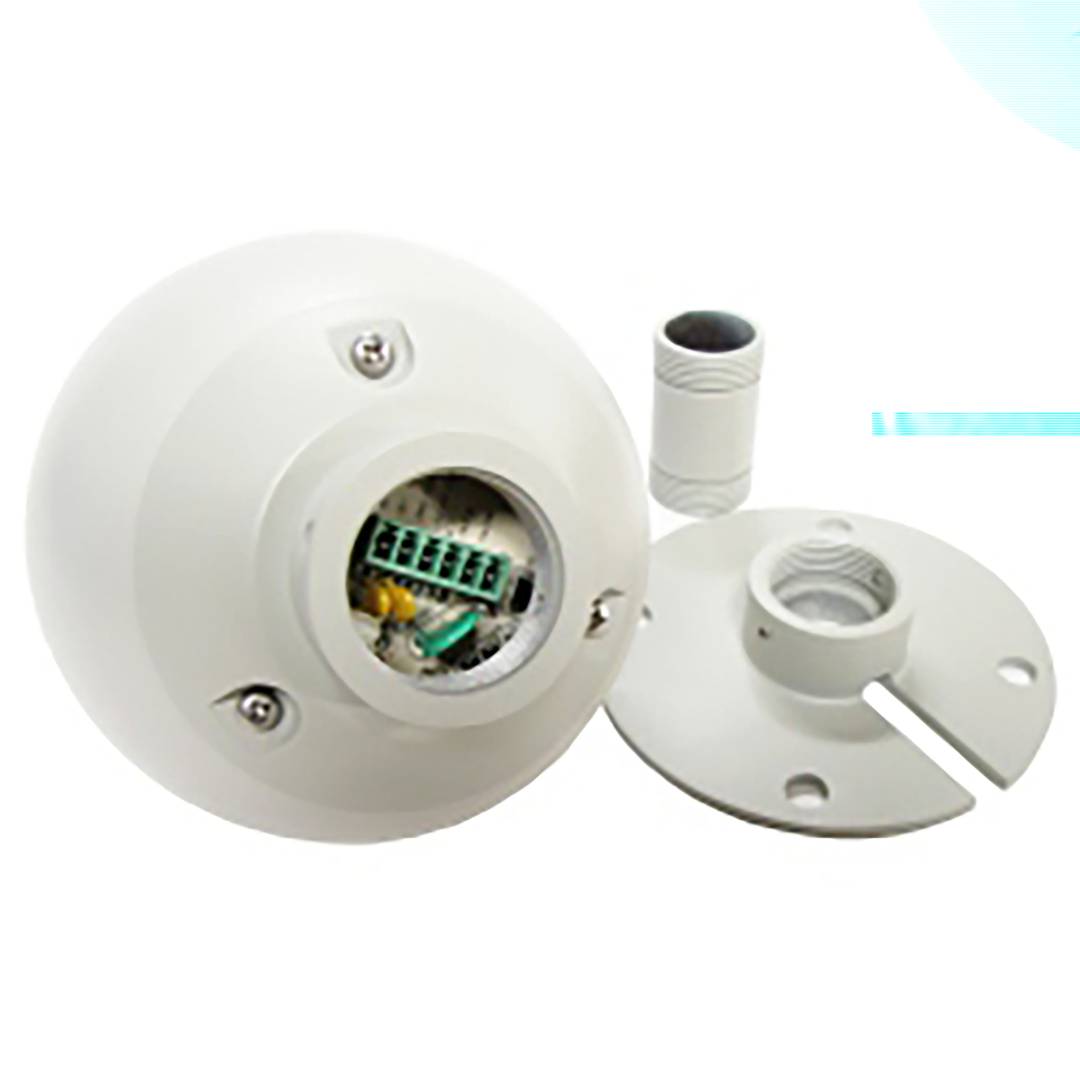

• It has 6 terminals: AC24 +, AC24-, Video-OUT, Video-GND, RS485 (B) and 485 + (A).

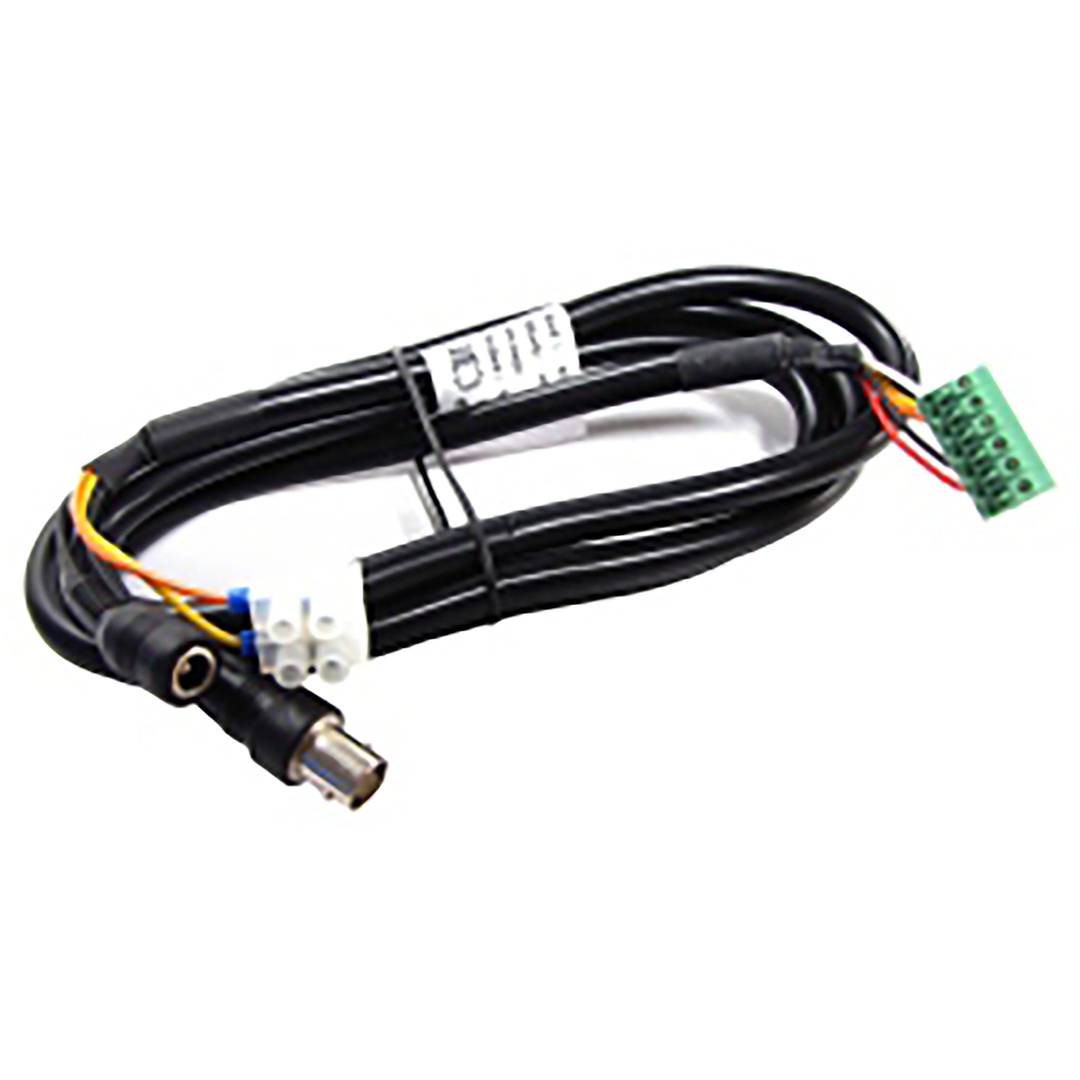

• adapter cable 6 terminals to BNC female (video), DC-Jack female 4.0 mm (power) and two terminals (RS485 control) is supplied.
• Size: 123 mm (H) x 123 mm (diameter). H of 196 mm with fixing base.
