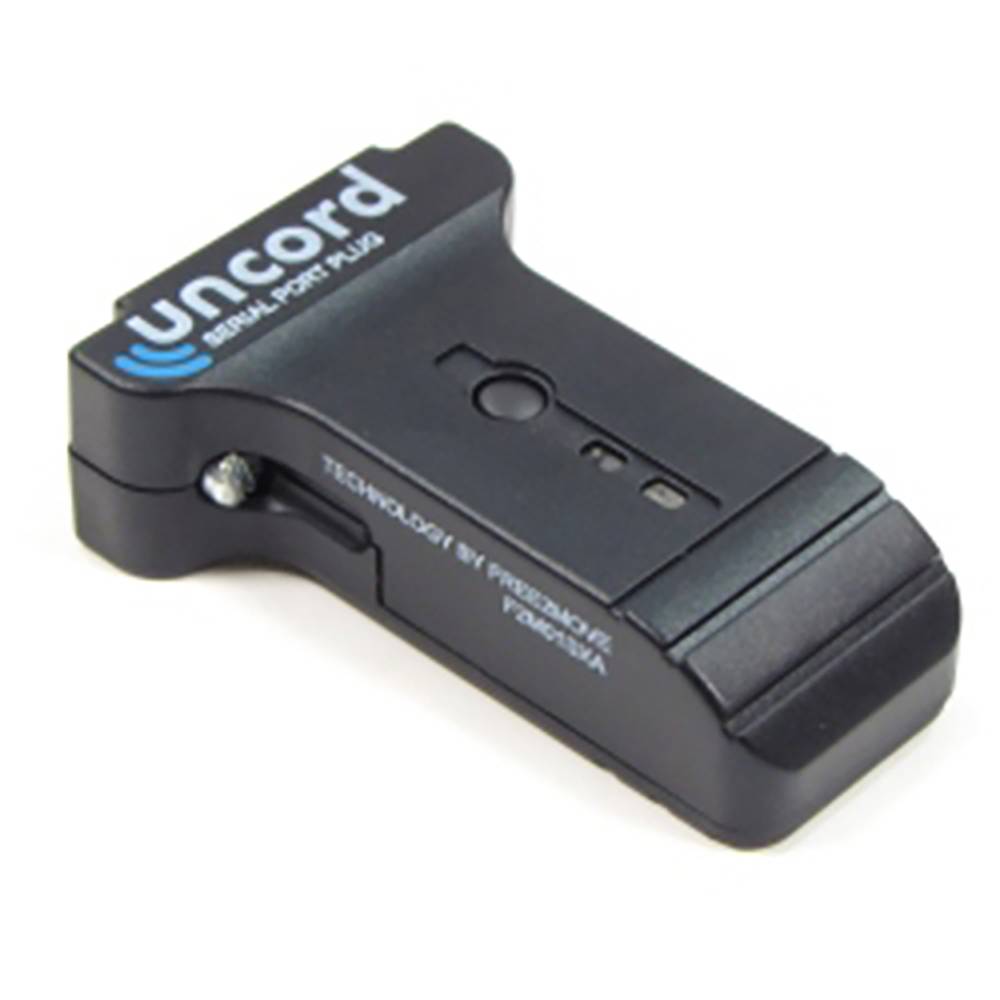

Free2Move Bluetooth Serial Port Plug (Uncord F2M01SXA)

Replace a module that allows RS232 cable Bluetooth wireless technology completely transparent to the user. Uses the Bluetooth Serial Port Profile and Generic Access Profile Class 1 permits a maximum distance of 500m in a straight line without hindrance or interference technology. Configurable serial transmission parameters. Reduced in size: 37 x 18 x 60 mm. Couplet easy touch of a button. indicatesDores LED DATA and STATUS.


Basically allows two operating:

1. Free2Move use two modules. The user connects the computer module and one in the serial device control. It is the clearest case of cable replacement for Bluetooth wireless technology. The configuration is simple as just run the supplied software to pair the two modules. From that moment is not necEaria the use of drivers, as these two modules act as a virtual cable 500m away (max.). Ideal for use transparently in any system RS-232 communication.
2. Free2Move use a single module with an existing Bluetooth port on any PC. In this case the bluetooth port is mapped as if it were a serial port. The Bluetooth module is connected to the Free2Move module. Ideal for utilizado on PDAs, Pocket-PC, computers, etc.

5VDC-30VDC it powered and can feed in several different ways:

1. Via pin 9 series DB9 connector itself, provided that provide power. Undoubtedly the most convenient solution.
2. With special and optional USB cable that connects to the USB port, which gets power (Reference #CU2x).
3. Using the cable described inpoint 2 along with a USB power supply output (Ref. #AU01).
4. Using the cable described in section 2 along with a car cigarette lighter adapter (Ref. #AU21).

It is supplied only RS232-BT module. Documentation, manual and controlades can be downloaded from the website of free2move.
