Industrial USB 2.0 adapter to RS232 RS422 RS485 4-port
Industrial USB 2.0 adapter to RS232 RS422 RS485 4-port
REF: UB094
Specifications
- Maximum speed of 921.6Kbps.
- Does not require power supply.
- 2K-byte FIFO.
- RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND.
- Signals RS422: RS422 TxD +/-, RxD +/ -, RTS +/-, CTS +/-, GND.
Watch video
PVP
€244.37
Price including VAT:
€244.37
PVD
€220.33
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Maximum speed of 921.6Kbps.
- Does not require power supply.
- 2K-byte FIFO.
- RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND.
- Signals RS422: RS422 TxD +/-, RxD +/ -, RTS +/-, CTS +/-, GND.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info

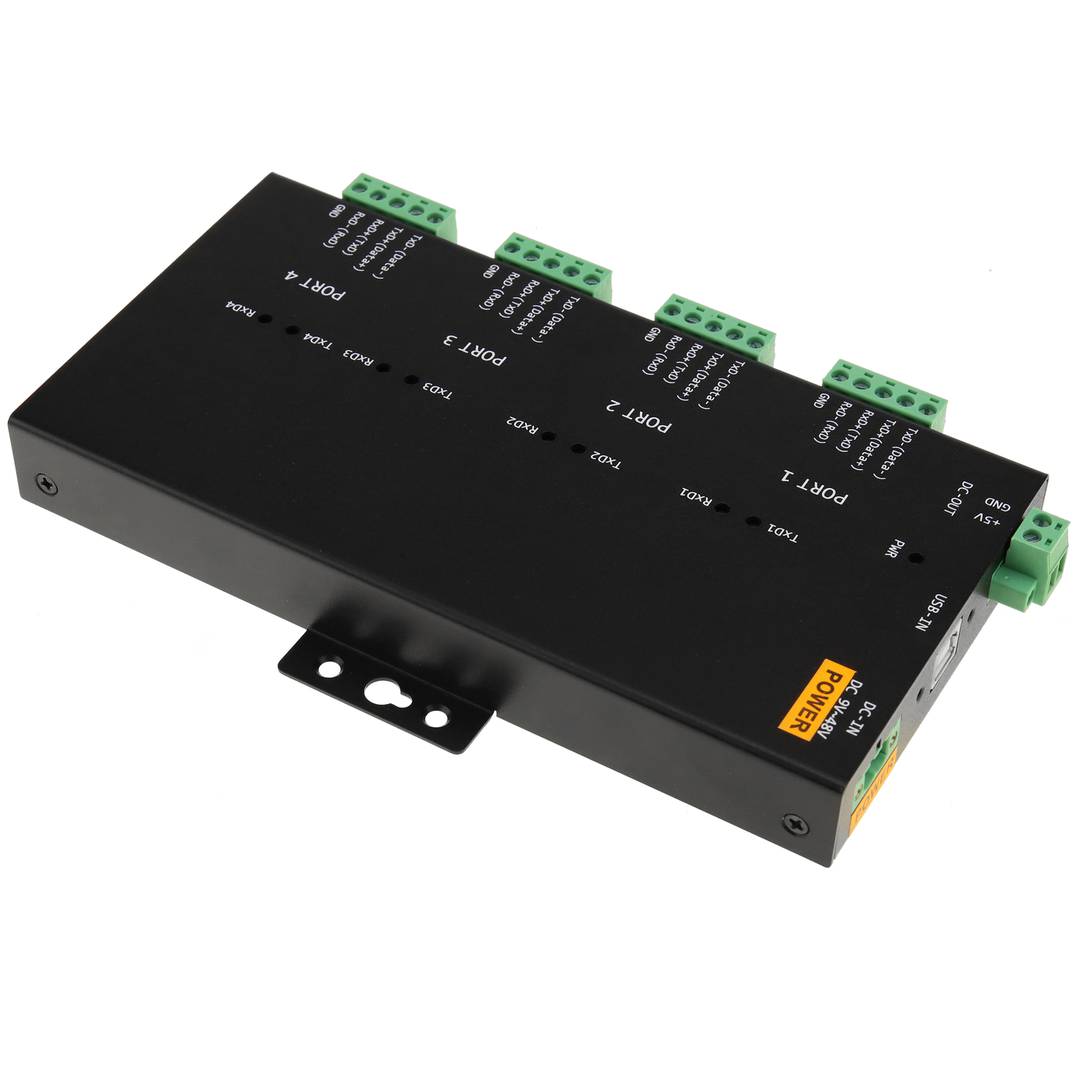

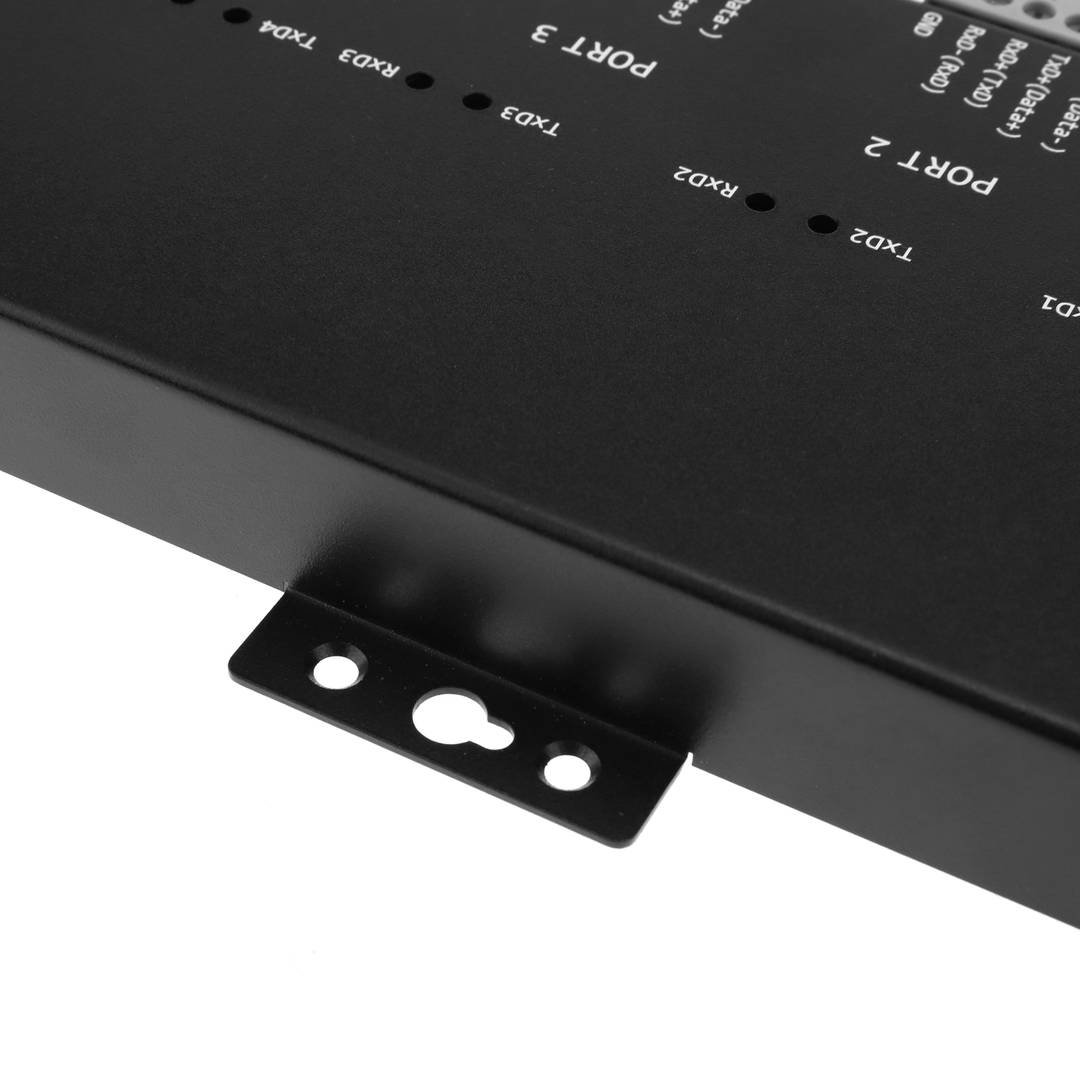

USB adapter to an RS232, RS422 and RS485 serial port in industrial format. It is a robust converter mounted in a metal housing, with a wall fixing system.
Specifications
Specifications
- Maximum speed of 921.6Kbps.
- Does not require power supply.
- 2K-byte FIFO.
- RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND.
- Signals RS422: RS422 TxD +/-, RxD +/ -, RTS +/-, CTS +/-, GND.
- RS485 signals: Data +/-, GND.
- Driver compatible with Windows and Linux environments.
- It has 4 serial outputs type terminal-block of 5-pin (TxD-, TxD +, RxD +, RxD-, GND).
- Case size: 190 x 97 x 22 mm.
- Size with ears and connectors: 200 x 124 x 22 mm.
- Protection downloads: 15KV.
- External switch (DIP) to configure operative.
- Departureoptionally powered for those devices that are powered from the serial port (5V).

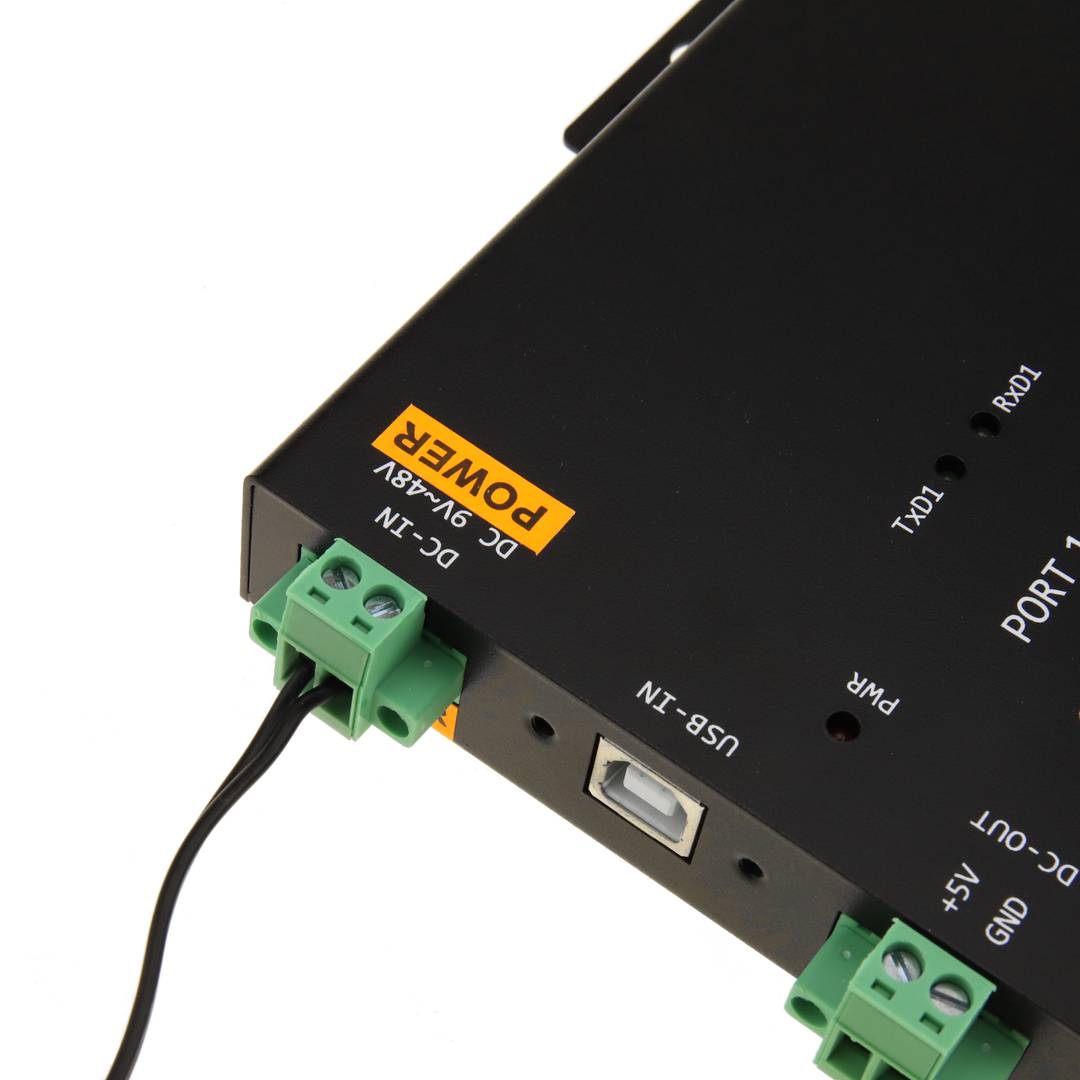

- USB connection port type B-female.

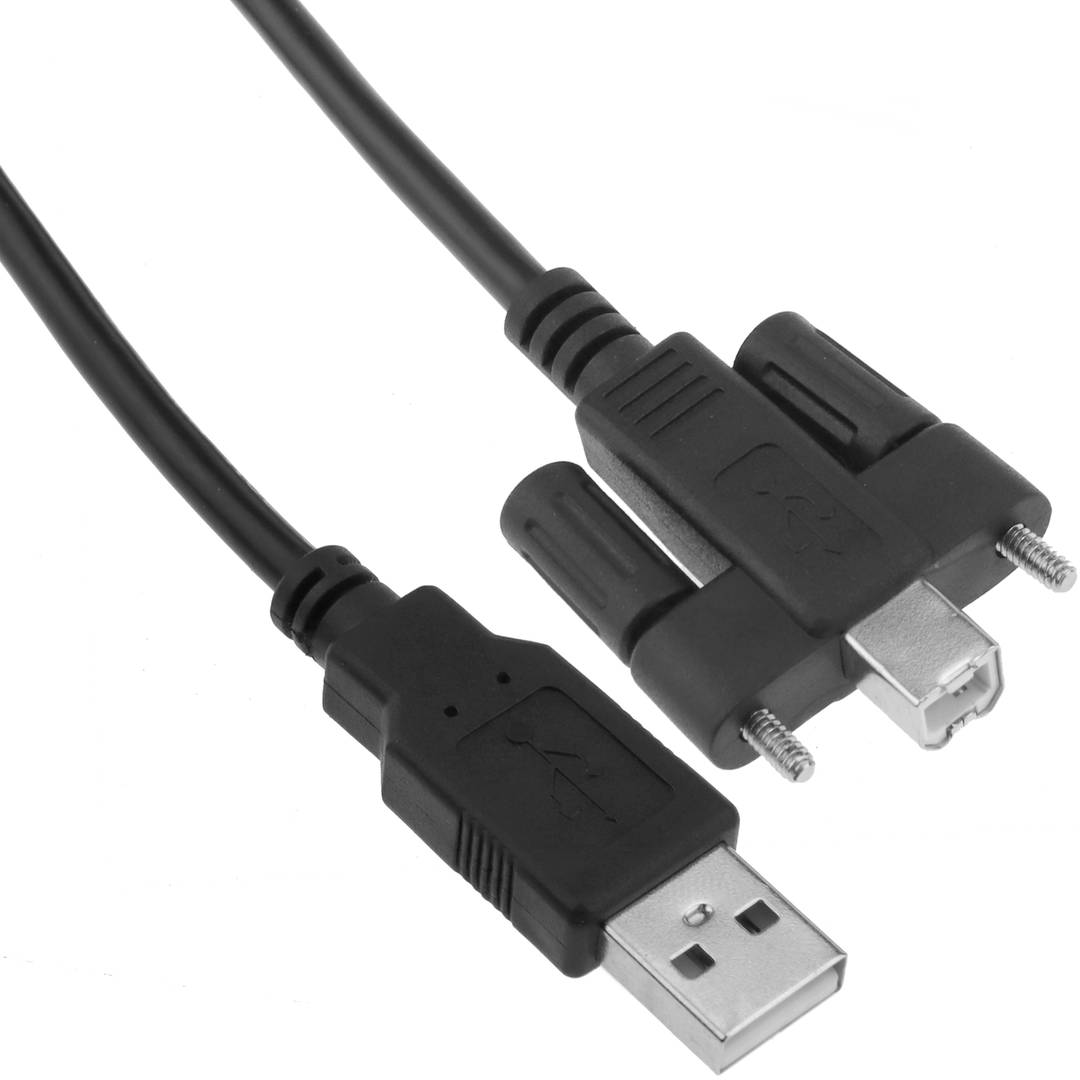

- Industrial USB cable is supplied, with fixings by screws.

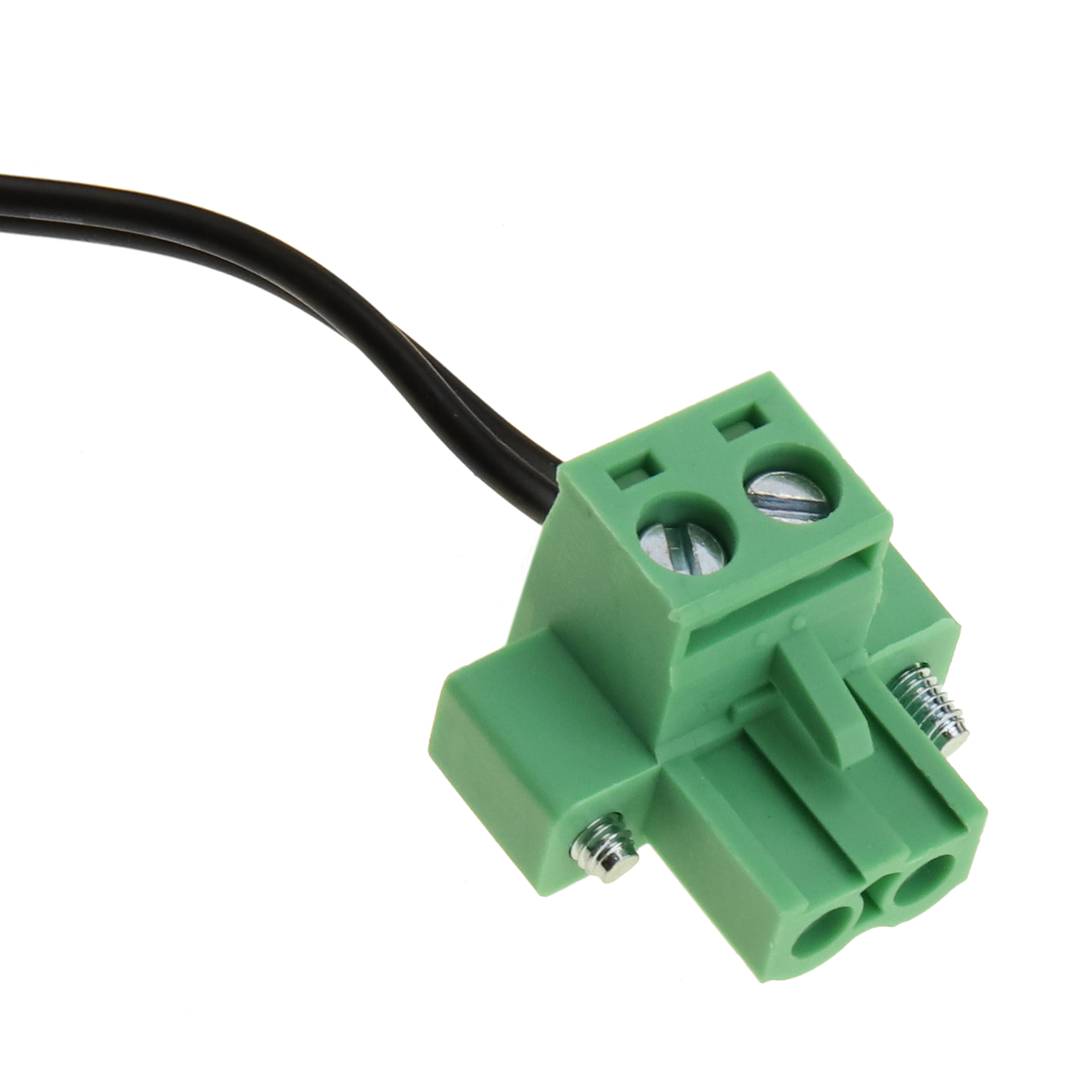

- Terminal block 2-pin for connection to the power supply (included).
- Chipset FTDI FT4232H (4-port) Genesys GL852G + FTDI FT4232H (8-port).
- Gross Weight: 855 g
- Product size (width x depth x height): 19.0 x 9.7 x 2.2 cm
- Number of packages: 1
- Packages size: 28.8 x 14.7 x 6.1 cm
- Master-pack: 1
Technical terms
- USB
- MicroUSB
- Mini USB
- Communication Series
- USB 3.0
- Reversible USB Type-C
- RS232
- RS485
USB
The USB (Universal Serial Bus) is a standard that defines the cables, connectors and used a bus to connect, communicate, computers, peripherals and electronic devices protocols Transmission Rates Low speed (USB 1.0). Transfer rate up to 1.5 Mbit/s (188 kB/s) used in keyboard, mouse ... transfer rate up to 12 Mbit/s (1.5 MB/s) High Speed ??(USB 2.0): Rate transferencia up to 480 Mbit/s (60 MB/s) SuperSpeed ??(USB 3.0) transfer rate up to 4.8 Gbit/s (600 MB/s) Connector Types 1 - USB type A (4 pin) 2. - USB type B (4 pin) 3 - Mini A (5-pin) 4 - Mini B (5-pin) 5 - Micro A (5-pin) 6 - Micro B (5-pin)
