OM3 Fiber Optic Cable ST to ST multimode duplex 50/125 50cm
REF: FY041
Specifications
- Multi-Mode Duplex fiber optic cable (MM) that complies with the OM3 standard of ISO-11801.
- OM3 cables use optimized 50/125 ?m multimode fiber and allow a speed of up to 10 Gigabit Ethernet at a distance of 300 m.

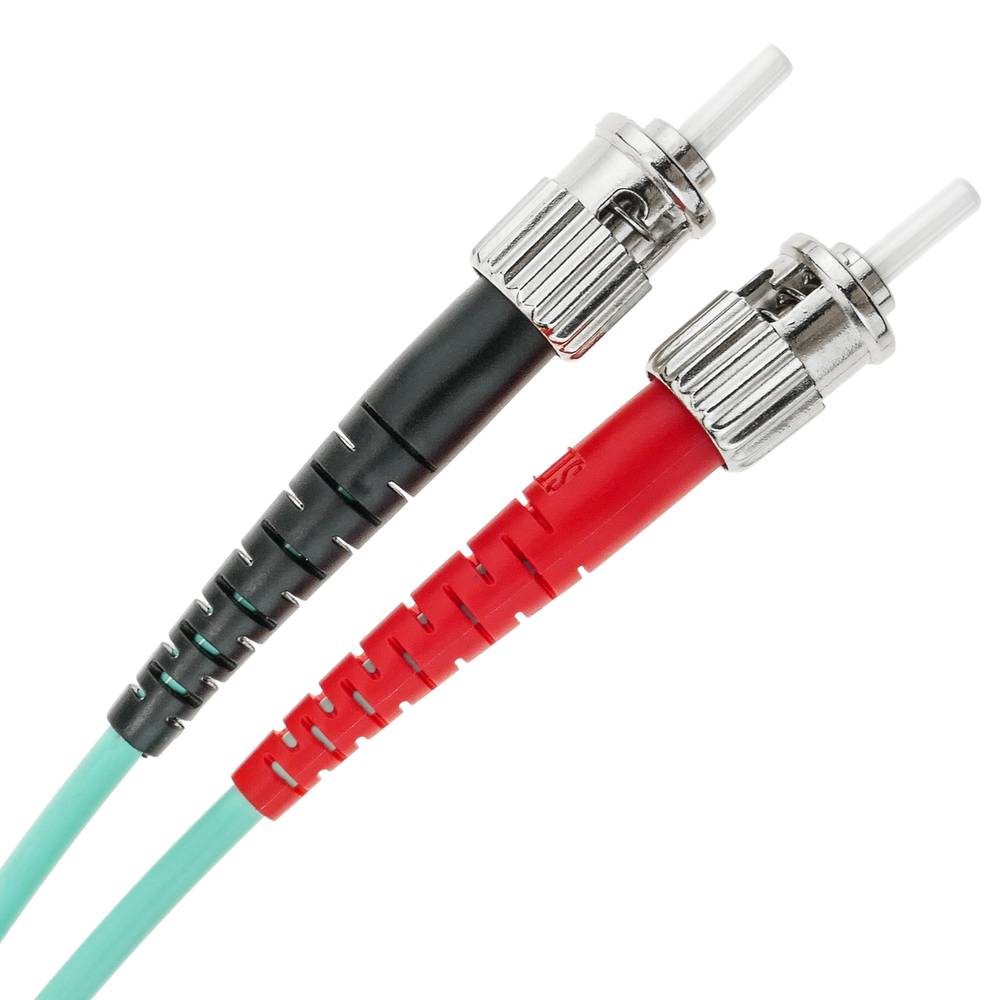

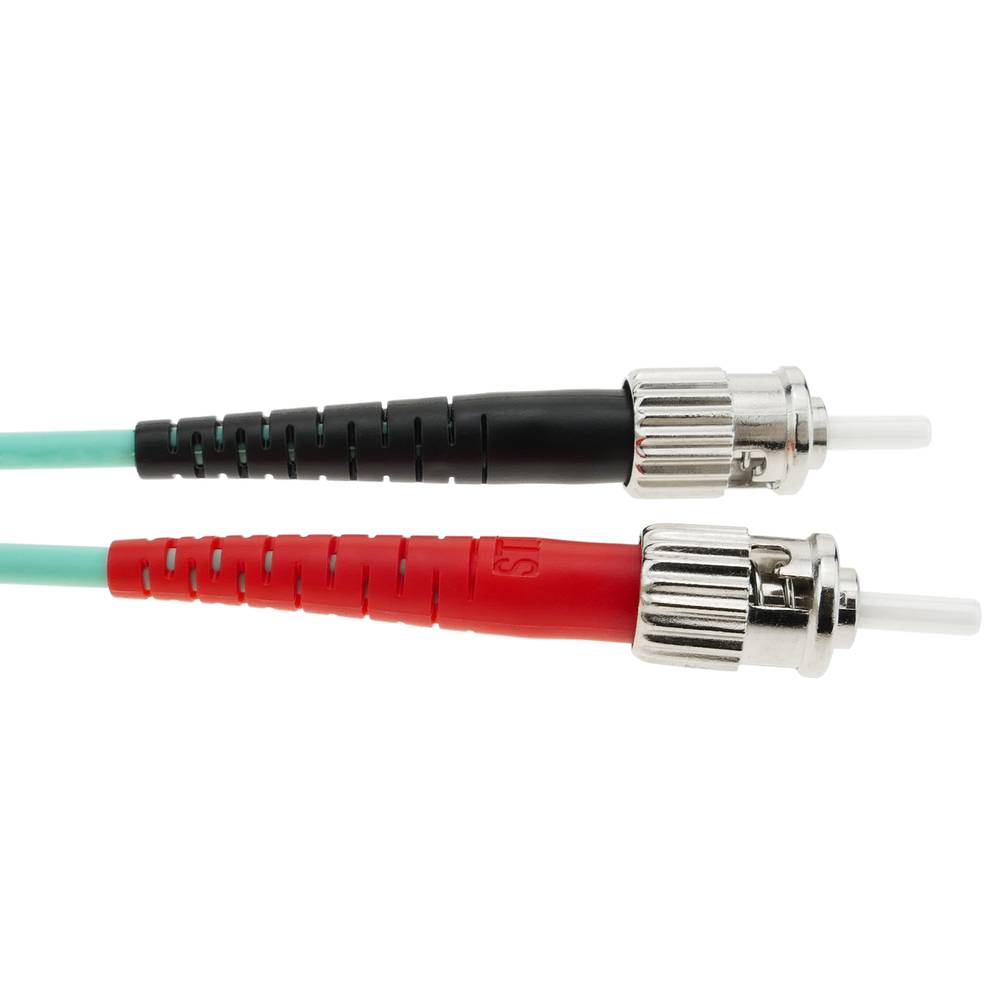

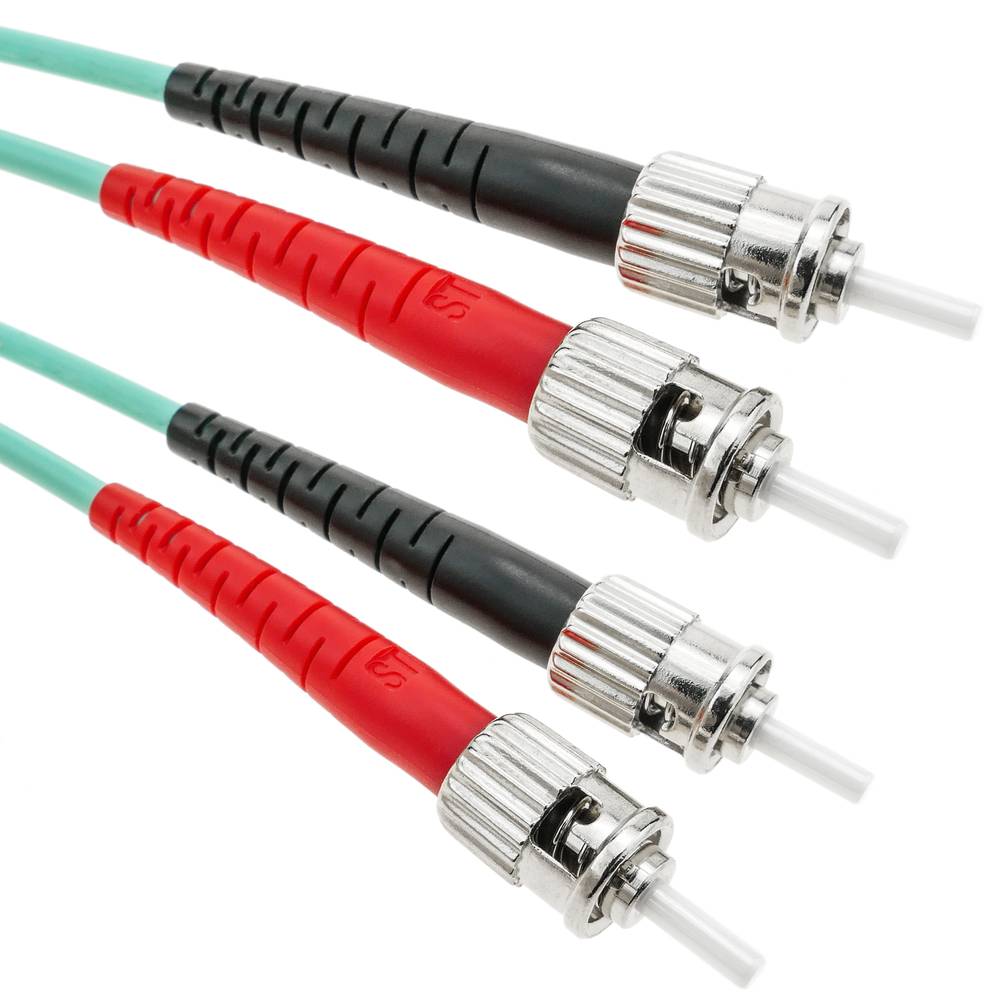

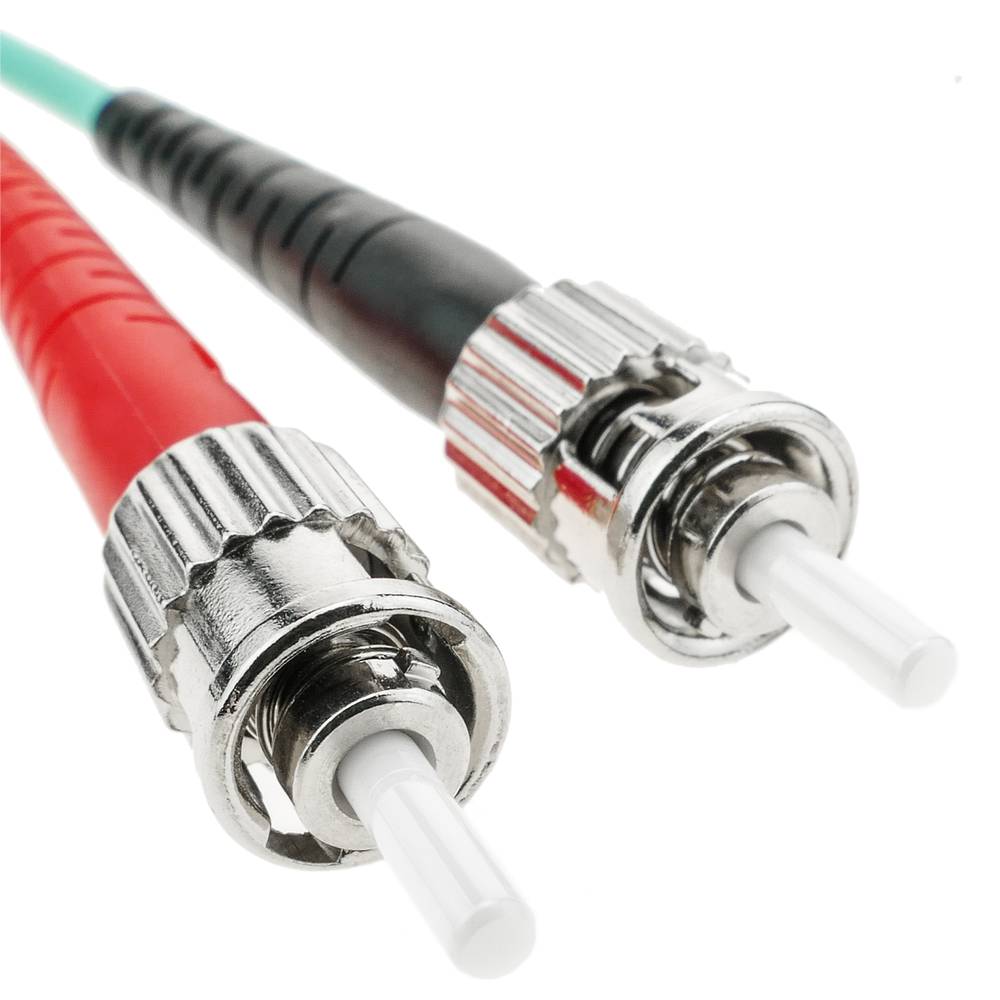

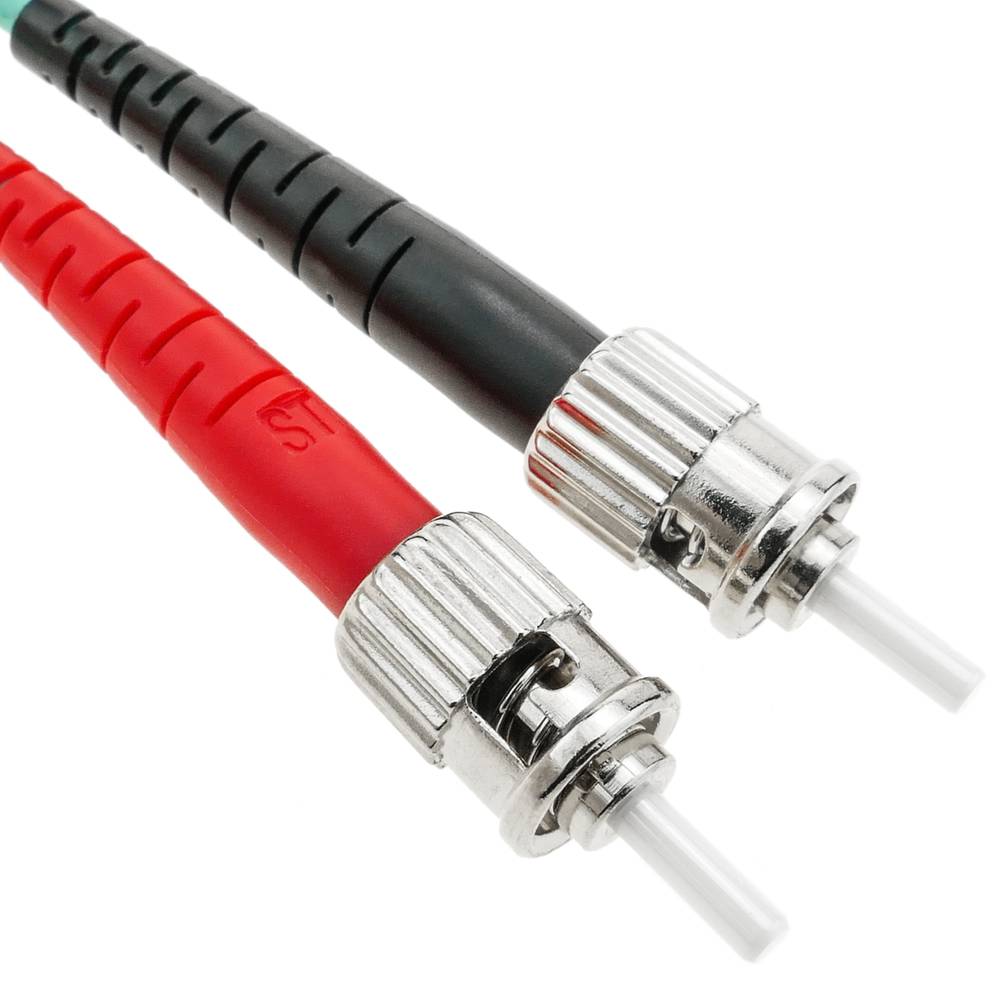

- It has two ST/PC connectors at both ends.
- Cable verified 100%, of first quality and LSZH (Low Smoke Halogen Free).
- Section of the central core and its coating of 50/125 microns (?m).
Watch video
PVP
€7.84
Price including VAT:
€7.84
PVD
€7.06
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
9 business days
Delivery times are approximate. Cablematic is not responsible for delays.
2 years
warranty
warranty
14 days
returns
returns
100%
safe
safe
Specifications
- Multi-Mode Duplex fiber optic cable (MM) that complies with the OM3 standard of ISO-11801.
- OM3 cables use optimized 50/125 ?m multimode fiber and allow a speed of up to 10 Gigabit Ethernet at a distance of 300 m.
- It has two ST/PC connectors at both ends.
- Cable verified 100%, of first quality and LSZH (Low Smoke Halogen Free).
- Section of the central core and its coating of 50/125 microns (?m).
More info
Multi-Mode Duplex fiber optic cable (MM) that complies with the OM3 standard of ISO-11801. OM3 cables use optimized 50/125 ?m multimode fiber and allow a speed of up to 10 Gigabit Ethernet at a distance of 300 m. It has two ST/PC connectors at both ends. Cable verified 100%, of first quality and LSZH (Low Smoke Halogen Free). Section of the central core and its coating of 50/125 microns (?m). Total section ofeach 3.0 mm cable (including kevlar fiber and green sheath). Cable length of 0.5 m.
- Gross Weight: 30 g
- Number of packages: 1
Technical terms
- Optic fiber
- LSZH - LSHF
- Gbps
- OM1, OM2, OM3, OM4
- MMF
- Types of fiber optic polishing
Optic fiber
It gives transmission distance. Types fiberoptic
- Single mode (single mode): Only one mode light propagates. Allow distances up to 400 km and very high speeds. The usual size of 9/125 microns fiber is.
- Multimode (multi mode): The light is spread by more than one way. . Used for transmission at close range, no more than 2 Km Typical multimode fibers are according to ISO: OM1 (62., Data transmission is changing direction. In a duplex system, each of the fibers is used for transmission in one direction. Therefore, the duplex installations are faster and more efficient.
