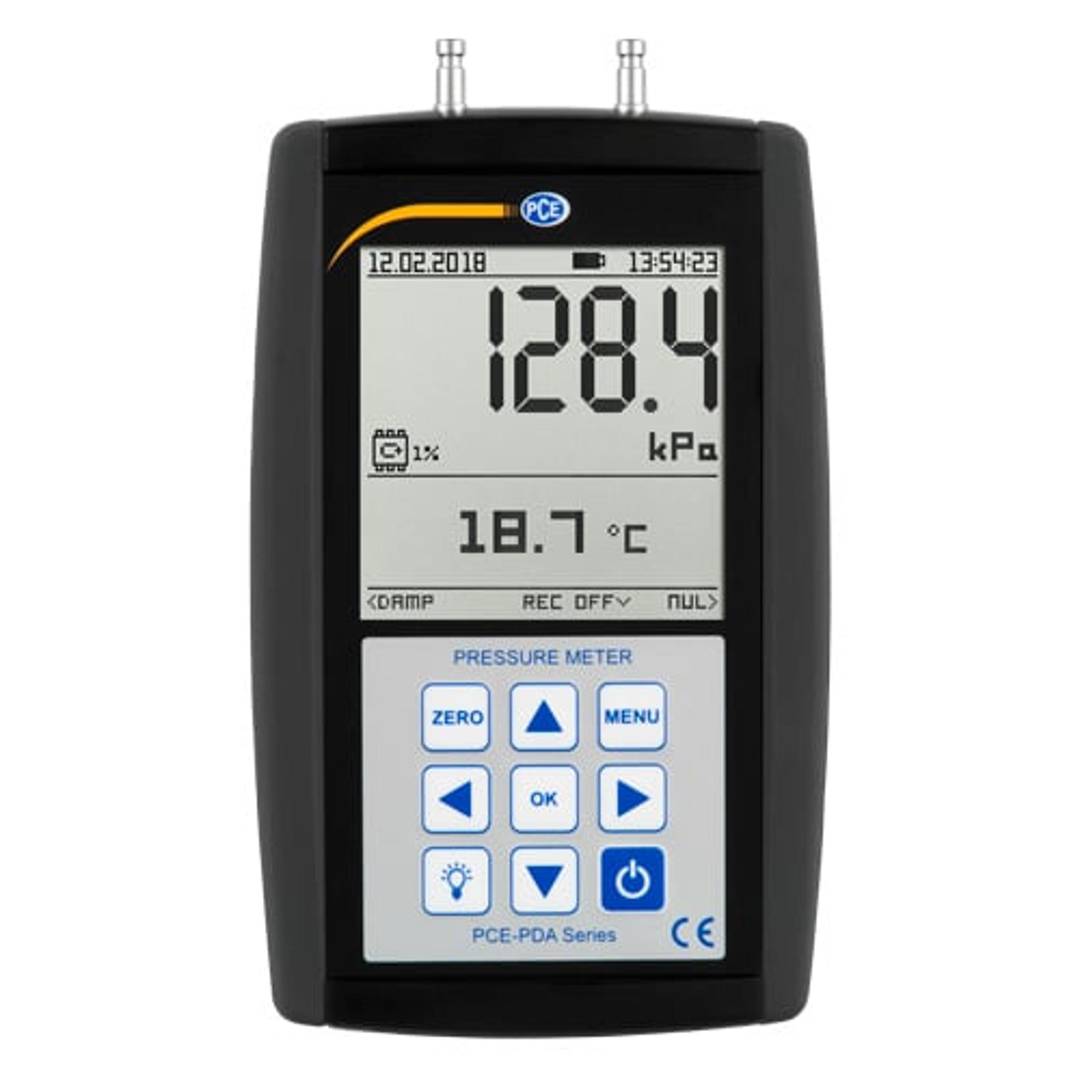

The differential pressure manometer is a versatile and intuitive device that allows you to measure the relative and differential pressure of liquids and gases. It is available in different models with ranges of ±200 Pa, ±2 kPa or 20 kPa. It offers a wide variety of functions, such as the selection of 16 different units, the indication of the minimum and maximum values of differential pressure, the high precision mode and the data logging. The user can also change the resolution of the differential pressure and perform a pressure line leak test. Additionally, you can adapt a pitot tube to measure flow velocity and flow rate. It is a practical and reliable device for relative and differential pressure measurement of liquids and gases, offering you a wide variety of functions and high precision. Manufactured by PCE with reference PCE-PDA 100L.

Specifications

• Manometer to measure the pressure of non-flammable and non-corrosive gases and liquids (>100 Pa) in a range of ±200 Pa, ±2 kPa or 20 kPa.
• Possibility of selecting between 16 different units.
• It measures, in addition to pressure, temperature, flow rate and flow rate.

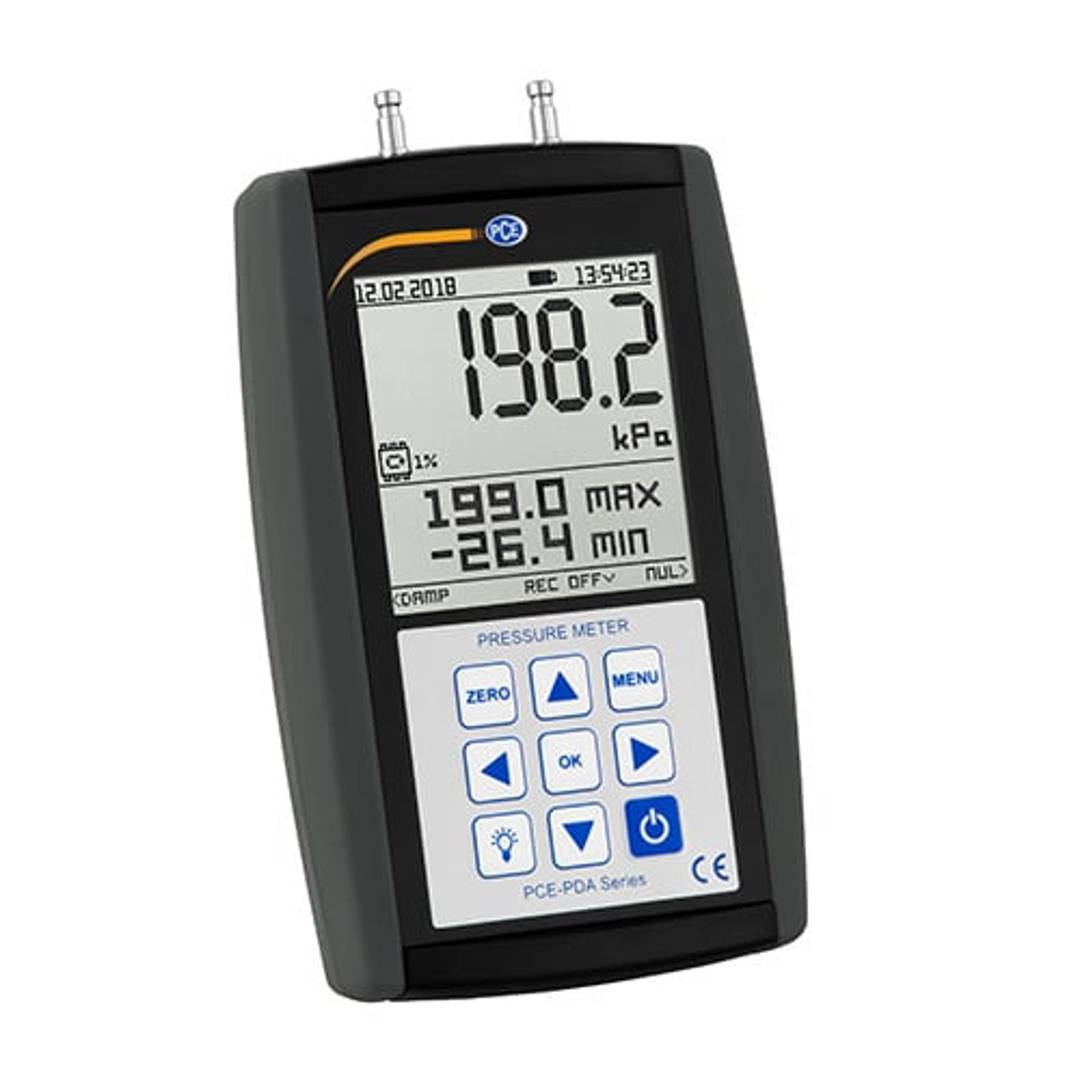

• Graphic display indicates the minimum and maximum differential pressure values.
• Possibility to change the resolution of the differential pressure.
• High precision mode that increases the resolution by 10.
• Data logging function.
• Possibility to carry out a leak test in pressure pipes.
• Indication of the difference between actual and nominal value.
• Possibility to measure flow velocity and flow rate with the optional pitot tube.
• black colour.
• Powered by 2 AA batteries.

• Gross Weight: 380 g
• Number of packages: 1
• Master-pack: 1
