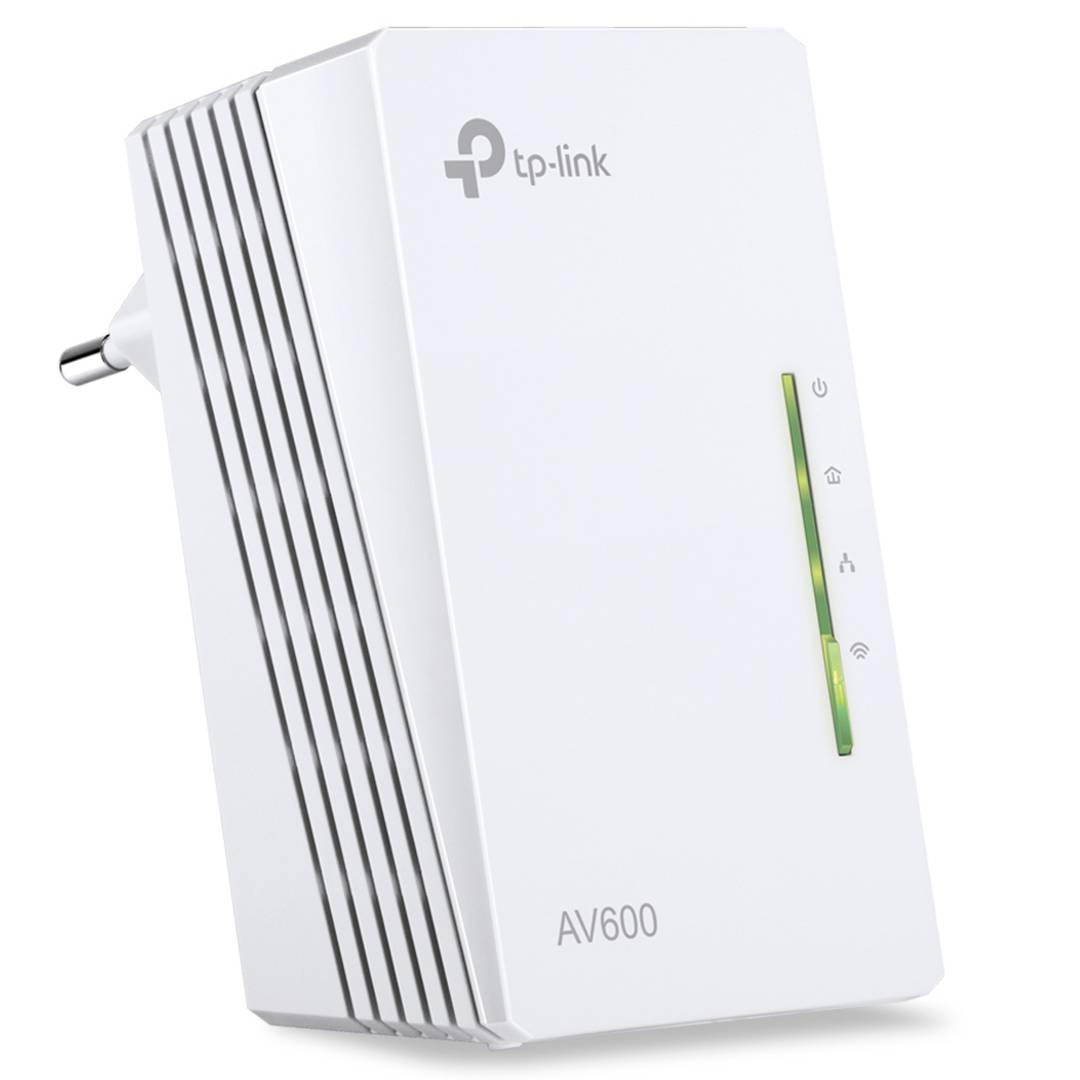

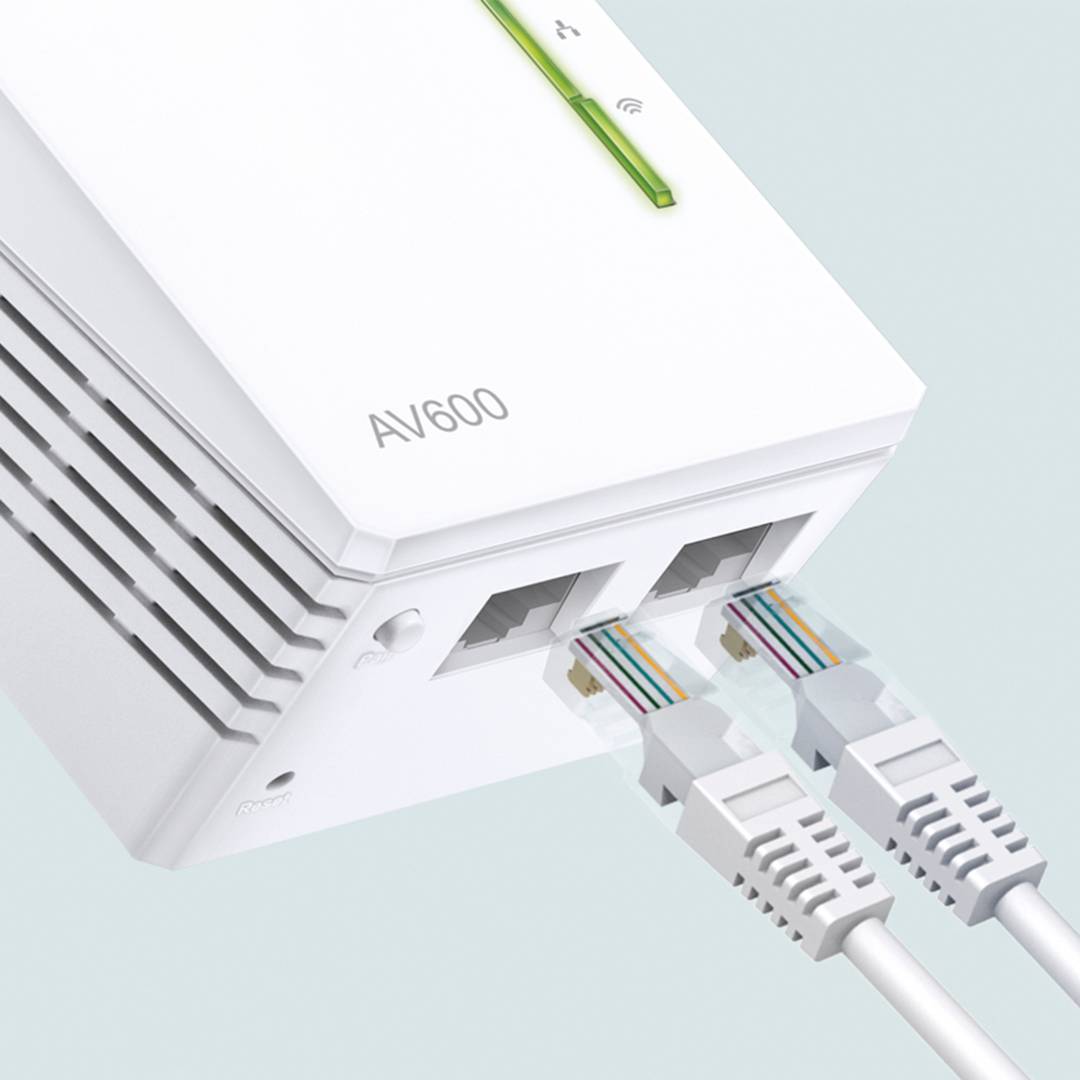

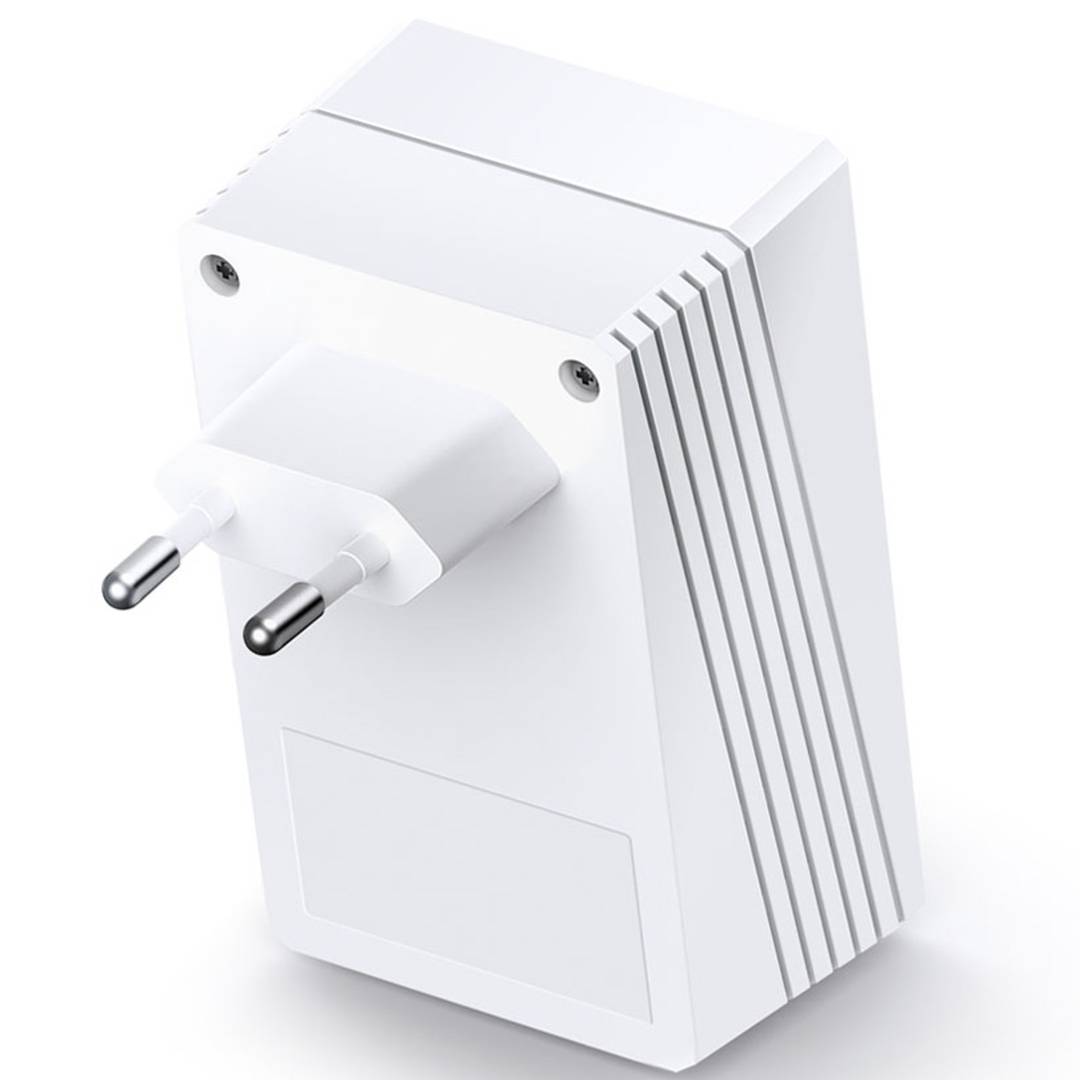

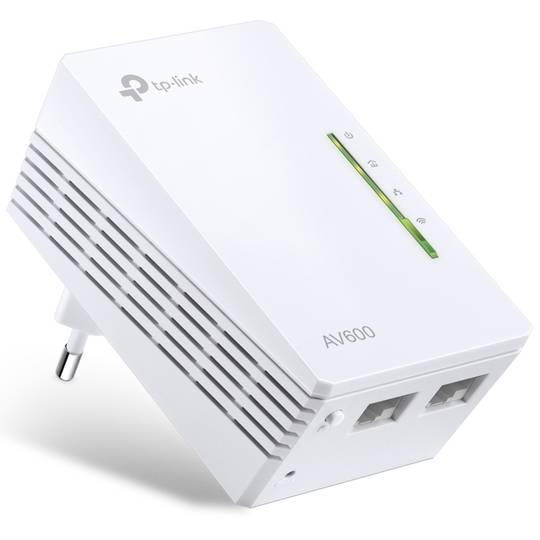

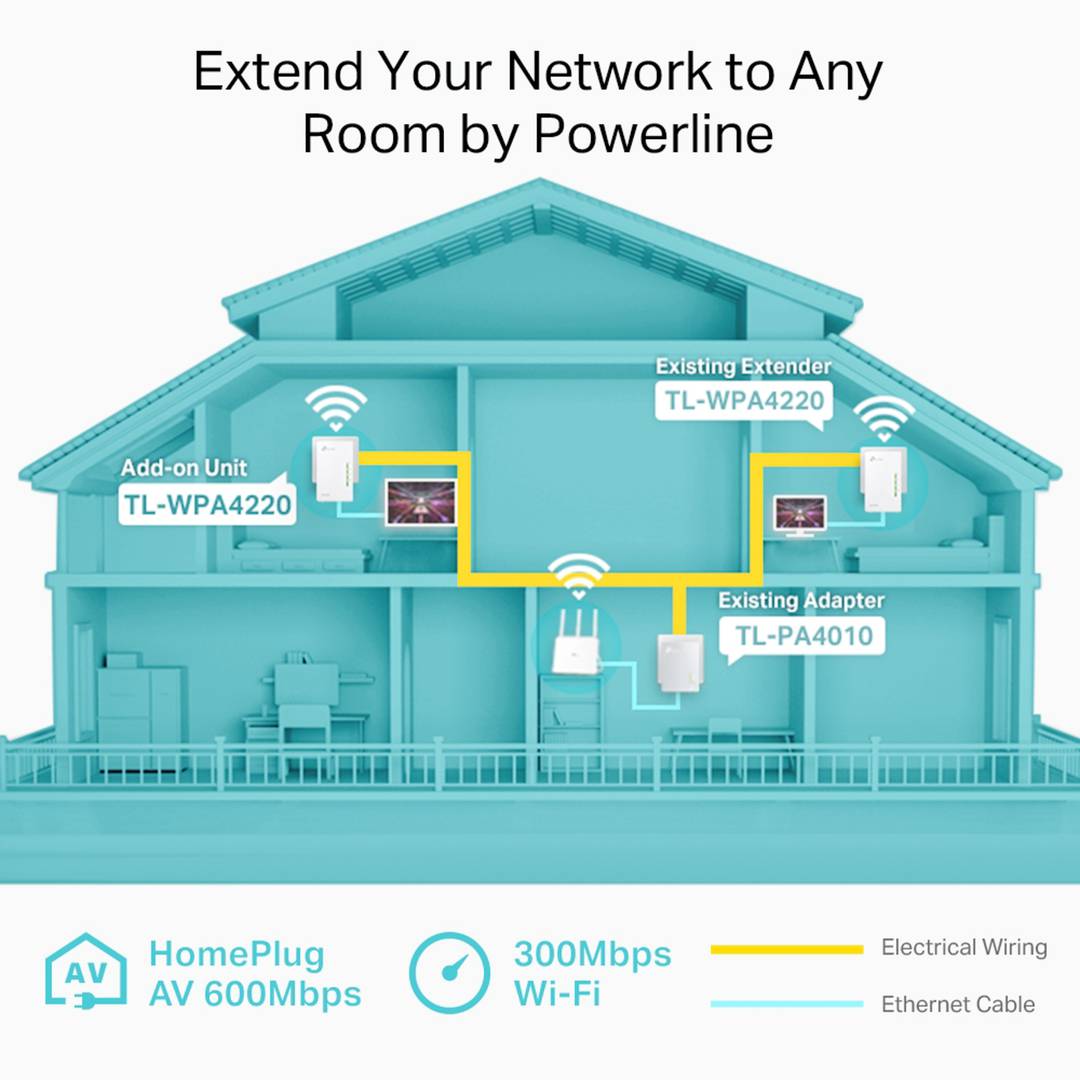

The PLC is a system to connect the Ethernet network using the common electrical cable into any home or office. Take the electric network into a digital network that transmits data at almost the same speed as if a network cable is connected. It is a technology that is catching many followers by ease of installation, as between the two PLC is not necessary to use any network cable. The PLC systemHomePlug connects two, where one of them is connected by a cable to the network and the other is connected to a computer or other device via the network cable. The PLC converters transmitted in range of medium and high frequents. Asymmetric speed can reach 2.7 Mbit/s.

Gbps (Gb/s, Gbit/s) is the speed with which information is transmitted. It is normally used to measure the speed information in the ADSL/fiber addresses transmitted.

• 1 Gb/s is equivalent to 1,000,000,000 b/s.
• 1 Gb/s is equivalent to 1000000 kb/s.
• 1Gb/s equals 1000 Mb/s.

When we talk about RJ45 ("Registered Jack" 45) we refer to a telecommunications network interface for wired connection of voice and data equipment.

This connector has 8 pins or connections and may have a specific category depending on the data transfer speed and bandwidth (category 5e, 6, etc.)

The common application is their use in Ethernet network cables under TIA/EIA-568-B standard that defines the arrangement of pins (pinout), but can also be used for other applications.

- Direct pin diagram:

EIA-568A
Pin No.1: WHITE-GREEN
Pin No.2: GREEN
Pin No.3: WHITE-ORANGE
Pin No.4: BLUE
Pin No.5: WHITE-BLUE
Pin No.6: ORANGE
Pin No.7: WHITE-BROWN
Pin No.8: BROWN

EIA-568B
Pin No.1: WHITE-ORANGE
Pin No.2: ORANGE
Pin No.3: WHITE-GREEN
Pin No.4: BLUE
Pin No.5: WHITE-BLUE
Pin No.6: GREEN
Pin No.7: WHITE-BROWN
Pin No.8: BROWN

- Schematic of crossed pins:

The crossover cable has one end with EIA-568A scheme and the other one with EIA-568B.

Depending on the quality and type, network cables are classified into categories that help us know the characteristics of them.

The categories of network cables most commonly used are:

- Category 5
- Category 5e
- Category 6
- Category 6
- Category 7

As can be seen, category 5e (enhanced or improved) and category 6A (Augmented), are an improvement of categories 5and 6, respectively, which it has improved the top speed and bandwidth.

The higher the category, the higher the speed of maximum data, the maximum 100 meters distance as its standard.

You can see a table which shows the 5 categories, where V is the maximum velocity, D is the maximum and MHz frequency which can work away.
