Reversible white/wood ceiling fan with 3-speed control 50 W with winter and summer function
Reversible white/wood ceiling fan with 3-speed control 50 W with winter and summer function
REF: VE103
Specifications
- Ceiling blade fan, with 3-speed controller, wood effect or white model, designed to work in both summer and winter thanks to its winter or summer modes.

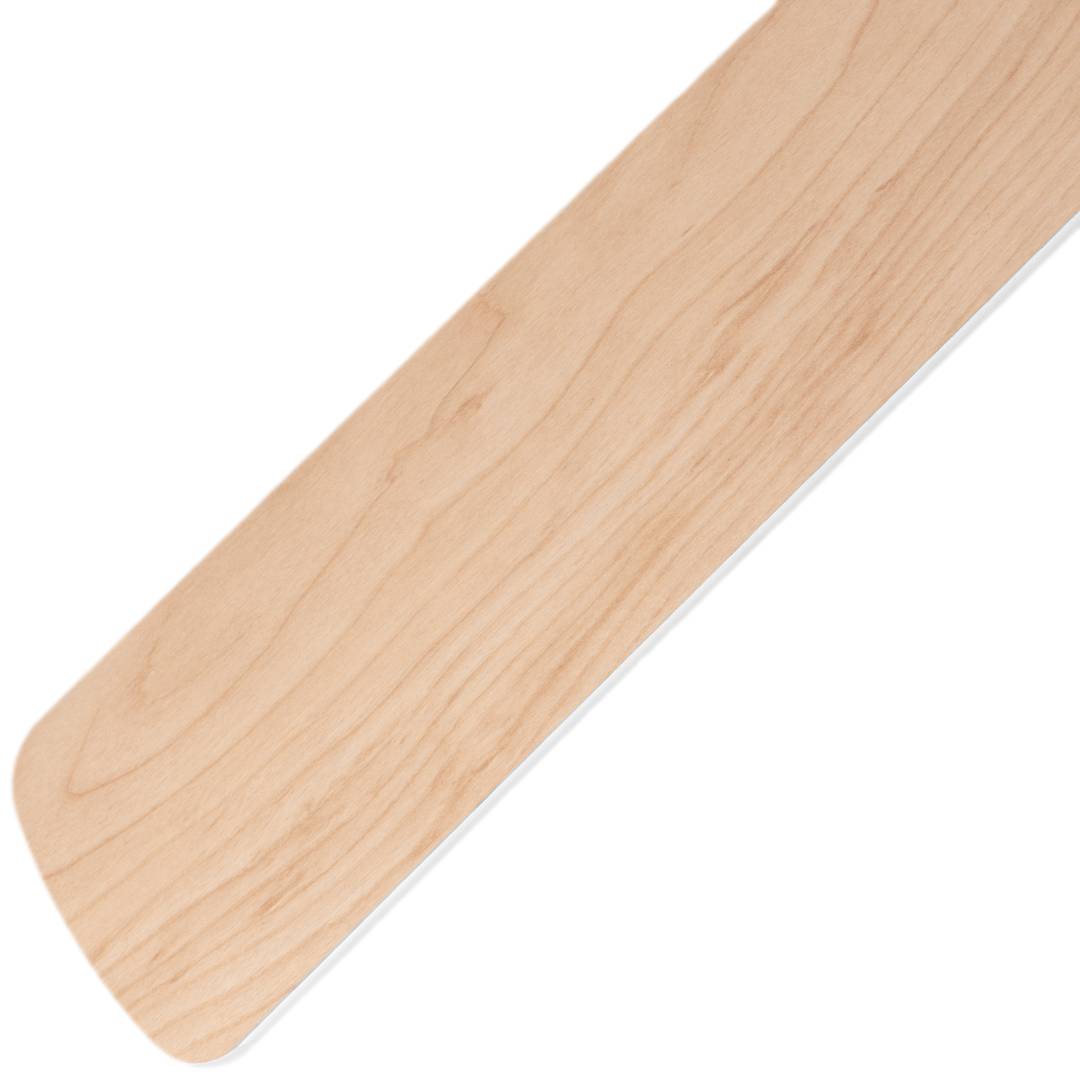

- Reversible blades. The blades have two colors, one on each side, white and wood effect, so you can adapt it to the design of your room.

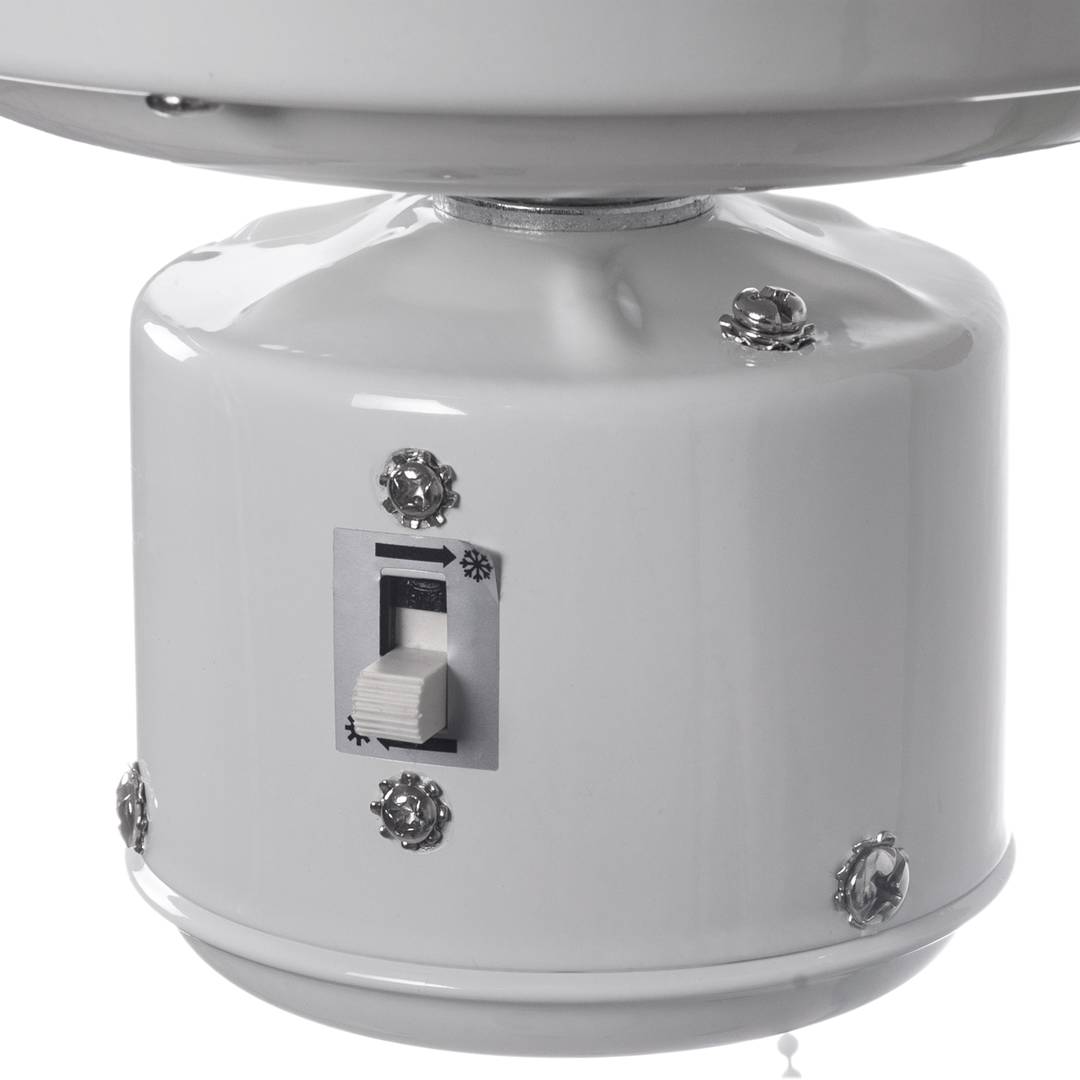

- Summer and winter function. It has a switch that allows you to change the rotation mode of the blades. So you can enjoy the fan all year round. Summer mode flow control: the blades rotate counterclockwise. Winter mode flow: the blades rotate clockwise to circulate hot air, pushing the hot air accumulated on the ceiling downwards.
- High power and silent. High airflow of 3849 m³/h keeps you cool without the annoying noise. Enjoy the tranquility while feeling the comforting breeze.

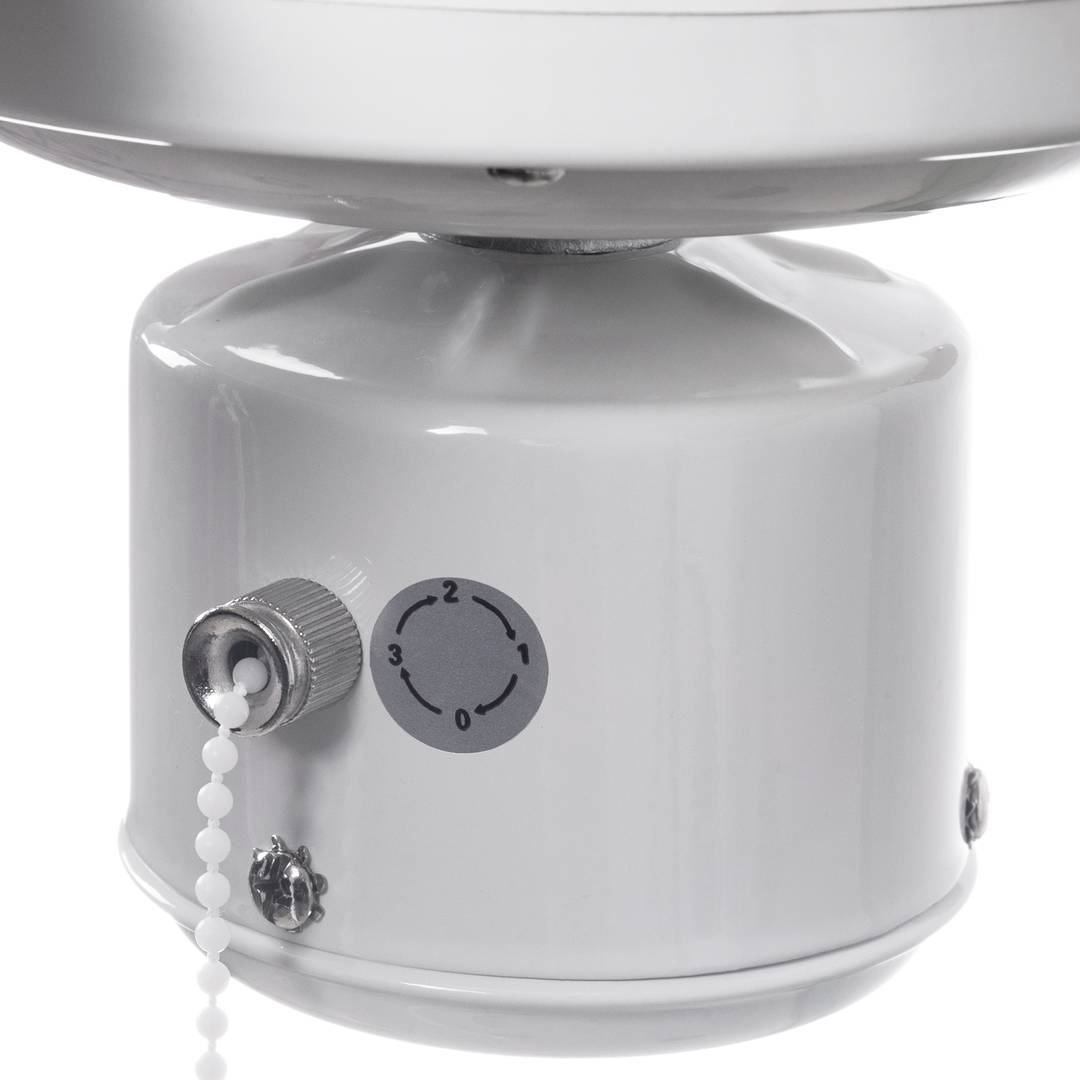

- It has a cord for speed selection. Choose from 3 power levels to customize the intensity of the airflow to your needs.
Watch video
PVP
€56.22
Price including VAT:
€56.22
PVD
€49.94
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
Buy before:
Receive it:
Wednesday 20
Delivery times are approximate. Cablematic is not responsible for delays.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Ceiling blade fan, with 3-speed controller, wood effect or white model, designed to work in both summer and winter thanks to its winter or summer modes.
- Reversible blades. The blades have two colors, one on each side, white and wood effect, so you can adapt it to the design of your room.
- Summer and winter function. It has a switch that allows you to change the rotation mode of the blades. So you can enjoy the fan all year round. Summer mode flow control: the blades rotate counterclockwise. Winter mode flow: the blades rotate clockwise to circulate hot air, pushing the hot air accumulated on the ceiling downwards.
- High power and silent. High airflow of 3849 m³/h keeps you cool without the annoying noise. Enjoy the tranquility while feeling the comforting breeze.
- It has a cord for speed selection. Choose from 3 power levels to customize the intensity of the airflow to your needs.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info
Beech and white wood effect style ceiling fan. Enjoy a pleasant temperature all year round. Its summer and winter function allows you to enjoy a refreshing breeze in summer and warm air circulation in winter. With a high air flow and a silent motor, this fan is ideal for rooms between 10 and 15 m2. It is easily controlled via a wall box with 3 power levels. Manufactured with high quality materials and with IP20 protection, this fan guarantees years of reliable operation in the most demanding locations.
Specifications
Specifications
- Ceiling blade fan, with 3-speed controller, wood effect or white model, designed to work in both summer and winter thanks to its winter or summer modes.
- Reversible blades. The blades have two colors, one on each side, white and wood effect, so you can adapt it to the design of your room.
- Summer and winter function. It has a switch that allows you to change the rotation mode of the blades. So you can enjoy the fan all year round. Summer mode flow control: the blades rotate counterclockwise. Winter mode flow: the blades rotate clockwise to circulate hot air, pushing the hot air accumulated on the ceiling downwards.
- High power and silent. High airflow of 3849 m³/h keeps you cool without the annoying noise. Enjoy the tranquility while feeling the comforting breeze.
- It has a cord for speed selection. Choose from 3 power levels to customize the intensity of the airflow to your needs.
- Design with a modern style in white or beech wood, ideal for installation in offices, offices, lofts, homes, rooms, meeting rooms, workshops, shops.
- Diameter 102 cm, it has 4 aerodynamic blades combined with a high-power motor, which guarantees efficient and long-lasting operation. Ideal for rooms between 10 and 15 m2
- It is designed with an AC motor, with a power of 50W. Reduce your energy consumption thanks to the low consumption of the fan. Ideal for large spaces where air conditioning is usually more expensive, reducing energy consumption.
- Manufactured from high quality materials to ensure years of reliable operation.
- IP20 protection against solid objects larger than 12 mm.
- Compatible with voltages of 220/240V - 50Hz.
- Included in the package: Fan, hardware, blades, ceiling support and speed controller.
- Gross Weight: 3.6 kg
- Product size (width x depth x height): 102.0 x 102.0 x 30.0 cm
- Number of packages: 1
- Packages size: 43.0 x 21.0 x 18.0 cm
- Master-pack: 1
Technical terms
- IP Protection
IP Protection
hen we talk about IP code (International Protection) we talk about an international standard (IEC 60529) which classifies the protection against external factors, solid or liquid, that has a component or electronic device; LED strips, controllers, meters, security cameras, etc.
This alpha-numerically standard has been designed to sort different levels of protection. Nomenclature starts with IP followed by two numeric values.
- Example IP68:
The first value ranges from 0 to 6 and indicates the protection against solid agents. In this case, strong protection against dust.
The second value is between 0 and 8 and indicates the protection against liquid agents. In this case the complete and prolonged immersion during the time specified by the manufacturer.
We could say that the larger the number is greater IP protection has a device.
In below table, we can see different IP protections levels available.
This alpha-numerically standard has been designed to sort different levels of protection. Nomenclature starts with IP followed by two numeric values.
- Example IP68:
The first value ranges from 0 to 6 and indicates the protection against solid agents. In this case, strong protection against dust.
The second value is between 0 and 8 and indicates the protection against liquid agents. In this case the complete and prolonged immersion during the time specified by the manufacturer.
We could say that the larger the number is greater IP protection has a device.
In below table, we can see different IP protections levels available.
| IPXX | First digit (IPxx) | Second digit (IPxx) |
| 0 | Unprotected. | Unprotected. |
| 1 | Protection against objects of> 50 mm diameter. | Protection against vertically dripping water. |
| 2 | Protection against objects of> 12.5 mm diameter. | Protection against inclined drip water up to 15°. |
| 3 | Protection against objects of> 2 mm in diameter. | Protection against water projected from any direction, up to 60°. |
| 4 | Protection against objects of> 1 mm in diameter. | Protection against splashing water any direction. |
| 5 | Ingress of dust is not entirely revented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment . | Protection against water jets. |
| 6 | Dust tight. | Protection against strong jets of water. |
| 7 | Protection against complete immersion up to 1 meter for 30 minutes. | |
| 8 | Protection against complete and prolonged immersion. |
