Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter

Serial RS232 CAN bus adapter SER-CAN converter

REF: TC082
Trustpilot
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
Serial RS232 CAN bus adapter SER-CAN converter
OUTLET
Specifications
  • Speed: 1Mbit / s for transmission and reception.
  • Signals: CAN_H, CAN_L, CAN_GND, CAN_V + and GND.
  • Controller: SJA1000 (Philips).
  • Transceiver: TJA1050 (Philips).
  • CAN LEDs: Activity and Error.
More info
PVP €132.03
€105.62
Price including VAT: €105.62
PVD €116.04
€92.83
PVP: Retail price. Check conditions.
PVP: Sale price to distributors. Check conditions.
2 years
warranty
14 days
returns
OUTLET
We will notify you when it is back in stock.
More info
Specifications
  • Speed: 1Mbit / s for transmission and reception.
  • Signals: CAN_H, CAN_L, CAN_GND, CAN_V + and GND.
  • Controller: SJA1000 (Philips).
  • Transceiver: TJA1050 (Philips).
  • CAN LEDs: Activity and Error.

Related products

USB CAN bus adapter USB-CAN converter
UNAVAILABLE
Bematik USB CAN bus adapter USB-CAN converter
PVP
€115.06
€115.06 VAT inc.

PVD
€98.09

reserved 100%
REF: TC081
CAN bus converter USB 2-Port with optical isolation

Bematik CAN bus converter USB 2-Port with optical isolation
PVP
€114.07
€114.07 VAT inc.

PVD
€96.25

reserved 100%
Immediate delivery
REF: IC099

Keywords

Did not find what you were looking for? These topic could help you

serial RS232 RS422 RS485 DB9 DB25 port connection

More info

RS-232 to CAN adapter from Titan manufacturer. The CAN bus is used in control and monitoring applications.


CAN Specifications
  • Speed: 1Mbit / s for transmission and reception.
  • Signals: CAN_H, CAN_L, CAN_GND, CAN_V + and GND.
  • Controller: SJA1000 (Philips).
  • Transceiver: TJA1050 (Philips).
  • CAN LEDs: Activity and Error.

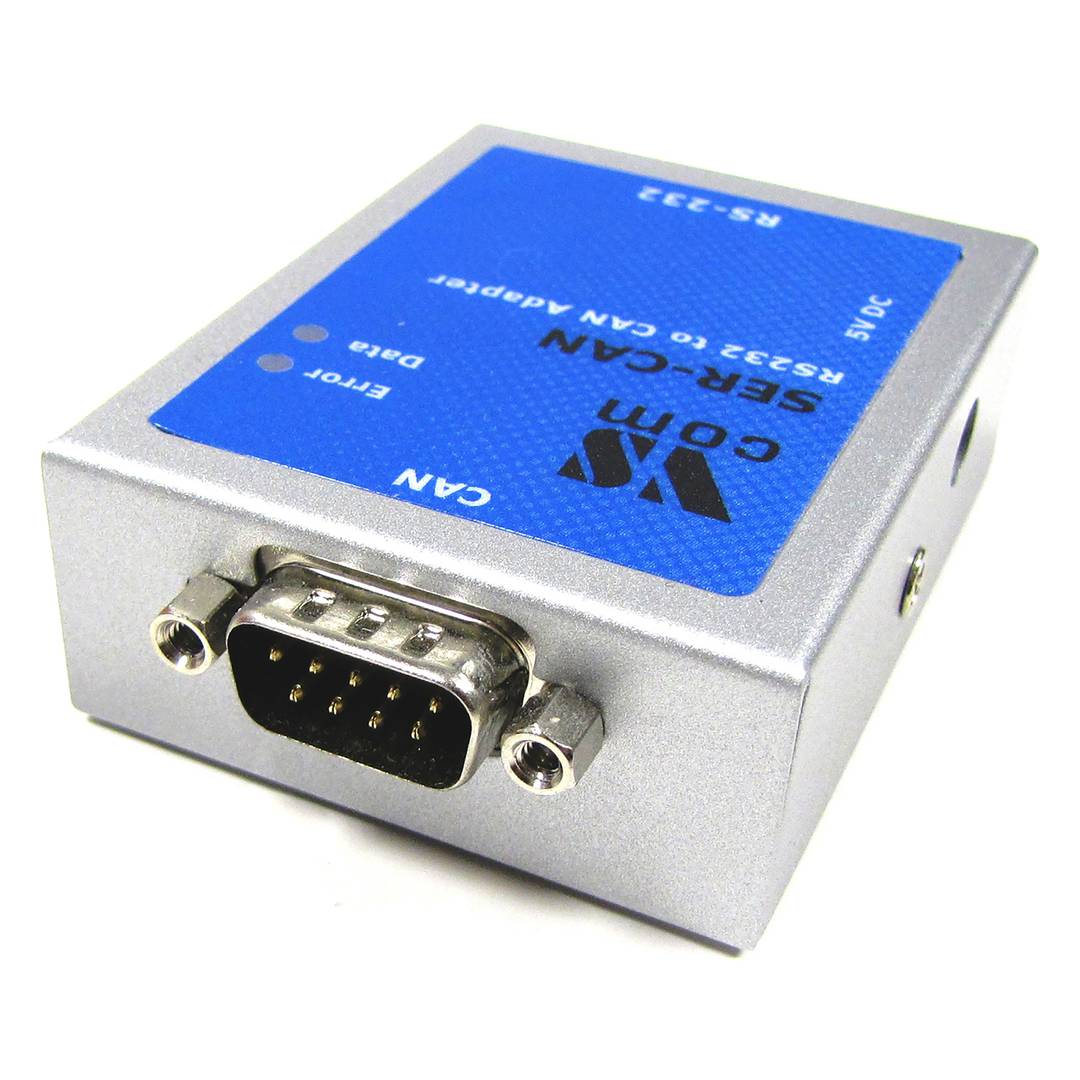

  • Connector: DB9-Male.


RS-232 Serial Specifications
  • Interface: RS-232 at 115 kbps.
  • Supported systems: Windows, Linux, Mac OS and any system that supports serial port to 115200 / 8N1 with RTS / CTS.
  • RS-232 LEDs: Power.

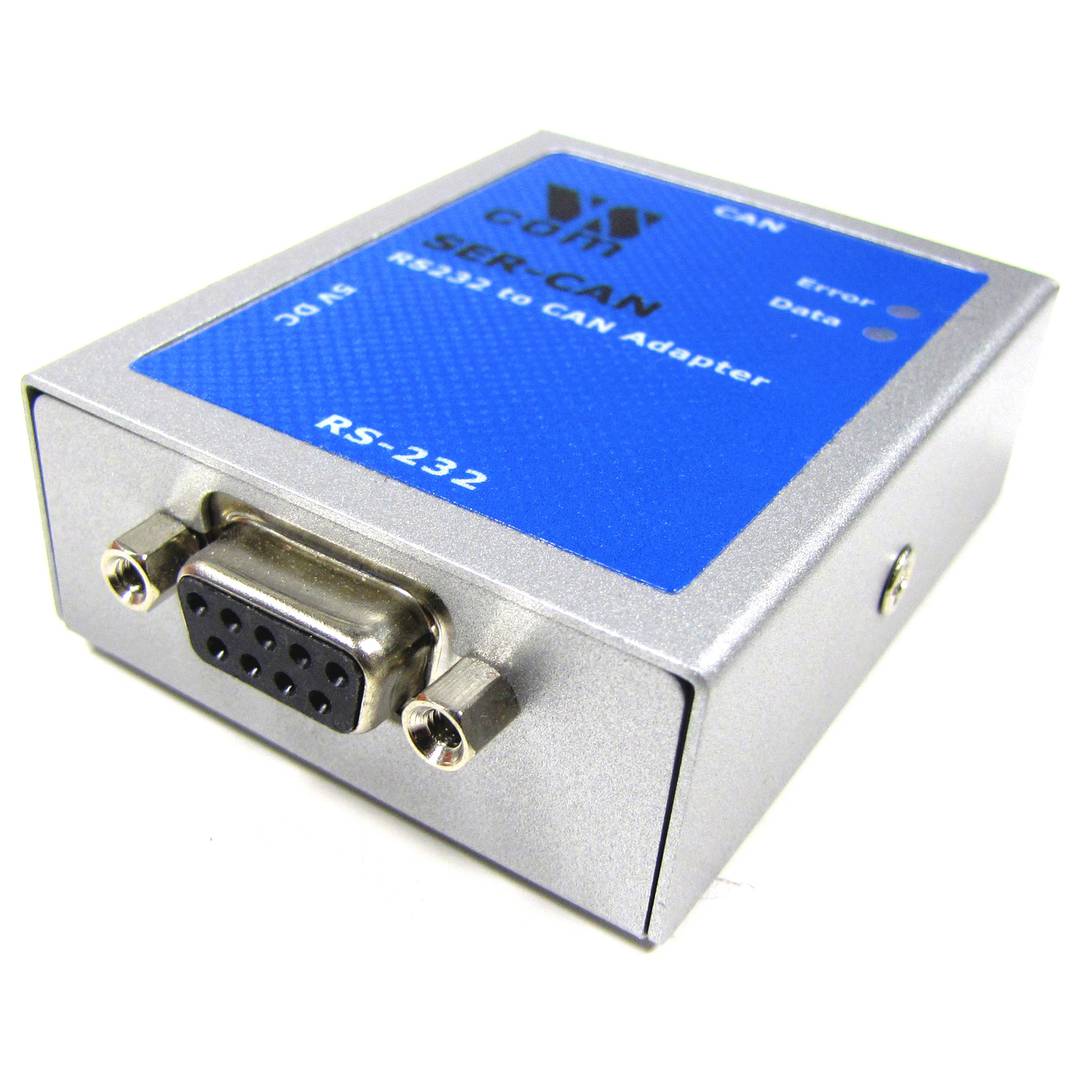

  • Connector: DB9-Female.


Driver and Software
  • Library: Simple access functions to all Titan CAN products that support Linux and Windows.
  • CANFestival: CANopen examples showing master / slave communication.
  • CAN speed: Selectable up to 1 Mbit / s.
  • Transfer: ASCII encoding mode.
  • CAN listening mode: Passive reception of CAN frames, without ACK bits or error frames.
  • Monitoring tool: Titan USB-CAN is supported by CANHacker.


Food and Environment
  • Power: Max. 1.25W.
  • Power supply: 5VDC (max. 250 mA).
  • Power supply is supplied.
  • Size: 52 x 66 x 23mm.
  • 1mm thick metal casing.
  • Weight: 120 grams.

  • Gross Weight: 430 g
  • Product size (width x depth x height): 8.0 x 5.5 x 2.5 cm
  • Number of packages: 1
  • Packages size: 16.0 x 12.0 x 6.0 cm

Technical terms

  • USB
  • MicroUSB
  • Mini USB
  • Communication Series
  • USB 3.0
  • Reversible USB Type-C
  • RS232
USB
The USB (Universal Serial Bus) is a standard that defines the cables, connectors and used a bus to connect, communicate, computers, peripherals and electronic devices protocols Transmission Rates Low speed (USB 1.0). Transfer rate up to 1.5 Mbit/s (188 kB/s) used in keyboard, mouse ... transfer rate up to 12 Mbit/s (1.5 MB/s) High Speed ??(USB 2.0): Rate transferencia up to 480 Mbit/s (60 MB/s) SuperSpeed ??(USB 3.0) transfer rate up to 4.8 Gbit/s (600 MB/s) Connector Types 1 - USB type A (4 pin) 2. - USB type B (4 pin) 3 - Mini A (5-pin) 4 - Mini B (5-pin) 5 - Micro A (5-pin) 6 - Micro B (5-pin)
