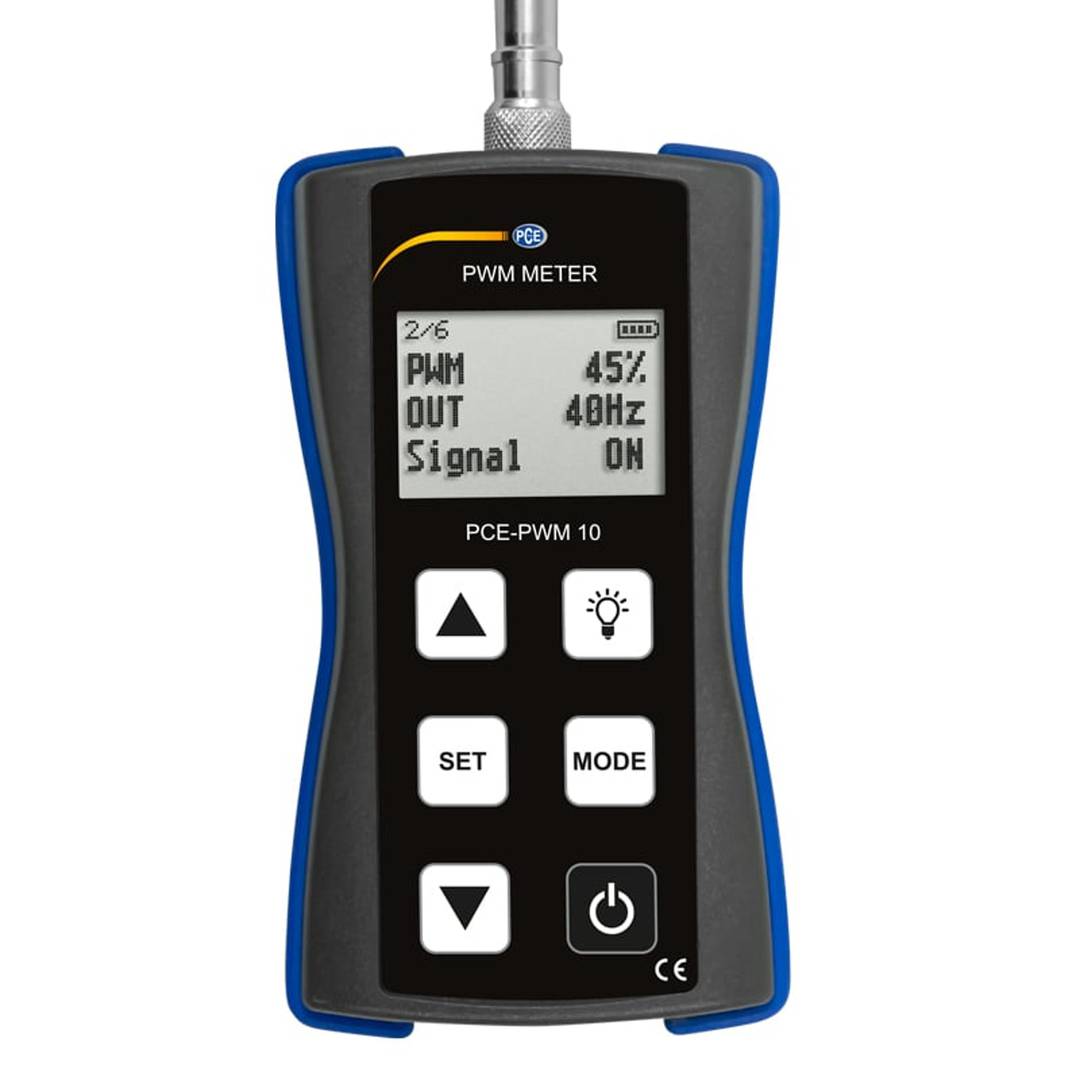

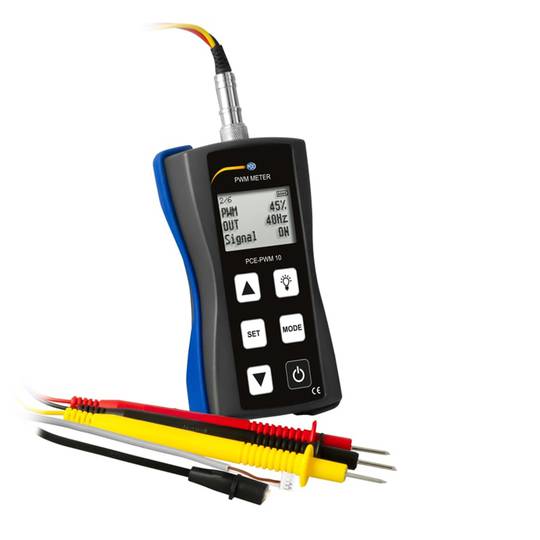

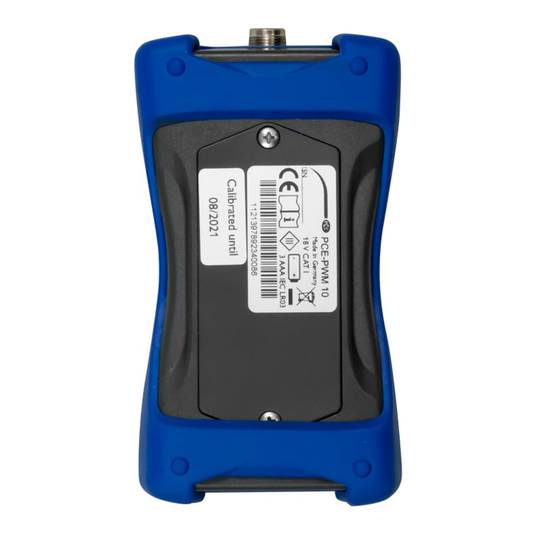

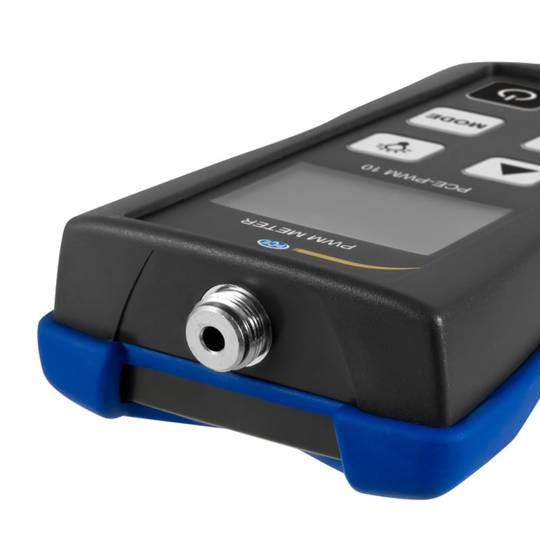

Signal tester PCE-PWM 10
Signal tester PCE-PWM 10
REF: PC093
Specifications
- Ideal for checking and adjusting high-efficiency or heat pumps
- Generates and measures PWM signals between 40 and 2000 Hz
- Can generate a universal process signal from 0 to 10 V
- Can simultaneously send and receive PWM signals
- Displays flow rate and pump status on screen
PVP
€609.87
Price including VAT:
€609.87
PVD
€567.82
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Ideal for checking and adjusting high-efficiency or heat pumps
- Generates and measures PWM signals between 40 and 2000 Hz
- Can generate a universal process signal from 0 to 10 V
- Can simultaneously send and receive PWM signals
- Displays flow rate and pump status on screen
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info

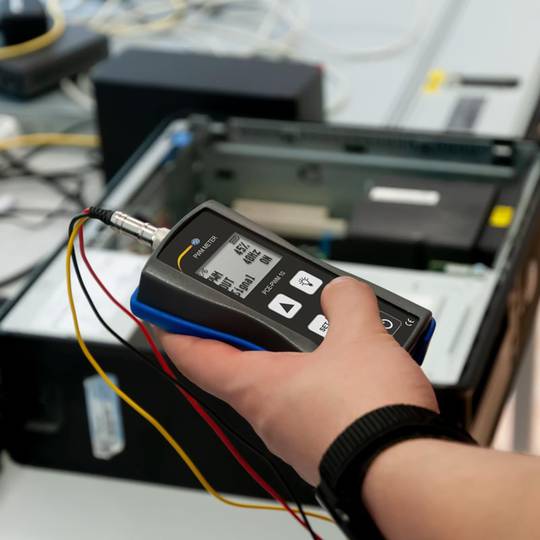

The PWM signal tester is a device specially designed for checking and adjusting high-efficiency or heat pumps. This tool generates and measures PWM signals from 40 to 2000 Hz, thus ensuring accurate testing of both the pump and controller. It also generates a universal process signal from 0 to 10 V. The PWM signal tester is capable of simultaneously sending and receiving PWM signals, thus allowing bidirectional pump testing. The device displays the flow rate and the status of the pump on the screen, in addition to the nominal and actual values. The PWM signal tester is light and compact, with minimal weight and small dimensions, so it fits perfectly in any toolbox. This tool is an excellent choice for HVAC installers. It is powered by 3 1.5 V batteries and has an IP 54 degree of protection. Manufactured by PCE with reference PCE-PWM 10.
Specifications
Specifications
- Ideal for checking and adjusting high-efficiency or heat pumps
- Generates and measures PWM signals between 40 and 2000 Hz
- Can generate a universal process signal from 0 to 10 V
- Can simultaneously send and receive PWM signals
- Displays flow rate and pump status on screen
- Nominal and actual values are displayed on the backlit LCD screen
- Low weight and compact dimensions
- Powered by 3 1.5 V batteries
- IP 54 degree of protection
- Gross Weight: 460 g
- Number of packages: 1
- Master-pack: 1
Technical terms
- Hz
- PWM
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
