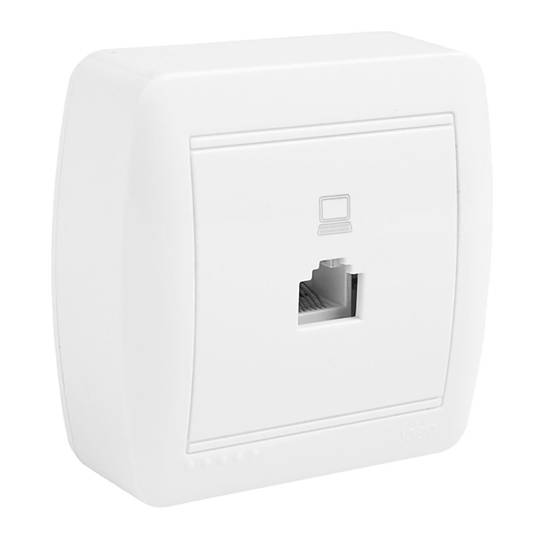

Surface base for RJ45 cat5E data socket 74x72x28mm white Solera MUR88U
REF: SL608
Specifications
- Surface mechanism for data collection RJ45 cat5E 74x72x28mm white Solera MUR88U
- hole terminals
- Compatible with CAT 5E cable
- Ideal for RJ45 cable installations
- Connecting phones, computers and other devices
PVP
€9.42
Price including VAT:
€9.42
PVD
€9.05
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
Buy before:
Receive it:
7 business days
Delivery times are approximate. Cablematic is not responsible for delays.
2 years
warranty
warranty
14 days
returns
returns
100%
safe
safe
Specifications
- Surface mechanism for data collection RJ45 cat5E 74x72x28mm white Solera MUR88U
- hole terminals
- Compatible with CAT 5E cable
- Ideal for RJ45 cable installations
- Connecting phones, computers and other devices
Keywords
Did not find what you were looking for? These topic could help you
More info
Surface base for RJ45 cat5E data collection of 74x72x28mm in white color Solera MUR88U. The Solera MUR88U white 74x72x28mm RJ45 Cat5E data socket surface mechanism is an essential component for data network connectivity in domestic or commercial environments. This mechanism is designed to facilitate the installation of RJ45 data sockets quickly and easily on the surface of the walls. With a compact size of 74x72x28mm, this mechanism easily adapts to different spaces and provides an efficient solution when it is not possible to carry out recessed or installation in mounting boxes. Its discreet design and white finish blends elegantly into any environment, providing a clean and professional appearance. The surface mechanism features an RJ45 Cat5E data jack that meets performance and quality standards, enabling a reliable, high-speed connection for network devices such as computers, printers, game consoles, and Internet devices. The installation of this mechanism is simple and fast, since it only requires connecting the network cables to the corresponding RJ45 connector. In addition, its surface design allows easy access to make changes or maintenance on the data connection when necessary. Manufactured by Solera with reference MUR88U.
Specifications
Specifications
- Surface mechanism for data collection RJ45 cat5E 74x72x28mm white Solera MUR88U
- hole terminals
- Compatible with CAT 5E cable
- Ideal for RJ45 cable installations
- Connecting phones, computers and other devices
- White color
- Last generation technology
- weather resistant
- Easy installation
- secure connection
- Durability
- home and professional use
- Gross Weight: 44 g
- Number of packages: 1
- Master-pack: 1
Technical terms
- RJ45
- Categories network cables
RJ45
When we talk about RJ45 ("Registered Jack" 45) we refer to a telecommunications network interface for wired connection of voice and data equipment.
This connector has 8 pins or connections and may have a specific category depending on the data transfer speed and bandwidth (category 5e, 6, etc.)
The common application is their use in Ethernet network cables under TIA/EIA-568-B standard that defines the arrangement of pins (pinout), but can also be used for other applications.
- Direct pin diagram:
EIA-568A
Pin No.1: WHITE-GREEN
Pin No.2: GREEN
Pin No.3: WHITE-ORANGE
Pin No.4: BLUE
Pin No.5: WHITE-BLUE
Pin No.6: ORANGE
Pin No.7: WHITE-BROWN
Pin No.8: BROWN
EIA-568B
Pin No.1: WHITE-ORANGE
Pin No.2: ORANGE
Pin No.3: WHITE-GREEN
Pin No.4: BLUE
Pin No.5: WHITE-BLUE
Pin No.6: GREEN
Pin No.7: WHITE-BROWN
Pin No.8: BROWN
- Schematic of crossed pins:
The crossover cable has one end with EIA-568A scheme and the other one with EIA-568B.
This connector has 8 pins or connections and may have a specific category depending on the data transfer speed and bandwidth (category 5e, 6, etc.)
The common application is their use in Ethernet network cables under TIA/EIA-568-B standard that defines the arrangement of pins (pinout), but can also be used for other applications.
- Direct pin diagram:
EIA-568A
Pin No.1: WHITE-GREEN
Pin No.2: GREEN
Pin No.3: WHITE-ORANGE
Pin No.4: BLUE
Pin No.5: WHITE-BLUE
Pin No.6: ORANGE
Pin No.7: WHITE-BROWN
Pin No.8: BROWN
EIA-568B
Pin No.1: WHITE-ORANGE
Pin No.2: ORANGE
Pin No.3: WHITE-GREEN
Pin No.4: BLUE
Pin No.5: WHITE-BLUE
Pin No.6: GREEN
Pin No.7: WHITE-BROWN
Pin No.8: BROWN
- Schematic of crossed pins:
The crossover cable has one end with EIA-568A scheme and the other one with EIA-568B.
