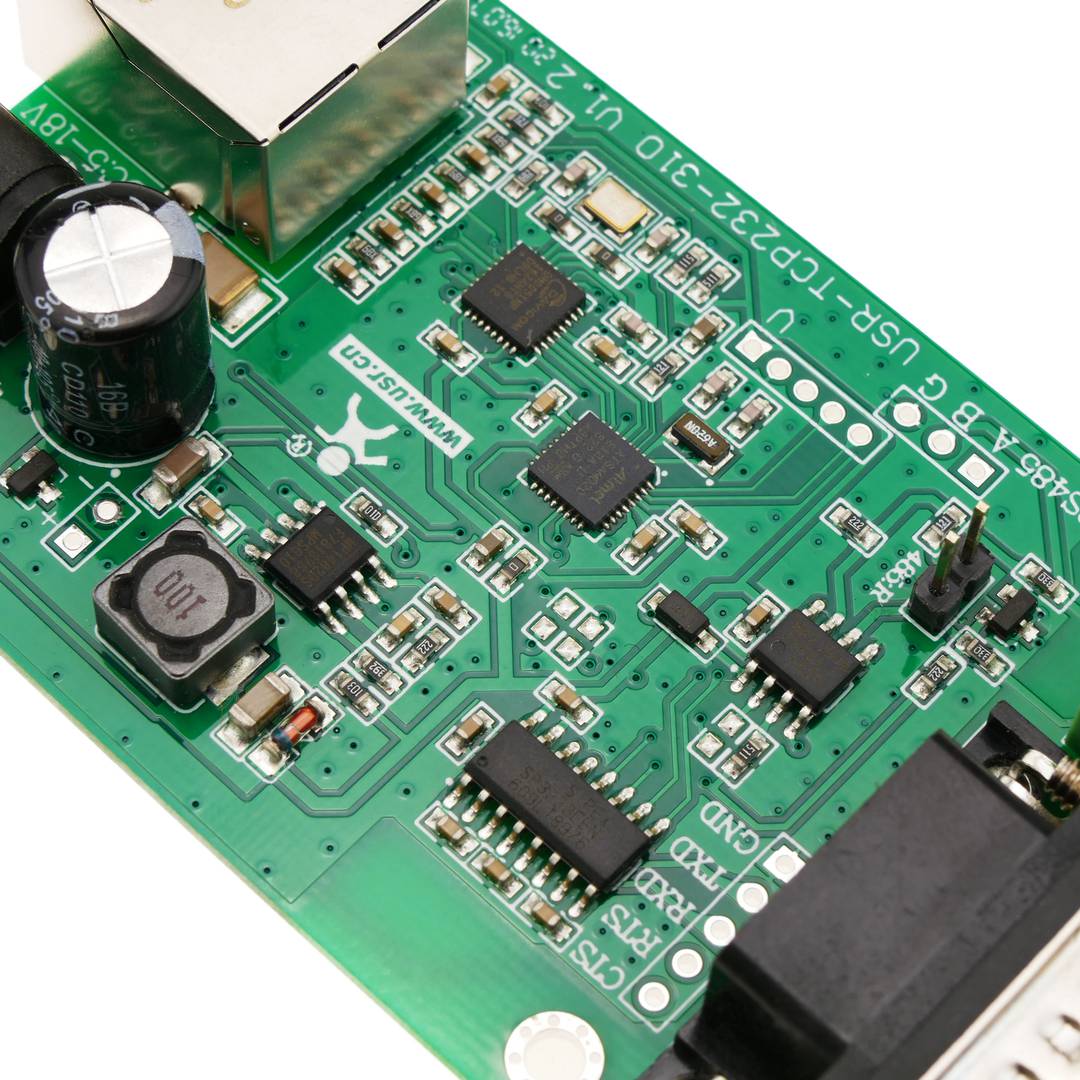

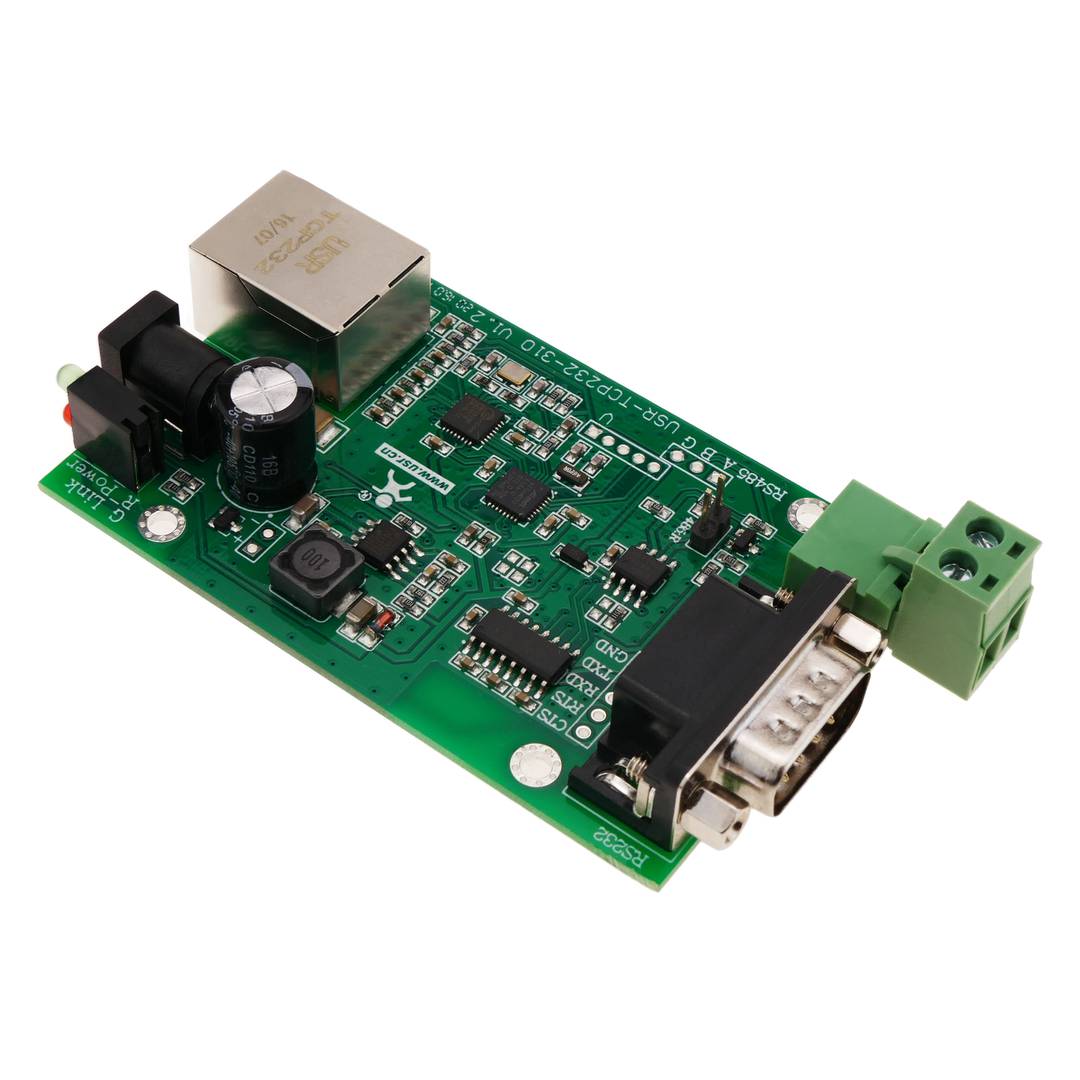

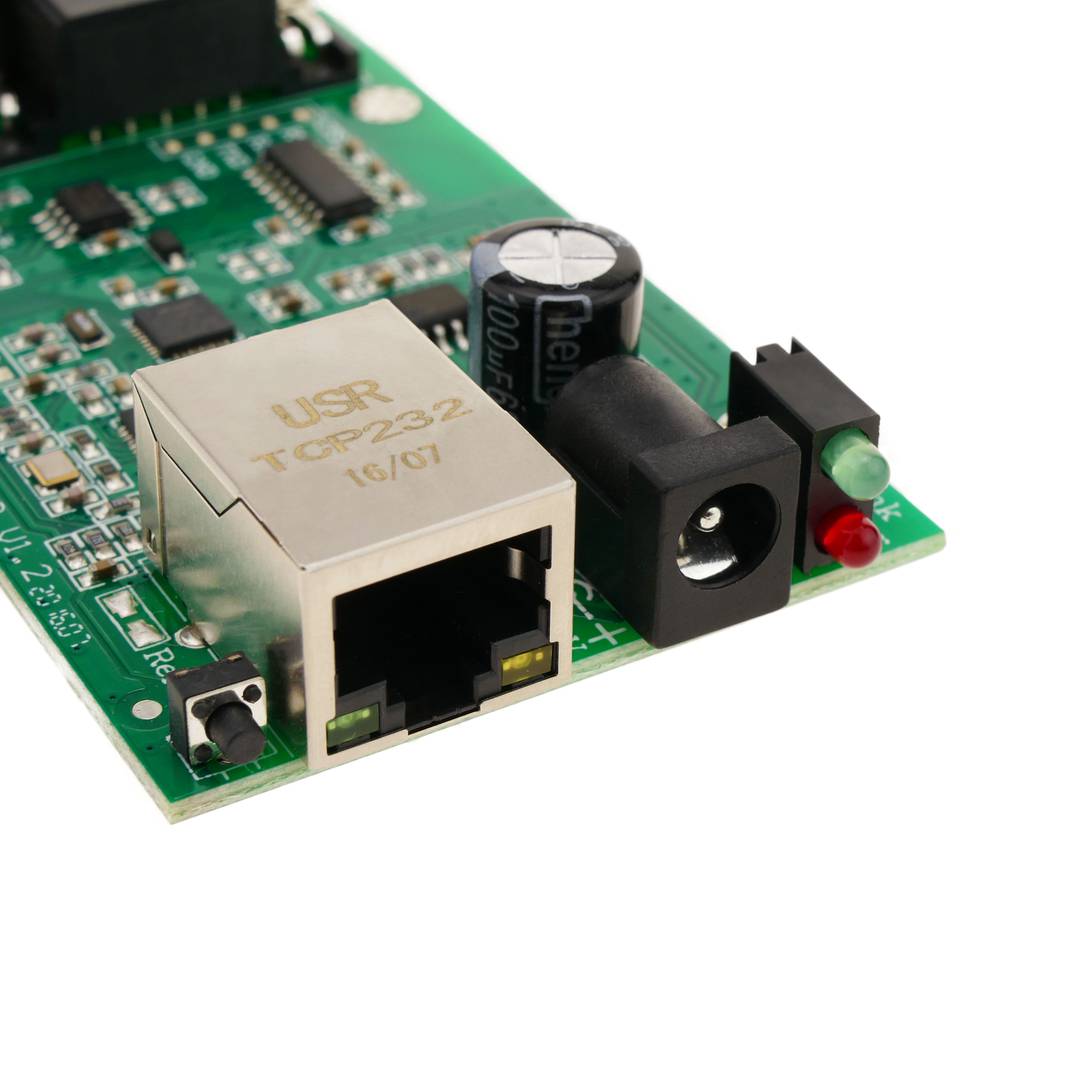

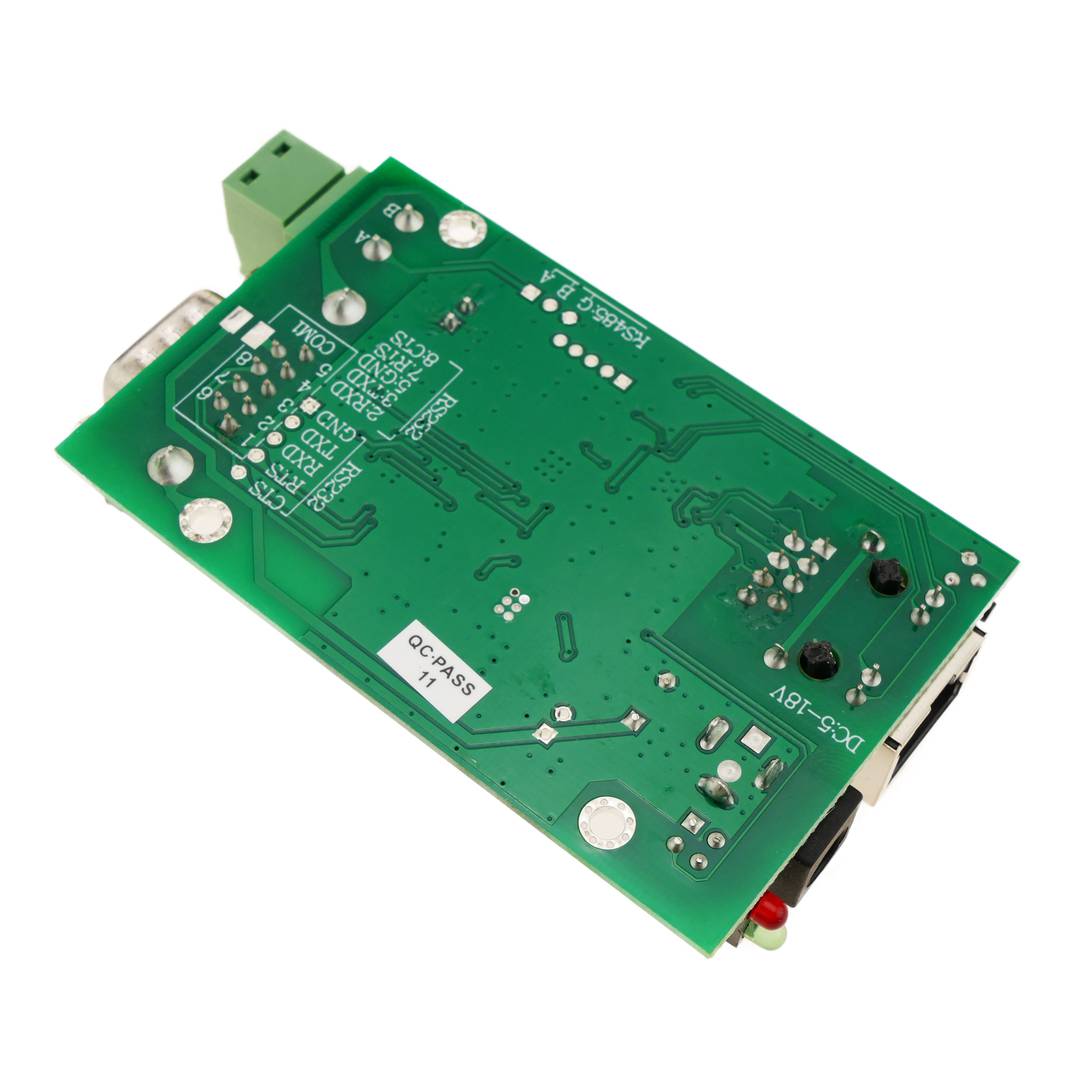

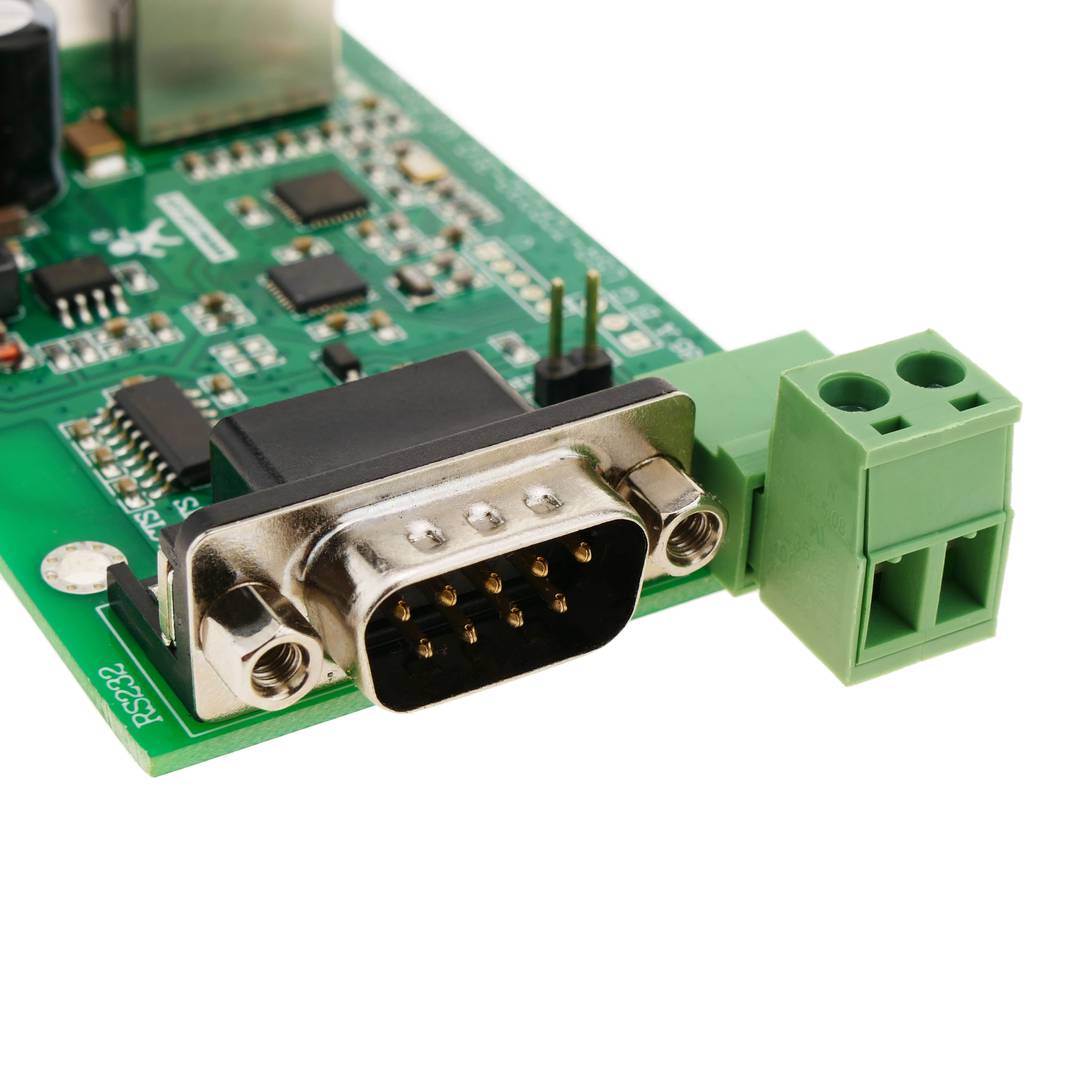

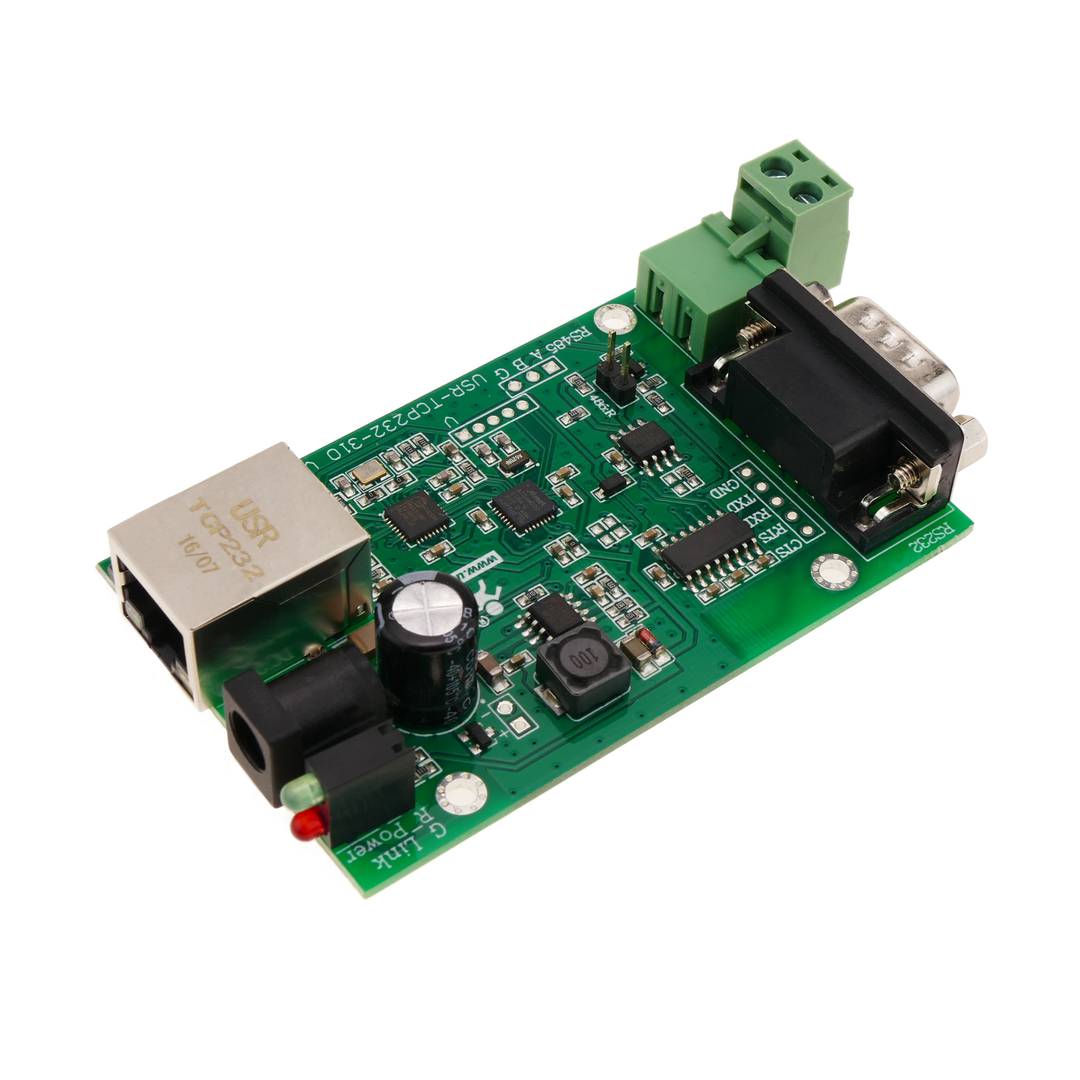

T24 RS232 RS485 serial module Ethernet TCP/IP model USR-TCP232-310
T24 RS232 RS485 serial module Ethernet TCP/IP model USR-TCP232-310
REF: UK006
Specifications
- Interface 10/100 Mbps auto-sensing.
- Supports Auto MDI/MDIX. You can use a crossover or parallel cable.
- Operational TCP server, TCP client, UDP, serverUDP.
- Setting parameters via a serial port or network.
- 5.0V level RS232/RS485.
![play_button]()
Watch video
More info
Watch video
PVP
€28.78
Price including VAT:
€28.78
PVD
€23.90
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Interface 10/100 Mbps auto-sensing.
- Supports Auto MDI/MDIX. You can use a crossover or parallel cable.
- Operational TCP server, TCP client, UDP, serverUDP.
- Setting parameters via a serial port or network.
- 5.0V level RS232/RS485.
More info
USR-TCP232-2 is an Ethernet converter module series. Equipment for converting TCP/UDP RS232 data. Easy to use, low cost, low power chipset ARM 32-bit, high speed, and high stability.
Specifications
- Interface 10/100 Mbps auto-sensing.
- Supports Auto MDI/MDIX. You can use a crossover or parallel cable.
- Operational TCP server, TCP client, UDP, serverUDP.
- Setting parameters via a serial port or network.
- 5.0V level RS232/RS485.
- Virtual serial port.
- Mechanism to ensure that the connection is secure.
- In the UDP mode, broadcast packets are not allowed.
- Compatible with gateways, switches and routers.
- You can work in LAN and WAN (Internet or external network).
- RS232 transmission distance of 15 m.
- RS485 transmission distance of 1000 m.
- 32-bit ARM CPU inside.
- Protection 2KV.
- Isolated electromagnetic.
- Transmission speed of the serial port: 300-230400 bps.
- Setting up to 3 Mbps.
- Network protocol: Ethernet ARP, IP, UDP, TCP, ICMP.
- Software tool: configuration software and TCP/UDP test.
- Method configuración: RS232 or Ethernet (available software to download).
- Gross Weight: 30 g
- Product size (width x depth x height): 9.4 x 5.0 x 1.6 cm
- Number of packages: 1
Technical terms
- Communication Series
- MDIX
- WAN
- RS232
- RS485
Communication Series
RS-232 (Recommended Standard 232, also known as EIA/TIA RS-232C) is an interface that designates a standard for the exchange of a series of binary data between a DTE (Data Terminal Equipment) and DCE (Data Communication Equipment , Data Communication Equipment), although there are others in which the RS-232 interface is also used. An equivalent definition published by the ITU is called V.24. The RS-232 is a connectorDB-25 type (25-pin), although it is normal to find the version of 9-pin (DE-9, or popularly also called DB-9), cheaper and even extended to certain types of peripherals (such as serial mouse PC).
