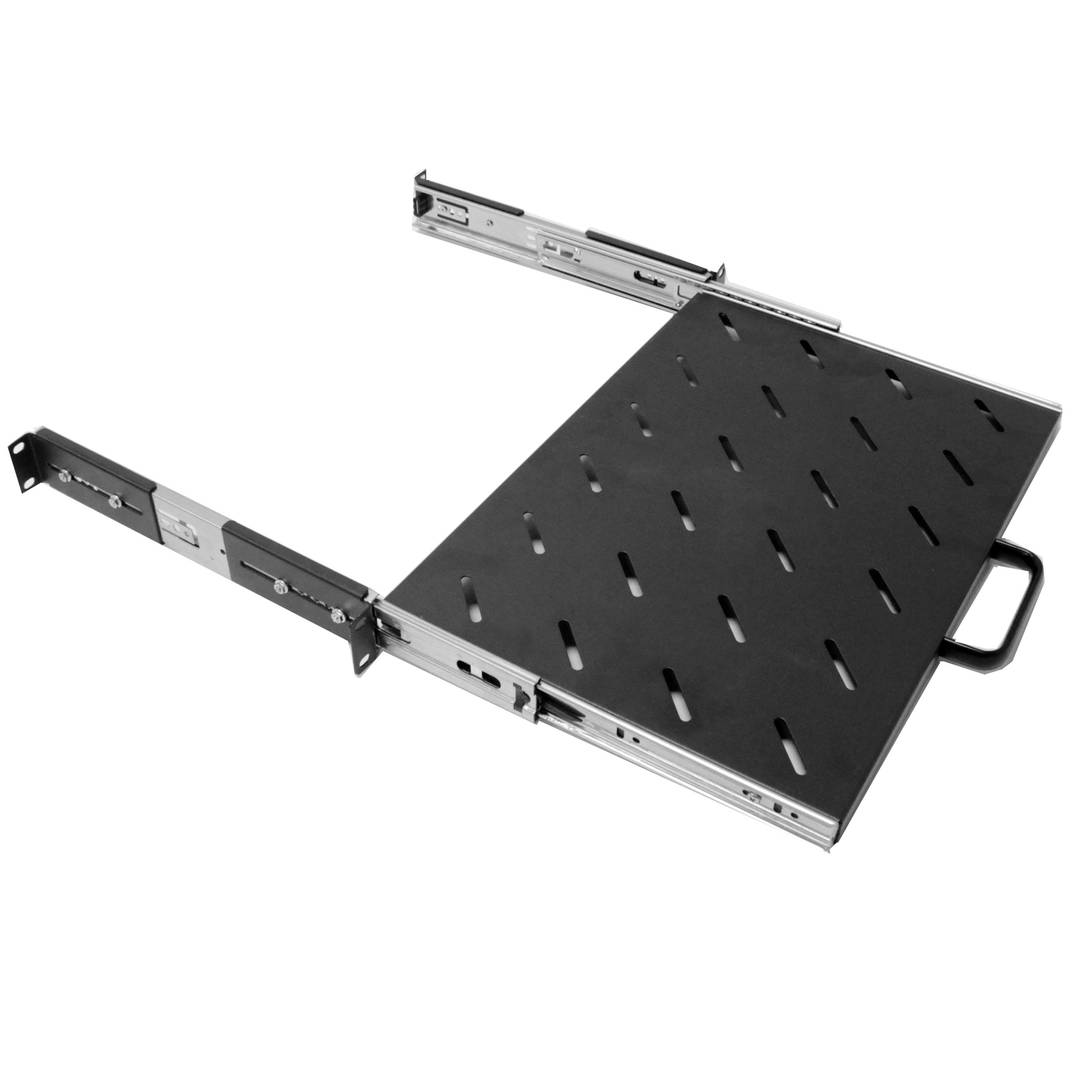

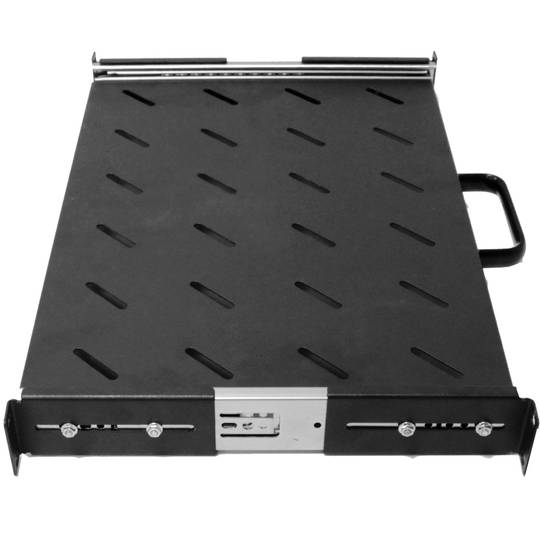

Telescopic tray for Rack 19 1U and bottom 300mm 245-445mm
Telescopic tray for Rack 19 1U and bottom 300mm 245-445mm
REF: RZ034
Specifications
- Removable front and rear fixing tray.
- Made of steel and painted black.
- Mounts 1U high and attaches to front and rear rack.
- When fixed to the front / rear frame, it is compatible with all types of 19 "rack cabinets, as long as the depth allows it.

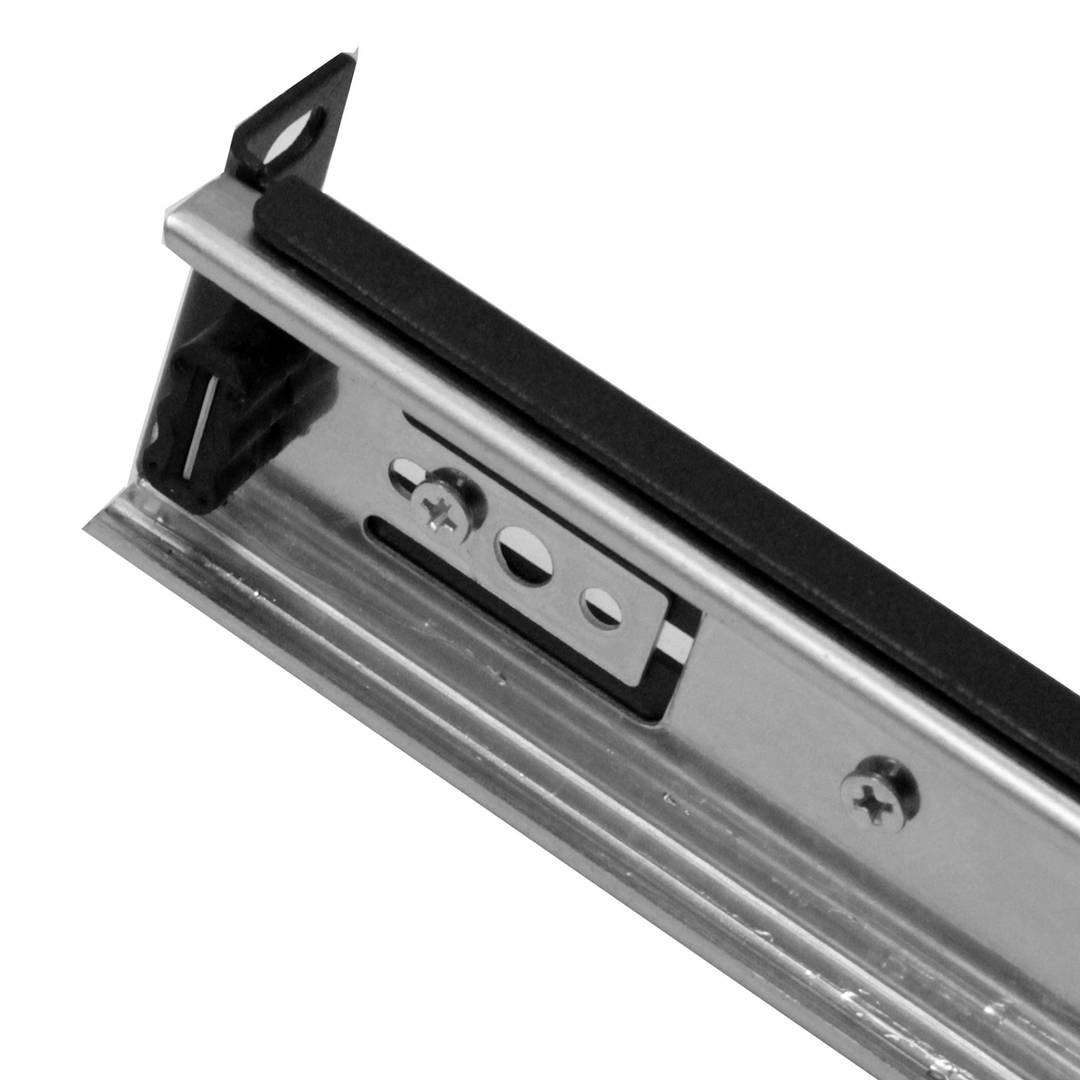

- The front and rear fixings can be slid to obtain a separation between them that goes from 245 mm to 445mm (separation between front and rear frame).
Watch video
PVP
€34.53
Price including VAT:
€34.53
PVD
€28.91
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Removable front and rear fixing tray.
- Made of steel and painted black.
- Mounts 1U high and attaches to front and rear rack.
- When fixed to the front / rear frame, it is compatible with all types of 19 "rack cabinets, as long as the depth allows it.
- The front and rear fixings can be slid to obtain a separation between them that goes from 245 mm to 445mm (separation between front and rear frame).
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info

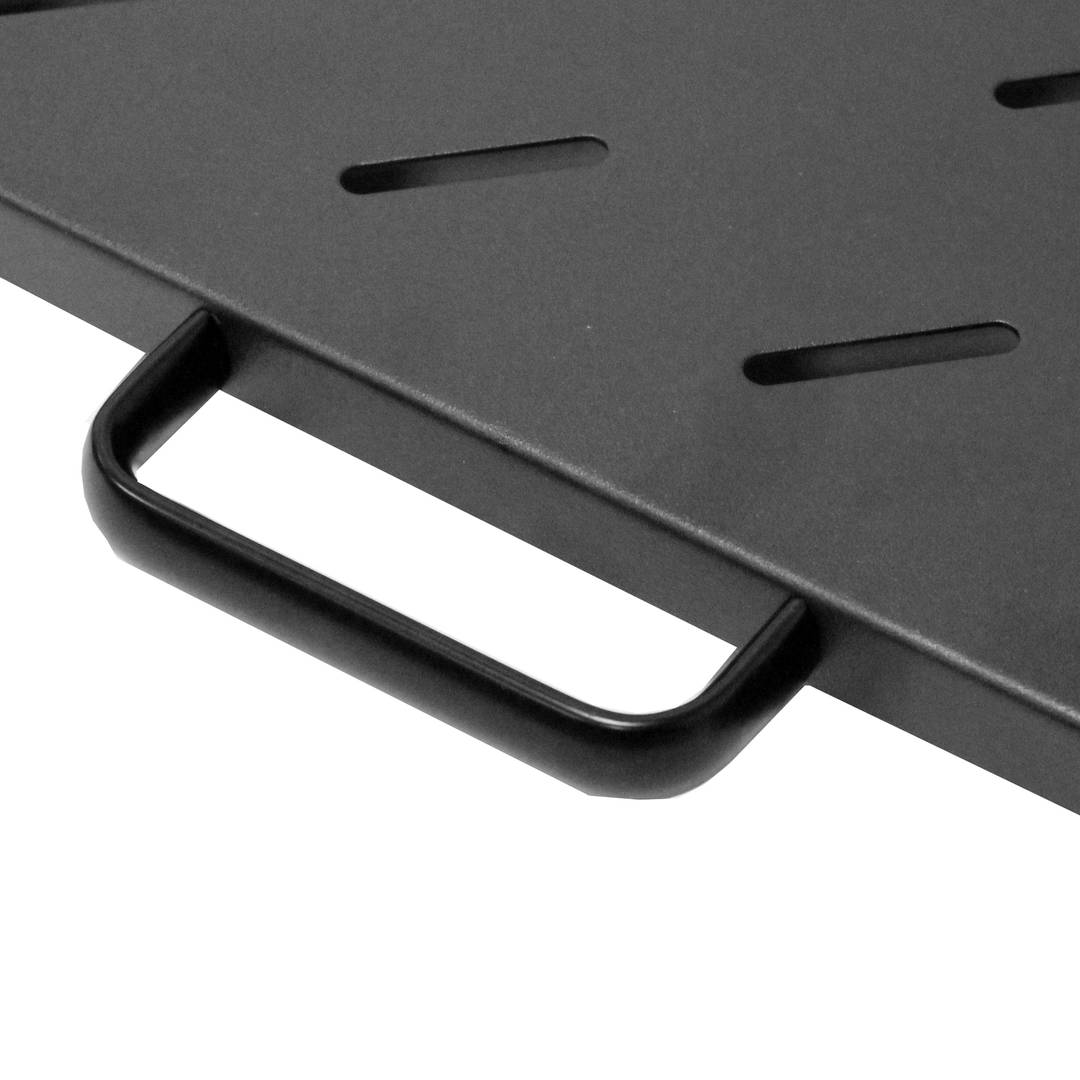

Removable front and rear fixing tray. Made of steel and painted black. Mounts 1U high and attaches to front and rear rack. When fixed to the front / rear frame, it is compatible with all types of 19 "rack cabinets, as long as the depth allows it. The front and rear fixings can be slid to obtain a separation between them that goes from 245 mm to 445mm (separation between front and rear frame). This makes this removable tray very versatile and adaptable to most cabinets, both due to the fixing system and the depth. It has a front handle to extract the tray. The bottom of the tray is 300 mm and width 410 mm The tray is completely extracted, that is 300 mm Maximum weight supported: 20 Kg.
- Gross Weight: 2.89 kg
- Product size (width x depth x height): 48.5 x 30.5 x 4.5 cm
- Number of packages: 1
- Packages size: 49.0 x 37.0 x 5.5 cm
- Master-pack: 5
Technical terms
- RACK 19
- Rack unit (U)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
