USB 2.0 Extension Cable AM -> 4xAH (UTP 150m)
USB 2.0 Extension Cable AM -> 4xAH (UTP 150m)
REF: UA024
Specifications
- Extends a USB 2.0 port to a distació up to 150m using Cat.5 UTP cable.
- Compatible USB 2.0 and USB 1.1 supporting speeds up to 480 Mbps.

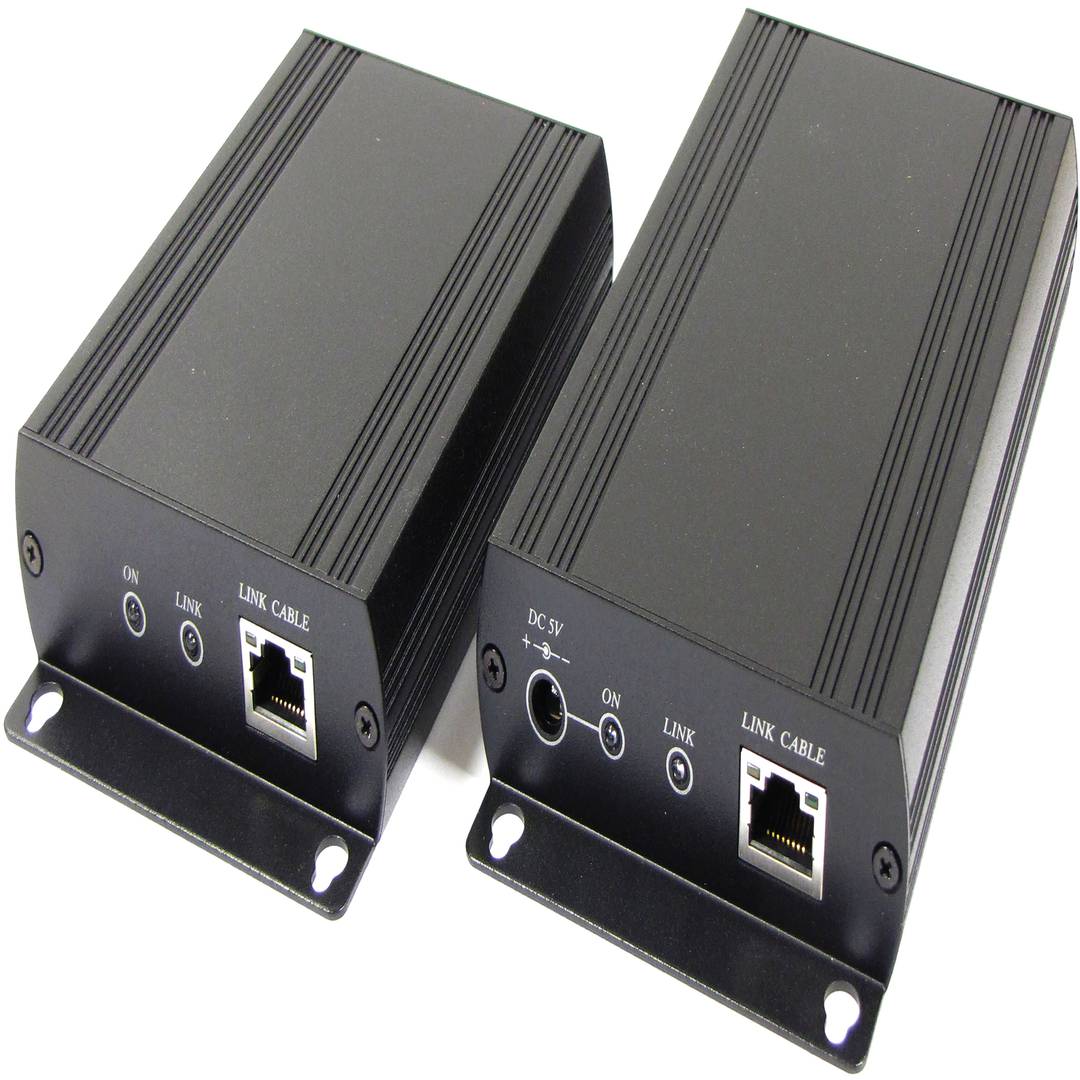

- local module that plugs into the USB port on the computer. It has USB port type B female and female RJ45 port to interface with the remote module.
- Remote module that connects to the local module using UTP Cat.5. It has RJ45 female and 4 female USB connectors.

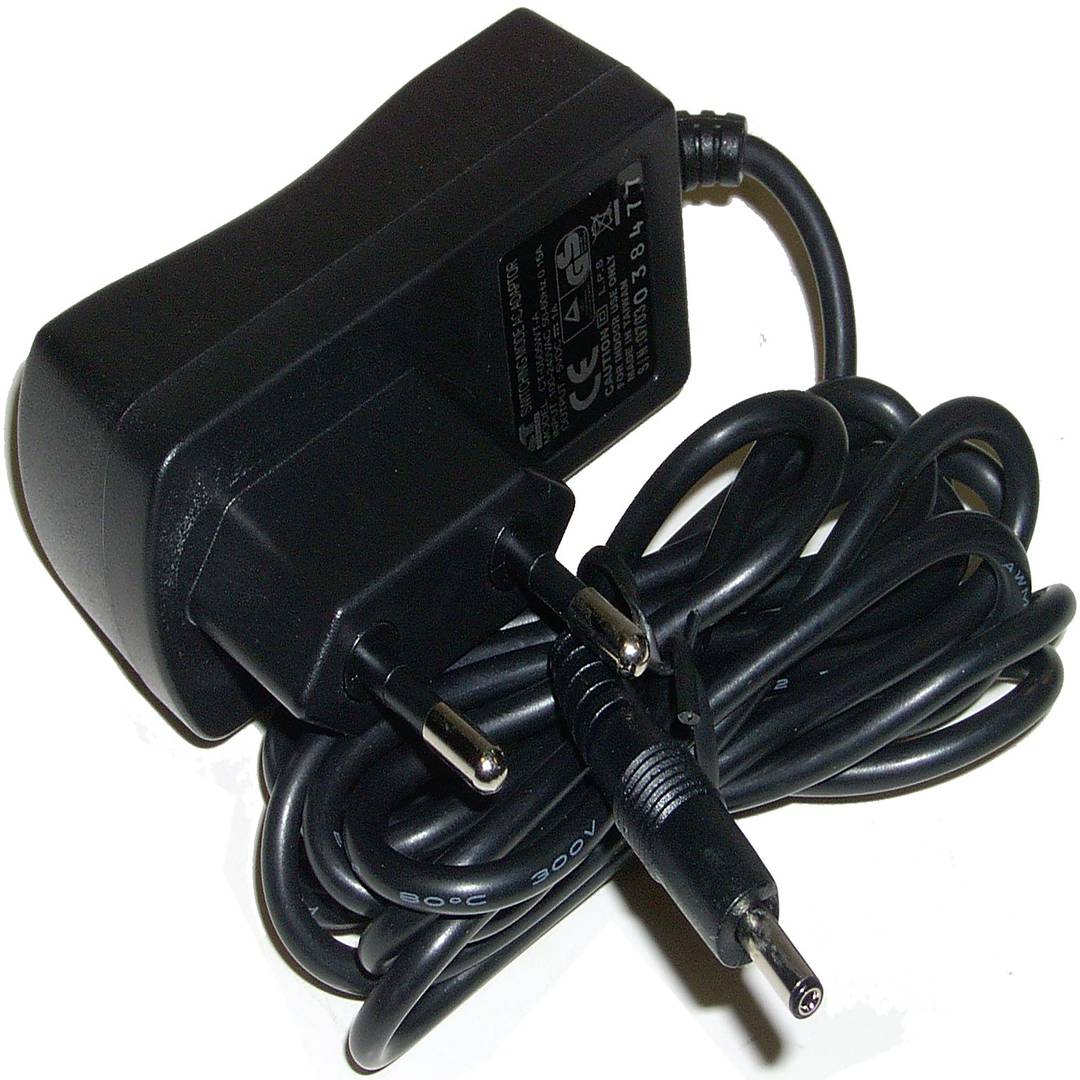

- The remote module requires power supply of 5 VDC (included).
PVP
€206.64
Price including VAT:
€206.64
PVD
€171.53
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Extends a USB 2.0 port to a distació up to 150m using Cat.5 UTP cable.
- Compatible USB 2.0 and USB 1.1 supporting speeds up to 480 Mbps.
- local module that plugs into the USB port on the computer. It has USB port type B female and female RJ45 port to interface with the remote module.
- Remote module that connects to the local module using UTP Cat.5. It has RJ45 female and 4 female USB connectors.
- The remote module requires power supply of 5 VDC (included).
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info

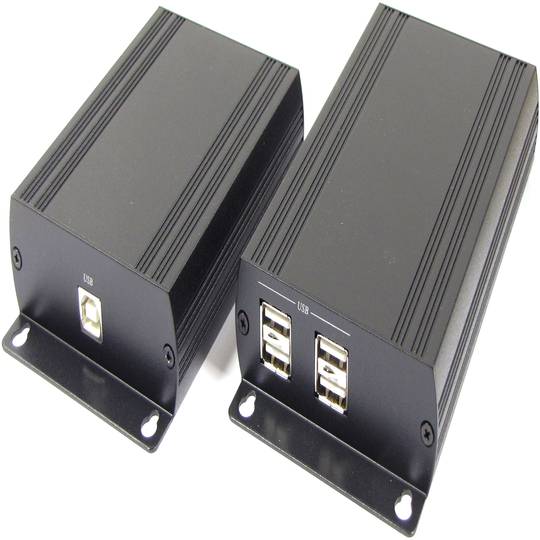

USB 2.0 port extender 150m away using Cat.5 UTP cable. It consists of two modules are interconnected through UTP cable can be up to 150m long, thus eliminating the theoretical maximum distance of 5m that has the USB cable. The remote module has 4 USB type A female port. Completely transparent to users and applications. No software required for operation.
Especificaciones
- Extends a USB 2.0 port to a distació up to 150m using Cat.5 UTP cable.
- Compatible USB 2.0 and USB 1.1 supporting speeds up to 480 Mbps.
- local module that plugs into the USB port on the computer. It has USB port type B female and female RJ45 port to interface with the remote module.
- Remote module that connects to the local module using UTP Cat.5. It has RJ45 female and 4 female USB connectors.
- The remote module requires power supply of 5 VDC (included).
- Local consumption module 500 mA and 550 mA remote module.
- Local module Size: 143 x 90 x 30 mm. Weight: 323 g.
- Remote module Size: 112 x 90 x 30 mm. Weight: 269 g.
- Gross Weight: 960 g
- Number of packages: 1
Technical terms
- USB
- MicroUSB
- Mini USB
- Types of network cables (UTP, FTP, STP)
- USB 3.0
- Reversible USB Type-C
- VDC
- RJ45
- Categories network cables
USB
The USB (Universal Serial Bus) is a standard that defines the cables, connectors and used a bus to connect, communicate, computers, peripherals and electronic devices protocols Transmission Rates Low speed (USB 1.0). Transfer rate up to 1.5 Mbit/s (188 kB/s) used in keyboard, mouse ... transfer rate up to 12 Mbit/s (1.5 MB/s) High Speed ??(USB 2.0): Rate transferencia up to 480 Mbit/s (60 MB/s) SuperSpeed ??(USB 3.0) transfer rate up to 4.8 Gbit/s (600 MB/s) Connector Types 1 - USB type A (4 pin) 2. - USB type B (4 pin) 3 - Mini A (5-pin) 4 - Mini B (5-pin) 5 - Micro A (5-pin) 6 - Micro B (5-pin)
