Waterproof electro magnetic lock 280 kg
Waterproof electro magnetic lock 280 kg
REF: LK102
Specifications
- Electro magnetic waterptoof lock with IP68 protection.
- Holding force: 280 kg.
- Working mode: NC, the door opens when there is no power.

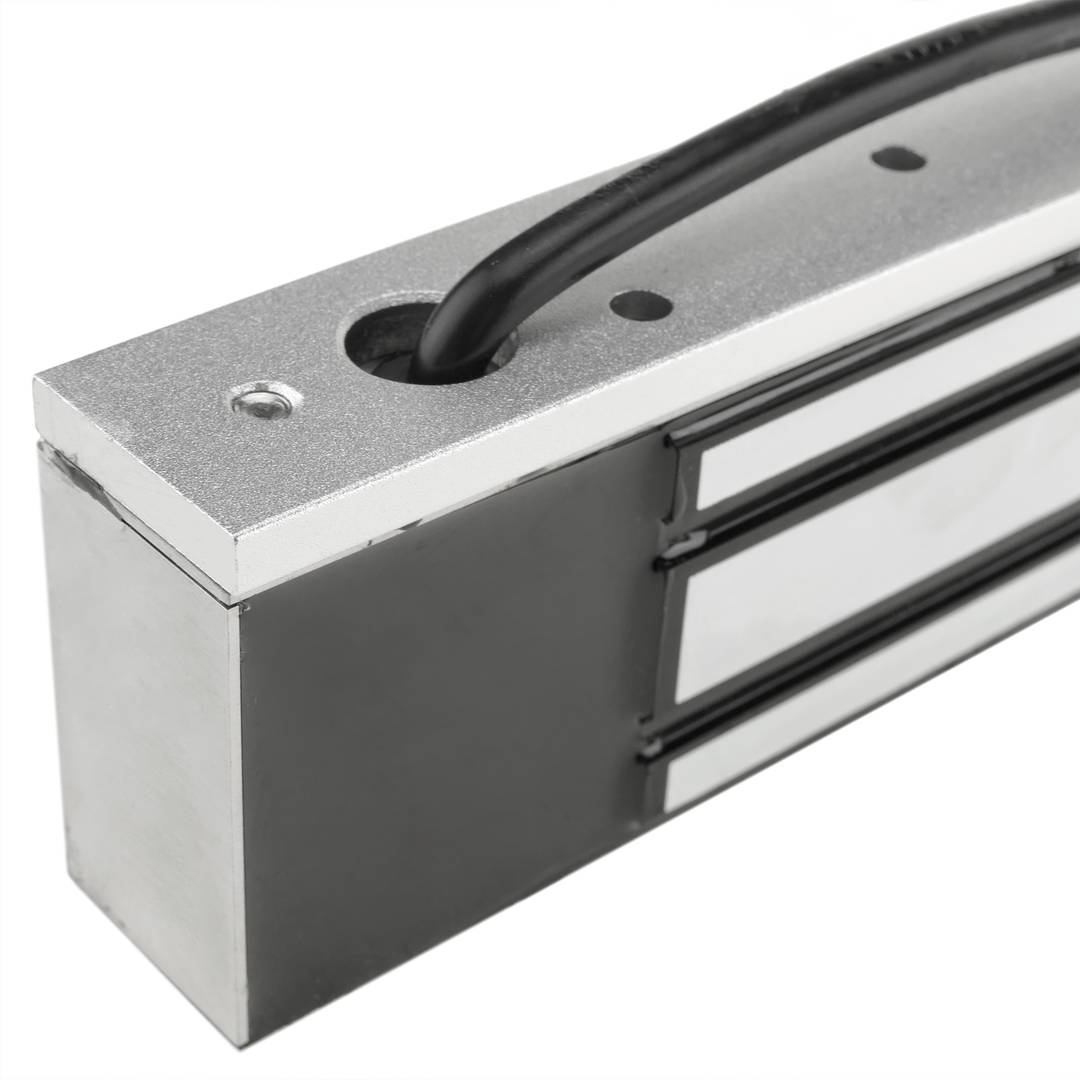

- Clasp body size (L x H x W): 222 x 48 x 26 mm.

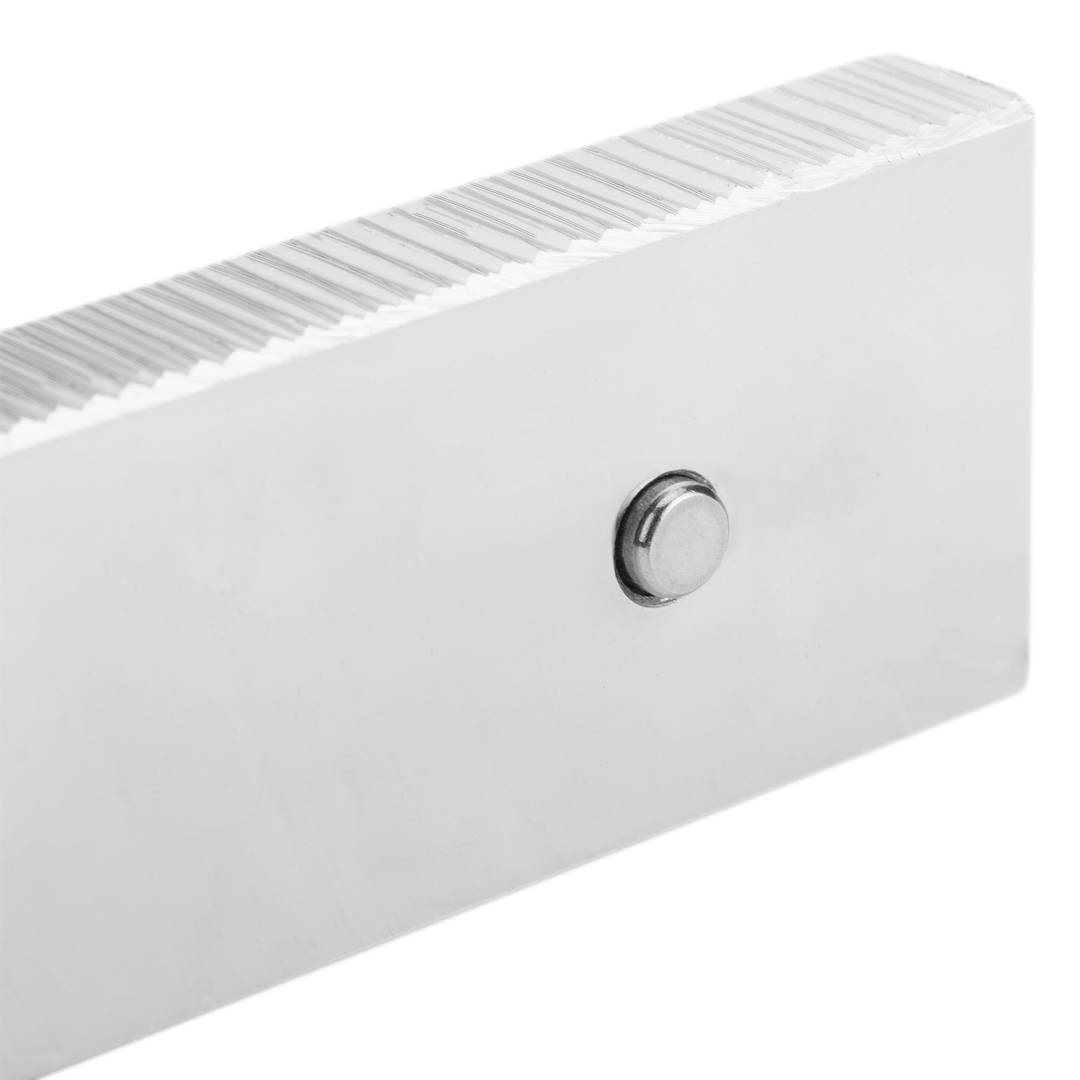

- Retainer Plate Size (L x H x W): 181 x 37 x 12mm.
Watch video
PVP
€53.52
Price including VAT:
€53.52
PVD
€48.26
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
We will notify you when it is back in stock.
Specifications
- Electro magnetic waterptoof lock with IP68 protection.
- Holding force: 280 kg.
- Working mode: NC, the door opens when there is no power.
- Clasp body size (L x H x W): 222 x 48 x 26 mm.
- Retainer Plate Size (L x H x W): 181 x 37 x 12mm.
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info

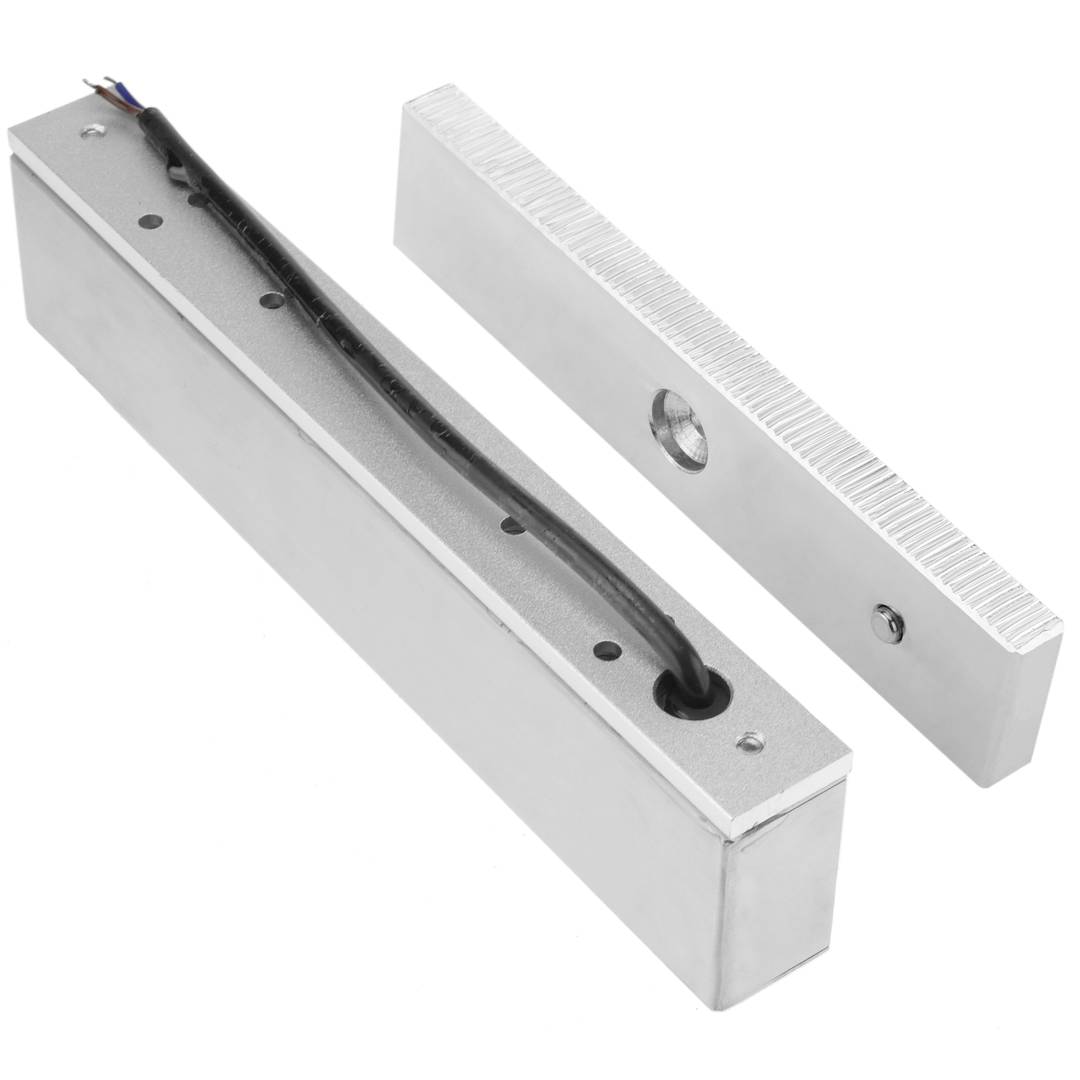

Safety closing system for metal, wood or glass doors. The lock remains activated as long as there is voltage in the circuit. The electromagnet block can be installed in the door frame or canopy, so that when it is active it generates an electromagnetic field that strongly attracts the metal plate installed on the door. The control of the lock can be done by means of a button, remote control, control panel, etc. Compact and resistant design. No noise during operation. Includes hex key and hardware for installation.
specs
specs
- Electro magnetic waterptoof lock with IP68 protection.
- Holding force: 280 kg.
- Working mode: NC, the door opens when there is no power.
- Clasp body size (L x H x W): 222 x 48 x 26 mm.
- Retainer Plate Size (L x H x W): 181 x 37 x 12mm.
- Operating voltage: DC12V / 500mA.
- Gross Weight: 1.999 kg
- Product size (width x depth x height): 22.2 x 4.8 x 2.6 cm
- Number of packages: 1
- Packages size: 28.6 x 27.5 x 4.7 cm
- Master-pack: 1
Technical terms
- IP Protection
- Types of tips for screwdrivers
IP Protection
hen we talk about IP code (International Protection) we talk about an international standard (IEC 60529) which classifies the protection against external factors, solid or liquid, that has a component or electronic device; LED strips, controllers, meters, security cameras, etc.
This alpha-numerically standard has been designed to sort different levels of protection. Nomenclature starts with IP followed by two numeric values.
- Example IP68:
The first value ranges from 0 to 6 and indicates the protection against solid agents. In this case, strong protection against dust.
The second value is between 0 and 8 and indicates the protection against liquid agents. In this case the complete and prolonged immersion during the time specified by the manufacturer.
We could say that the larger the number is greater IP protection has a device.
In below table, we can see different IP protections levels available.
This alpha-numerically standard has been designed to sort different levels of protection. Nomenclature starts with IP followed by two numeric values.
- Example IP68:
The first value ranges from 0 to 6 and indicates the protection against solid agents. In this case, strong protection against dust.
The second value is between 0 and 8 and indicates the protection against liquid agents. In this case the complete and prolonged immersion during the time specified by the manufacturer.
We could say that the larger the number is greater IP protection has a device.
In below table, we can see different IP protections levels available.
| IPXX | First digit (IPxx) | Second digit (IPxx) |
| 0 | Unprotected. | Unprotected. |
| 1 | Protection against objects of> 50 mm diameter. | Protection against vertically dripping water. |
| 2 | Protection against objects of> 12.5 mm diameter. | Protection against inclined drip water up to 15°. |
| 3 | Protection against objects of> 2 mm in diameter. | Protection against water projected from any direction, up to 60°. |
| 4 | Protection against objects of> 1 mm in diameter. | Protection against splashing water any direction. |
| 5 | Ingress of dust is not entirely revented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment . | Protection against water jets. |
| 6 | Dust tight. | Protection against strong jets of water. |
| 7 | Protection against complete immersion up to 1 meter for 30 minutes. | |
| 8 | Protection against complete and prolonged immersion. |
