Server rack cabinet 19 inch 12U 600x300x635mm wallmount SOHORack by RackMatic
REF: WM033
Specifications
- Complete frame and rack guides 19 "frontis adjustable in depth to suit any need. Optionally, rear guides #WO44 can be installed.

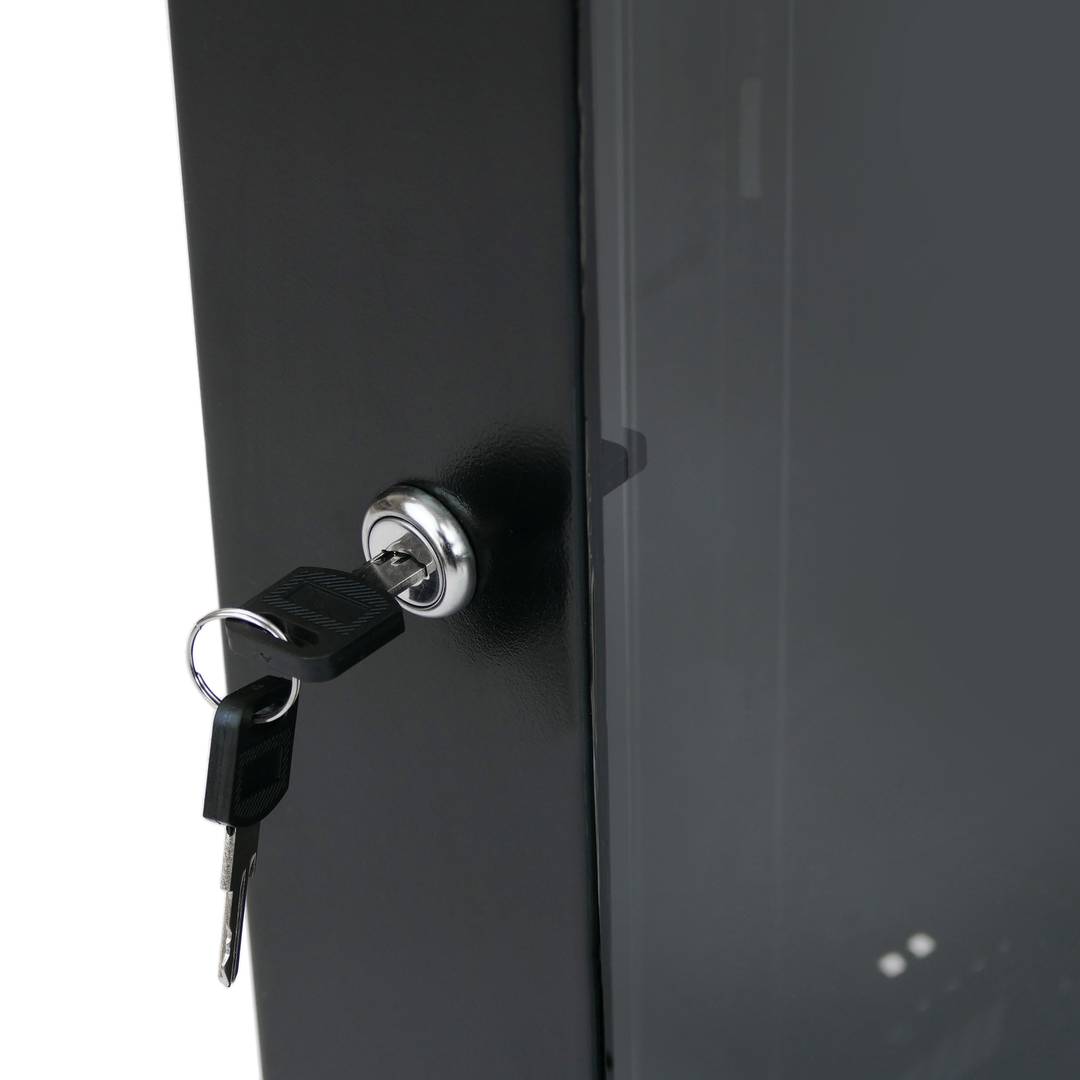

- Door with security glass that gives a more attractive design and lock with key. 180 degree door opening.
- Hole for cable passage, upper and lower panel. These holes for the passage of cables, can be left open or closed with a metal plate.
- Perforation for up to two 12cm fans on the top panel (fans not included).

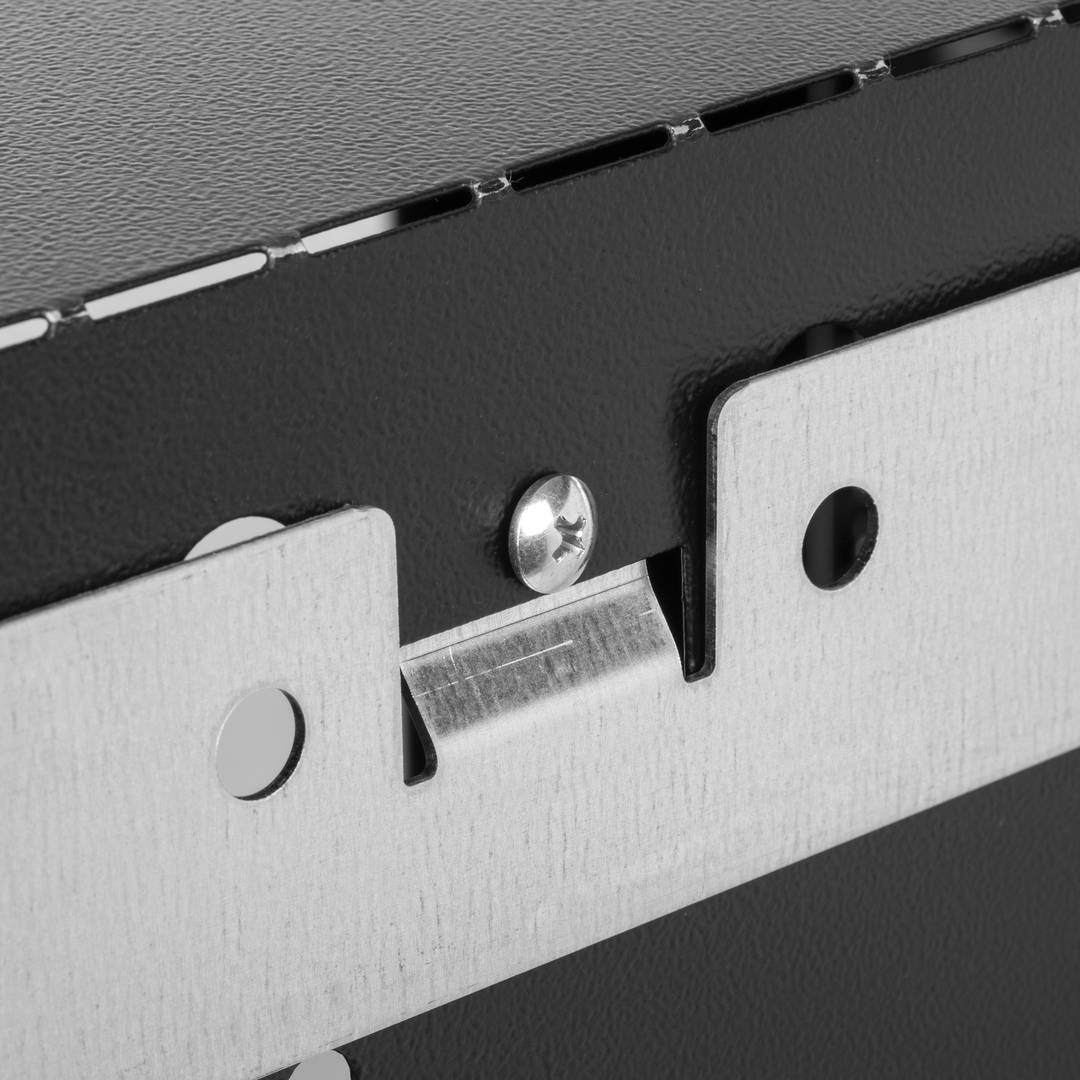

- Holes in the back plate for fixing the cabinet to the wall.
06/04/2020 11:05 a.m.
https://cablematic.com/en/products/server-rack-cabinet-19-inch-12u-600x300x635mm-wallmount-sohorack-by-rackmatic-WM033/
https://cablematic.com/en/products/server-rack-cabinet-19-inch-12u-600x300x635mm-wallmount-sohorack-by-rackmatic-WM033/
Server rack cabinet 19 inch 12U 600x300x635mm wallmount SOHORack by RackMatic
REF: WM033
Your price
PVP
€115.62
Price including VAT: €115.62
PVD
€98.97
Specifications
- Complete frame and rack guides 19 "frontis adjustable in depth to suit any need. Optionally, rear guides #WO44 can be installed.
- Door with security glass that gives a more attractive design and lock with key. 180 degree door opening.
- Hole for cable passage, upper and lower panel. These holes for the passage of cables, can be left open or closed with a metal plate.
- Perforation for up to two 12cm fans on the top panel (fans not included).
- Holes in the back plate for fixing the cabinet to the wall.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info
19 "wall cabinet RackMatic SOHORack Wall cabinet 12U and exterior size in mm 600 (A) x 300 (F) x 635 (H) The interior frames are configurable in depth. front frame to the bottom of the cabinet (useful background) could be up to 215 mm, advancing the front frame as much as possible.
Specifications
Specifications
- Complete frame and rack guides 19 "frontis adjustable in depth to suit any need. Optionally, rear guides #WO44 can be installed.
- Door with security glass that gives a more attractive design and lock with key. 180 degree door opening.
- Hole for cable passage, upper and lower panel. These holes for the passage of cables, can be left open or closed with a metal plate.
- Perforation for up to two 12cm fans on the top panel (fans not included).
- Holes in the back plate for fixing the cabinet to the wall.
- Cabinet bottom of 300 mm.
- Side panels with removable system without screws, for convenient side access to wiring and housed accessories. Optionally, a lock can be installed on the side panels to preventunintended access.
- They are delivered to the customer fully assembled and packed, ready to be installed. Made of SPCC steel painted black.
- They comply with the most demanding standards and standards ANSI/EIARS-310-D, IEC297-2, DIN41491 (part 1, Part 7) and DIN41494.
- Gross Weight: 18.5 kg
- Product size (width x depth x height): 60.0 x 30.0 x 63.5 cm
- Number of packages: 1
- Packages size: 69.5 x 66.0 x 36.0 cm
Technical terms
- RACK 19
- Rack unit (U)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
