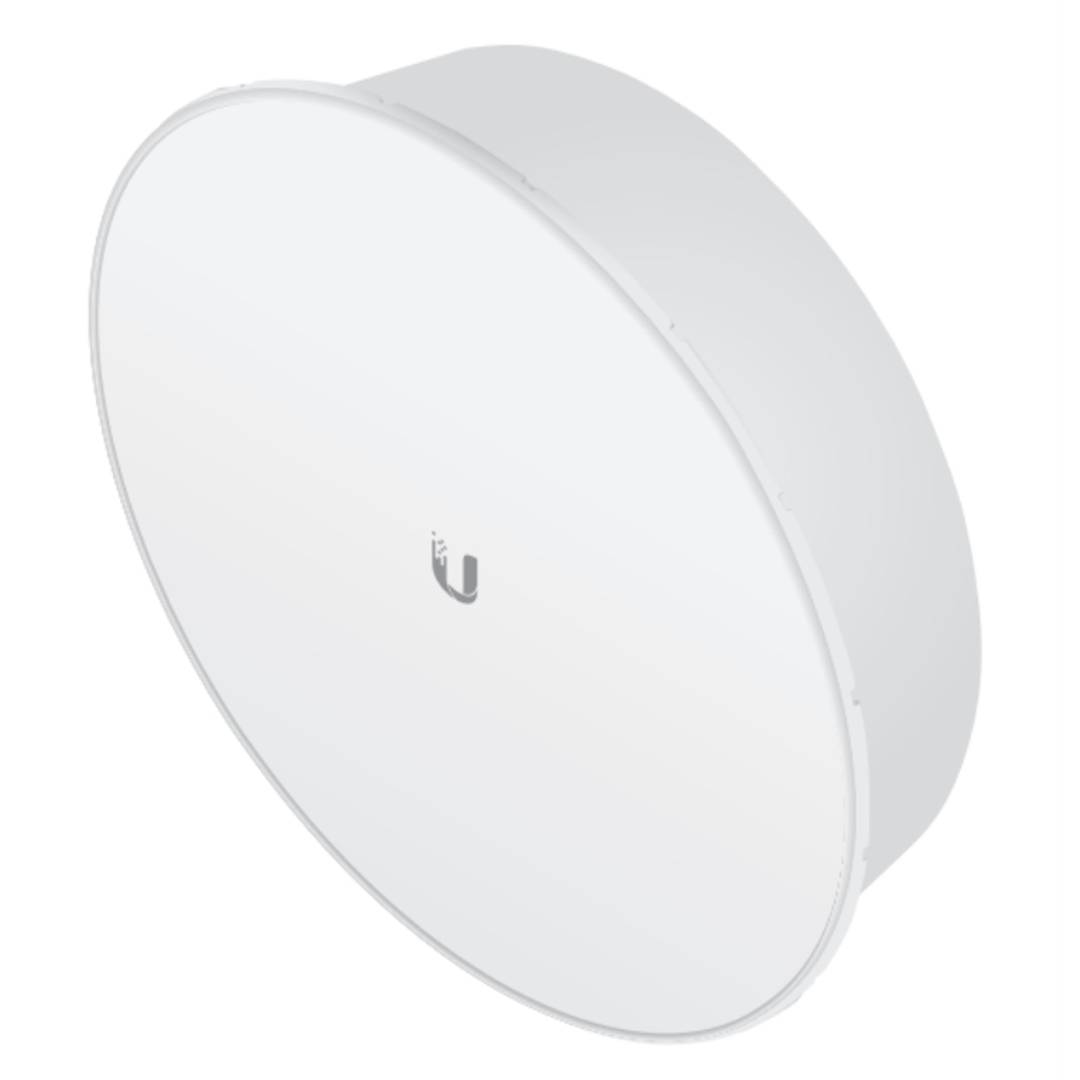

Ubiquiti 25dBi 5GHz AirMax AC PowerBeam AC Antenna CPE PBE-5AC-ISO-GEN2
REF: UI311
Specifications
- Maximum data transfer rate: 450 Mbit/s.
- Antenna gain (max): 25 dBi.
- Band frequency: 5.150 - 5.850 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK.
- Product type: Wi-Fi bridge.
- Material: Metal.
PVP
€132.77
Price including VAT:
€132.77
PVD
€127.67
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 years
warranty
warranty
14 days
returns
returns
100%
safe
safe
We will notify you when it is back in stock.
Specifications
- Maximum data transfer rate: 450 Mbit/s.
- Antenna gain (max): 25 dBi.
- Band frequency: 5.150 - 5.850 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK.
- Product type: Wi-Fi bridge.
- Material: Metal.
More info
White metal Wi-Fi bridge with a maximum data transfer rate of 450 Mbit/s. This antenna offers a maximum gain of 25 dBi and works in a frequency band between 5.150 - 5.850 GHz. In addition, the supported modulation includes 16-QAM, 64-QAM, 256-QAM, BPSK and QPSK. Ubiquiti has provided a PoE power supply for the device, with a DC input voltage of 20 to 26 V and a maximum power consumption of 8.5 W. Manufactured by Ubiquiti with reference PBE-5AC-ISO-Gen2.
Specifications
Specifications
- Maximum data transfer rate: 450 Mbit/s.
- Antenna gain (max): 25 dBi.
- Band frequency: 5.150 - 5.850 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK.
- Product type: Wi-Fi bridge.
- Material: Metal.
- Product colour: White.
- Power: PoE.
- DC input voltage: 20 - 26 V.
- Power consumption (max): 8.5W.
- Ideal for increasing Wi-Fi coverage in large spaces, ensuring a stable, high-speed connection.
- Compatibility: Compatible with all devices that use 802.11ac technology.
- Connections: This antenna is designed to allow the connection of one device to another through a wireless link.
- Gross Weight: 3.0 kg
- Number of packages: 1
- Master-pack: 1
Technical terms
- Hz
- PoE
- dBi
- Wifi
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
