USB to RS-422 RS485 VSCOM PRO 2-Port DINRail USB-2COMi PRO

REF: IC095

Specifications

  • RS-232 Max Bitrate up to 1Mbps
  • RS-422/485 Max Bitrate up to 12Mbps
  • Power via USB, no power supply required.
  • RS-232 signal: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
  • RS422 signal: Tx-, Tx +, Rx +, Rx-, GND, RTS-, RTS +, CTS +, CTS-

Your price

PVP

200.20

Price including VAT: 200.20

PVD

174.37


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES

Specifications

  • RS-232 Max Bitrate up to 1Mbps
  • RS-422/485 Max Bitrate up to 12Mbps
  • Power via USB, no power supply required.
  • RS-232 signal: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
  • RS422 signal: Tx-, Tx +, Rx +, Rx-, GND, RTS-, RTS +, CTS +, CTS-

Related products

Keywords

Did not find what you were looking for? These topic could help you

More info

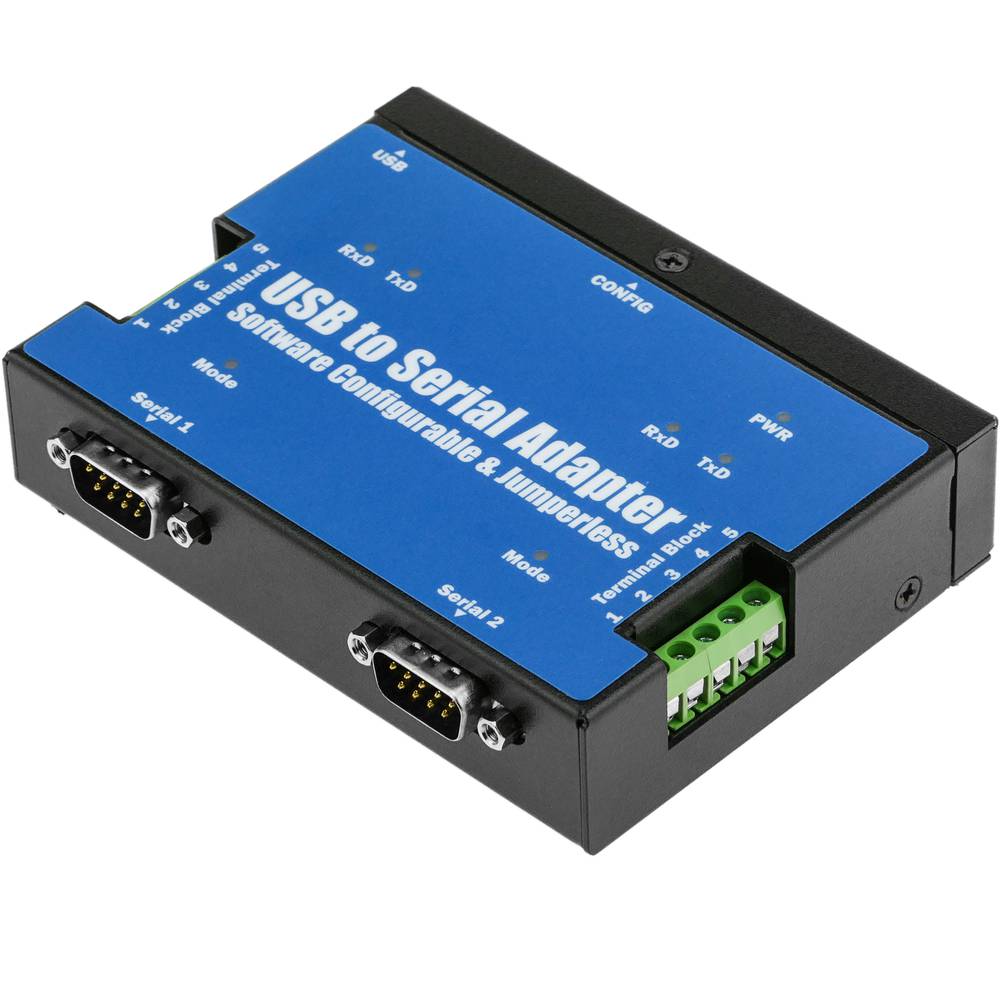

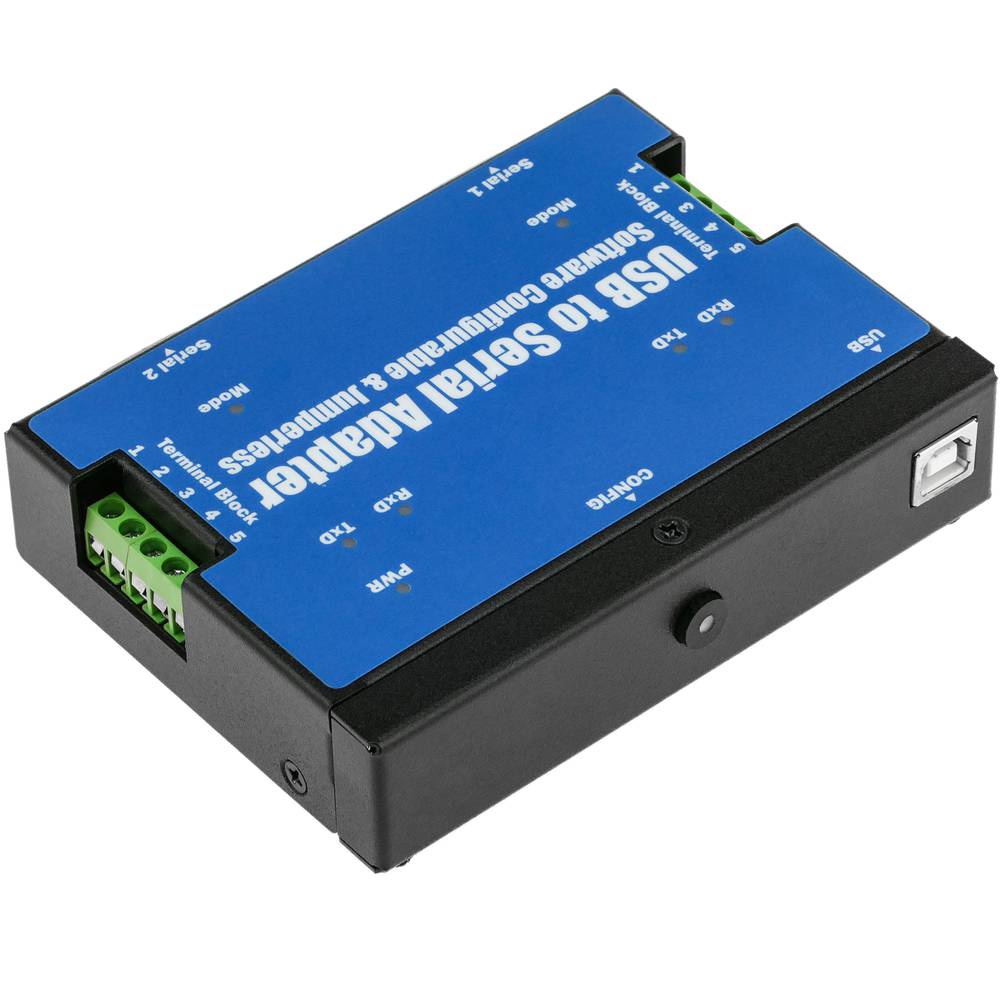

Range of electronic devices that allow the connection of peripherals that work RS-422 or RS-485 signal via USB. It is a robust converter mounted on metal housing for use in both industrial and office environments.

specs

  • RS-232 Max Bitrate up to 1Mbps
  • RS-422/485 Max Bitrate up to 12Mbps
  • Power via USB, no power supply required.
  • RS-232 signal: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
  • RS422 signal: Tx-, Tx +, Rx +, Rx-, GND, RTS-, RTS +, CTS +, CTS-
  • RS485 signal: Tx-, Tx +, Rx +, Rx- (4-wire), and data-, data + (2-wire)

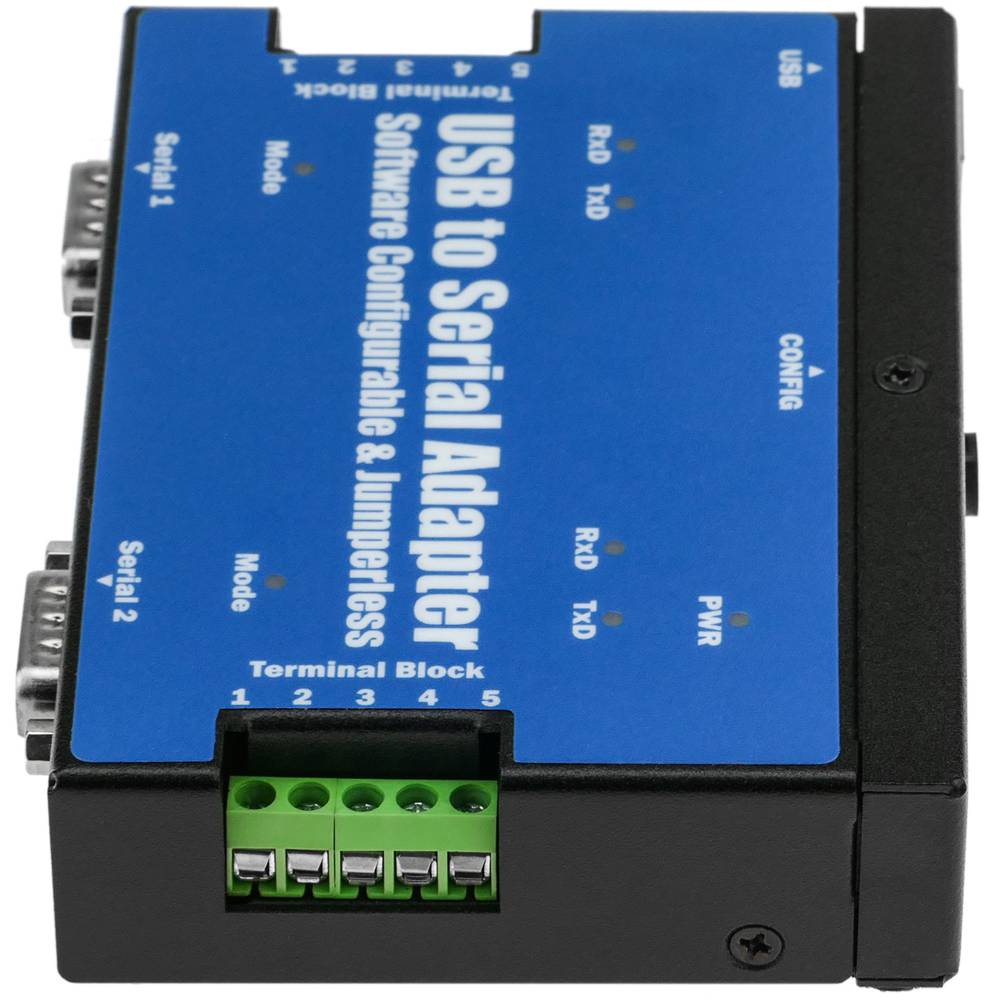

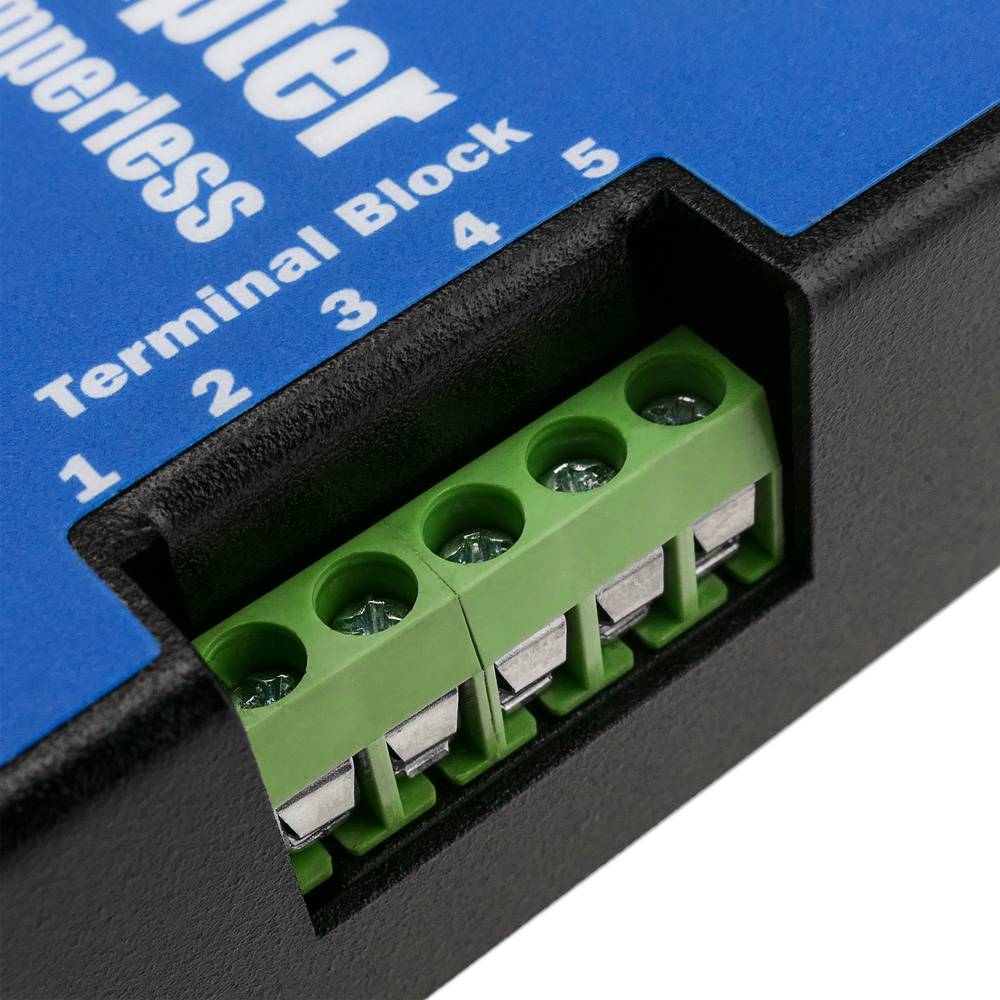

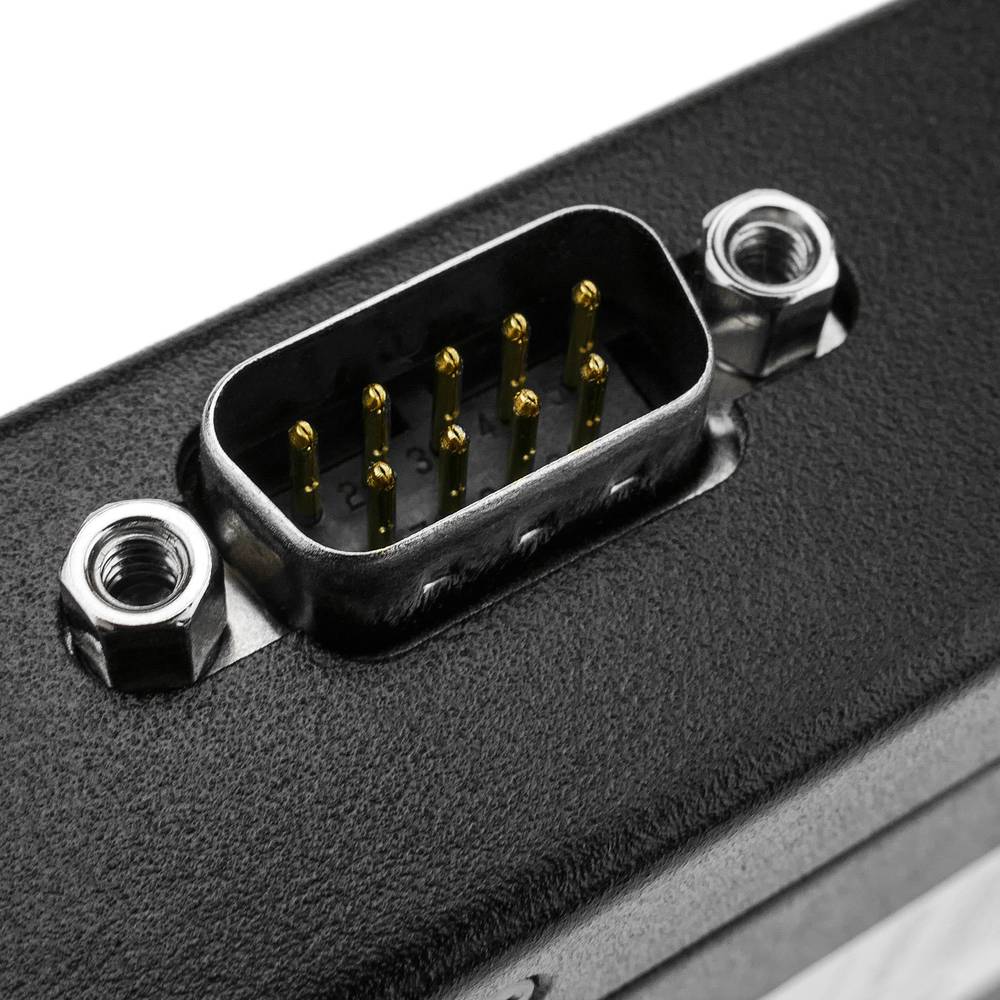

  • It has 2 x DB9-Male and 2 x Terminal-Block.
  • Shell size: 115 x 85 x 26 mm.
  • Size with ears and connectors: 137 x 85 x 26 mm.
  • Optical Isolation: 15KV ESD for all signals

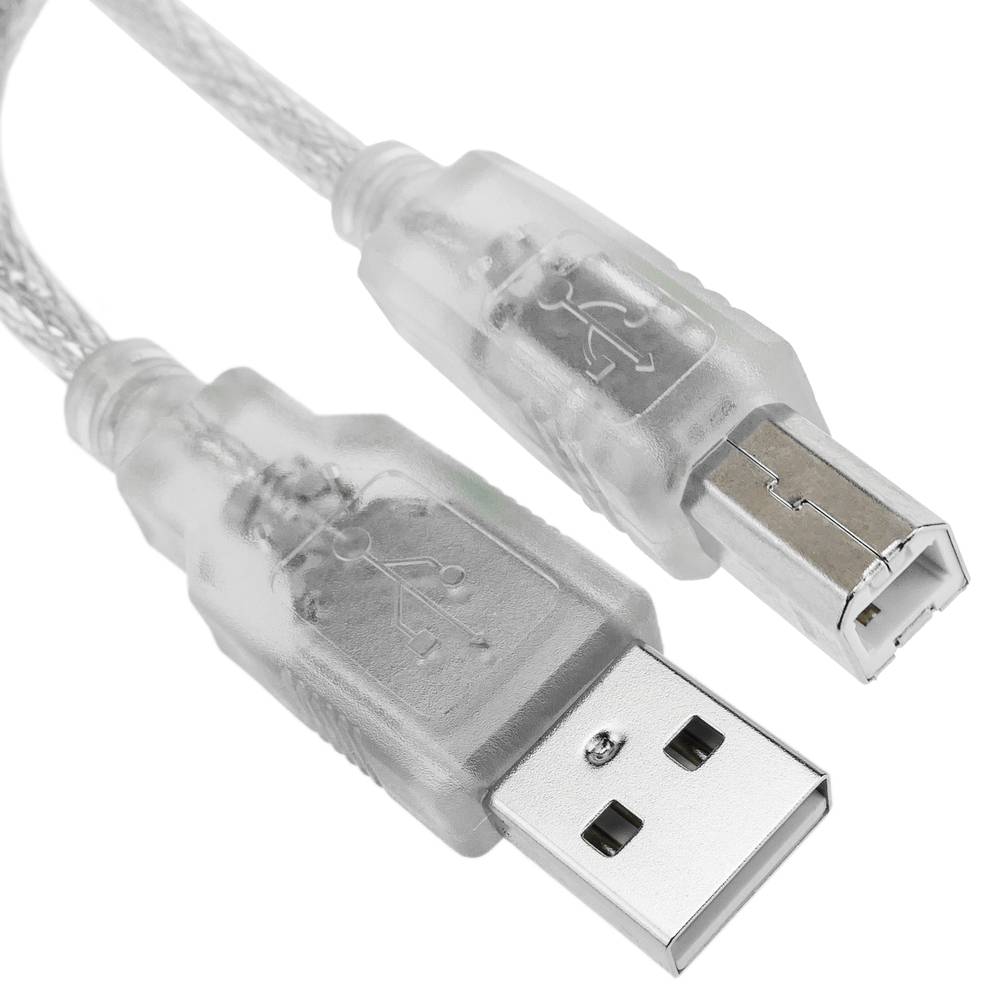

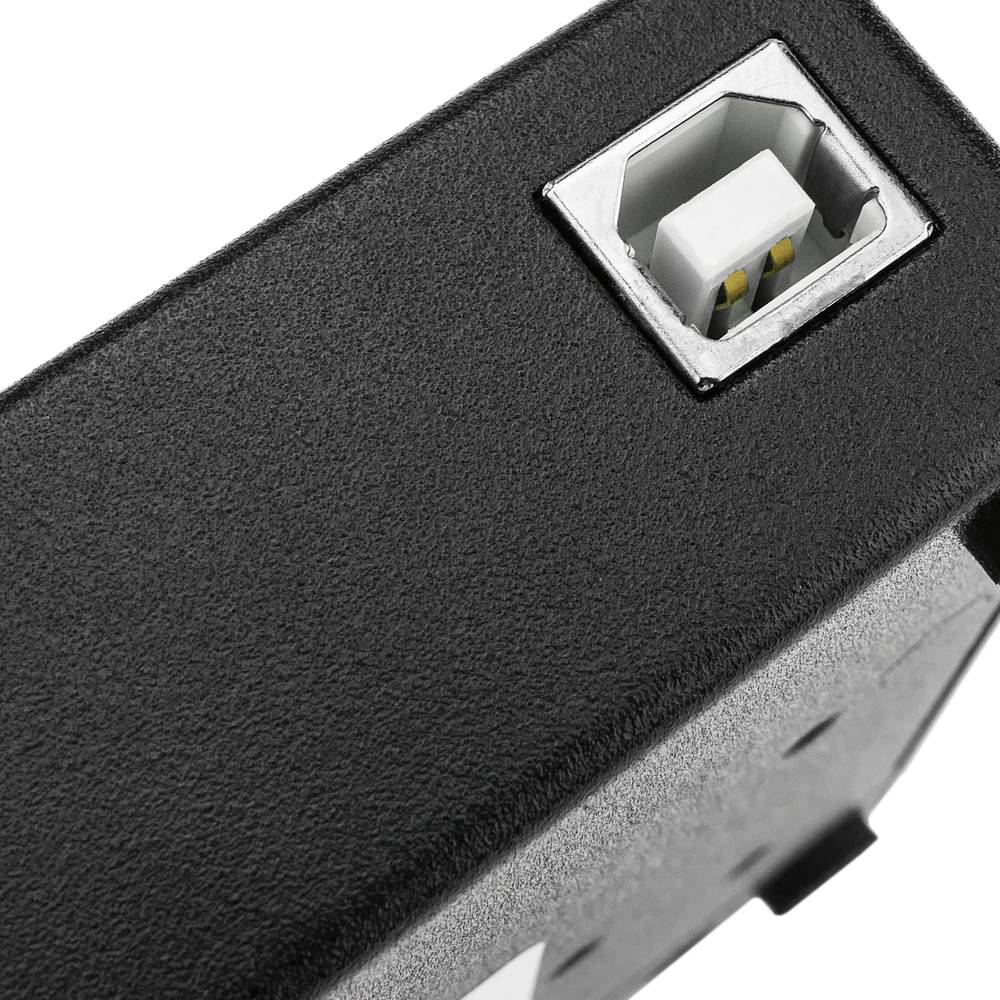

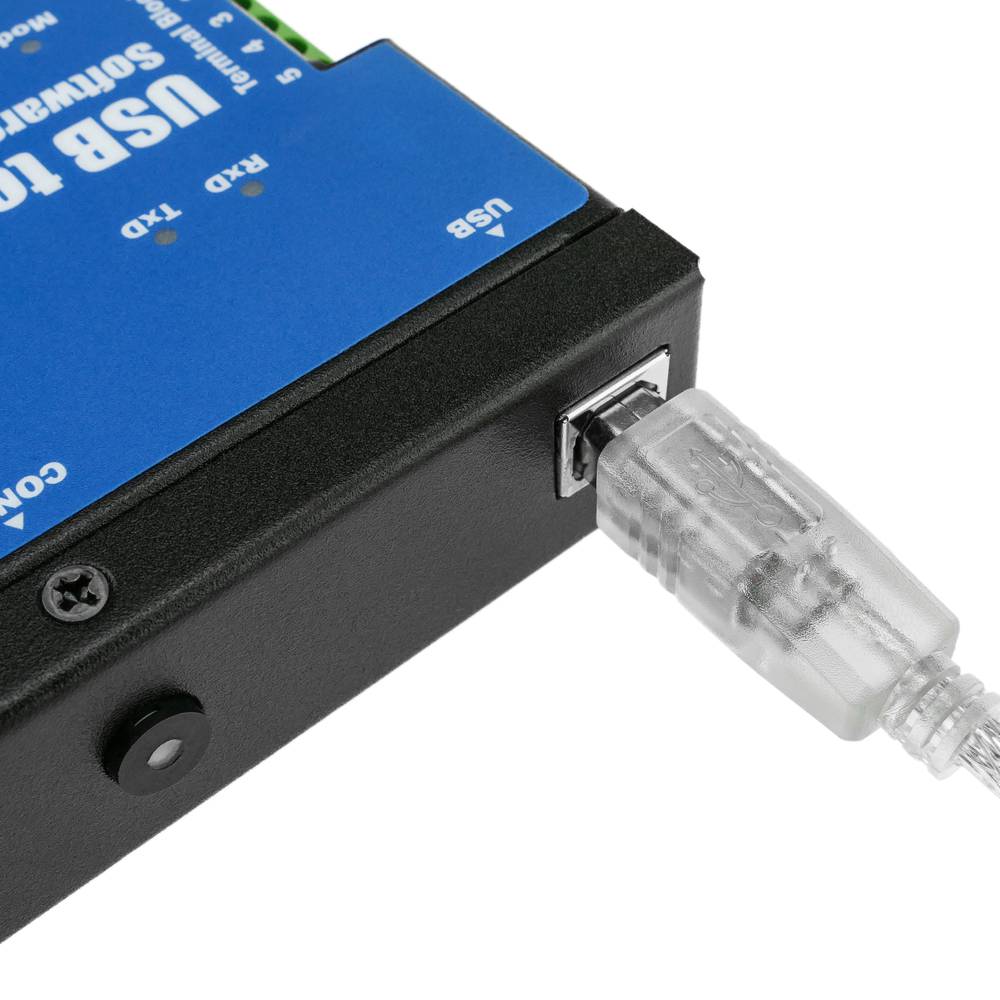

  • Includes AM to BM USB cable

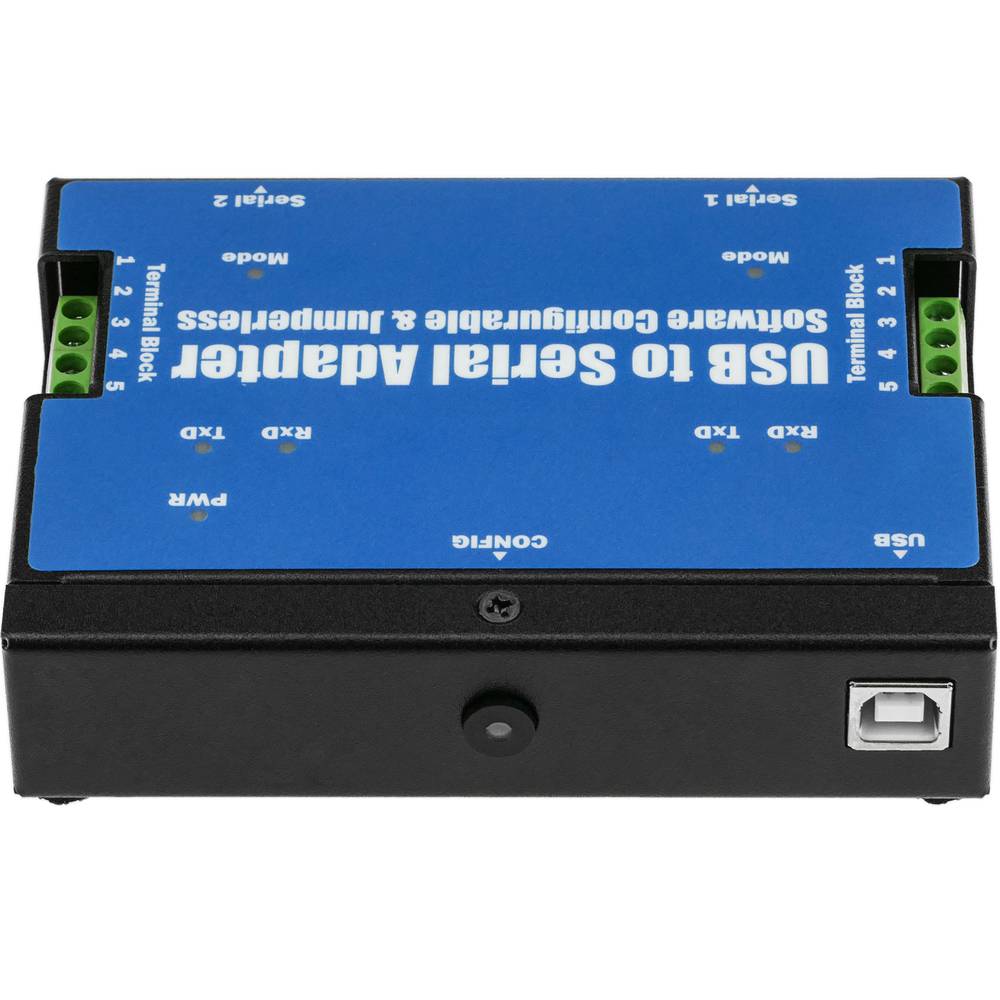

  • External button to configure operative.
  • Operating temperature: 0 ° C to 55 ° C
  • Software compatible with Windows environments.
  • Gross Weight: 489 g
  • Product size (width x depth x height): 11.5 x 8.5 x 2.6 cm
  • Number of packages: 1
  • Packages size: 16.2 x 12.0 x 5.3 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • USB
  • MicroUSB
  • Mini USB
  • Communication Series
  • USB 3.0
  • Reversible USB Type-C
  • RS485
USB
The USB (Universal Serial Bus) is a standard that defines the cables, connectors and used a bus to connect, communicate, computers, peripherals and electronic devices protocols Transmission Rates Low speed (USB 1.0). Transfer rate up to 1.5 Mbit/s (188 kB/s) used in keyboard, mouse ... transfer rate up to 12 Mbit/s (1.5 MB/s) High Speed ??(USB 2.0): Rate transferencia up to 480 Mbit/s (60 MB/s) SuperSpeed ??(USB 3.0) transfer rate up to 4.8 Gbit/s (600 MB/s) Connector Types 1 - USB type A (4 pin) 2. - USB type B (4 pin) 3 - Mini A (5-pin) 4 - Mini B (5-pin) 5 - Micro A (5-pin) 6 - Micro B (5-pin)
