1U 19" vertical wall or under-desk rack structure
1U 19" vertical wall or under-desk rack structure
REF: RR050
NEW
Specifications
- 1U 19" wall-mounted rack structure for installation on a wall or under a desk.
- 1U open wall-mounted rack cabinet.
- Usable depth: 100 mm.
- Ideal for small and lightweight devices.
- Black color model (RAL9004).
PVP
€19.10
Price including VAT:
€19.10
PVD
€14.92
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
7 business days
The delivery times are approximate and may vary depending on the selected carrier.
2 yearswarranty
14 daysreturns
NEW
Specifications
- 1U 19" wall-mounted rack structure for installation on a wall or under a desk.
- 1U open wall-mounted rack cabinet.
- Usable depth: 100 mm.
- Ideal for small and lightweight devices.
- Black color model (RAL9004).
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info

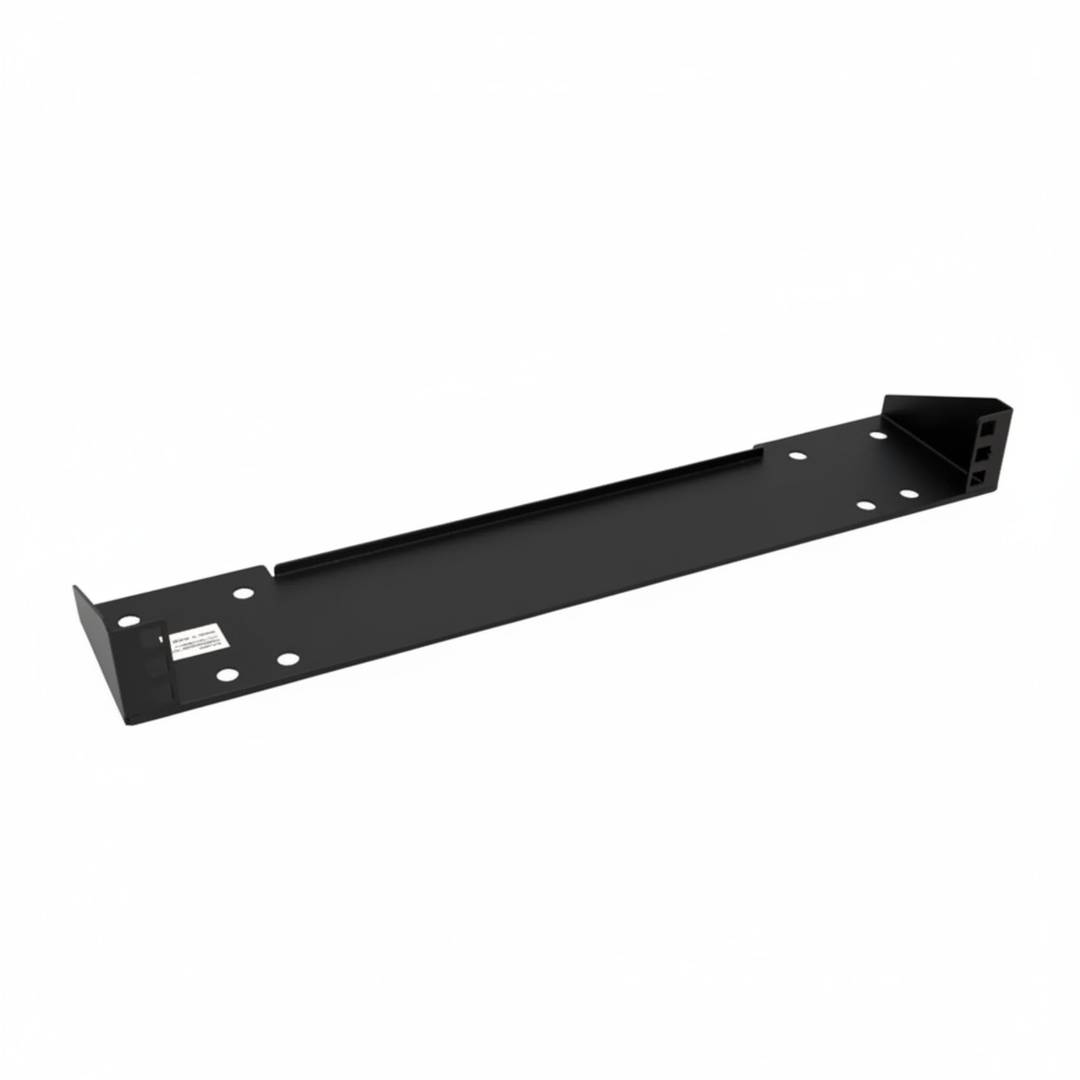

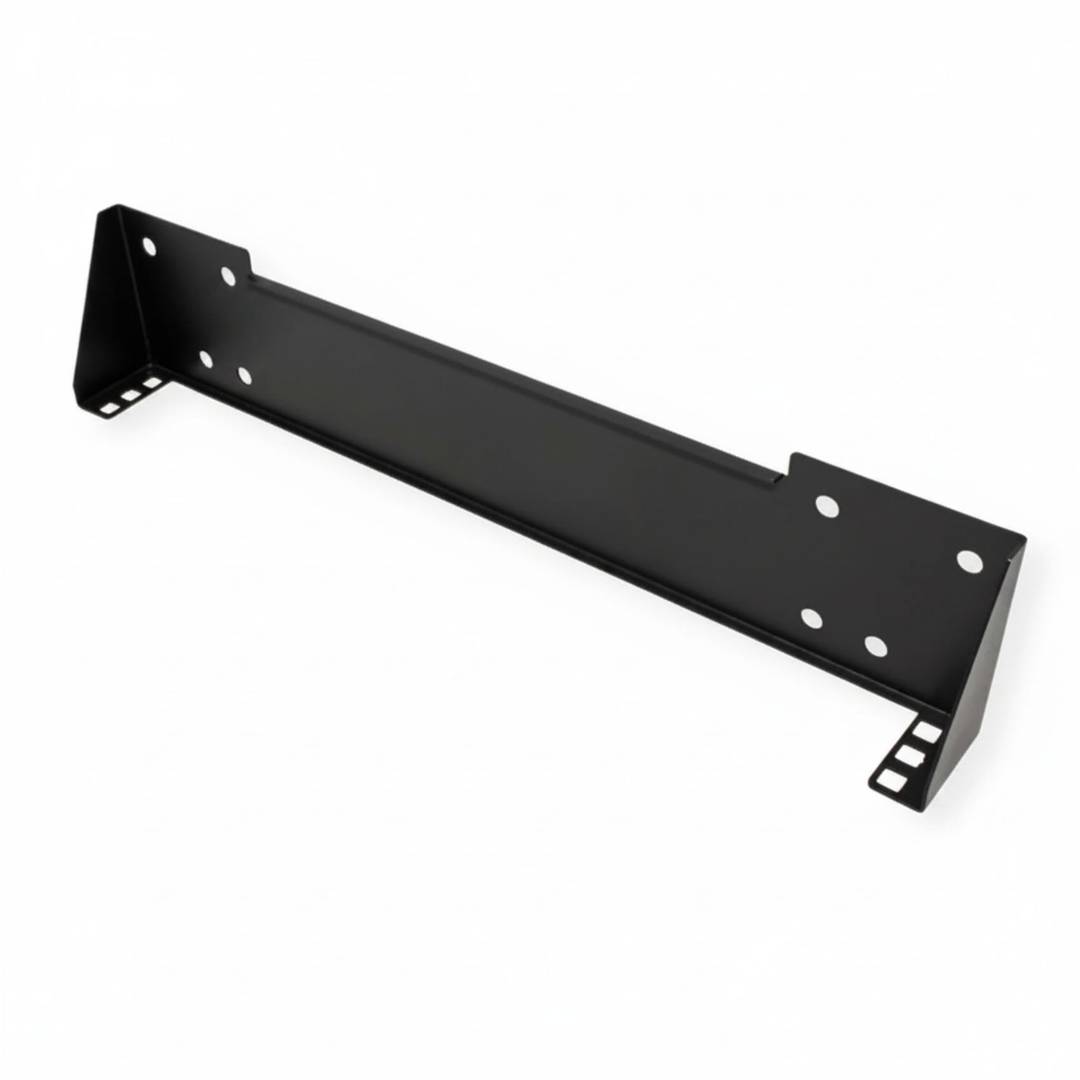

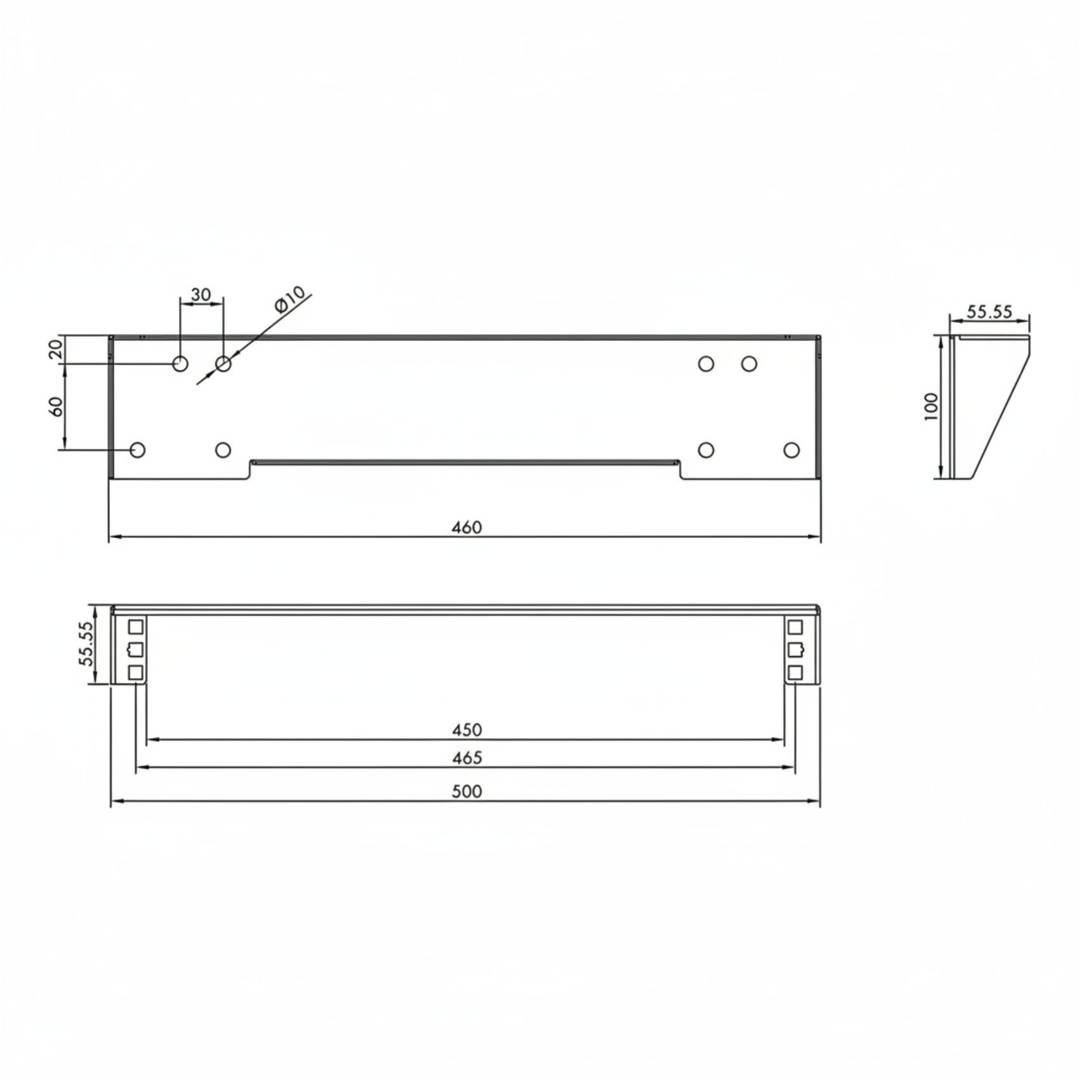

Wall mount for accessories or peripherals compatible with the 19" rack standard. This is a 1U (1U x 3 holes per U) black metal 19" rack. It has 4 holes for screwing/fixing the structure to the wall. This structure allows the 19" rack to be mounted horizontally, like a shelf, with the front of the rack facing upwards. A very economical solution for exposed installations that only require a patch panel, a switch, or similar equipment. Dimensions (height x width x depth): 100 x 55.5 x 500 mm.
Specs
- 1U 19" wall-mounted rack structure for installation on a wall or under a desk.
- 1U open wall-mounted rack cabinet.
- Usable depth: 100 mm.
- Ideal for small and lightweight devices.
- Black color model (RAL9004).
- Maximum weight supported 10 kg.
- Gross Weight: 1.0 kg
- Product size (width x depth x height): 50.0 x 10.0 x 5.5 cm
- Number of packages: 1
- Packages size: 50.0 x 10.0 x 5.5 cm
Technical terms
- RACK 19
- Rack unit (U)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
