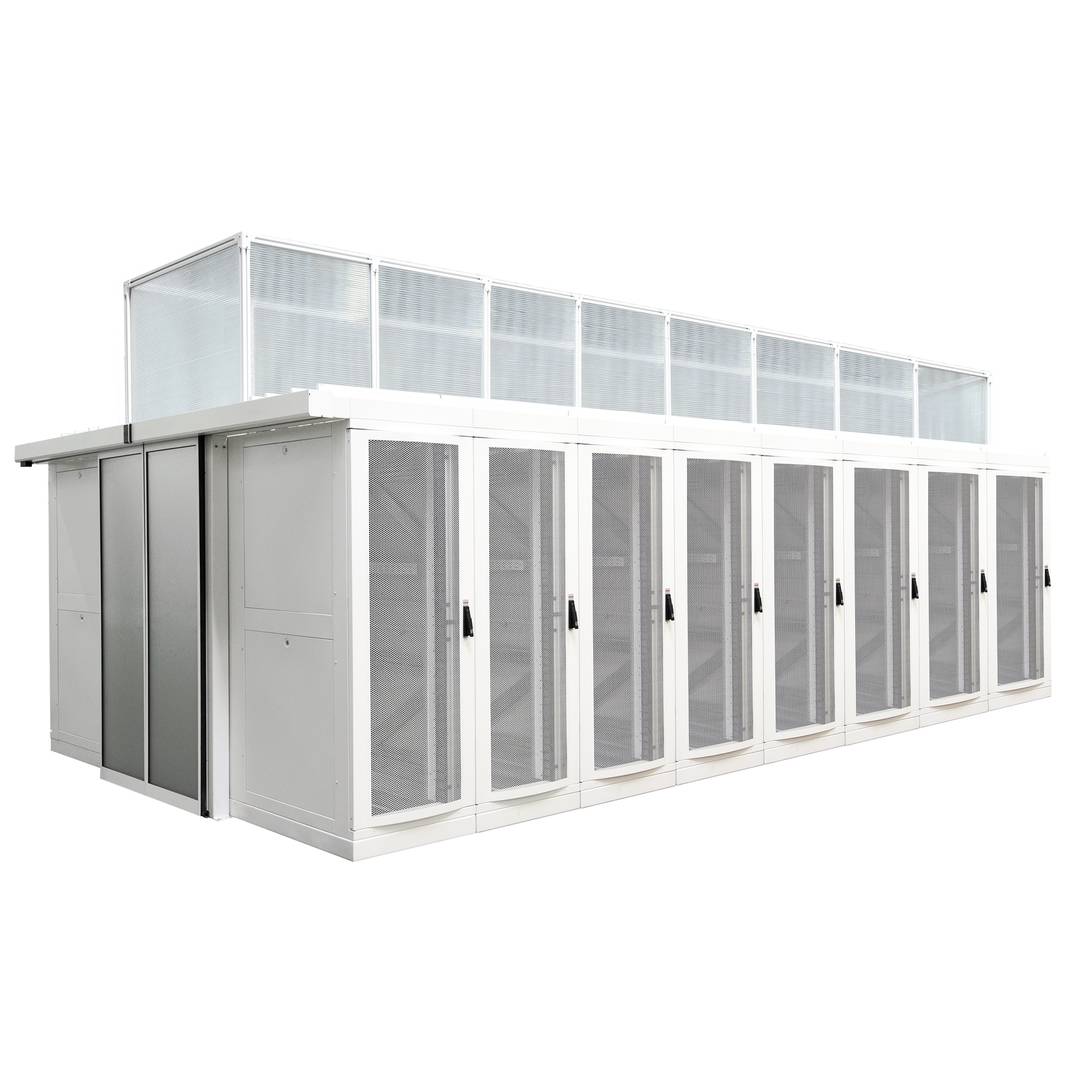

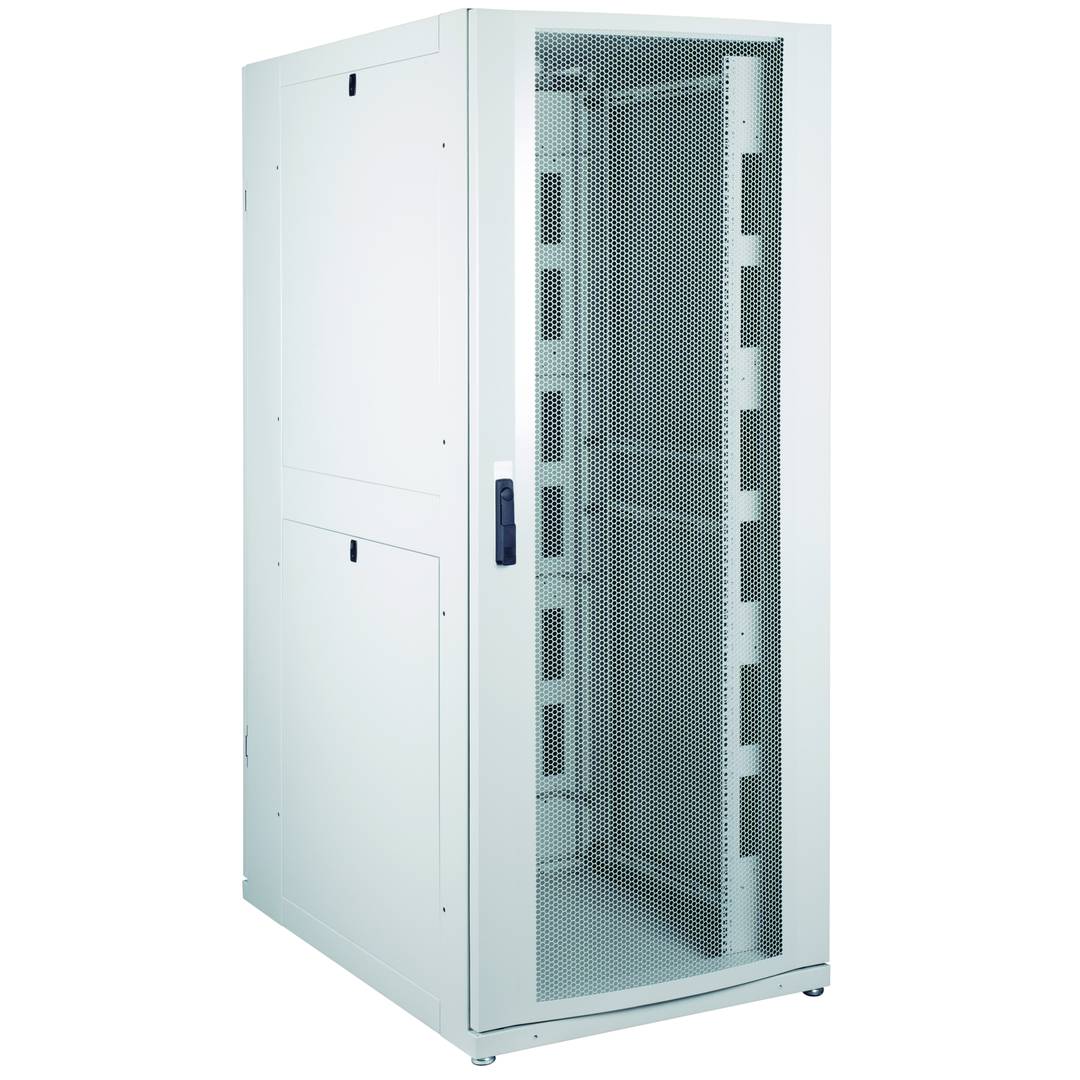

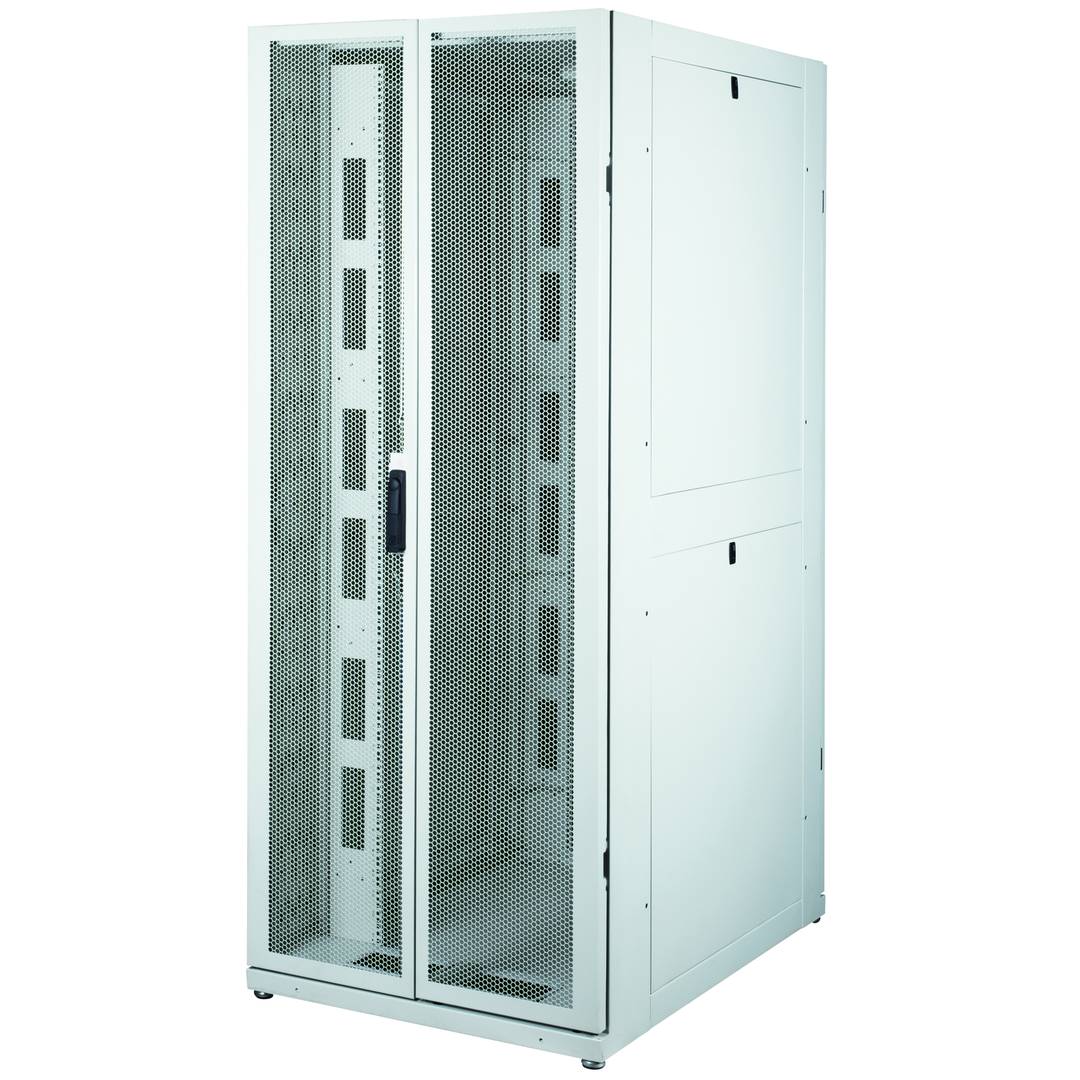

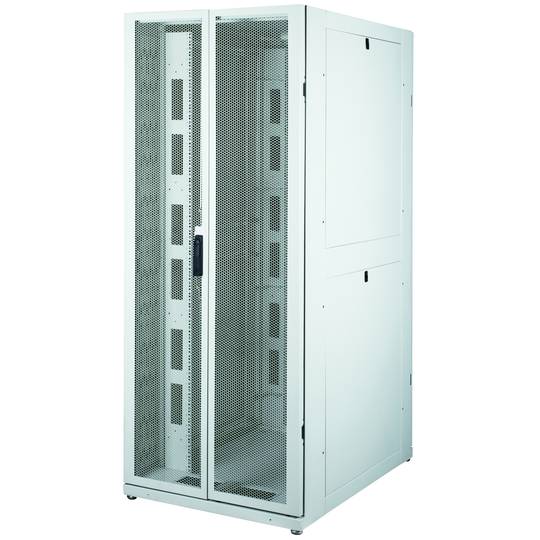

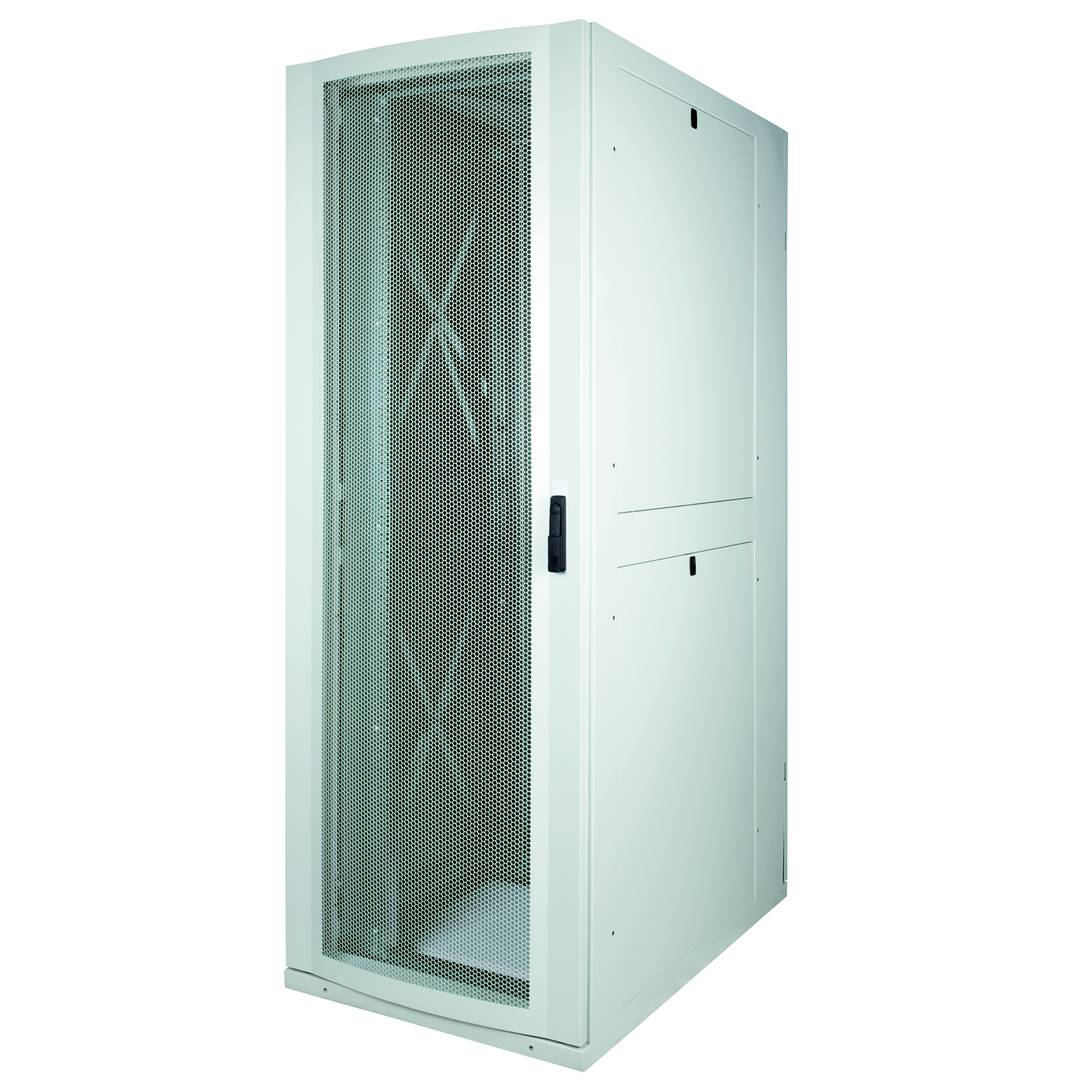

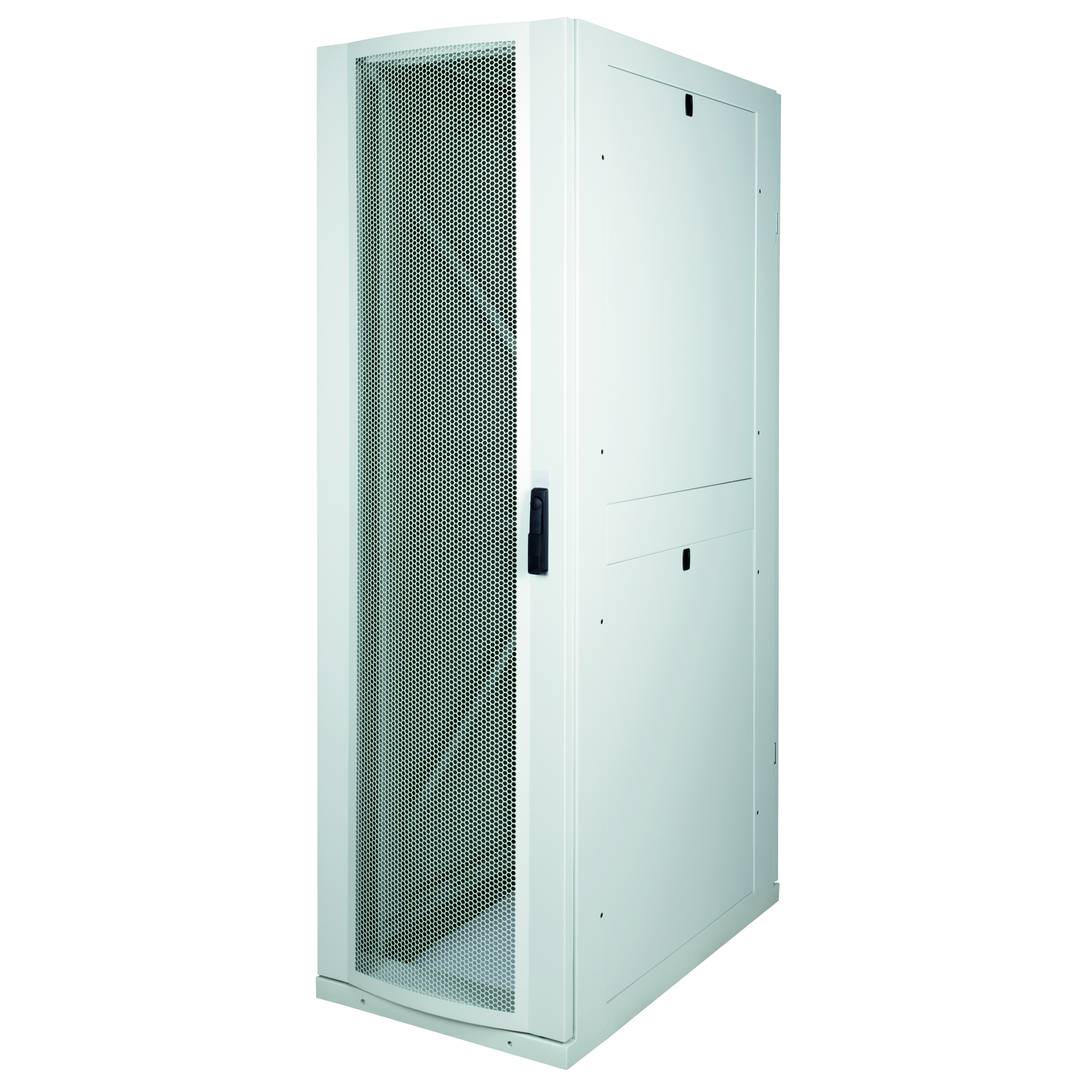

42U 19” DataCenter Rack cabinet measuring 600 x 1200 x 1990 mm created and designed to house very specific servers and data storage of the highest priority and offer security in CPD or IDC rooms. High quality Rack Cabinet focused on CPD rooms or data centers as they have a high load capacity of up to 1500Kg static and 1400kg if it is dynamic. They can be connected to each other to be able to mount and secure, for example, 2, 3, 4, 6, 8 of them together and offer more rack space for the customer in the smallest possible space. Maximum security thanks to its front, rear and side locks. 80% hexagonal honeycomb perforated front and rear doors to ensure maximum air circulation. The doors can be opened up to 170º for those with one leaf and 135º when they are two leaves. Movable and adjustable depth rails. Cable entries and exits both on the floor and on the ceiling. Grounding of 100 mOhms under standard EN 61587-1 subclause 8.2 and according to the application of the IEC 61010-1 process. Prepared for all types of standard aisle closures, automated, etc...

specs

• Rack Data Center cabinet for 42U CPD
• High load capacity both static and dynamic (1500 and 1400Kg respectively)
• 80% perforated front and rear doors for increased ventilation and air recirculation
• Depth adjustable internal rails
• Cable entries and exits through the ceiling and through the floor
• IP20 protection level according to EN 60529 standard.
• External measurements of 600 x 1200 x 1990 mm.
• Adjustable feet for easy placement in non-level areas. Includes wheels for easy movement
• Painted in White RAL7035.
• Possibility of acquiring cable routing spacers for cabinets for ceiling placement

• Gross Weight: 155.0 kg
• Product size (width x depth x height): 60.0 x 120.0 x 199.0 cm
• Number of packages: 1
• Master-pack: 1
