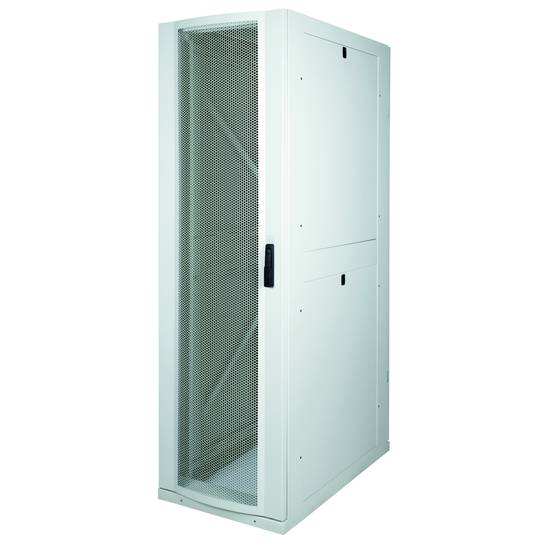

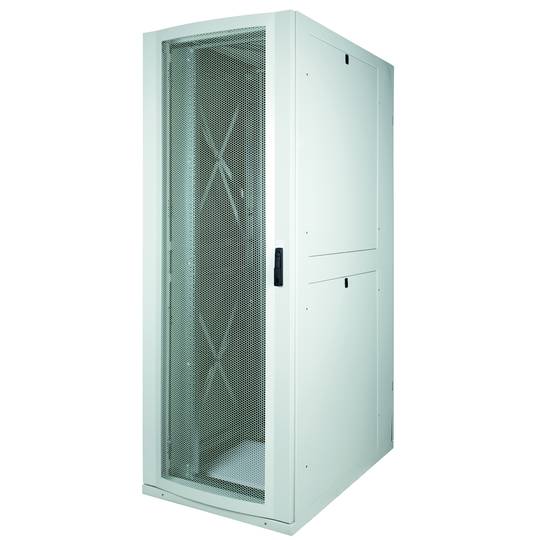

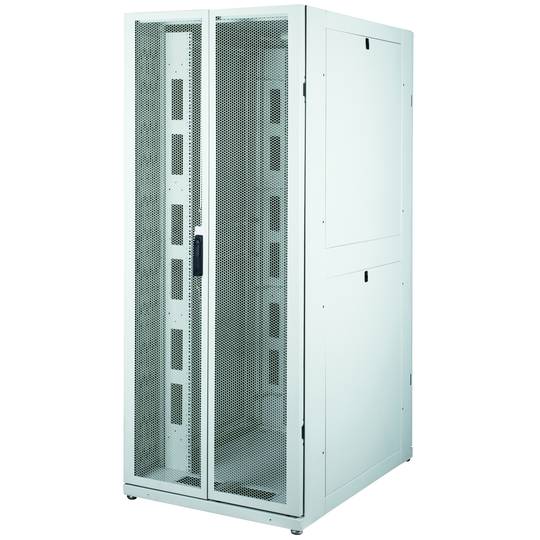

42U DataCenter Rack Cabinet Width 800 Depth 1000 and Height 1990 White RAL7035 color
REF: WU065
Specifications
  • Rack Data Center cabinet for 42U CPD
  • High load capacity both static and dynamic (1500 and 1400Kg respectively)
  • 80% perforated front and rear doors for increased ventilation and air recirculation
  • Depth adjustable internal rails
  • Cable entries and exits through the ceiling and through the floor
More info
PVP
2,576.83
Price including VAT: 2,576.83
PVD
2,151.66
Shipping costs: 240,43 *
GB-SE1 1ES
2 years
warranty
14 days
returns
100%
safe

In stock
Available more than 10

More info
Specifications
  • Rack Data Center cabinet for 42U CPD
  • High load capacity both static and dynamic (1500 and 1400Kg respectively)
  • 80% perforated front and rear doors for increased ventilation and air recirculation
  • Depth adjustable internal rails
  • Cable entries and exits through the ceiling and through the floor

More info

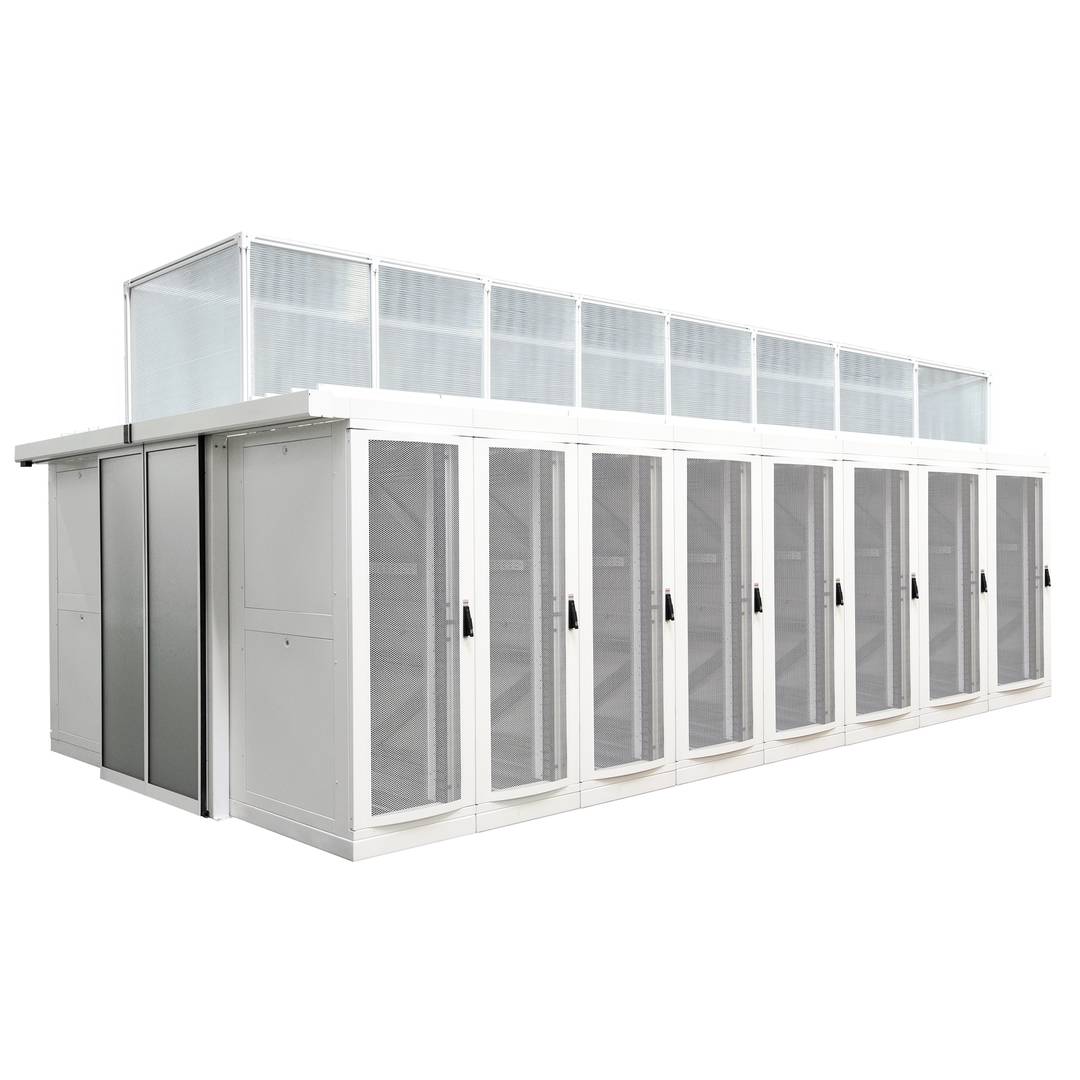

42U 19” DataCenter Rack cabinet measuring 800 x 1000 x 1990 mm created and designed to house very specific servers and data storage of the highest priority and offer security in CPD or IDC rooms. High quality Rack Cabinet focused on CPD rooms or data centers as they have a high load capacity of up to 1500Kg static and 1400kg if it is dynamic. They can be connected to each other to be able to mount and secure, for example, 2, 3, 4, 6, 8 of them together and offer more rack space for the customer in the smallest possible space. Maximum security thanks to its front, rear and side locks. 80% hexagonal honeycomb perforated front and rear doors to ensure maximum air circulation. The doors can be opened up to 170º for those with one leaf and 135º when they are two leaves. Movable and adjustable depth rails. Cable entries and exits both on the floor and on the ceiling. Grounding of 100 mOhms under the EN 61587-1 subclause 8.2 standard and according to the application of the IEC 61010-1 process. Prepared for all types of standard aisle closures, automated, etc...

specs
  • Rack Data Center cabinet for 42U CPD
  • High load capacity both static and dynamic (1500 and 1400Kg respectively)
  • 80% perforated front and rear doors for increased ventilation and air recirculation
  • Depth adjustable internal rails
  • Cable entries and exits through the ceiling and through the floor
  • IP20 protection level according to EN 60529 standard.
  • External measurements of 800 x 1000 x 1990 mm.
  • Adjustable feet for easy placement in non-level areas. Includes wheels for easy movement
  • Painted in White RAL7035.
  • Possibility of acquiring cable routing spacers for cabinets for ceiling placement
  • Gross Weight: 155.0 kg
  • Product size (width x depth x height): 80.0 x 100.0 x 199.0 cm
  • Number of packages: 1
  • Master-pack: 1

Technical terms

  • RACK 19
  • IDC
  • IP Protection
  • Types of tips for screwdrivers
  • Rack unit (U)
  • Types of fixing for wheels
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
