4G LTE 2600MHz 75dB repeater amplifier with antennas and cables

REF: SA892

Product in Outlet with different antennas than those that come with the original product. It may have some signs of use but they are slight and do not affect its operation

Original product specifications

  • Foperating frequency 2600Mhz downlink: 2620 - 2690 MHz.
  • Operating frequency 2600Mhz uplink: 2500 - 2570 MHz.
  • Maximum output power: 27 dBm (downlink) and 24 dBm (uplink).
  • Maximum gain: 80dB ± 2dB (downlink) and 75dB ± 2dB (uplink).
  • Characteristic impedance: 50 Ohm.

Go back to the new product simple_arrow_right

Your price

PVP

177.12

You save 118.08

Price including VAT: 177.12

PVD

155.68


Why different prices? Which one is mine? Check rate type

Shipping costs: 28,17 *
GB-SE1 1ES

Original product specifications

  • Foperating frequency 2600Mhz downlink: 2620 - 2690 MHz.
  • Operating frequency 2600Mhz uplink: 2500 - 2570 MHz.
  • Maximum output power: 27 dBm (downlink) and 24 dBm (uplink).
  • Maximum gain: 80dB ± 2dB (downlink) and 75dB ± 2dB (uplink).
  • Characteristic impedance: 50 Ohm.

Original product info

4G/LTE signal repeater in the frequency 2600Mhz. The 2600MHz frequency is used in 4G mobile telephony for high-speed data transmission. Ideal to increase the quality of the mobile phone signal, in environments where quality is lacking. The typical installation could be an indoor room (poor signal quality), where the 4G/LTE repeater is placed, while the receiving antenna is placed outdoors (good quality).signal ad).

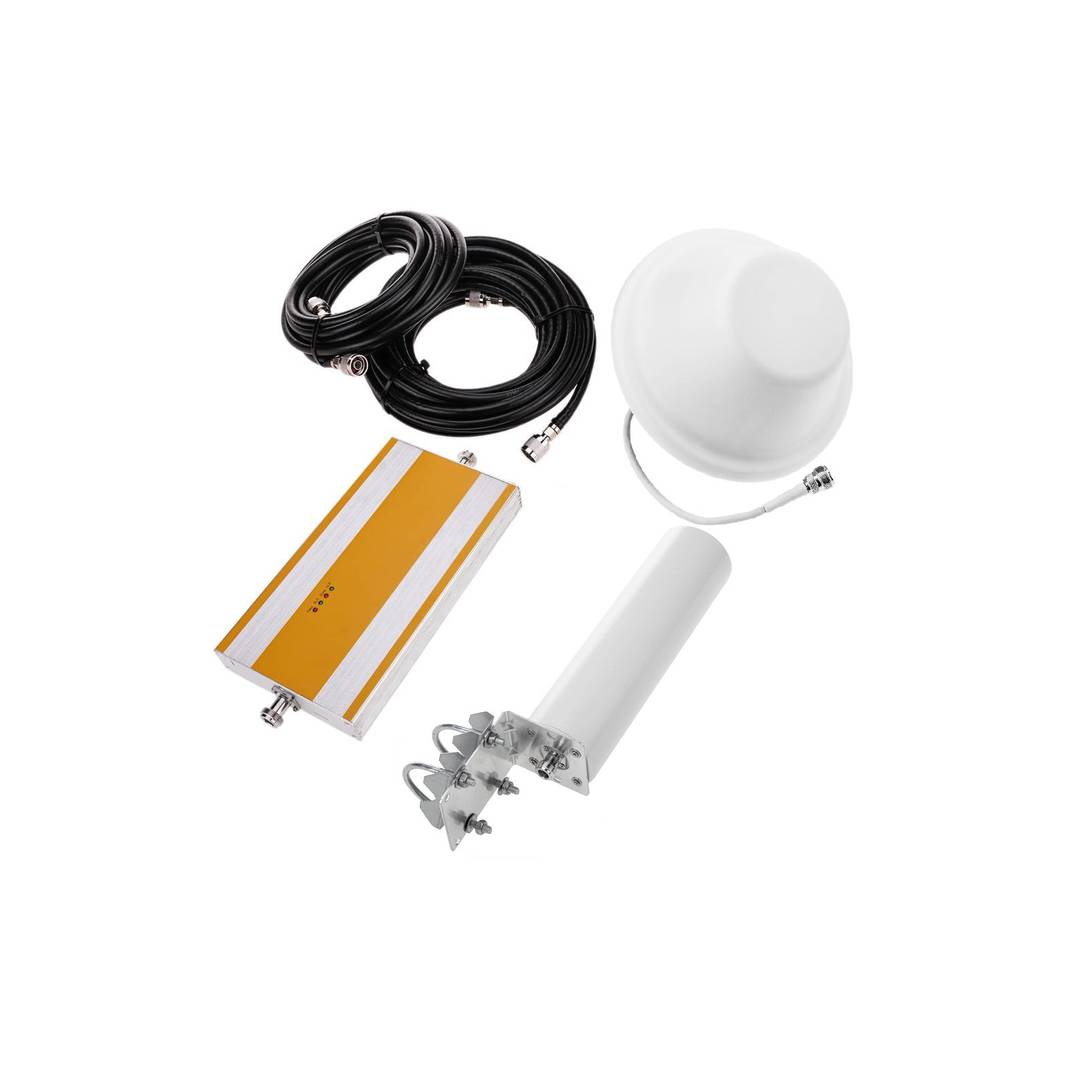

Contents of the kit

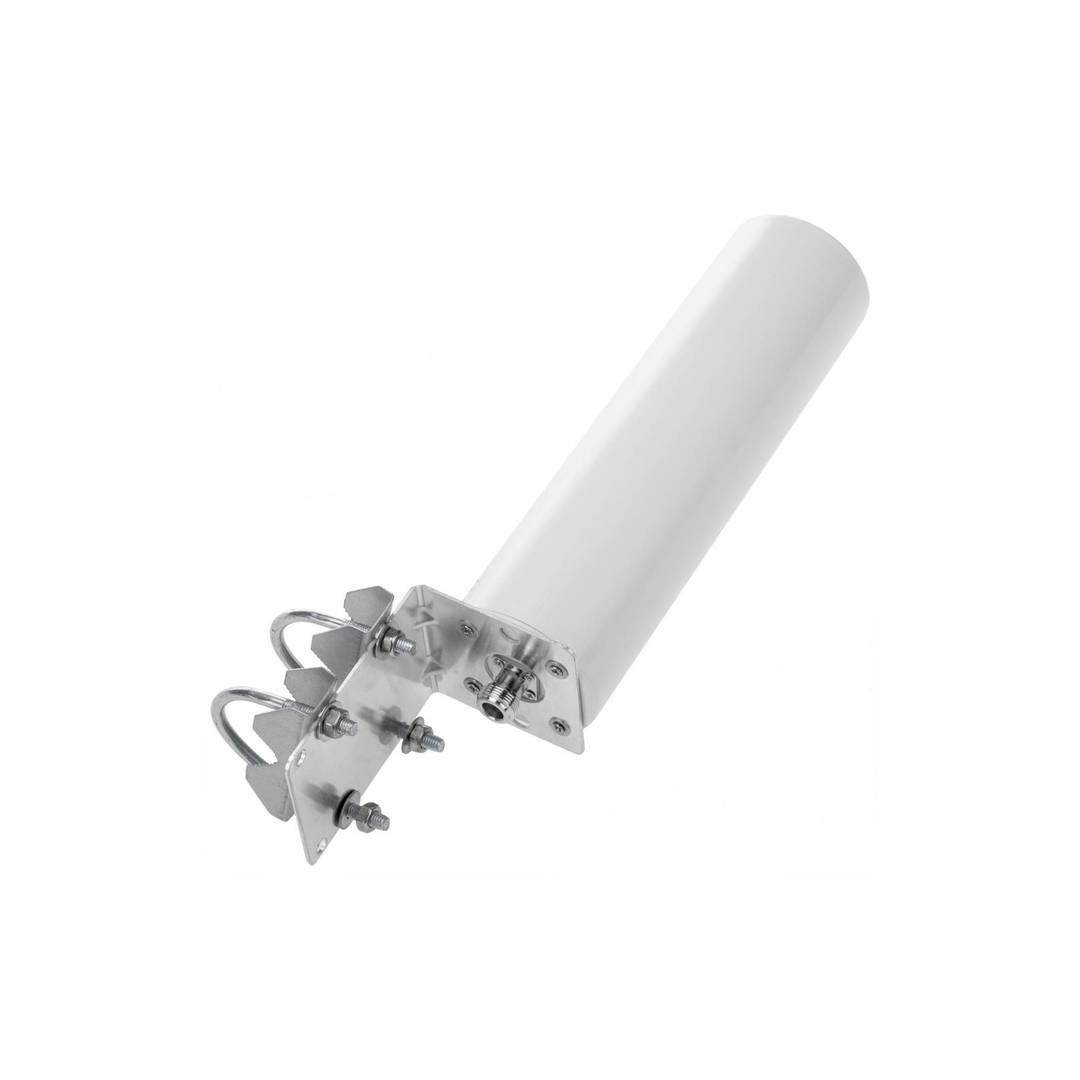

  • Outdoor omnidirectional antenna 698-960/1710-2700MHz.

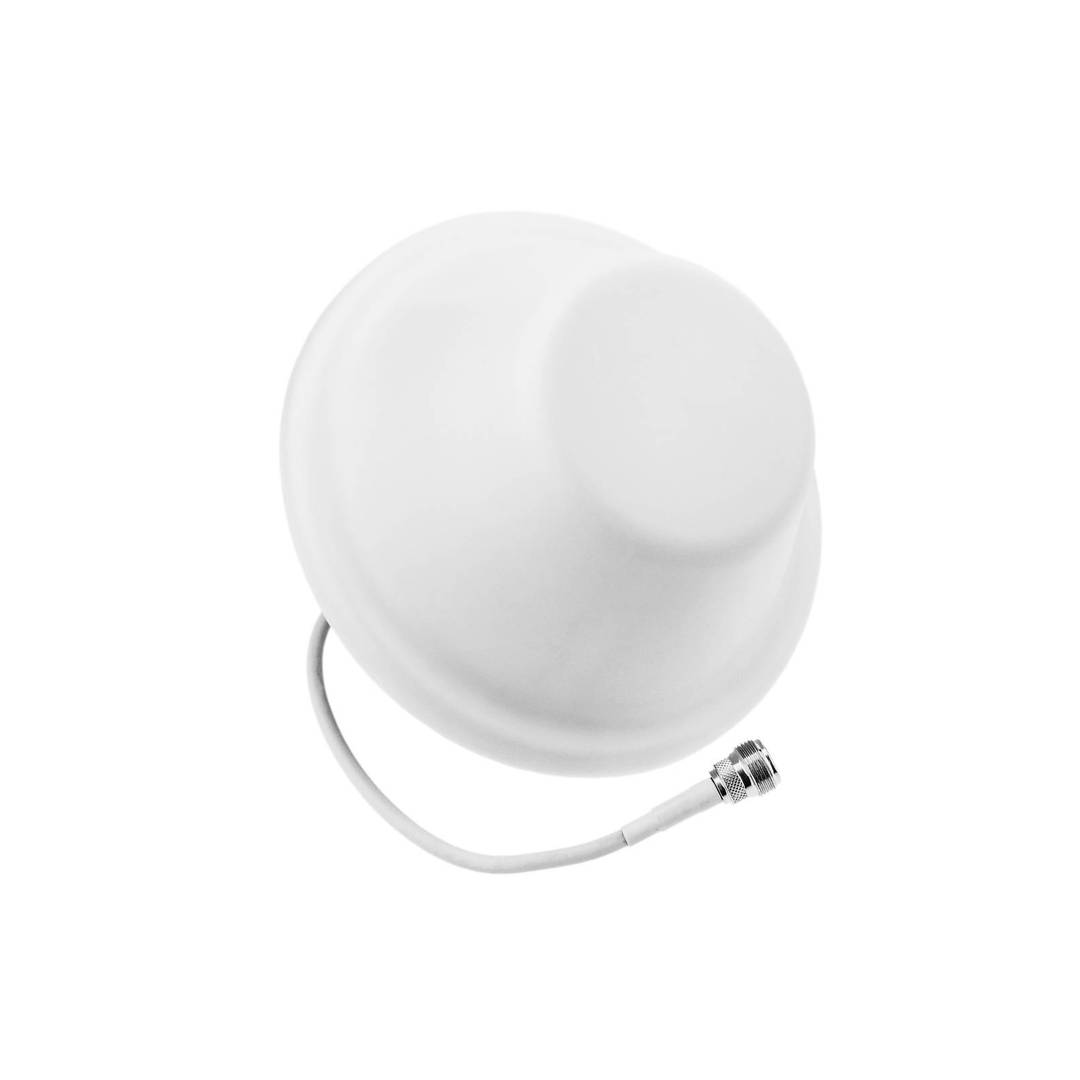

  • Indoor omnidirectional antenna 824-960/1710-2690MHz.
  • 2 coaxial cables of 5m and 10m with N male connectors at both ends.
  • 4G/LTE signal repeater/amplifier.
  • 5 VDC power supply.
  • Necessary screws.
Specifications
  • Foperating frequency 2600Mhz downlink: 2620 - 2690 MHz.
  • Operating frequency 2600Mhz uplink: 2500 - 2570 MHz.
  • Maximum output power: 27 dBm (downlink) and 24 dBm (uplink).
  • Maximum gain: 80dB ± 2dB (downlink) and 75dB ± 2dB (uplink).
  • Characteristic impedance: 50 Ohm.
  • Repeater mounted in metal housing of size 200x115x25mm.
  • Repeater with two N-female connectors (indoor/outdoor).
  • Internal omnidirectional antenna (185x90mm), with 5m cable, terminated in N-male connector. It connects directly to the repeater.
  • External omnidirectional antenna (250mm) with wall fixing system or tubular pole. It has a 10m coaxial cable terminated in a N-male connector, which connects directly to the repeater.
  • The yagi antenna is installed outdoors for capturing the 4G/LTE signal where it hasand coverage. The repeater and the omnidirectional antenna are installed inside, to increase the quality of the signal, and offer coverage.
  • Possibility of acquiring coaxial cable to extend the length of the cable (#GW3x and adapter #WH83).
  • Gross Weight: 2.98 kg
  • Product size (width x depth x height): 22.0 x 11.0 x 2.4 cm
  • Number of packages: 1
  • Packages size: 56.0 x 20.0 x 17.5 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • 4G
4G
4G is the next generation of technology that the International Telecommunication Union has created for transferring data via the Internet. The speed is 100 MB/s downstream and 50 MB/s upstream, with a bandwidth of 20 MHz. The idea that used to wield the great value of 4G format that society is consuming more video and heavy images and this will make the mobile phone supports it. A continuación show you a small graphic comparison between 3G and 4G in the most common uses computer-related.
