5mm white electroluminescent wire coil 5m cable with battery
REF: NW049
Specifications
  • Complete kit of electroluminescent wire that lights up when electricity is applied.
  • Diameter of the thread: 5 mm.
  • Presented in a 5m length coil.
  • It has a compartment for 2 1.5V (2 x AA) batteries.
  • Size of the pouch of the batteries: 90 x 33 x 18 mm.
play_button Watch video
Go to technical terms
PVP
13.88
Price including VAT: 13.88
PVD
11.88
Shipping costs: 27,09 *
GB-SE1 1ES
Delivery times are approximate. Cablematic is not responsible for delays.
2 years
warranty
14 days
returns
100%
safe

In stock
Only 9 units

Go to technical terms
Specifications
  • Complete kit of electroluminescent wire that lights up when electricity is applied.
  • Diameter of the thread: 5 mm.
  • Presented in a 5m length coil.
  • It has a compartment for 2 1.5V (2 x AA) batteries.
  • Size of the pouch of the batteries: 90 x 33 x 18 mm.

More info

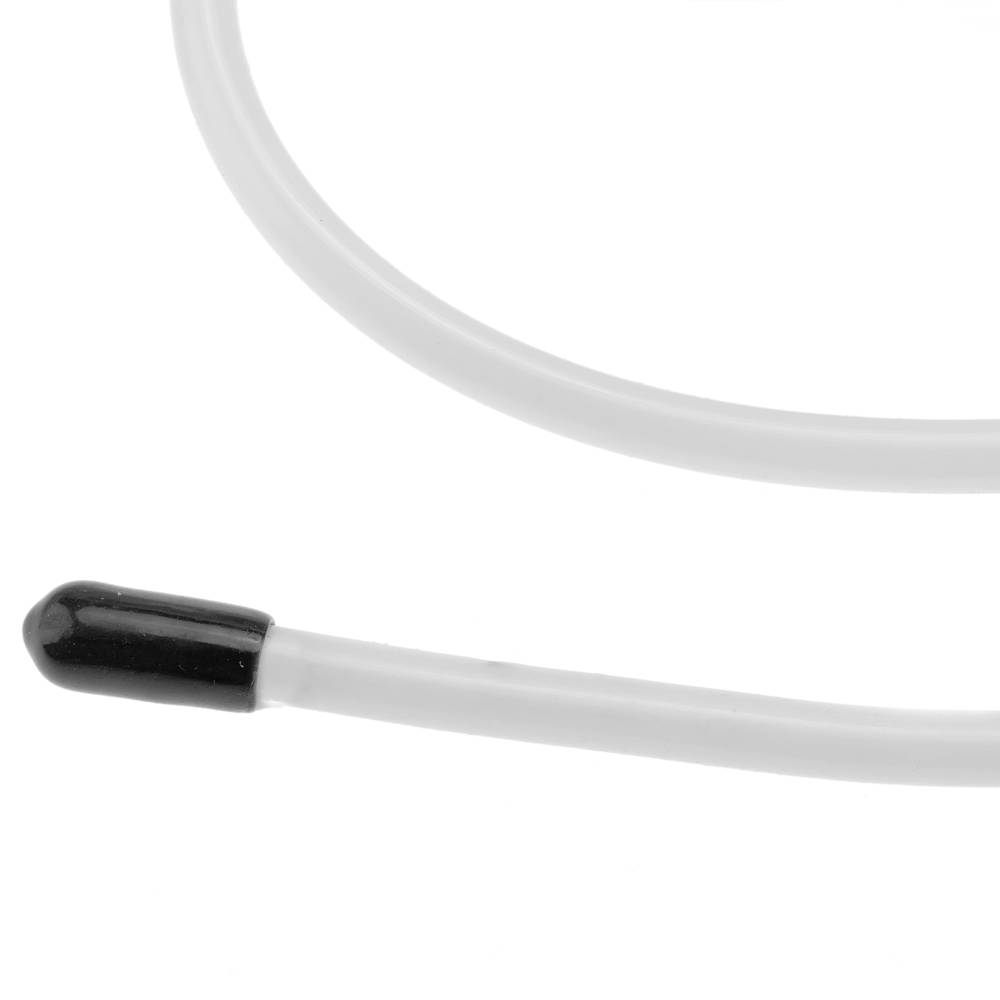

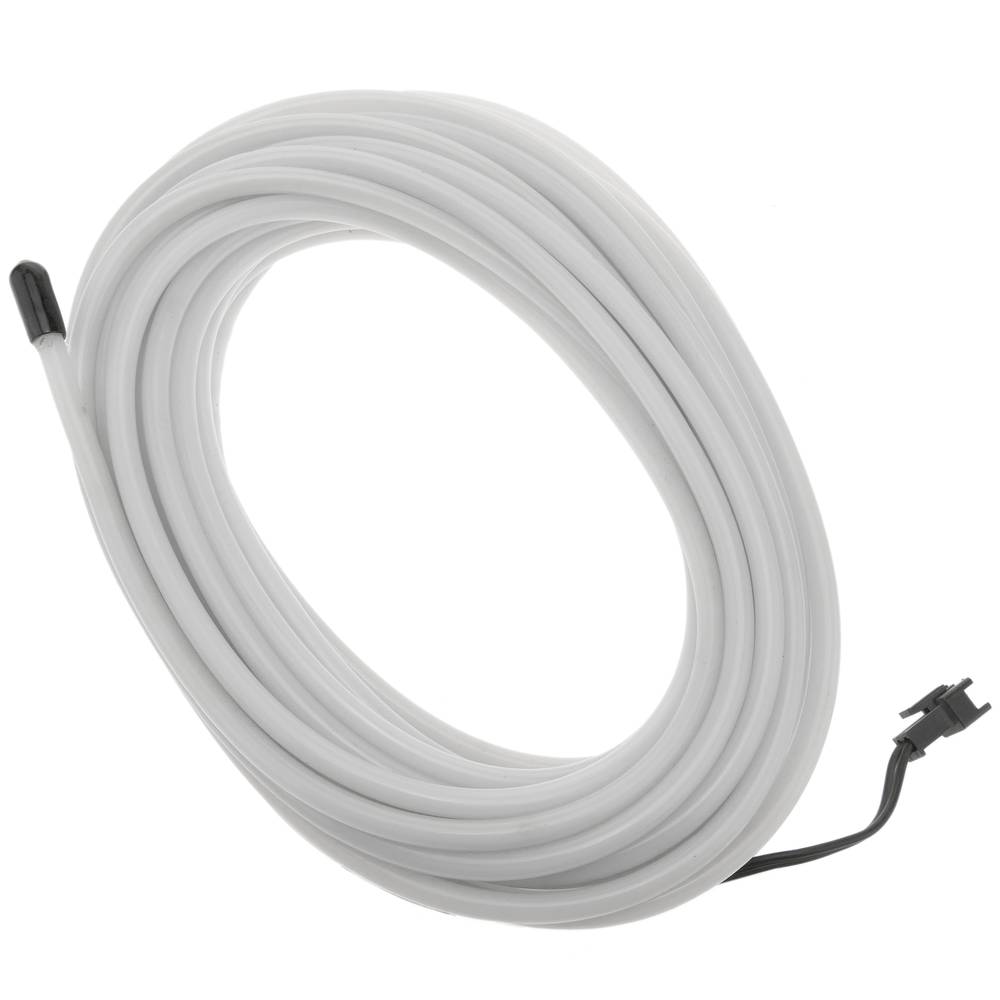

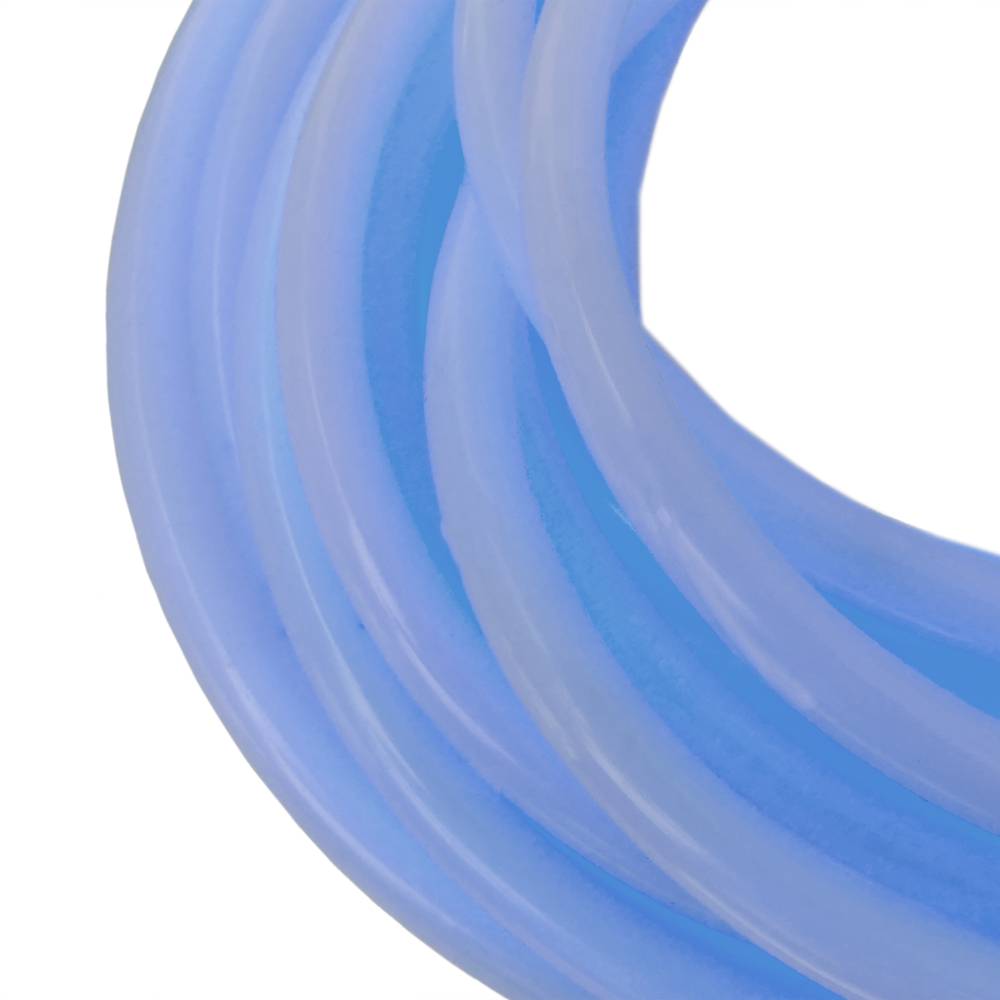

Electroluminescent cable of 5mm diameter. Presented in a 5m coil and with a compartment for two 1.5V batteries. Electroluminescent wires (EL) are flexible plastic tubes that have a component inside that lights up when current is applied.

Specifications
  • Complete kit of electroluminescent wire that lights up when electricity is applied.
  • Diameter of the thread: 5 mm.
  • Presented in a 5m length coil.
  • It has a compartment for 2 1.5V (2 x AA) batteries.
  • Size of the pouch of the batteries: 90 x 33 x 18 mm.

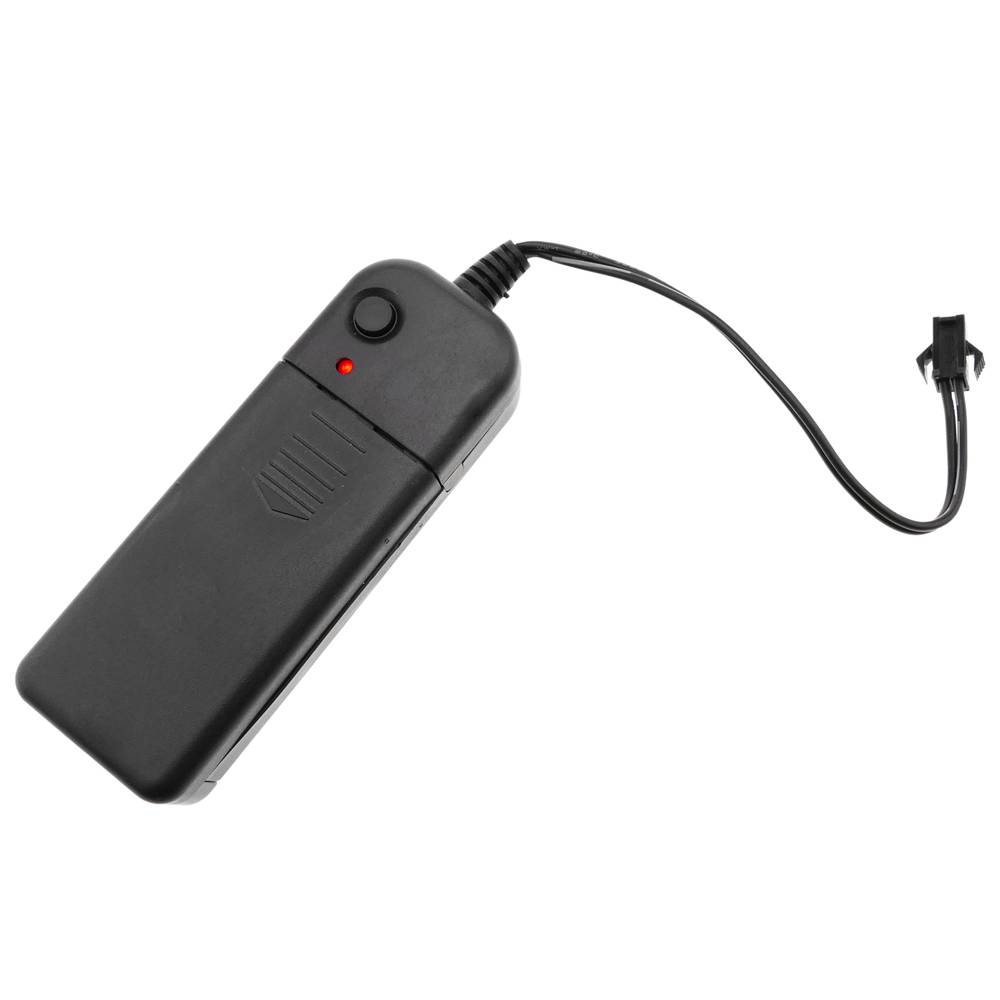

  • The pouch has a clip for fixing to a belt (or similar).
  • Push button for the selection of status: deactivated, activated fixed, activated intermittent slow, and activated intermittent fast.
  • The electronic circuit integrated in the bat flask
  • Gross Weight: 180 g
  • Number of packages: 1

Videos

play_button Watch video

Technical terms

  • Electroluminescence
  • Battery charging cycles
  • Types of batteries
Electroluminescence
Electroluminescence is an optical and electrical phenomenon in which a material emits light in response to the passage of an electric current or to a strong electric field.

The typical structure of an OLED electroluminescent device is based on one or more organic semiconductor layers provided between two electrodes.

The organic materials can be very small molecules or polymers.

If we cut an electroluminescent strip vertically we will find first with the negative electrode or cathode, usually metal. Here we find the luminescent material (1) and followed by the positive electrode or anode (conductive material).This conductor would be covered with a transparent protective layer (2).The combination of electrons and holes in a material, typically a semiconductor, generates the release of the electrons energy as photons. These photons are light (3) projected and visible.

Its most important technical features are:
  • They can illuminate large surfaces.
  • Uniform illumination.
  • Very low power consumption.
  • No radiation emission.
  • Very small sizes and/or flat.
  • Flexible.
  • Indoors and outdoors working.
  • No vibration.
  • There are a lot of colours.
Its most common applications are:
  • Lighting panels of vehicles or aircraft.
  • Keyboard panels or electronic panels.
  • Displays.
  • Signs and posters or billboards.
  • Decoration.
  • Road signs and vests.
