Adapter PCI to PCI-Express

REF: CR096

Specifications

  • Supports PCI Express 1X 2.5 Gbps cards.
  • Supports 32-bit 33 MHz PCI slots.
  • Compatible with PCIe V-1.
  • Compatible with PCI V-2.3.

Your price

PVP

40.80

6.94

Price including VAT: 6.94

PVD

35.86

6.10


Why different prices? Which one is mine? Check rate type

In stock

12/06/2019 7:47 p.m.
https://cablematic.com/en/products/adapter-pci-to-pci-express-CR096/

Adapter PCI to PCI-Express

REF: CR096

Your price

PVP

40.80

6.94

Price including VAT: 6.94

PVD

35.86

6.10


Why different prices? Which one is mine? Check rate type

In stock

Specifications

  • Supports PCI Express 1X 2.5 Gbps cards.
  • Supports 32-bit 33 MHz PCI slots.
  • Compatible with PCIe V-1.
  • Compatible with PCI V-2.3.

More info

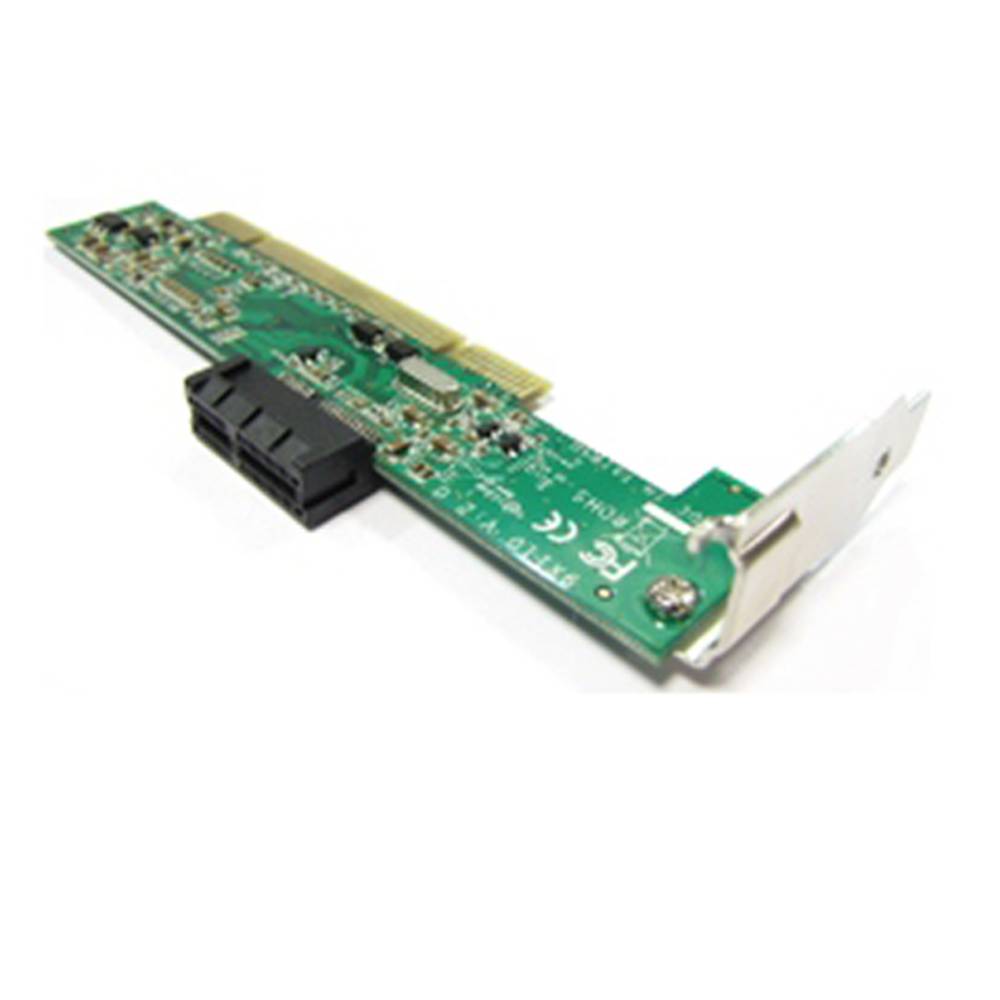

PCIe slot adapter (PCI Express) to PCI. It allows to use PCIe 1X cards in a PCI slot. It has a 32-bit PCI male slot and a 1X PCIe female slot into which the PCIe cards are inserted. If standard height PCIe cards are used, the end result will be a higher-than-normal PCI card. If a PCIe type Flex-ATX card (low profile) is used, the height resulting from splicing both will be a PCI card from Altur.to standard.


Specifications
  • Supports PCI Express 1X 2.5 Gbps cards.
  • Supports 32-bit 33 MHz PCI slots.
  • Compatible with PCIe V-1.
  • Compatible with PCI V-2.3.

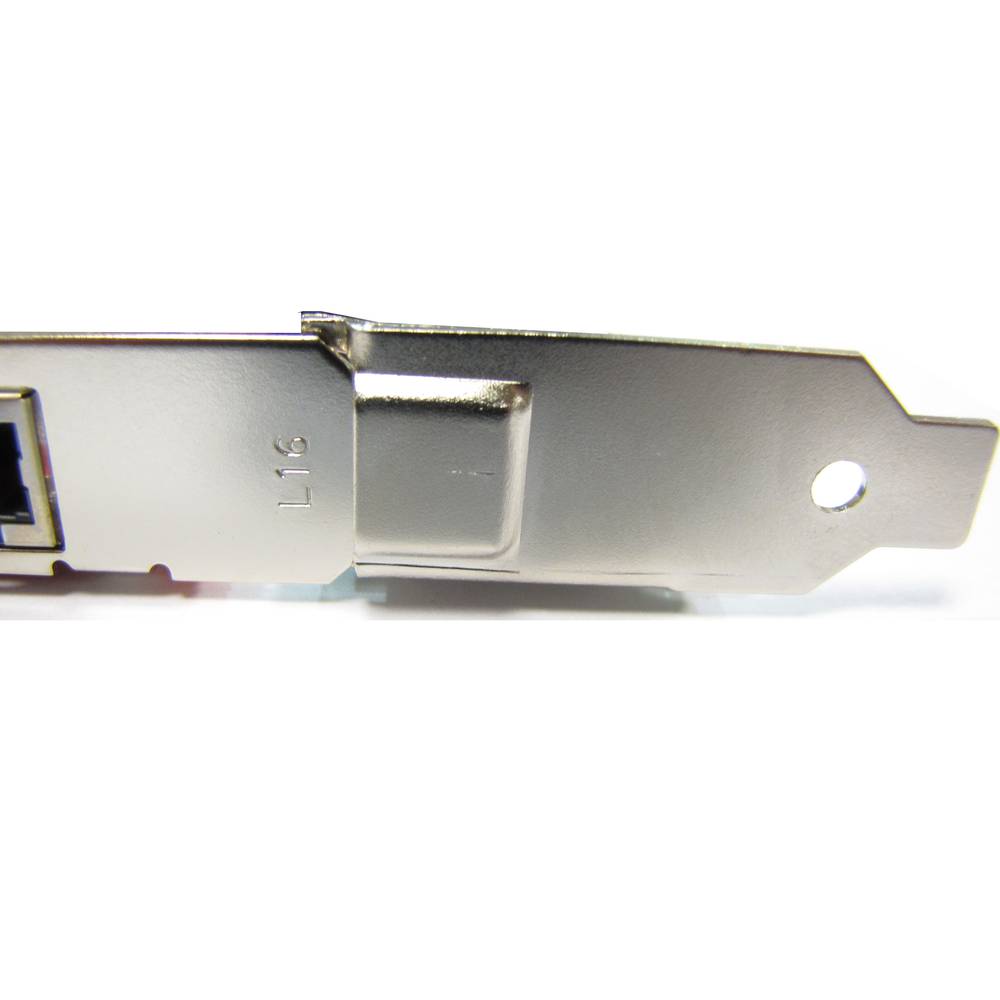

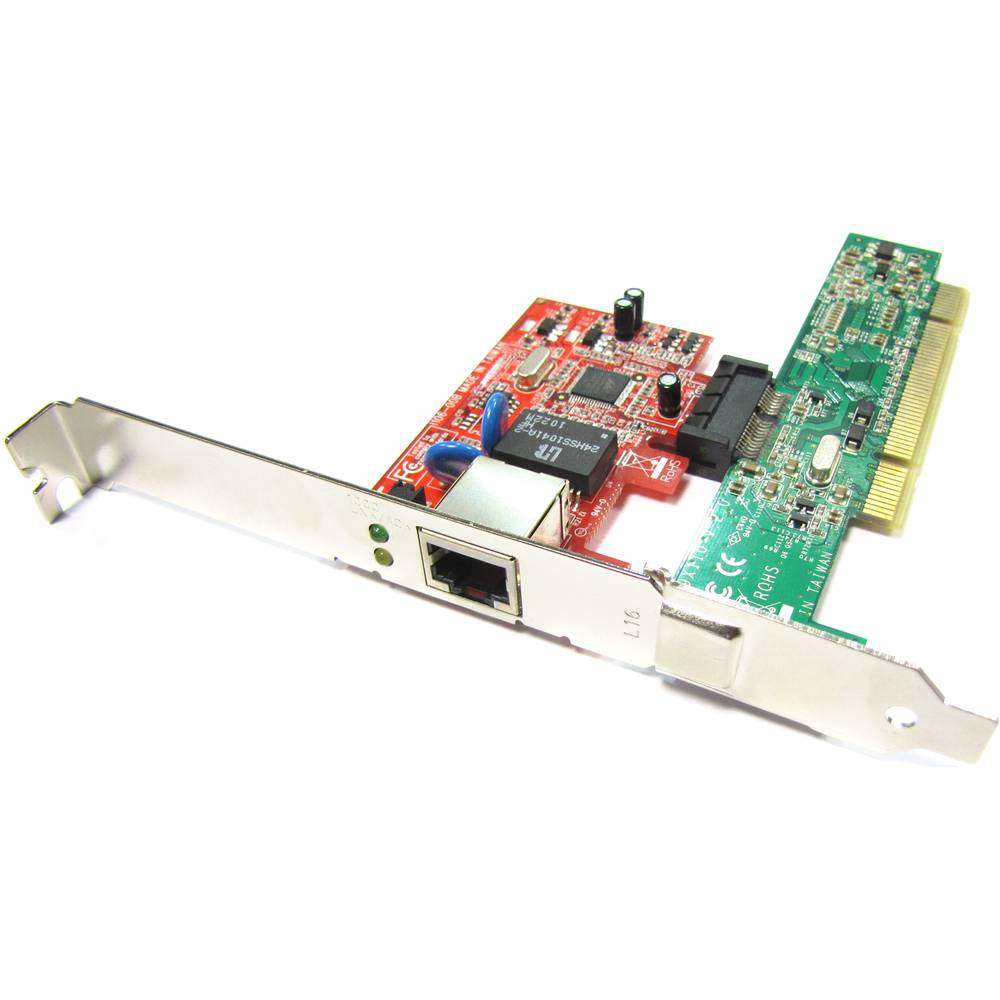

To better document the product, two photos have been incorporated with a standard profile PCIe card and a low profile PCIe card. The PCIe card is not included in the product.
  • Gross Weight: 100 g
  • Product size (width x depth x height): 13.5 x 5.0 x 2.2 cm
  • Number of packages: 1
  • Packages size: 21.0 x 14.5 x 4.0 cm

Technical terms

  • PCI - MiniPCI
PCI - MiniPCI
A Peripheral Component Interconnect (PCI, "Peripheral Component Interconnect") is a bus (picture 2) computer standard for connecting peripheral devices directly to your motherboard. Dimensions of the cards - PCI (standard) 107 mm x 312 mm (picture 1) - PCI Low Profile Height: 36.07 mm x 64.41 mm Depth: 119.91 mm to 167.64 mm - Mini PCI Mini PCI cards have a Maximum consumption2W.
