Barrier infrared ray (8 166cm height distance 30m)

REF: LB090

Specifications

  • It has two modules: transmitter and receiver.
  • The emitter module has 8 infrared emitting lenses separated at a distance of 15 cm each.
  • The receiver moduler has 8 separate emitting lenses at a distance of 15 cm between them and 8 separate receiver lenses at a distance of 15 cm between them.
  • The connections to the alarm center or digital input center are made by cable or wirelessly in the 433 MHz band (transmission distance up to 100 m).
  • It allows a distance of 30 m between the transmitter and receiver module.

Your price

PVP

114.44

101.85

Price including VAT: 101.85

PVD

100.58

89.52


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES

Related products

Keywords

Did not find what you were looking for? These topic could help you

02/29/2020 2:04 p.m.
https://cablematic.com/en/products/barrier-infrared-ray-8-166cm-height-distance-30m-LB090/

Barrier infrared ray (8 166cm height distance 30m)

REF: LB090

Your price

PVP

114.44

101.85

Price including VAT: 101.85

PVD

100.58

89.52


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES

Specifications

  • It has two modules: transmitter and receiver.
  • The emitter module has 8 infrared emitting lenses separated at a distance of 15 cm each.
  • The receiver moduler has 8 separate emitting lenses at a distance of 15 cm between them and 8 separate receiver lenses at a distance of 15 cm between them.
  • The connections to the alarm center or digital input center are made by cable or wirelessly in the 433 MHz band (transmission distance up to 100 m).
  • It allows a distance of 30 m between the transmitter and receiver module.

More info

Infrared ray barrier composed of a transmitter module and a receiver module. It is a reliable detection system in exteriors and interiors. Ideal for perimeter protection of farms, fences, houses, accesses, etc. The modules can be installed outdoors and have an anti tamper tamper, which triggers the alarm if someone tries to manipulate them. The alarm signal is activated when someone goes through two omás infrared rays simultaneously, that is, avoids small animals such as pigeons, cats or dogs. It allows wired and wireless connection in the 433 MHz band.

Specifications
  • It has two modules: transmitter and receiver.
  • The emitter module has 8 infrared emitting lenses separated at a distance of 15 cm each.
  • The receiver moduler has 8 separate emitting lenses at a distance of 15 cm between them and 8 separate receiver lenses at a distance of 15 cm between them.
  • The connections to the alarm center or digital input center are made by cable or wirelessly in the 433 MHz band (transmission distance up to 100 m).
  • It allows a distance of 30 m between the transmitter and receiver module.
  • Gavespone of black plastic supports that are fixed to the wall and that allow to orient the modules for a correct alignment of the infrared rays in the horizontal plane.
  • Vertical aluminum structure with maximum resistance to fog, humidity and rain.
  • Intelligent detection of the intrusion. The alarm is triggered when 2 or more infrared rays are cut simultaneously for more than 40 ms.

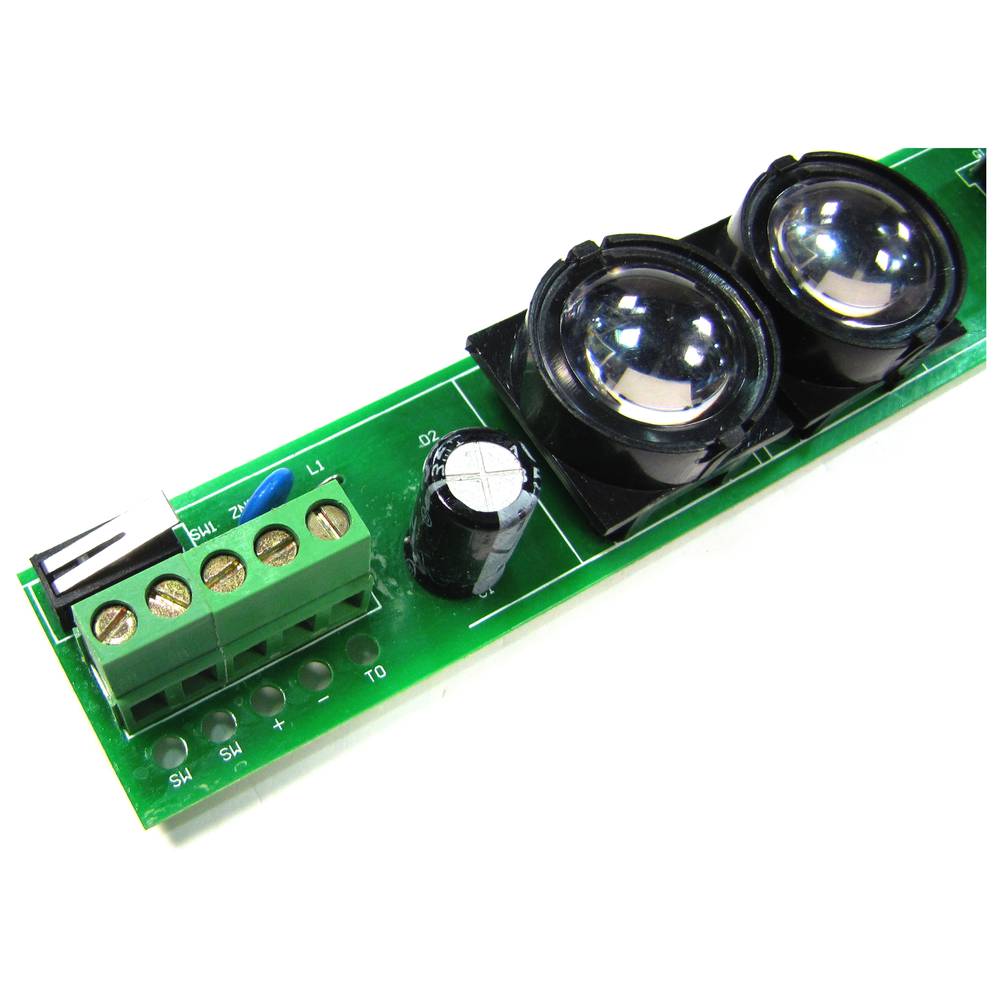

  • The Mtransmitter and receiver modules have terminals for power and tamper jump. The transmitter module also has terminals for notification of the alarm jump.
  • LED status indicator in each module.
  • Voltage: 12 to 18 VDC (power supply not included).
  • Consumption: 75 mA (transmitter) and 35 mA (receiver).
  • Screws for wall mounting are supplied.
  • Height of each mModule: 166 cm
  • Gross Weight: 1.6 kg
  • Product size (width x depth x height): 3.5 x 4.0 x 166.0 cm
  • Number of packages: 1
  • Packages size: 172.0 x 10.0 x 5.5 cm
