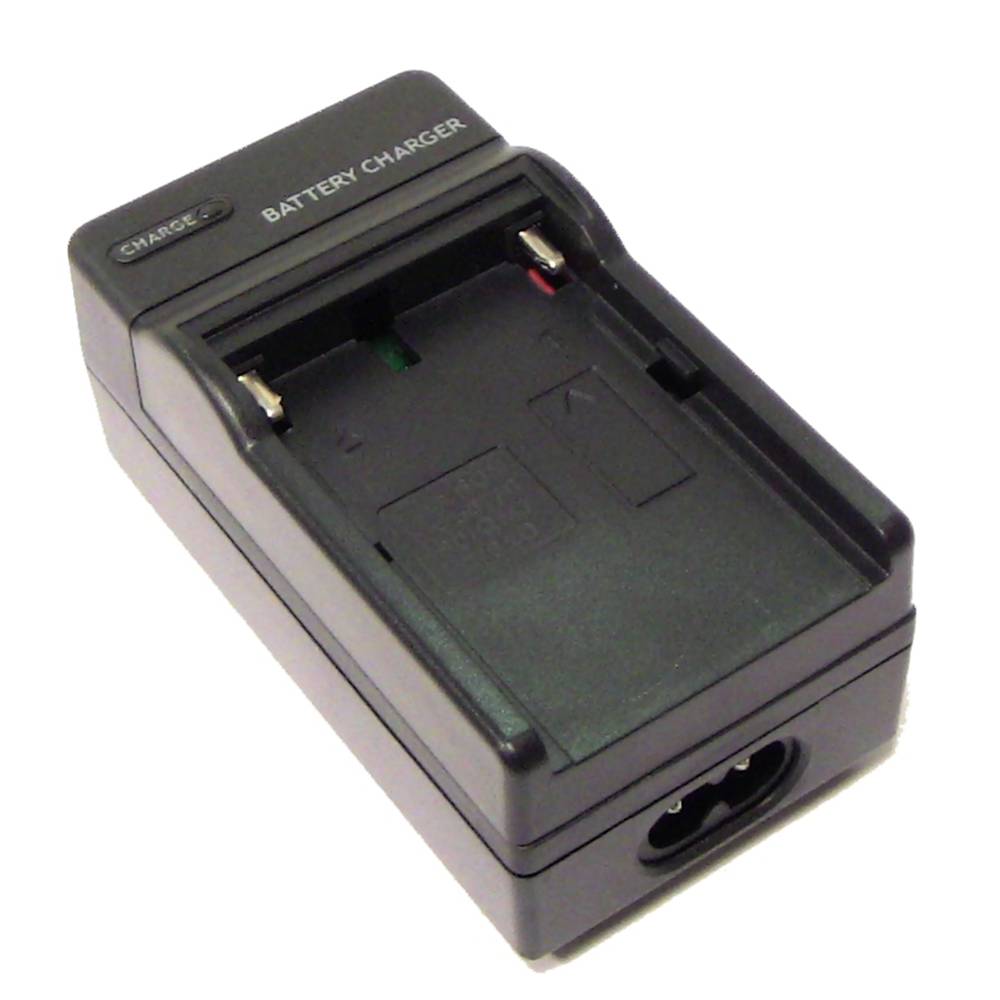

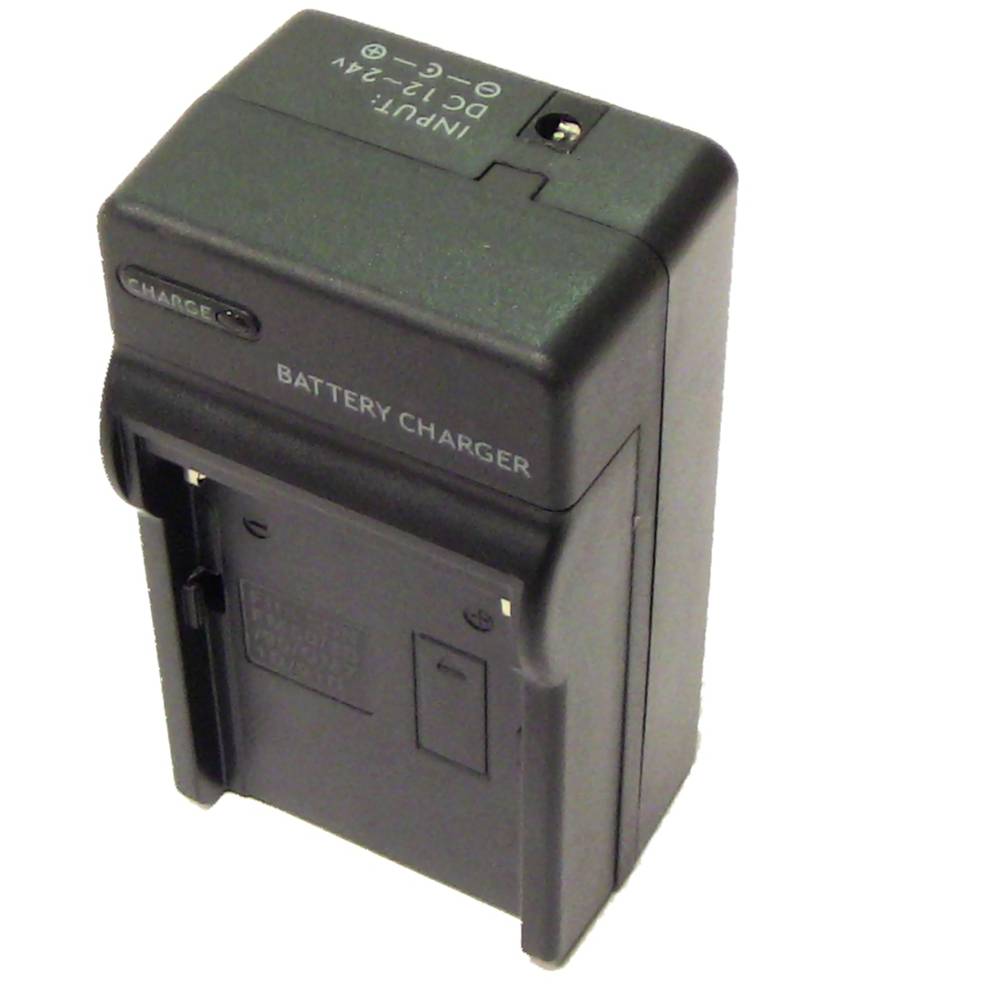

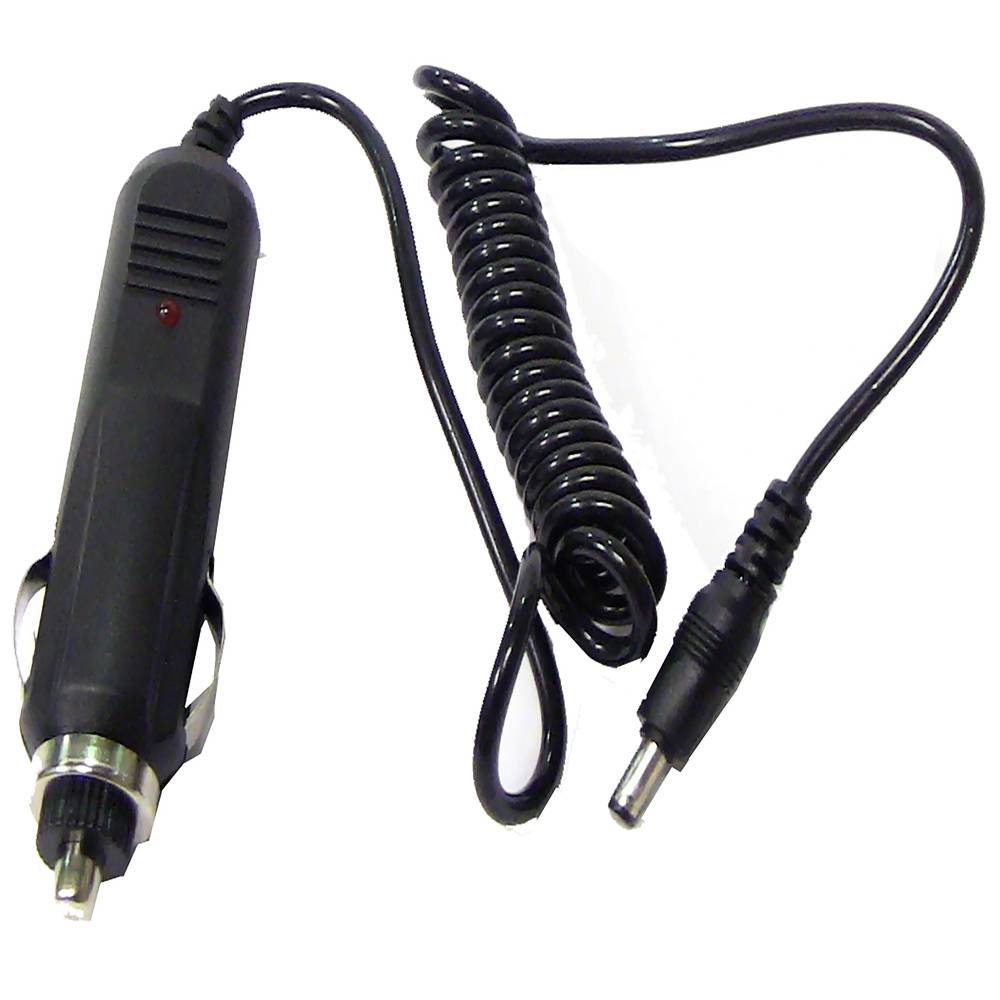

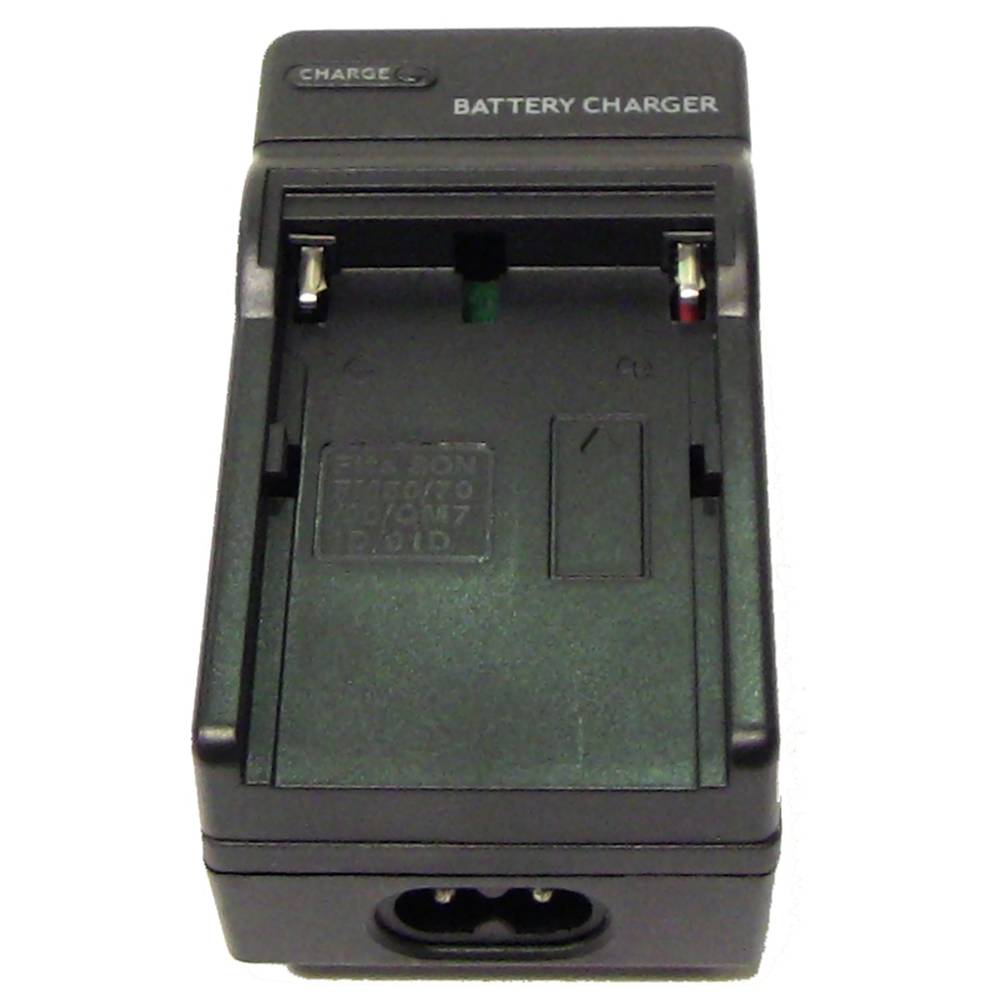

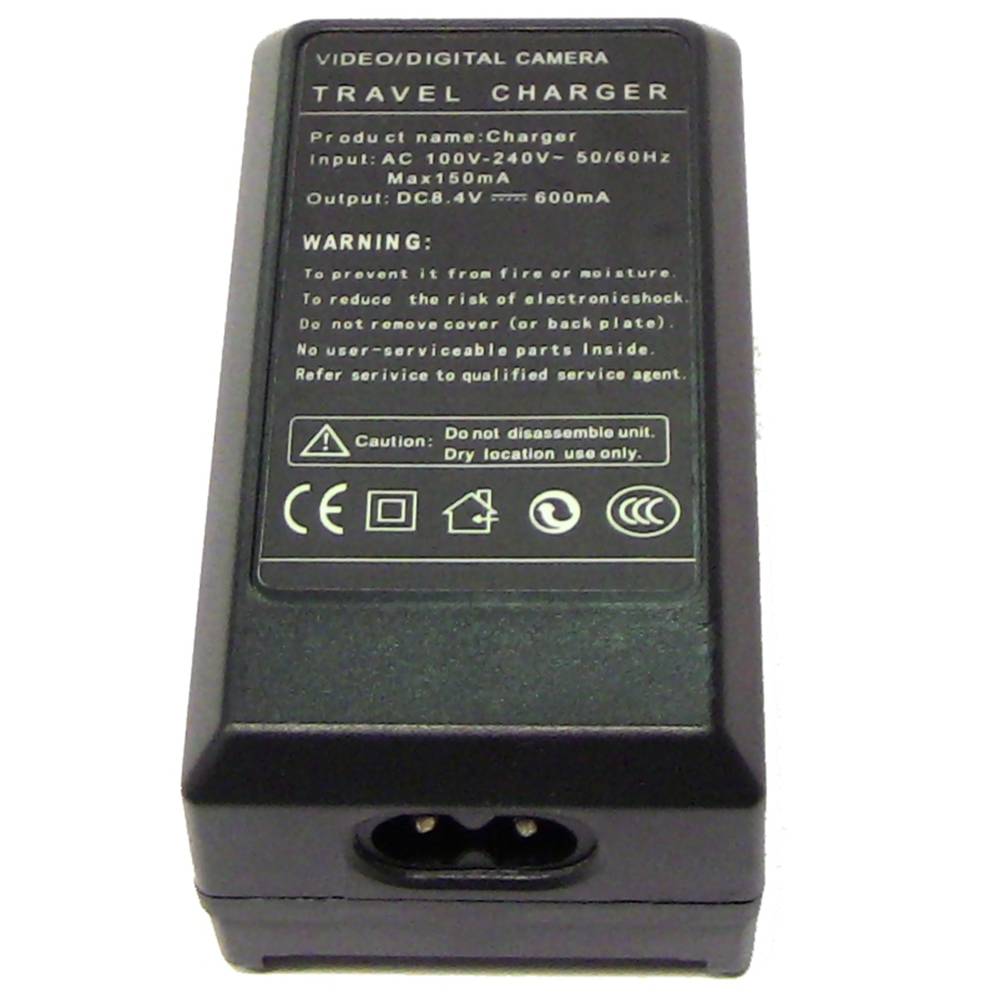

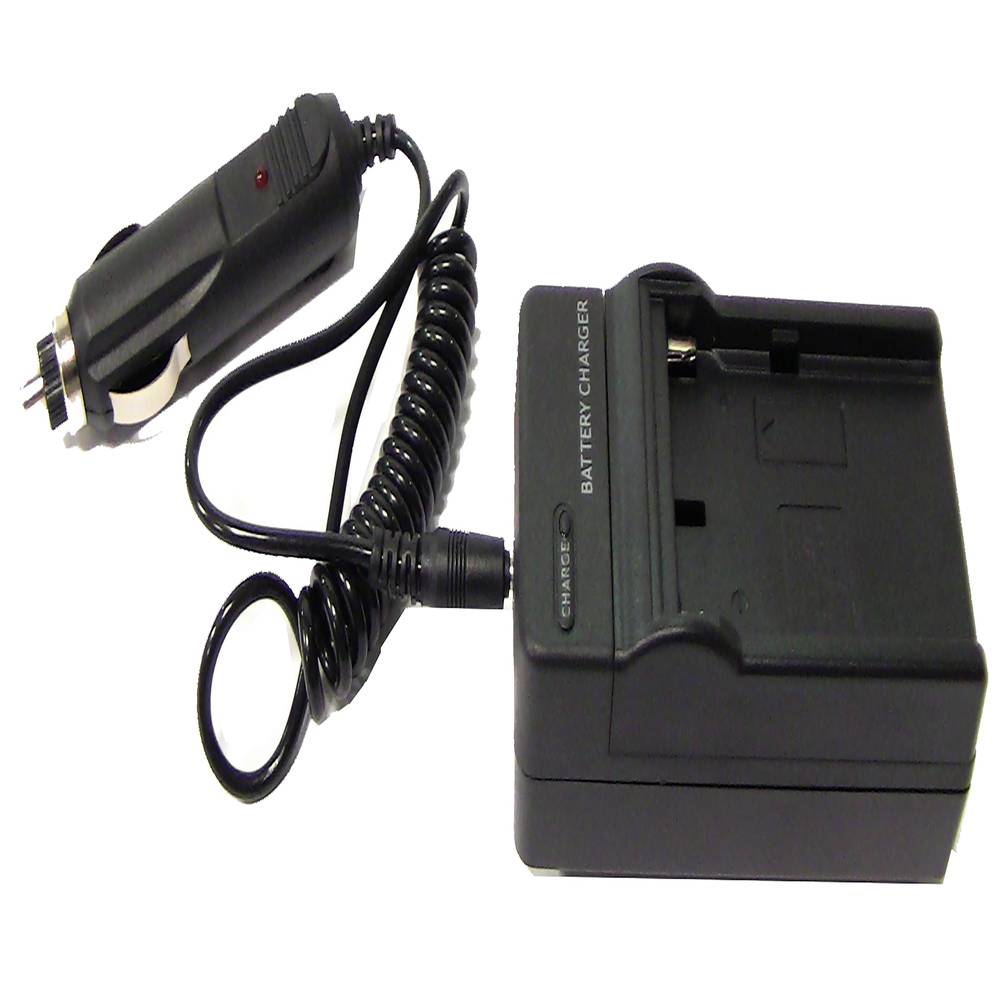

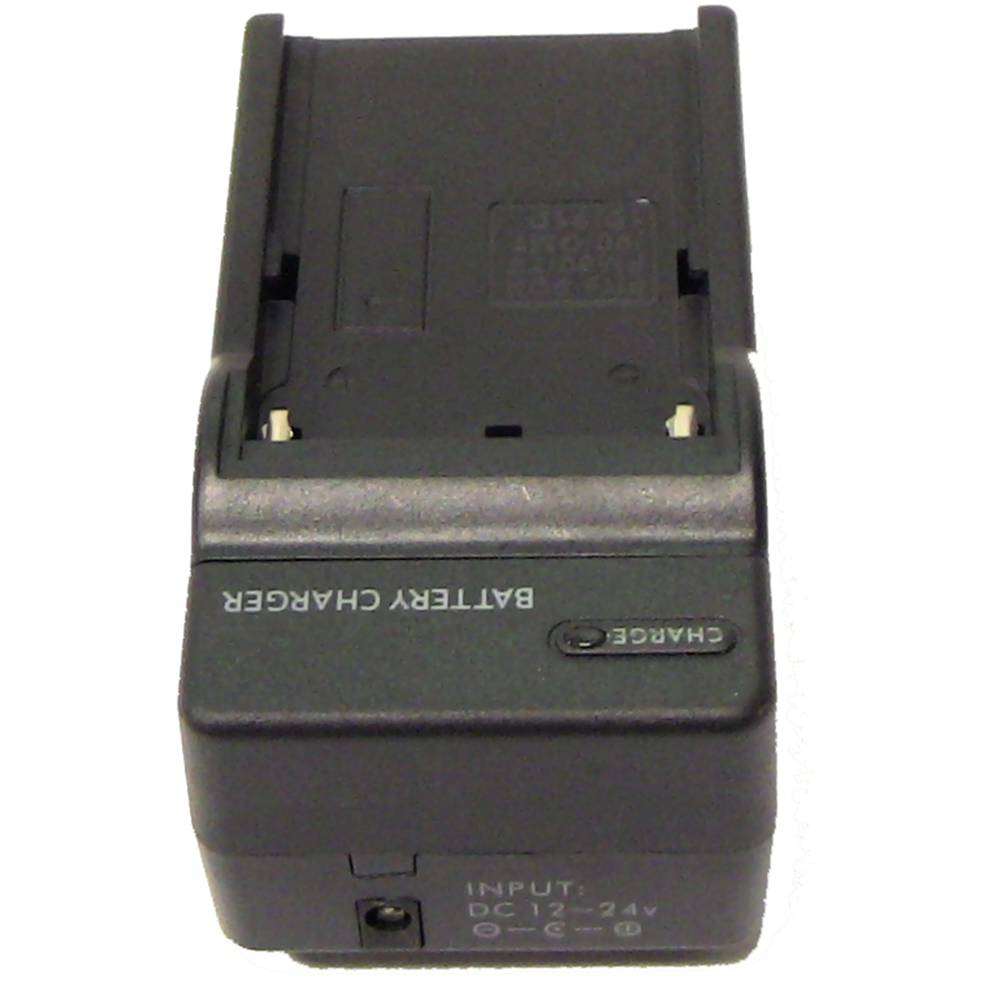

Name: Battery Charger 8.4V 600mA Sony FM70 FM90 FM50 QM71 QM91 FM500H
Brand: Cablematic bematik brand-cablematic
SKU: BH01600
Price: 4.34 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

IEC

The IEC 60320 standard defines an international set of non-locking appliance couplers for connecting power supply cords to electrical equipment up to 250 V.

The specification ensures electrical and mechanical interchangeability across a wide range of devices. Connectors are designated by even and odd numbers, where odd numbers (C7, C13, C19) refer to the female connector and even numbers (C8, C14, C20) to the male appliance inlet.

Type	Current (A)	Ground	Typical Use
C7 / C8	2.5 A	No	Consumer electronics (Shotgun).
C13 / C14	10 A / 15 A	Yes	PC, IT equipment.

Widespread adoption of this standard has enabled global hardware manufacturing efficiency, allowing a single power supply unit to work worldwide by simply swapping the localized cord. In modern data center architectures, the shift toward C19/C20 standards is vital to handle the increased power density of high-performance servers.

Key Features

Global standardization and compliance.
Class I and Class II equipment support.
High thermal tolerance variants available.

Standardized by the International Electrotechnical Commission.

Battery charging cycles

A charge cycle occurs when you use 100% of your battery's capacity. Lifespan is defined by total cycles before capacity drops below 80%.

Parameter	Technical Description
DoD	Depth of Discharge level.
SoH	State of Health of the cell.

Lifespan Calculation

Maintain the battery between 20% and 80% to maximize chemical stability and longevity.

Advantages

Controlled charging reduces heat and prevents lithium plating.

Note: Use original chargers for optimal safety.

VDC

VDC would be the abbreviation for Volt Direct Current which translated would volts direct current. The idea of ??this type is unidirectional current to the load. Direct current is normally produced by batteries, thermocouples, solar cells and a dynamo electric machine type. The direct current can flow in conductors such as wires, but may also flow through semiconductors, insulators ... In the image: 1 - current per pulse 2 - Direct Current (DC) 3 - Alternating Current (AC) 4 - Variable Current

Electrical cable sections

When carrying out an electrical installation or electrical circuit several factors must be taken into account, one of them is the selection of the appropriate cable. According to the installation and the use of the same we can find different diameters that support different loads. The cable section will also help us not to overheat our installation, since the larger the section, the greater the thermal resistance.
In the following table poWe can see the corresponding load supported for the different sections of cables.

VAC

VAC would be the abbreviation of Volt Altern Current which would be translated Volts of alternating current. The difference between VDC is that its sinusoidal oscillation achieving a more efficient energy transmission.

The alternating current is the energy that we receive in our homes, it is generated in the power plants by means of alternators.

The intensity of this type of current varies with time, and changes direction 50 times throughsecond (50hz). The generated voltage changes in the form of sine wave so it is not constant.

In the image:

Current by pulsations.
Direct current (DC).
Alternating current (AC).
Variable current.

LED

The word LED, which is the acronym for Light Emitting Diode, is a passive optoelectronic component characterized by its versatility, taking on many forms and being integrated into many optical elements, from screens to light bulbs and even photographic flashes.

One of its best features is its low energy consumption, as well as its longer lifespan, its durability that perfectly withstands almost any type of vibration, in addition to low heat emission.

In the diagram:

Anode
Cathode

Lens/epoxy encapsulation (plastic capsule).
Metal contact (conducting wire).
Reflective cavity (reflective cup).
Semiconductor termination.
Anvil.
Post.
Anvil and post assembly replacing the filament.
Flat edge.

Colors insulating tape

The insulating or insulating tape is a fundamental element when making a repair or performing an electrical installation. The insulating tape will help us to protect and insulate the electrical cables from possible crossings or contacts between them or with other elements, guaranteeing that the connection is well insulated avoiding possible short circuits.
Its use is very simple, since being a flexible material allows us to apply it with comfort.
To achieve a perfect union, it is recommended that we wrap the tape covering half the cable and half over the joint, stretching the tape slightly while rolling obliquely.

For the ground wire, colored insulation tape will be used:

Green.
Green with a yellow line.

For the neutral cable, blue insulating tape will be used.
For the cable the phase isYou can use any other color:

Any color different from neutral or earth.
Black insulating tape.
Brown insulating tape.
Gray insulating tape.

Colors of electric cables

As it is common in installations we can find a standard of colors in the electric cables.

These regulations help at a glance to understand the connection and the resolution of possible faults or failures.

Below we attach the color/cable relation for electrical installations.

The ground wire can be identified in several ways:

Green cable.
C cablegreen smell with a yellow line.
Cable without insulation.

The neutral wire will be blue.
The phase cable can be identified in several ways:

Any color different from neutral or earth.
Black insulation.
Brown isolate.
Gray insulation.

Battery Charger 8.4V 600mA Sony FM70 FM90 FM50 QM71 QM91 FM500H
