Bill counter with double display and fake bill detection UV MG1 MG2

REF: MM005

Specifications

  • Input and output tray with banknote level detectors in each tray.
  • Side panelwith control buttons and programming viewer.

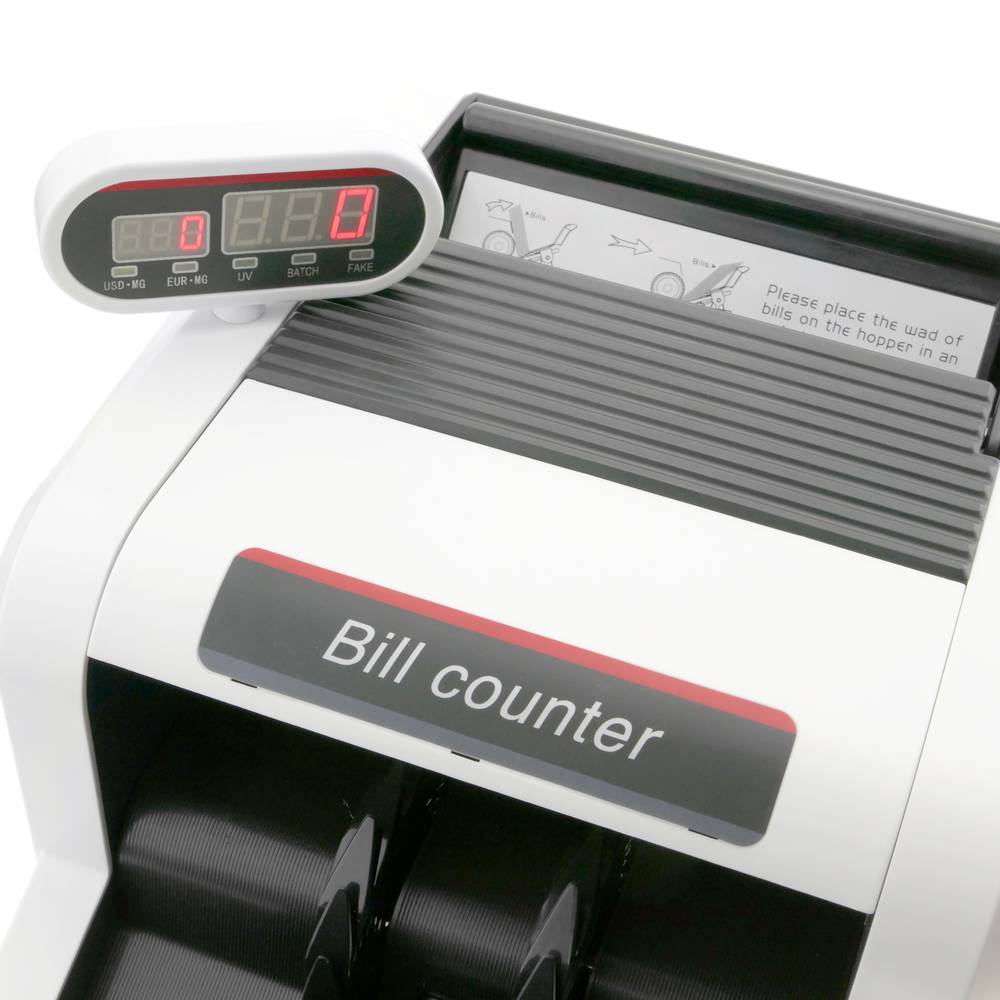

  • Front panel with programming viewer.
  • It allows the operation of variable or programmed. In variable operative the machine counts the bills introduced in the input tray. In programmed mode, the user can group bundles of banknotes of a certain predefined amount.
  • Accept EURO tickets.

Your price

PVP

89.05

Price including VAT: 89.05

PVD

78.27


Why different prices? Which one is mine? Check rate type

Shipping costs: 17,54 *
GB-SE1 1ES

Specifications

  • Input and output tray with banknote level detectors in each tray.
  • Side panelwith control buttons and programming viewer.
  • Front panel with programming viewer.
  • It allows the operation of variable or programmed. In variable operative the machine counts the bills introduced in the input tray. In programmed mode, the user can group bundles of banknotes of a certain predefined amount.
  • Accept EURO tickets.

More info

Professional bill counter in desktop format, robust design and easy to handle. Designed for both small businesses and large stores and financial entities where it is required to simply count bills. This model does not totalize (add monetary values).

It incorporates two powerful false bill detection functions: UV, MG1 and MG2. The MG function detects the magnetic marks that the banknotesthey have as protection. The UV function detects the marks sensitive to the ultra-violet rays that the notes have as protection. When detecting a ticket that does not pass the checks, the device for counting bills informs with the corresponding error code.

Specifications
  • Input and output tray with banknote level detectors in each tray.
  • Side panelwith control buttons and programming viewer.
  • Front panel with programming viewer.
  • It allows the operation of variable or programmed. In variable operative the machine counts the bills introduced in the input tray. In programmed mode, the user can group bundles of banknotes of a certain predefined amount.
  • Accept EURO tickets.
  • Speed: 1000 tickets/minute.
  • Capacity banYou leave: 200 bills maximum.
  • Counting display: From 0 to 9999 (4 digits).
  • Device size: 310 x 250 x 205 mm.
  • Net weight: 6.3 Kg.
  • Supplied with manual, electric cable and cleaning brush.
  • Gross Weight: 5.9 kg
  • Product size (width x depth x height): 31.2 x 24.4 x 15.4 cm
  • Number of packages: 1
  • Packages size: 37.3 x 29.7 x 25.2 cm
  • Master-pack: 2

Videos

play_button Watch video

Technical terms

  • Electrical cable sections
  • Bill detection systems
  • Colors of electric cables
  • Colors insulating tape
Electrical cable sections
When carrying out an electrical installation or electrical circuit several factors must be taken into account, one of them is the selection of the appropriate cable. According to the installation and the use of the same we can find different diameters that support different loads. The cable section will also help us not to overheat our installation, since the larger the section, the greater the thermal resistance.
In the following table poWe can see the corresponding load supported for the different sections of cables.
