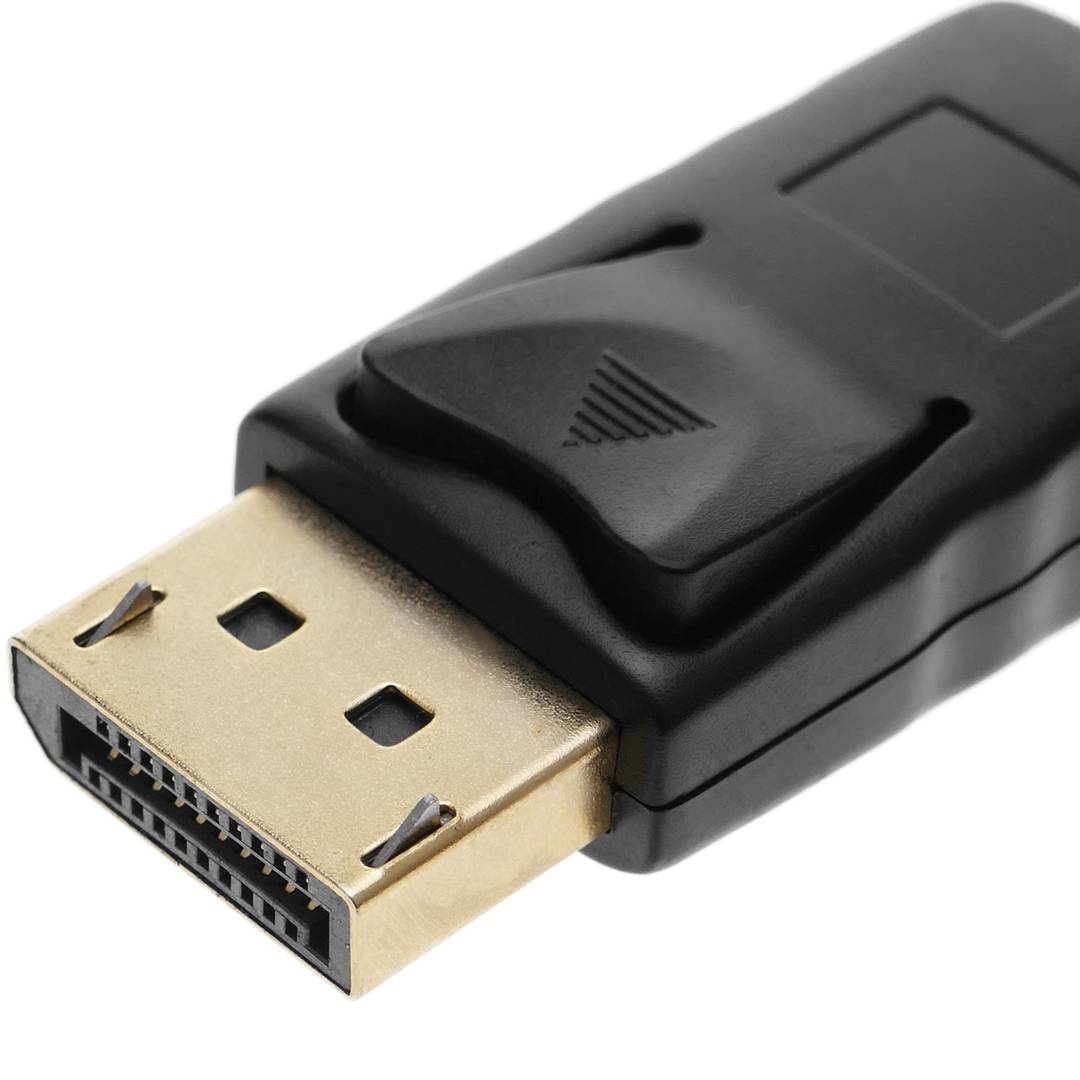

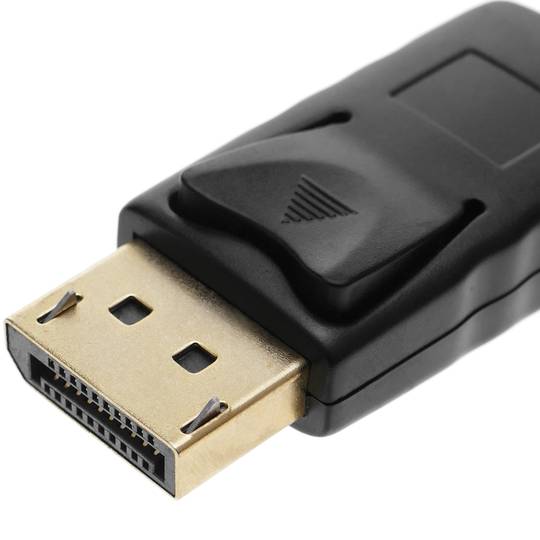

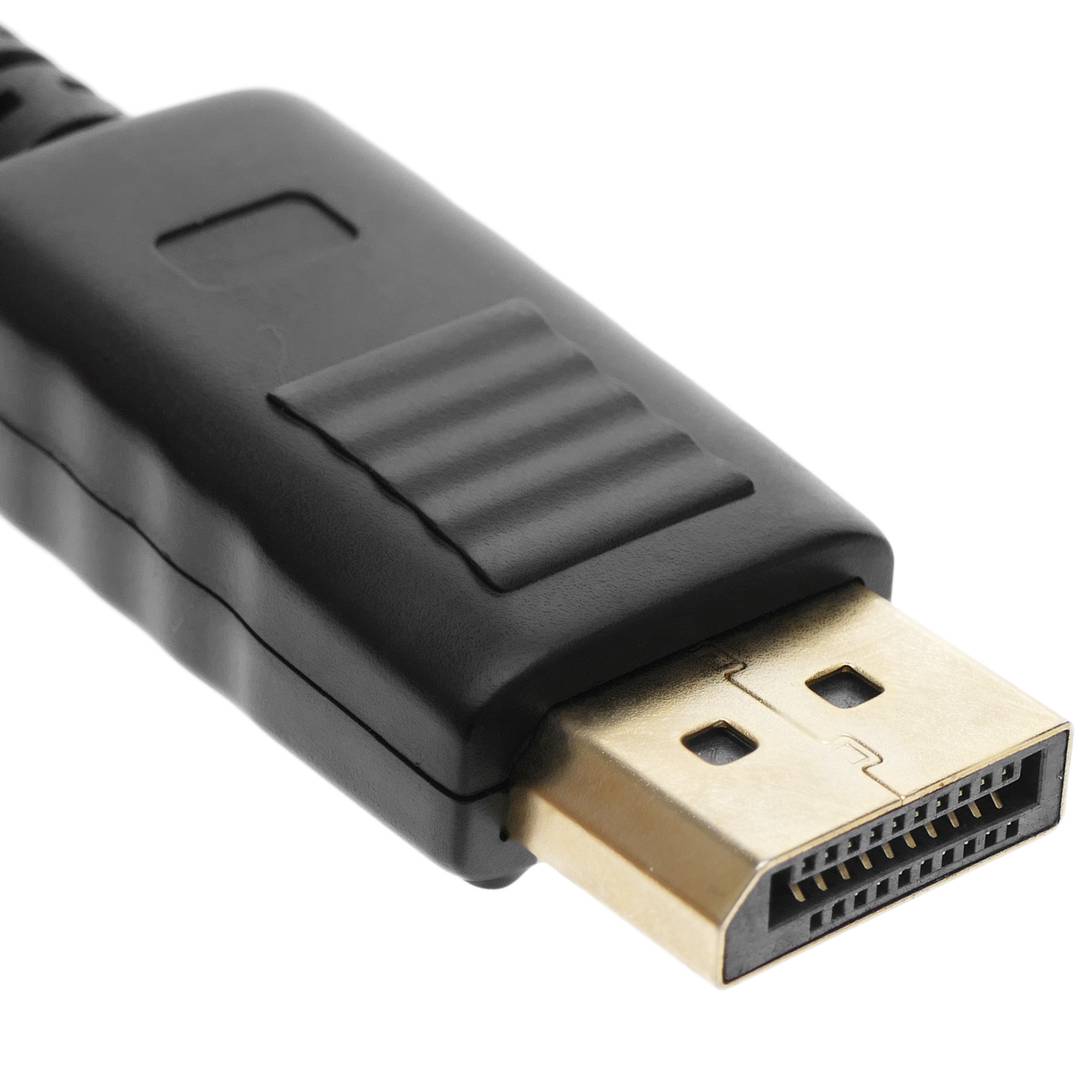

DisplayPort is the name of a digital interconnect interface intended for video transmission between a computer and its monitor.

One of the best features of the DisplayPort technology is its high resolution, allowing 4096 x 2160 pixels maximum resolution.

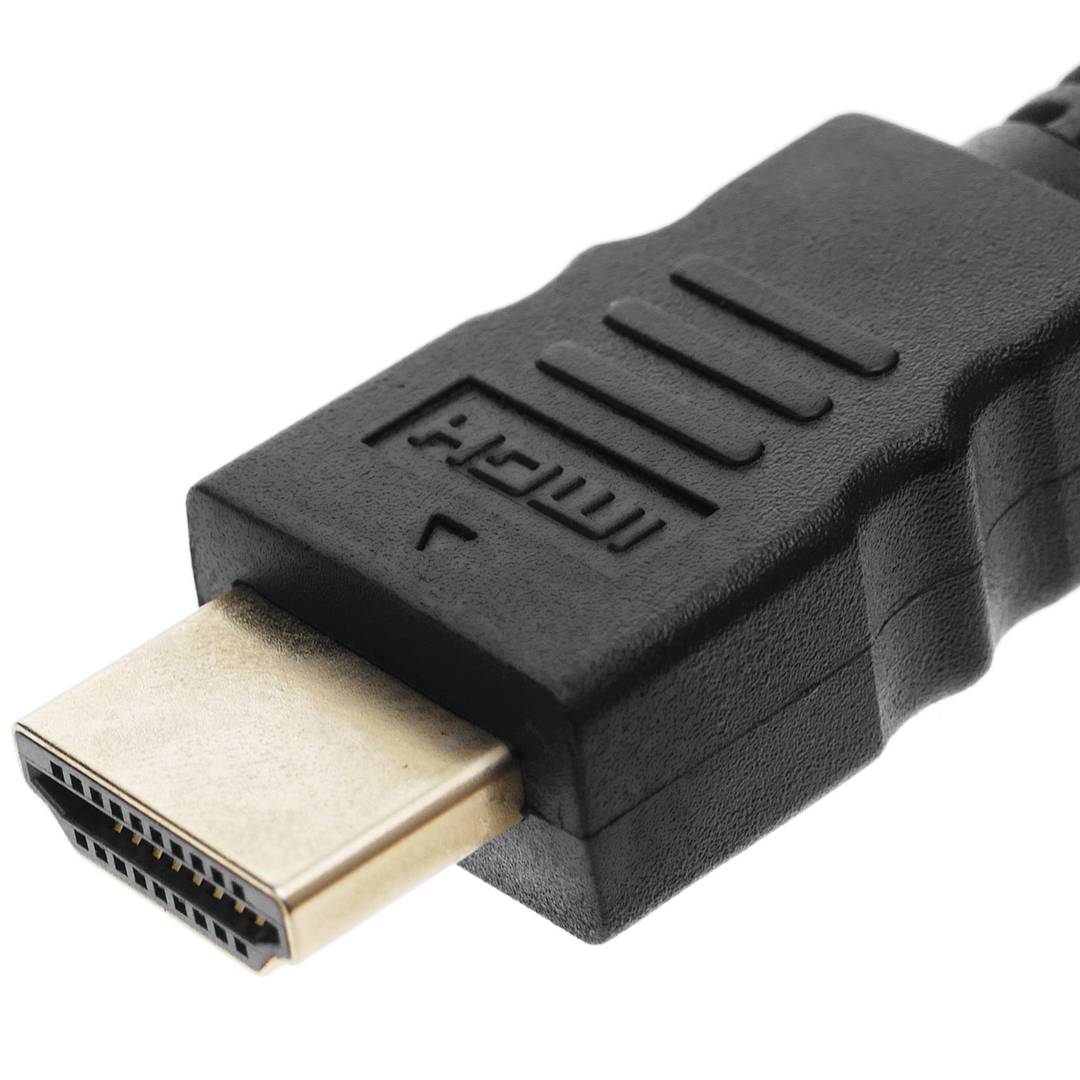

The English acronym "HDMi" refers to "High Definition Multimedia Interface", that is, it corresponds to the initials of high definition multimedia interface.

The HDMi interface allows the transmission of video and audio between different devices, supporting the video resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 1600p.

Different versions of HDMi

HDMi 1.0
- December 2002.
- Maximum transfer of 4.9 Gbit / s.
- Support up to 165 Mpixels / s in video mode (1080p 60Hz or UXGA) and 8 channels / 192 kHz / 24-bit in audio mode.

HDMi 1.2
- August 2005.
- Added support for One Bit Audio, used in Super Audio CD, up to 8 channels.
- HDMi Type A availability for PC connectors.

HDMi 1.3
- June 2006
- Bandwidth at 340 MHz.
- 10.2 Gbit / s data rate.
- Dolby TrueHD and DTS-HD,

HDMi 1.4
- Send high definition video and audio,
- 3D data and video.
- FullHD to XHD (eXtended High Definition) up to 4096 × 2160 pixels (24 frames per second) or 3840 × 2160 to (30 frames per second).
- Audio return channel that will require fewer cables to have a surround sound system connected to the television.
- Ethernet connection built into the cable itself with speeds of up to 100 Mbit / s.

HDMi 2.0
- September of 2013
- Bandwidth up to 18 Gbit / s
- 4K @ 50/60 (2160p) video
- Up to 32 audio channels for a multi-dimensional immersive experience
- Up to 1536kHz audio frequency for maximum sound fidelity
- Simultaneous delivery of 2 streaming video for multiple users on the same screen
- Audio streaming up to 4 users
- Support Theater Angle 21: 9 radio
- Dynamic synchronization of video and audio in streaming
- CEC command extensions to control multiple devices from a single point.


Types of HDMi

Type A (in image 1): It is the most standard connector used in almost all devices.
Type B (in image 2): It is a very little used connector.
Type C (in image 3): It is a connector widely used in tablets, smartphones and other devices.
Type D (in image 4): It is a connector used in smartphones.
Type E (in image 5): It is a connector used in vehicle connectivity.

AWG stands for "American Wire Gauge" being this a measure used to represent the width and section measurements of cables.

Here is an AWG conversion table:

AWG	Diam. mm	Mm2 area		AWG	Diam. mm	Mm2 area
1	7.35	42.40		16	1.29	1.31
two	6.54	33.60		17	1.15	1.04
3	5.86	27.00		18	1,024	0.823
4	5.19	21.20		19	0.912	0.653
5	4.62	16.80		twenty	0.812	0.519
6	4.11	13.30		twenty-one	0.723	0.412
7	3.67	10.60		22	0.644	0.325
8	3.26	8.35		2. 3	0.573	0.259
9	2.91	6.62		24	0.511	0.205
10	2.59	5.27		25	0.455	0.163
eleven	2.30	4.15		26	0.405	0.128
12	2.05	3.31		27	0.361	0.102
13	1.83	2.63		28	0.321	0.0804
14	1.63	2.08		29	0.286	0.0646
fifteen	1.45	1.65		30	0.255	0.0503

1080p is an alternative name for the maximum resolution used in high definition television (HDTV). The number 1080 represents 1080 lines of vertical display resolution, while the letter p stands for progressive scan and non-interlaced.

The meaning would be HDTV. It is used to indicate that the device is compatible with high definition. For high definition they have created three technical standards. ATSC, DVB and ISDB-T. Since 2005 the possibility of assigning HD Ready label as a kind of obligation to define the devices that have more than 720 lines (720p, 1080i at 50 or 60 Hz) was assessed.
