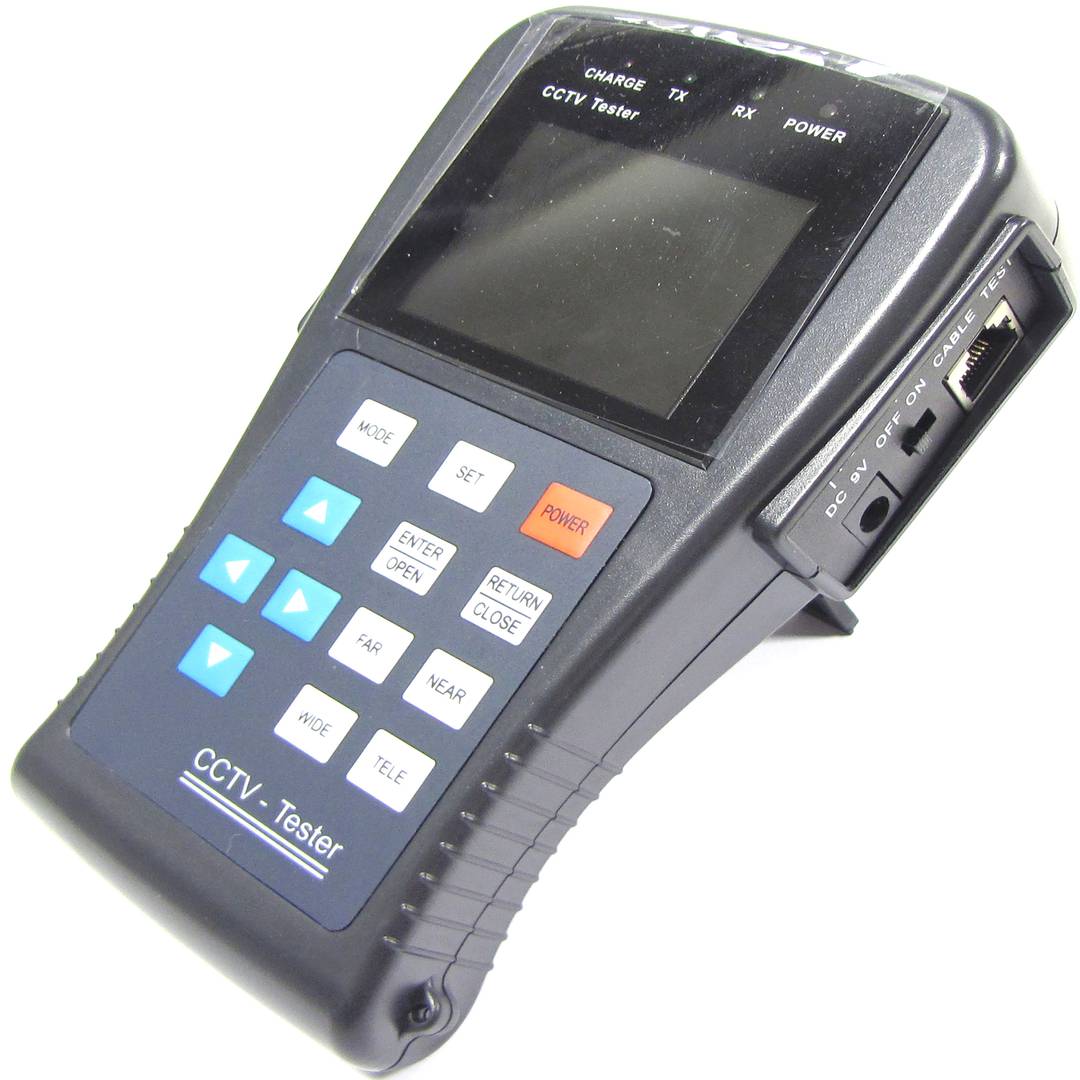

CCTV video tester (NT120)

checking the LAN cable. This makes it easier to install and maintain CCTV technicians.

Specs

• Color video screen size 2.8 "a resolution of 960 x 240.
• PTZ Control. Allows scrolling up and down (tilt), left and right (pan) and adjusting the zoom.
• Auto the video standard NTSC or PAL adaptation.
• SettingLCD parameters of brightness, contrast and color saturation.
• Generation patterns PAL and NTSC video systems. Generation of up to 7 letters of verification of multi-colored bars.
• RS485 data analysis allow technicians to locate faults in the CCTV system.
• Check function and identification of LAN cable.
• Multi-interface: supports RS232, RS422 and RS485 interfaces.
• Multi-baud: supports speeds of 150, 300, 600, 1200, 2400, 4800, 9600 and 19200 bps.
• Multi-protocol: supports up to 20 PTZ control protocols, highlighting the most popular as PELCO-P, PELCO-D, Samsung, etc..
• Tracking PTZ address locates the identifier (ID) of the camera.
• Li-Ion 1400 mAh and 3.7 VDC. It incorporates an advanced power control and protection andlectric. Allows operation of up to 5 hours with a charge time of 5 hours.

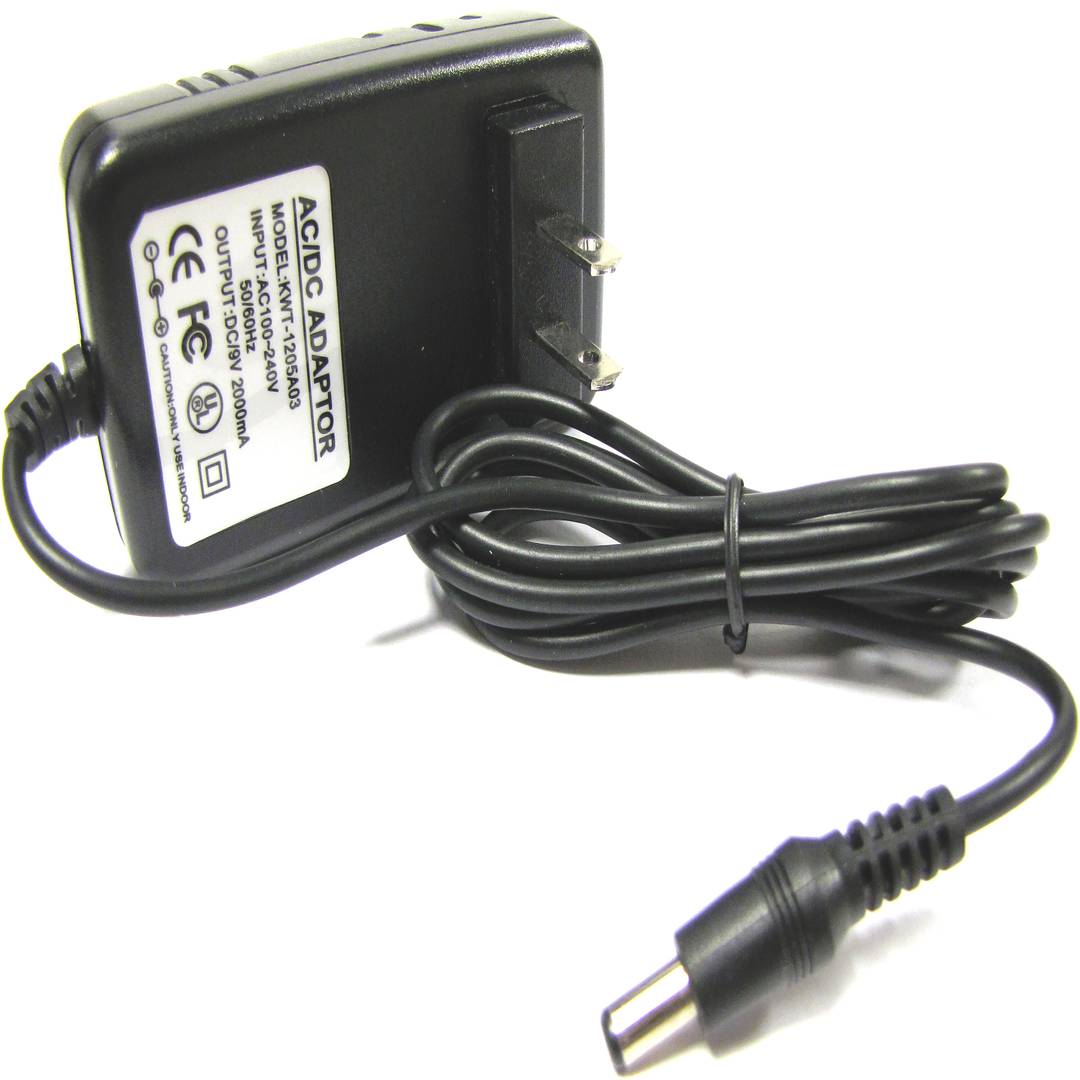

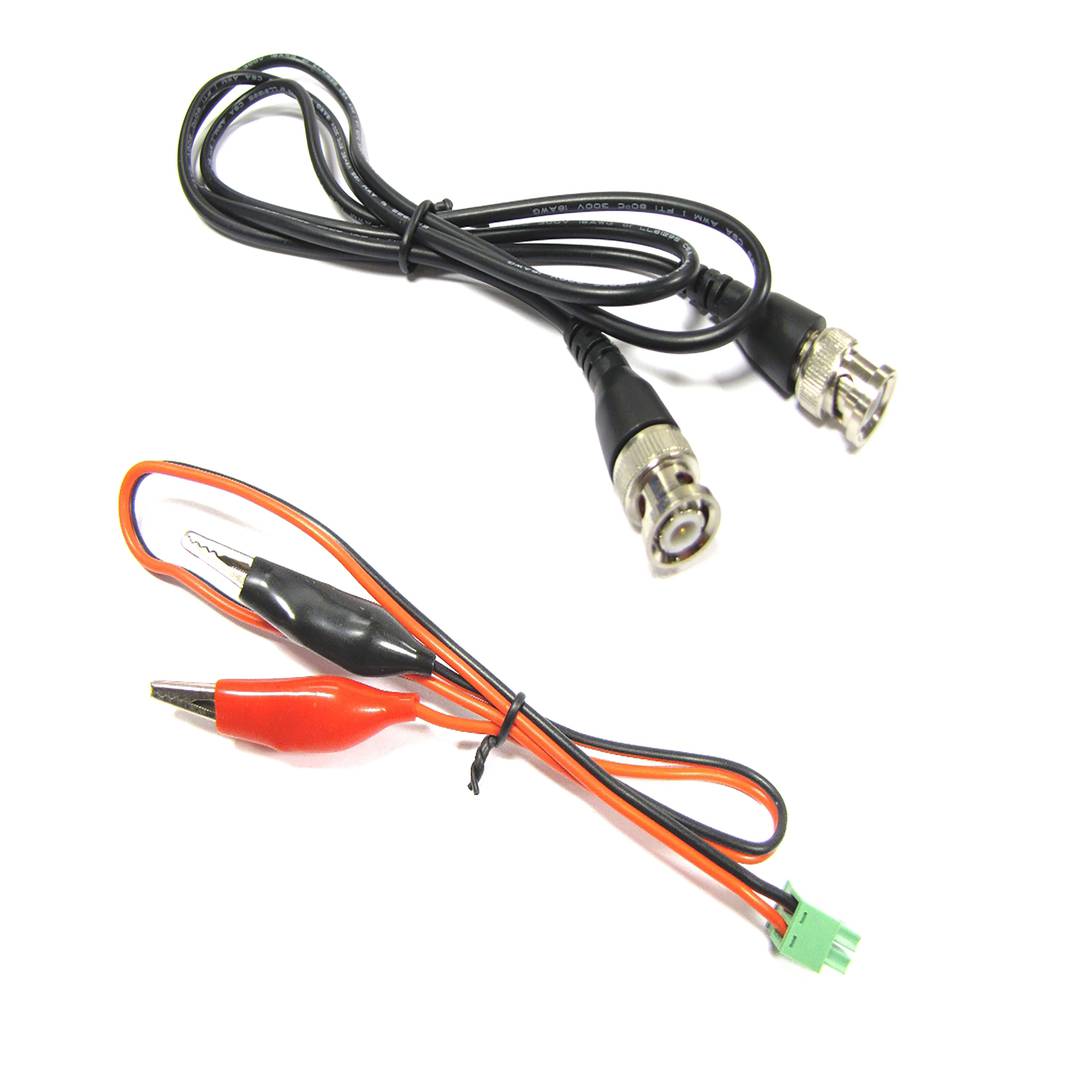

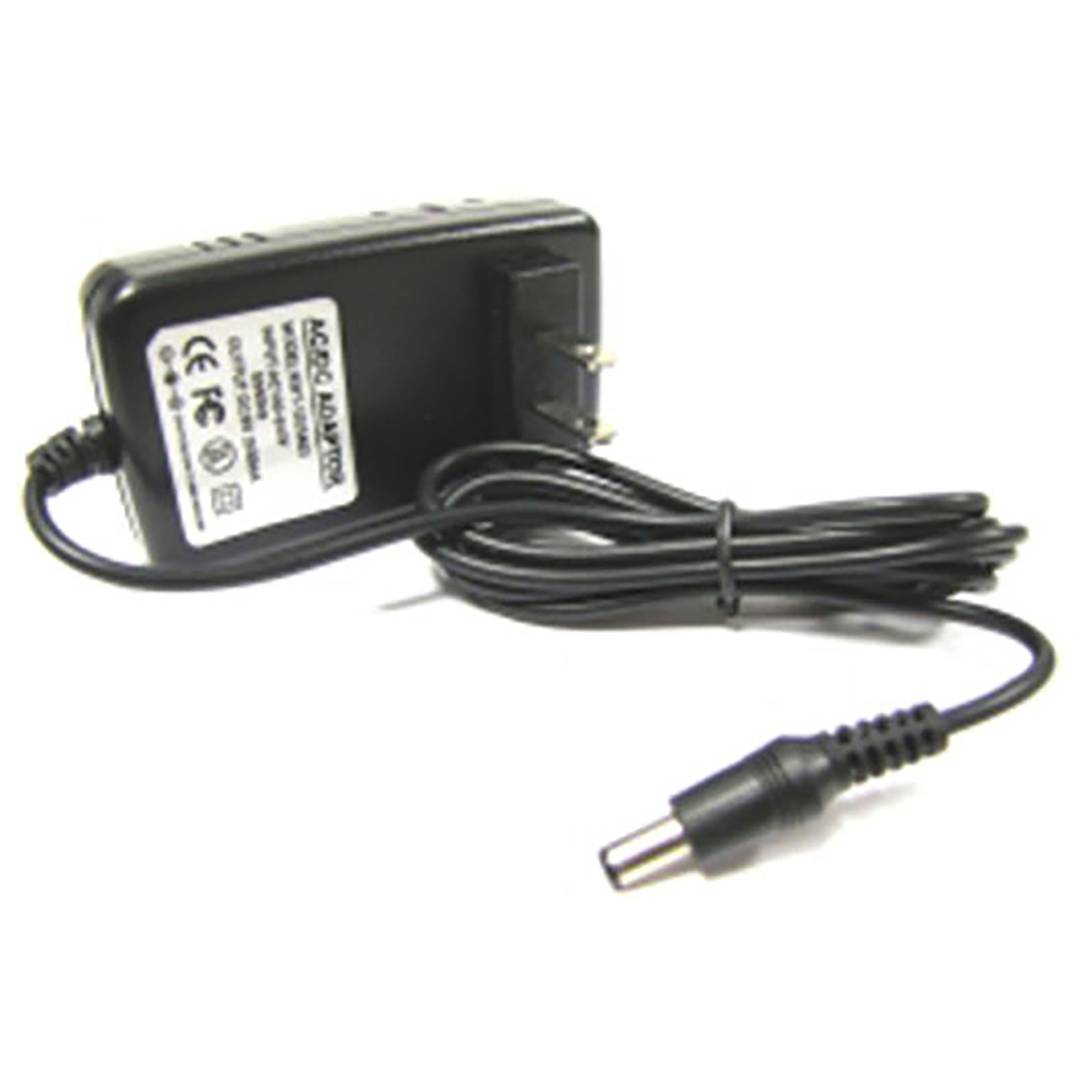

• Necessary cables, power supply and CCTV tester equipment supplied.

Connections and controls

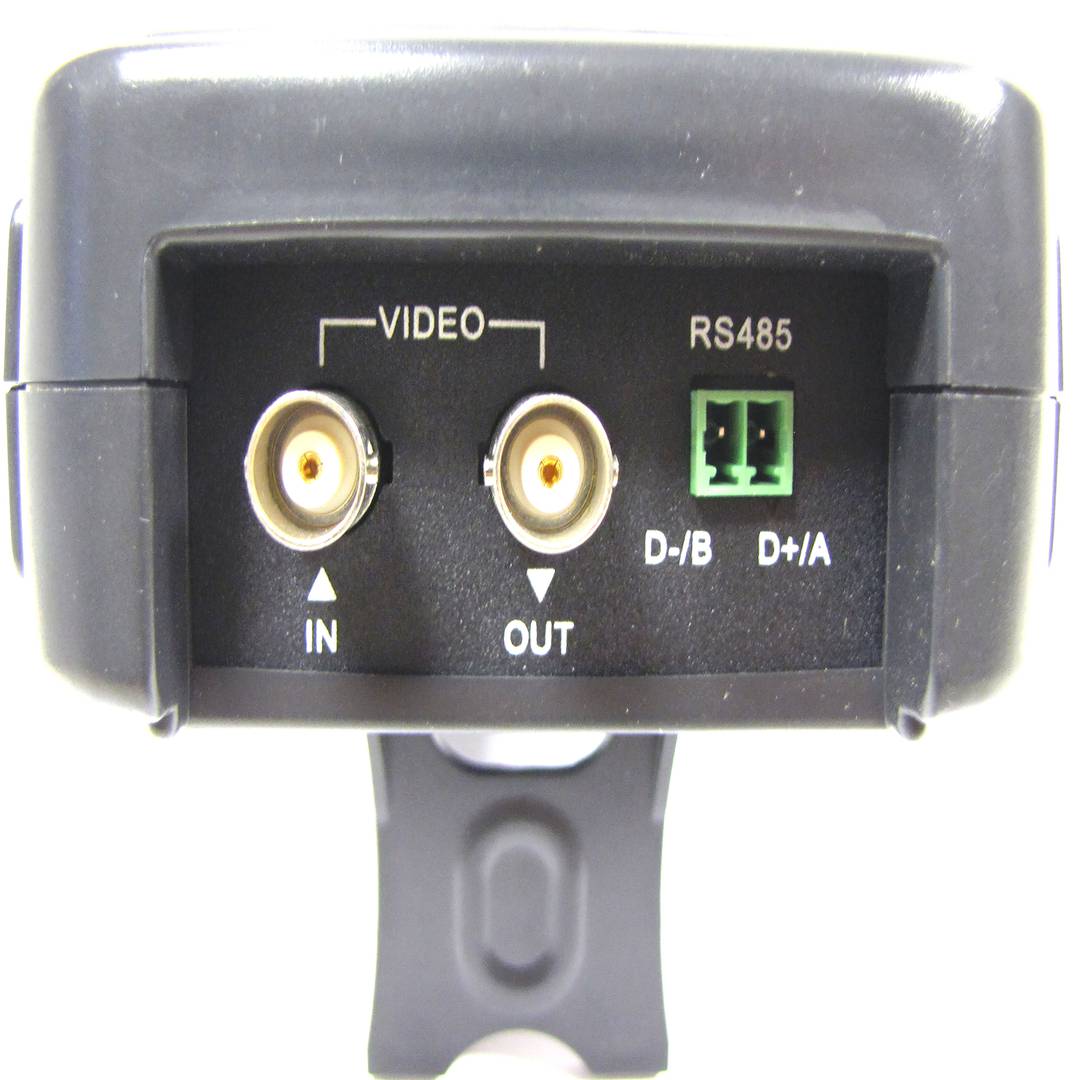

• Two sockets for input and BNC video output.
• For terminal connection (2-pin) for the RS485 signal.

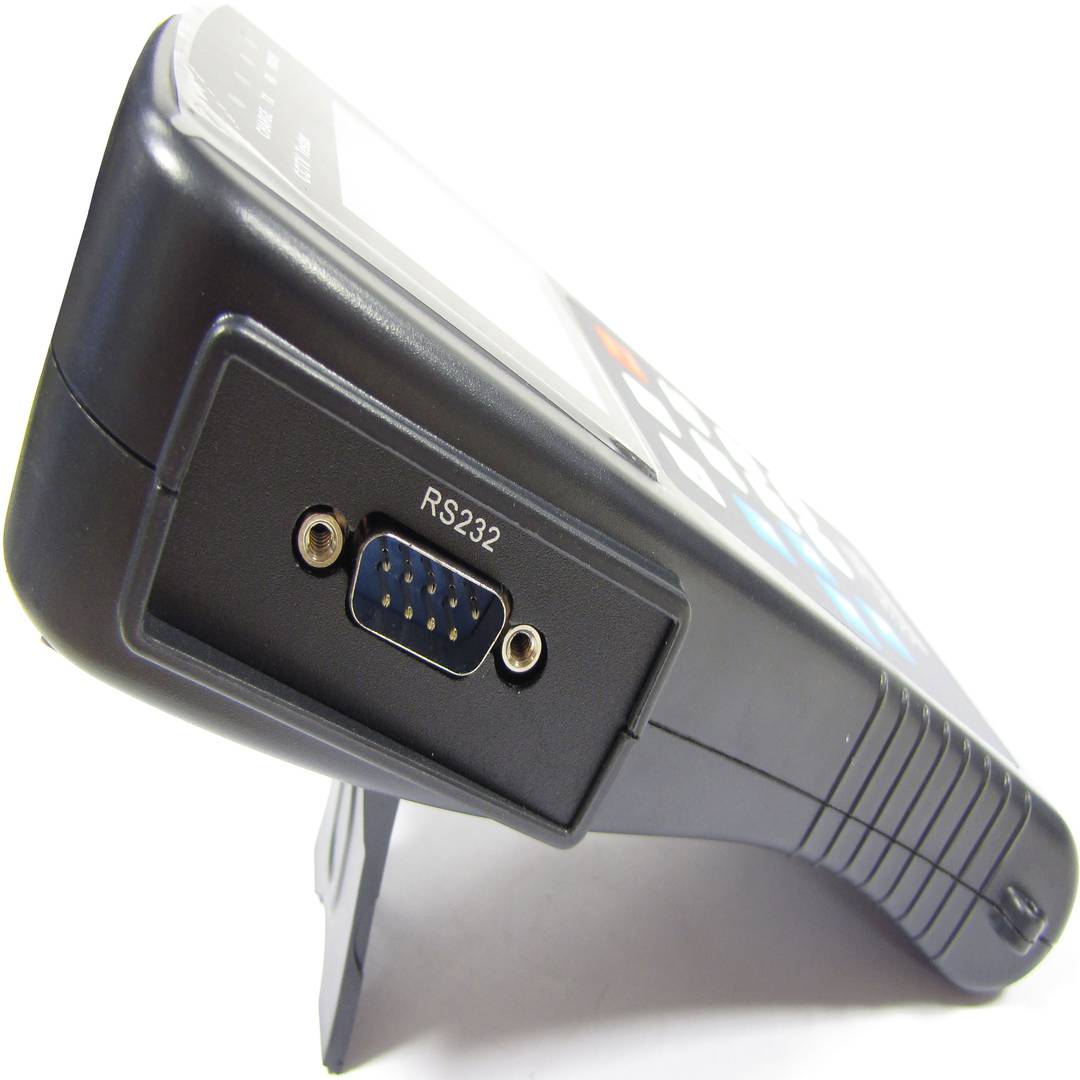

• DB9 male connector for the RS232 signal.

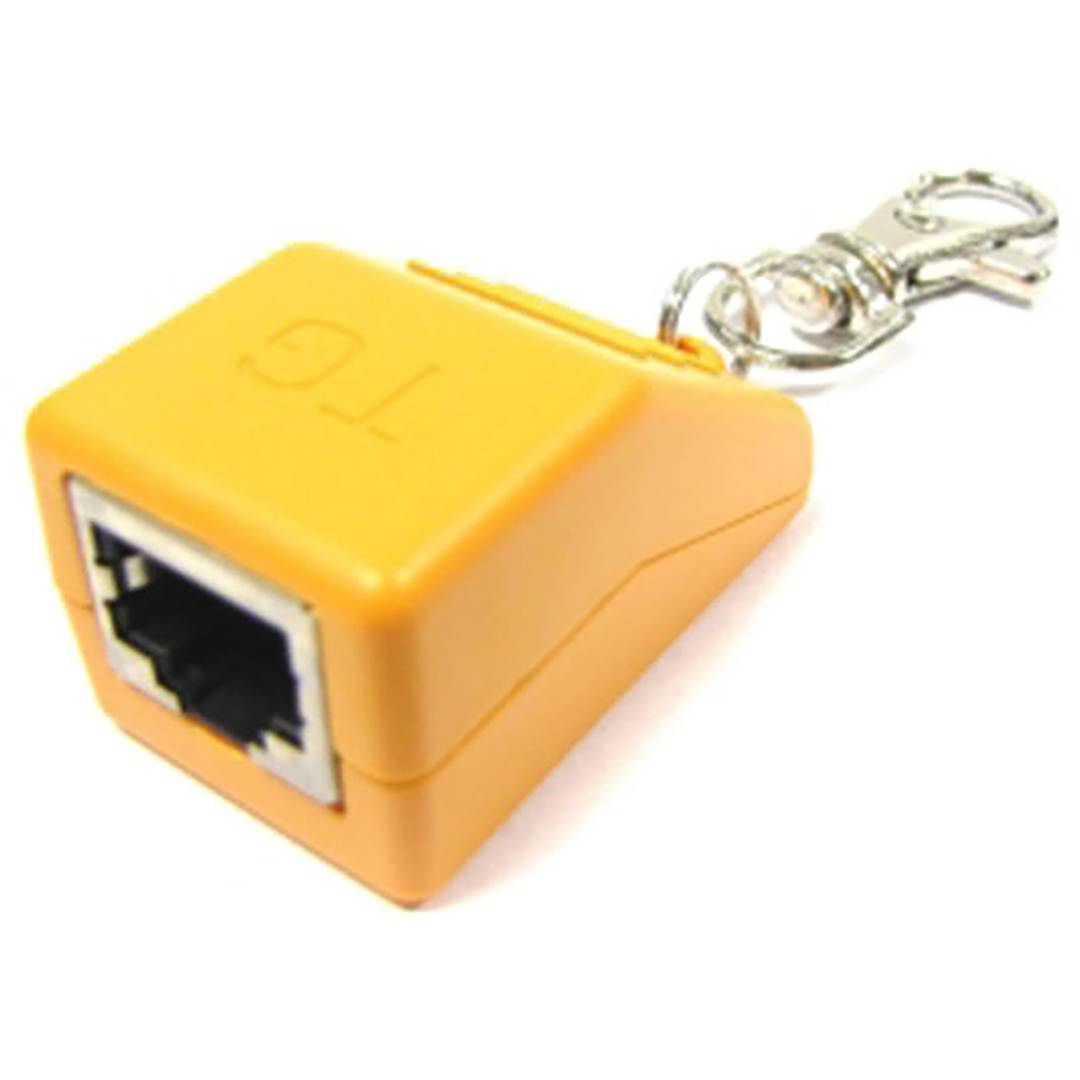

• CoRJ45 female connector for testing UTP network cables. Remote terminator is supplied with RJ45 female connector.

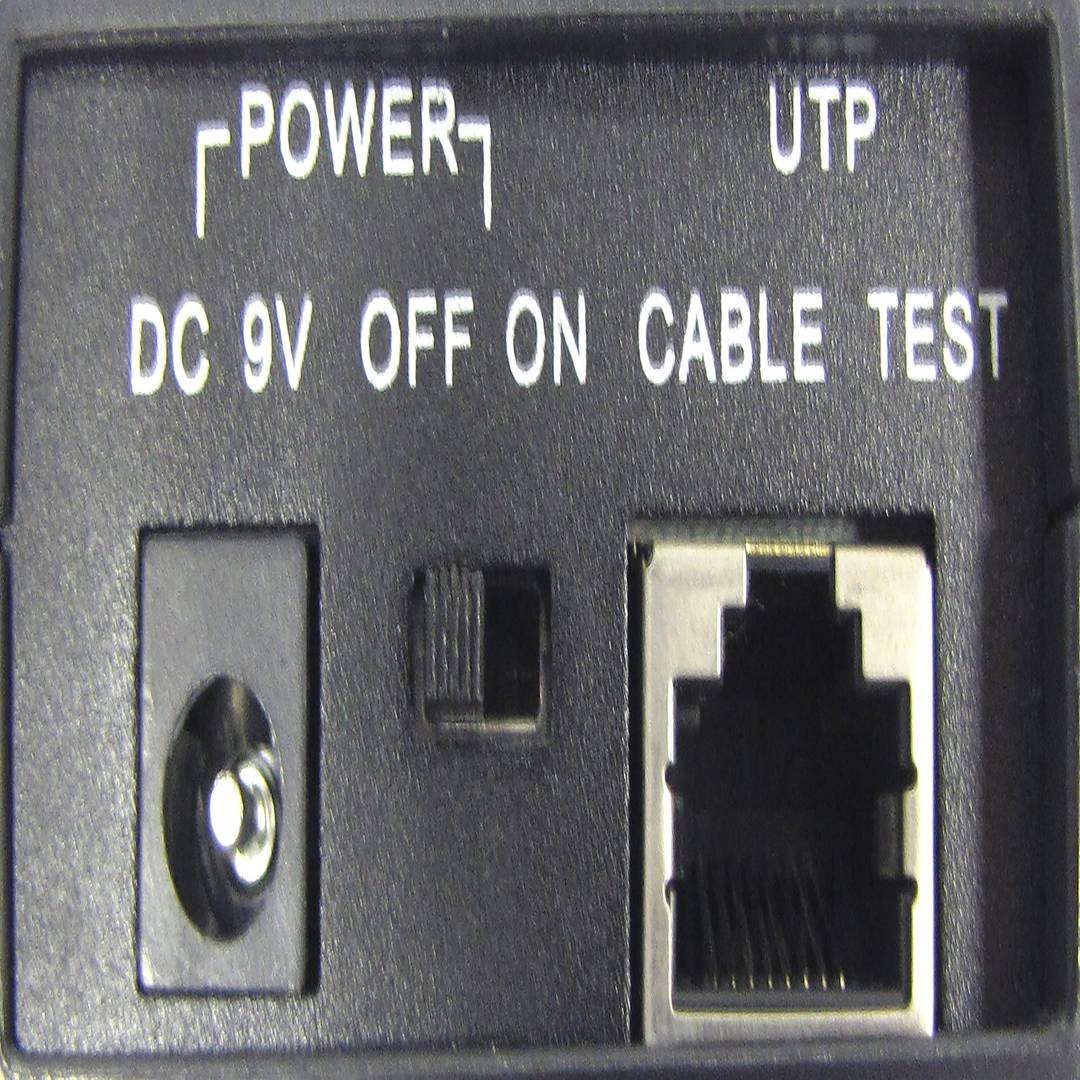

• Switch ON/OFF.
• DC input connector 9 VDC jack for charging the device.
