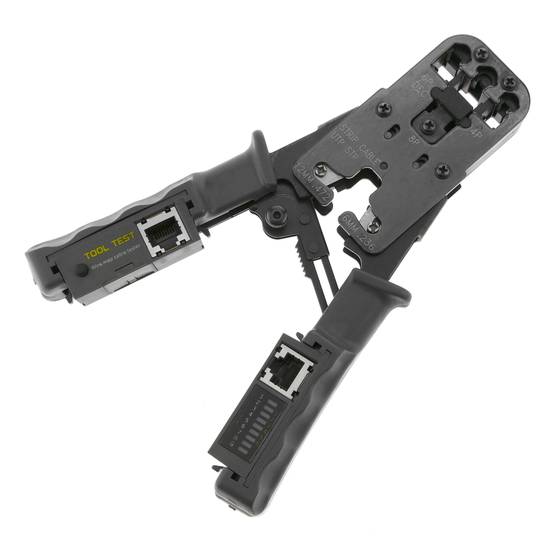

Crimping tool with RJ11 cable tester RJ12 RJ45 RJ9

REF: CT018

Specifications

  • Crimping tool and RJ45 data cable tester.
  • It is a crimping tool that incorporates 2 modules for testing UTP/FTP network cables based on RJ45 connectors.

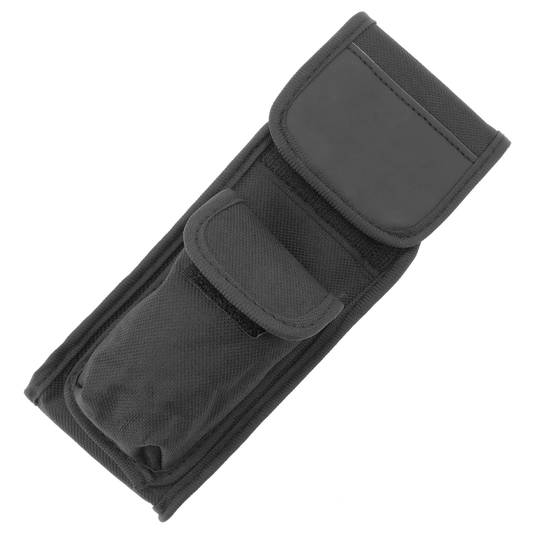

  • Supplied with carrying case.
  • It works with 3 LR-44 batteries (batteries not included).


  • Crimping tool
    It is a robust crimping tool for RJ9, RJ11, RJ12 and RJ45 cables.

Your price

PVP

68.88

Price including VAT: 68.88

PVD

60.54


Why different prices? Which one is mine? Check rate type

Shipping costs: 26,81 *
GB-SE1 1ES

Specifications

  • Crimping tool and RJ45 data cable tester.
  • It is a crimping tool that incorporates 2 modules for testing UTP/FTP network cables based on RJ45 connectors.
  • Supplied with carrying case.
  • It works with 3 LR-44 batteries (batteries not included).


  • Crimping tool
    It is a robust crimping tool for RJ9, RJ11, RJ12 and RJ45 cables.

Keywords

Did not find what you were looking for? These topic could help you

More info

Crimping tool and RJ45 data cable tester. It is a crimping tool that incorporates 2 modules for testing UTP/FTP network cables based on RJ45 connectors. Supplied with carrying case. It works with 3 LR-44 batteries (batteries not included).

Crimping tool
It is a robust crimping tool for RJ9, RJ11, RJ12 and RJ45 cables. Compatible with 4-pin connectors,6-pin and 8-pin as it has 3 holes compatible with the format of these connectors. It also has blades for cutting and peeling the cable cover. These blades can be calibrated for more precise cutting and peeling. It has a rack mechanism to block the tool until it reaches the end of the path or pressed. In the handles you have the two cable tester modules. These modules are extraversable

Cable tester
Network cable tester based on RJ45 connectors (possibility to check telephone cables RJ9, RJ11 and RJ12 with the corresponding adapter not included). It consists of two modules housed in the handle of the tooling. These modules can be used in the own tool for the verification of hoses. You can also extract the modules for checkingthe cables already installed. The local module has 8 LEDs for checking each of the wires of the network cable. These LEDs allow to detect the errors of the network cables such as: cuts, wrong pin-out, short-circuits, etc.
  • Gross Weight: 600 g
  • Product size (width x depth x height): 20.0 x 6.5 x 3.0 cm
  • Number of packages: 1
  • Packages size: 28.5 x 15.0 x 7.5 cm
  • Master-pack: 20

Videos

play_button Watch video

Technical terms

  • RACK 19
  • Types of network cables (UTP, FTP, STP)
  • RJ11
  • RJ45
  • RJ12
  • Categories network cables
  • RJ9
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
