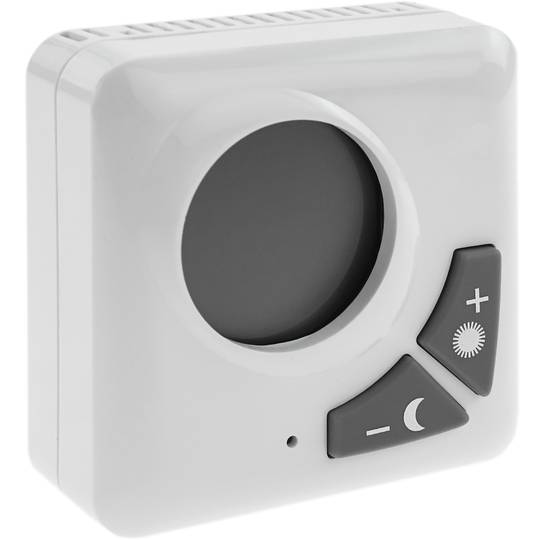

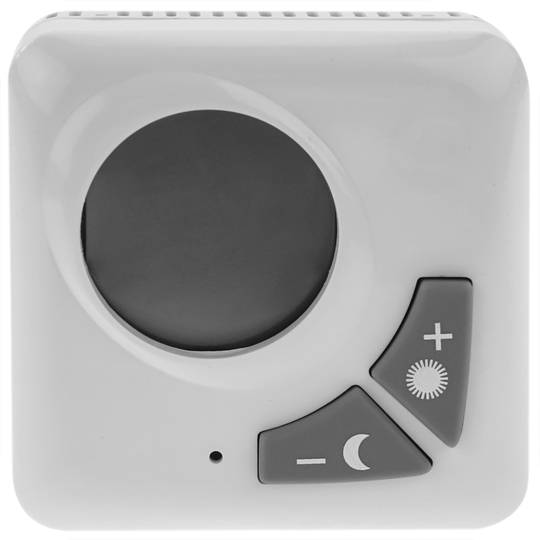

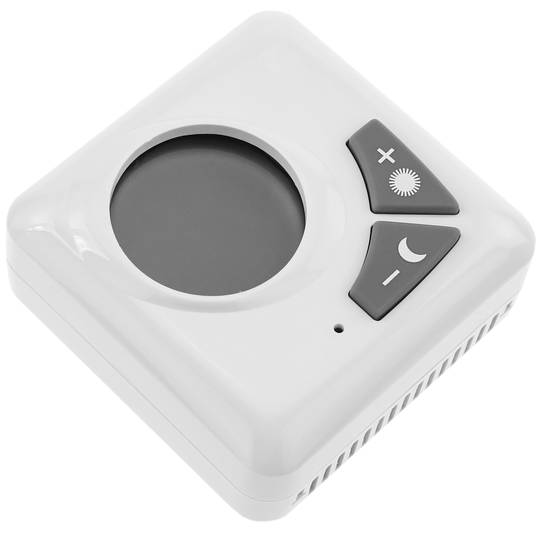

Digital Electronic Thermostat with LCD display
REF: OA094
Specifications
  • Universal digital thermostat to be used in the home, business, industry, etc.

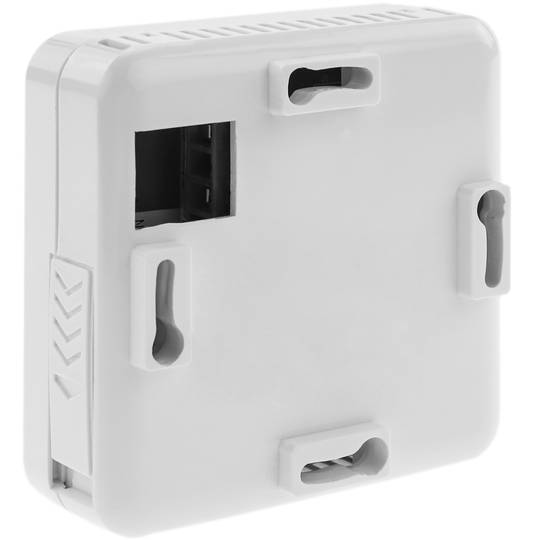

  • Easy installation, it is enough to fix the thermostat to the wall and connect the 2 wires.
  • Maximum comfort and energy saving, with anti-freeze function, room temperature, anti-freeze, room temperature, set temperature, and many more functions.

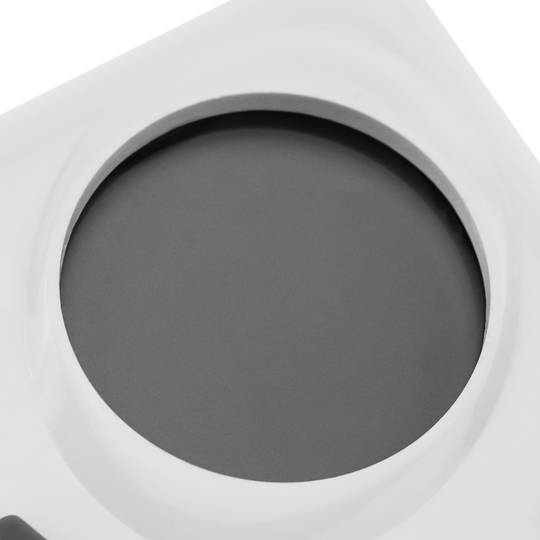

  • It has a very intuitive LCD operation viewer.

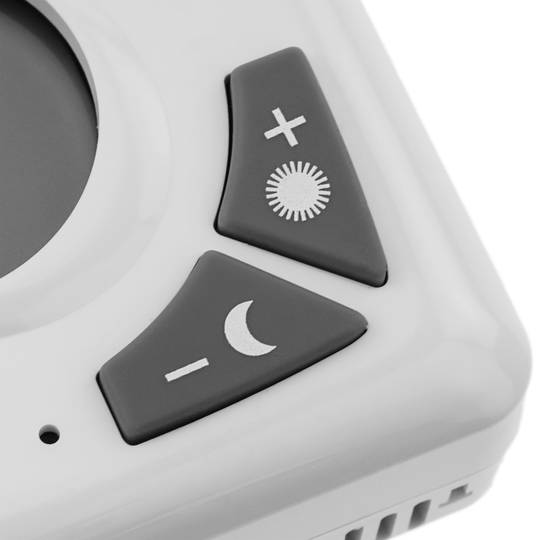

  • It has a heat selector, cold selector and temperature up / down buttons.
play_button Watch video
Go to technical terms
PVP
38.92
Price including VAT: 38.92
PVD
31.84
Shipping costs: 28,45 *
GB-SE1 1ES
Delivery times are approximate. Cablematic is not responsible for delays.
2 years
warranty
14 days
returns
100%
safe

In stock
Only 5 units

Go to technical terms
Specifications
  • Universal digital thermostat to be used in the home, business, industry, etc.
  • Easy installation, it is enough to fix the thermostat to the wall and connect the 2 wires.
  • Maximum comfort and energy saving, with anti-freeze function, room temperature, anti-freeze, room temperature, set temperature, and many more functions.
  • It has a very intuitive LCD operation viewer.
  • It has a heat selector, cold selector and temperature up / down buttons.

Keywords

Did not find what you were looking for? These topic could help you

More info

Universal digital thermostat for controlling air conditioners, boilers, heaters, etc. Easy wall installation. It is connected by two connecting wires. It has a very intuitive LCD operation viewer. It has a heat selector, a cold selector and buttons to raise / lower the temperature. Programmable model with additional function keys (with cover).

Specifications
  • Universal digital thermostat to be used in the home, business, industry, etc.
  • Easy installation, it is enough to fix the thermostat to the wall and connect the 2 wires.
  • Maximum comfort and energy saving, with anti-freeze function, room temperature, anti-freeze, room temperature, set temperature, and many more functions.
  • It has a very intuitive LCD operation viewer.
  • It has a heat selector, cold selector and temperature up / down buttons.
  • It works with two AAA batteries (not included).
  • Voltage: 24 VAC / DC 250 VAC. 50 Hz.
  • Consumption: 8 A (2 A of inductive load).
  • Temperature range: 5 to 35 degrees C (0.1 degree C increments).
  • Adjustable temperature range: 10 to 30 degrees C (0.5 degree C increments).
  • Temperature measurement accuracy: +/- 0.5 degrees C.
  • Selectable sensitivity: +/- 0.2 degrees C to +/- 0.3 degrees.
  • Temperature as a protection against freezing: + 7 degrees C.
  • Storage temperature: - 10 degrees C to + 60 degrees.
  • Consumption: 1.5 mW.
  • Dimensions: 74 x 74 x 33 mm (width x height x depth).
  • Weight: 117 g.
  • Temperature sensor type: NTC 10K degrees +/- 1% at 25 degrees.
  • Gross Weight: 117 g
  • Product size (width x depth x height): 7.4 x 3.3 x 7.4 cm
  • Number of packages: 1
  • Packages size: 14.0 x 10.9 x 4.5 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • Hz
  • VAC
  • Types of batteries
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
