Distributor of audio and video UTP Cat.5 rack 19 "9 ports CE09A

REF: SH051

Specifications

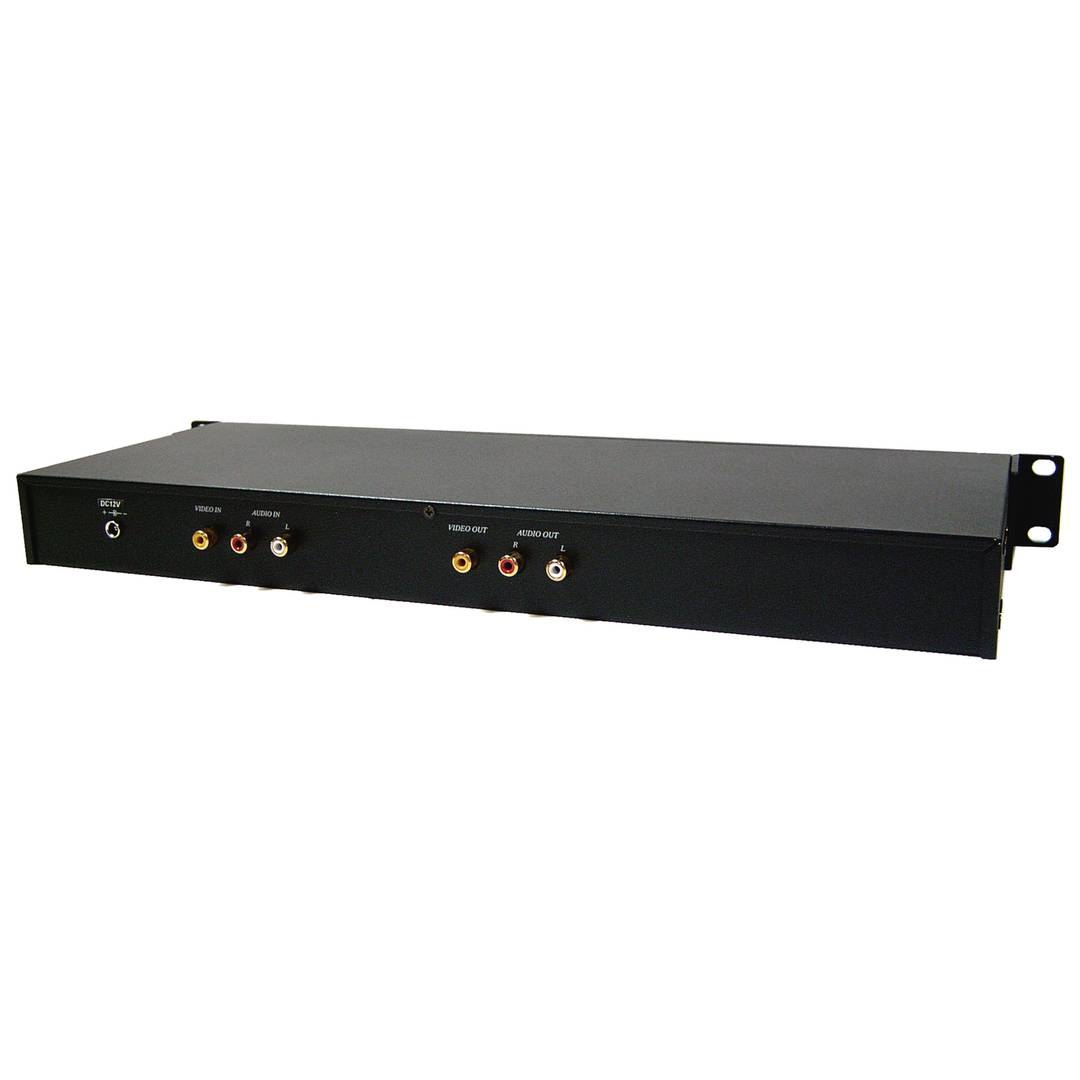

  • Audio/video input: In the partThe rear has 3 RCA-Female connectors (audio-left, audio-right, video).
  • Audio/video output: In the rear part it has 3 RCA-Female connectors (audio-left, audio-right, video). This output is intended to connect a screen and local speakers or to link to another module #SH51.

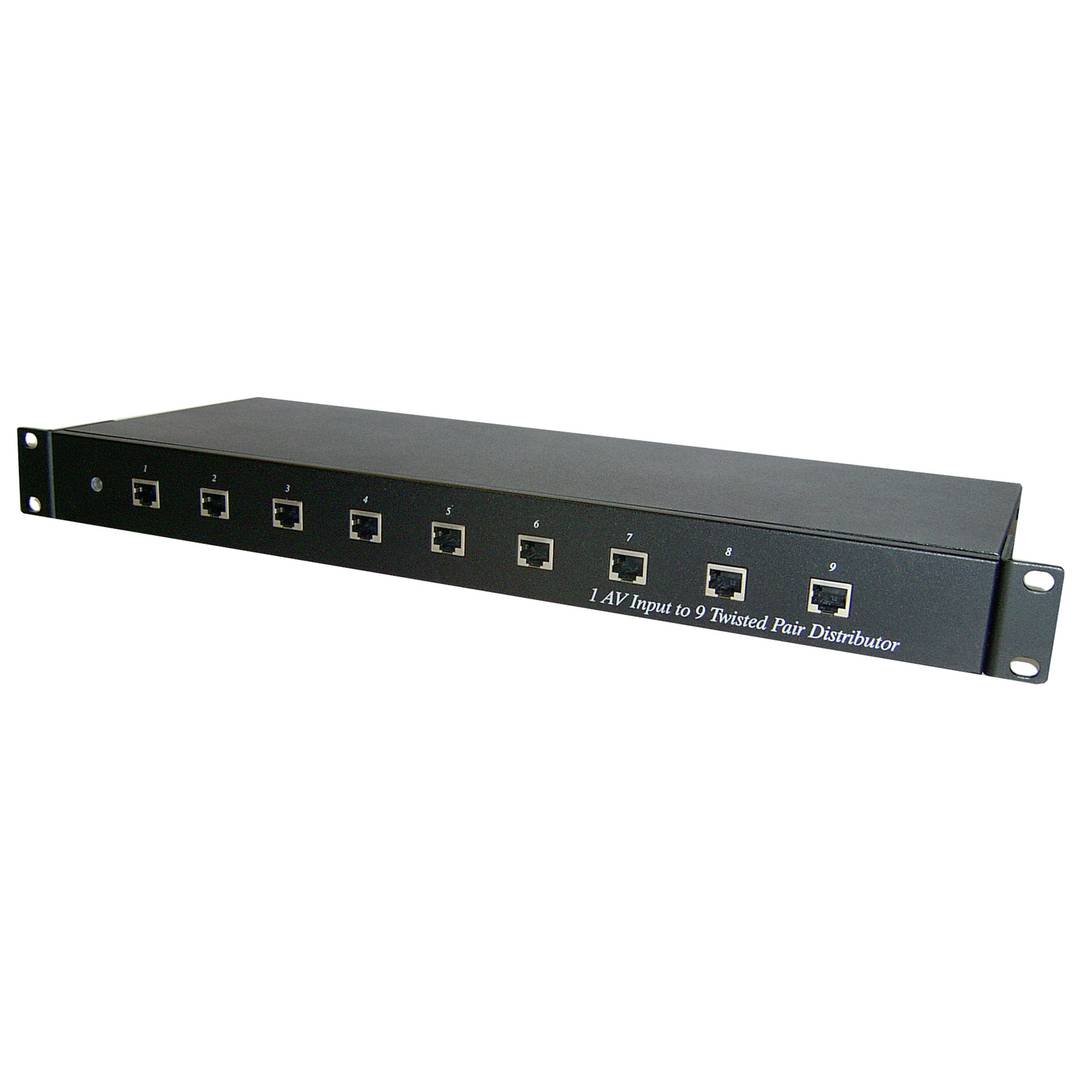

  • UTP Outputs: On the front it has 9 RJ45-Female outputs that distribute the stereo and video audio signal coming fromthe entrance.
  • It allows to use Cat.5 UTP cable for audio and video transmission up to 400m (color) or 600m (B/N).
  • At the other end of the UTP cable, receivers are placed that transform the UTP signal into composite video and audio based on RCA-Female connectors. The compatible modules are the references #SH11 (kit that includes 2 receiver modules) and the #SH52 (includes a single receiver module).

Your price

PVP

229.58

50.51

Price including VAT: 50.51

PVD

201.78

44.39


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES

Specifications

  • Audio/video input: In the partThe rear has 3 RCA-Female connectors (audio-left, audio-right, video).
  • Audio/video output: In the rear part it has 3 RCA-Female connectors (audio-left, audio-right, video). This output is intended to connect a screen and local speakers or to link to another module #SH51.
  • UTP Outputs: On the front it has 9 RJ45-Female outputs that distribute the stereo and video audio signal coming fromthe entrance.
  • It allows to use Cat.5 UTP cable for audio and video transmission up to 400m (color) or 600m (B/N).
  • At the other end of the UTP cable, receivers are placed that transform the UTP signal into composite video and audio based on RCA-Female connectors. The compatible modules are the references #SH11 (kit that includes 2 receiver modules) and the #SH52 (includes a single receiver module).

Keywords

Did not find what you were looking for? These topic could help you

More info

Distributor and extender of stereo audio and composite video through Cat.5 UTP cable. It is a device in 19 "rack format 1U high that has stereo audio input and composite video that is distributed by Cat.5 UTP cable to 9 outputs at a distance of up to 600 m at the other end of the UTP cable receiver modules are connected.



Specifications
  • Audio/video input: In the partThe rear has 3 RCA-Female connectors (audio-left, audio-right, video).
  • Audio/video output: In the rear part it has 3 RCA-Female connectors (audio-left, audio-right, video). This output is intended to connect a screen and local speakers or to link to another module #SH51.
  • UTP Outputs: On the front it has 9 RJ45-Female outputs that distribute the stereo and video audio signal coming fromthe entrance.
  • It allows to use Cat.5 UTP cable for audio and video transmission up to 400m (color) or 600m (B/N).
  • At the other end of the UTP cable, receivers are placed that transform the UTP signal into composite video and audio based on RCA-Female connectors. The compatible modules are the references #SH11 (kit that includes 2 receiver modules) and the #SH52 (includes a single receiver module).
  • Active. It is supplied with12VDC power supply.
  • Video input: 1Vp-p, 75 Ohms.
  • Audio input: 2Vp-p.
  • Video impedance: 100 Ohm balanced.
  • Audio impedance: 600 Ohm balanced.
  • Size: 482 x 170 x 44 mm (1U).
  • Gross Weight: 2.95 kg
  • Number of packages: 1
  • Master-pack: 4

Technical terms

  • RACK 19
  • Types of network cables (UTP, FTP, STP)
  • Impedance Ω
  • CVBS
  • RJ45
  • Categories network cables
  • RCA
  • Rack unit (U)
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
