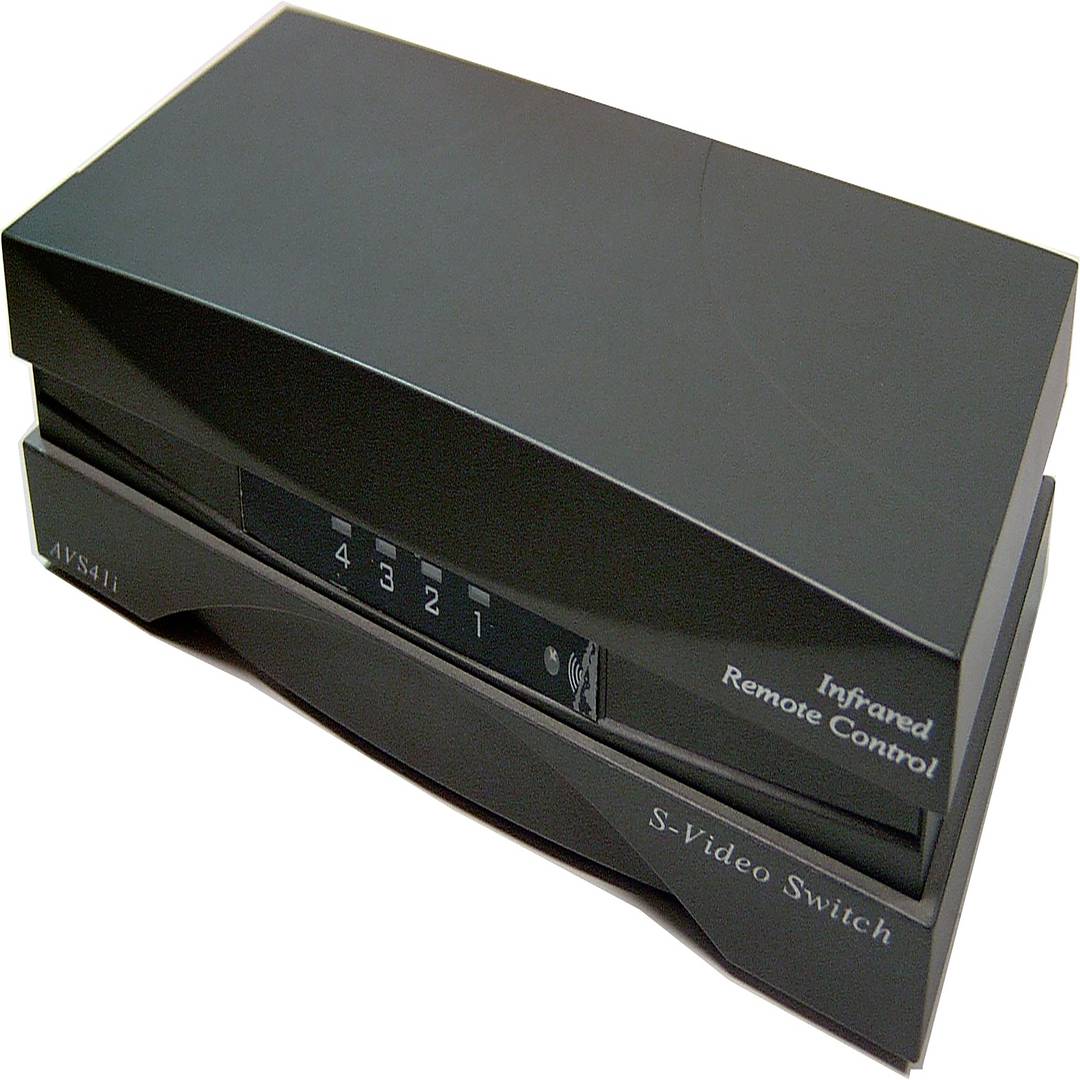

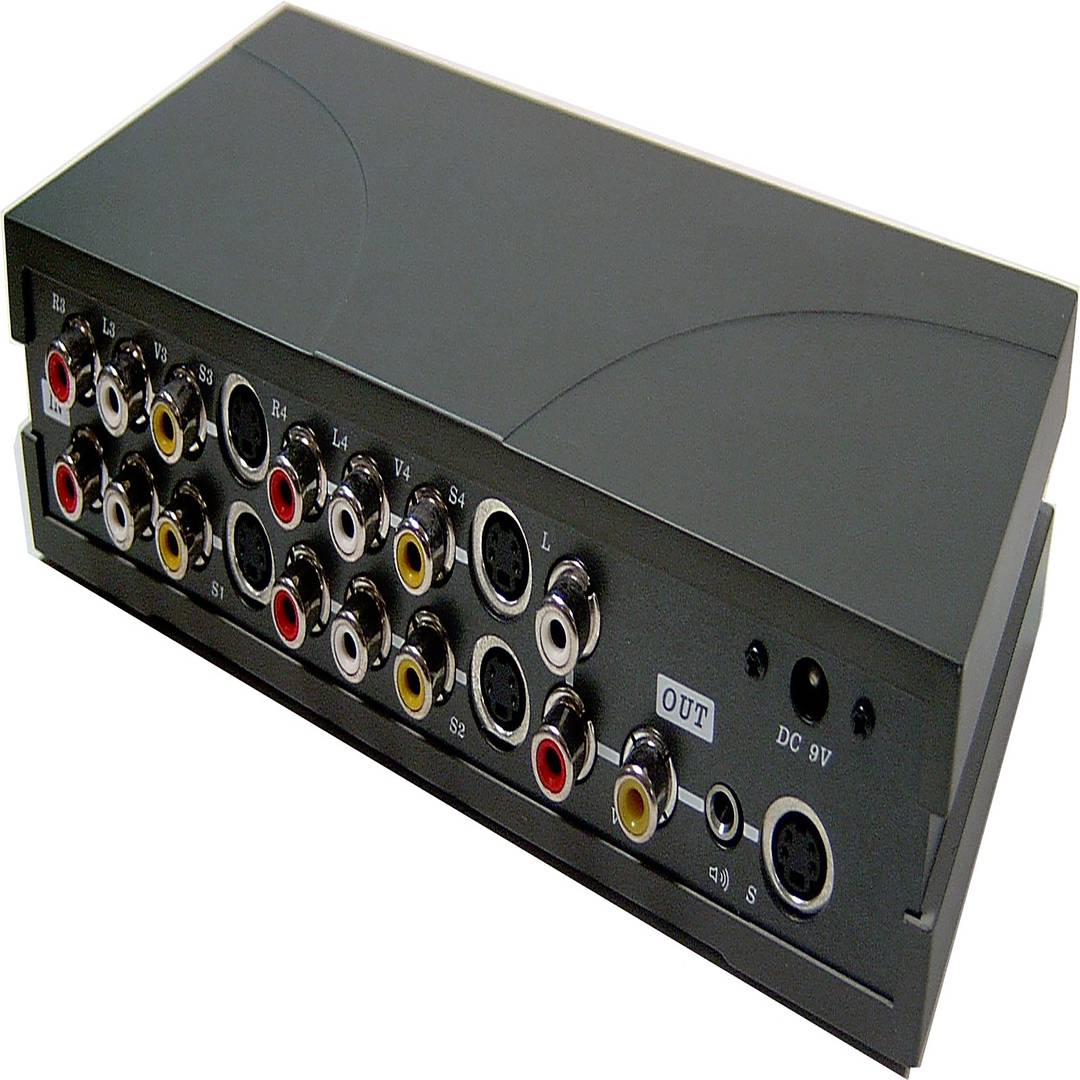

Distributor S-Vídeo/Audio (4xMiniDIN4/RCA > 1xMiniDIN4/RCA) IR

The minijack 3.5mm is a popular connector used primarily for headphones although its functionality is much more varied.

It consists of a maximum of three connecting parts being the largest so-called mass or negative polarity and two of smaller size and located farther end of the connector, called living or positive that correspond to each channel, such three-part plug can transmit signals in two different channels, also known as stereo signals. It also exists in a mono minijack but version composed of only two parts, a body and a living or positive.

The mini-DIN connector designates a family of circular connectors, each with a diameter of 9.5 mm and a varied number of pins inside. Although initially designed as mere electrical connectors, they are very popular in electronics and computers, having succeeded the larger DIN connector. Both are standards of Deutsches Institut für Normung, the German standardization body.

We can find 3 types of jack connector, monaural TS connector (tip-sleeve), TRS (tip-ring-sleeve) and TRRS stereo plug (tip-ring-ring-sleeve) which is used in most mobile devices, tablets, MP3 etc ...
We can difference these 3 types of connectors according to their diameter:

1. 6.35 mm jack connector or TS.
2. 3.5mm minijack connector or TRS, is the most common, usually used in headphone's output of portable devices.
3. 2.5mm jack connector or TRRS.

It consists of a maximum of three connecting parts being called the largest mass or negative polarity and two smaller size located more towards the end of the connector,
The called positive that correspond to each channel, such three-part plug can transmit signals in two separate channels, also known as stereo signals. There's a mono version, consisting of only two parts, a negative and a positive.

A. Protector
B. Stem
C. Ring
D. Tip
E. Kindred
F. Ring (Signal Right)
G. Tip (Signal Left)

The RCA (Radio Corporation of America) connector is a connector used to send video signals or audio.
This is a circular two-contact connector; signal and ground, used with coaxial cables. Each signal uses a single cable and to differentiate color coded RCA connector on the set.
(1) Analog Audio:
Audio Left (White)
Audio Right (Red)

(2) Videoanalogical:
Video (Yellow)

(3) Composite Video:
Audio Left (White)
Audio Right (Red)
Video (Yellow)

(4) Video Component (YPbPr):
Y (Green)
Pb (Blue)
Pr (Red)

(5) Video components (RGB):
R (Red)
G (Green)
B (Blue)

(6) Digital Audio:
S/PDIF (Orange/Gold)
