DYLINK Extender VGA and audio over UTP Cat.5 LOCAL 4 ports

REF: LP071

Specifications

  • RequiresUTP cable Cat.5 or higher for the connection of the local and remote modules.
  • Maximum UTP cable distance: 300 m (depends on the REMOTE module purchased).
  • Compatible with VGA, SVGA and multi-sync monitors.
  • Maximum supported resolution: 1280 x 1024.
  • Module size: 203 x 74 x 29 mm.

Your price

PVP

82.68

Price including VAT: 82.68

PVD

70.77


Why different prices? Which one is mine? Check rate type

Shipping costs: 8,46 *
GB-SE1 1ES

Specifications

  • RequiresUTP cable Cat.5 or higher for the connection of the local and remote modules.
  • Maximum UTP cable distance: 300 m (depends on the REMOTE module purchased).
  • Compatible with VGA, SVGA and multi-sync monitors.
  • Maximum supported resolution: 1280 x 1024.
  • Module size: 203 x 74 x 29 mm.

Keywords

Did not find what you were looking for? These topic could help you

More info

Extender and duplicator of VGA video signal and analog audio at a distance of 300 m and using Cat.5 UTP cable. The system requires 2 modules: the room that connects to the computer and the remote to which two VGA screens and speakers are connected. This reference includes the 4-port LOCAL module. These 4 RJ45 ports allow the connection of up to 4 REMOTE modules via Cat.5 UTP cable and with a star topology. Supports a resMaximum resolution of 1280 x 1024 pixels.

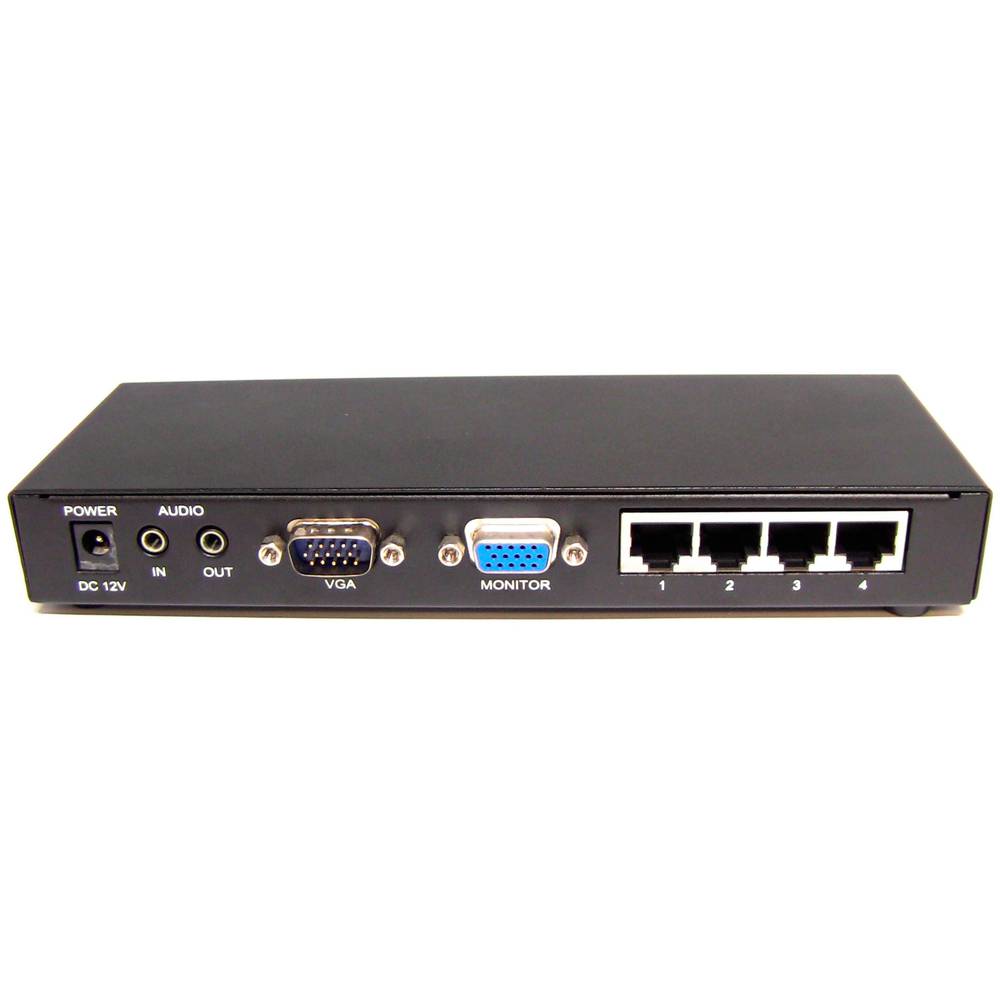

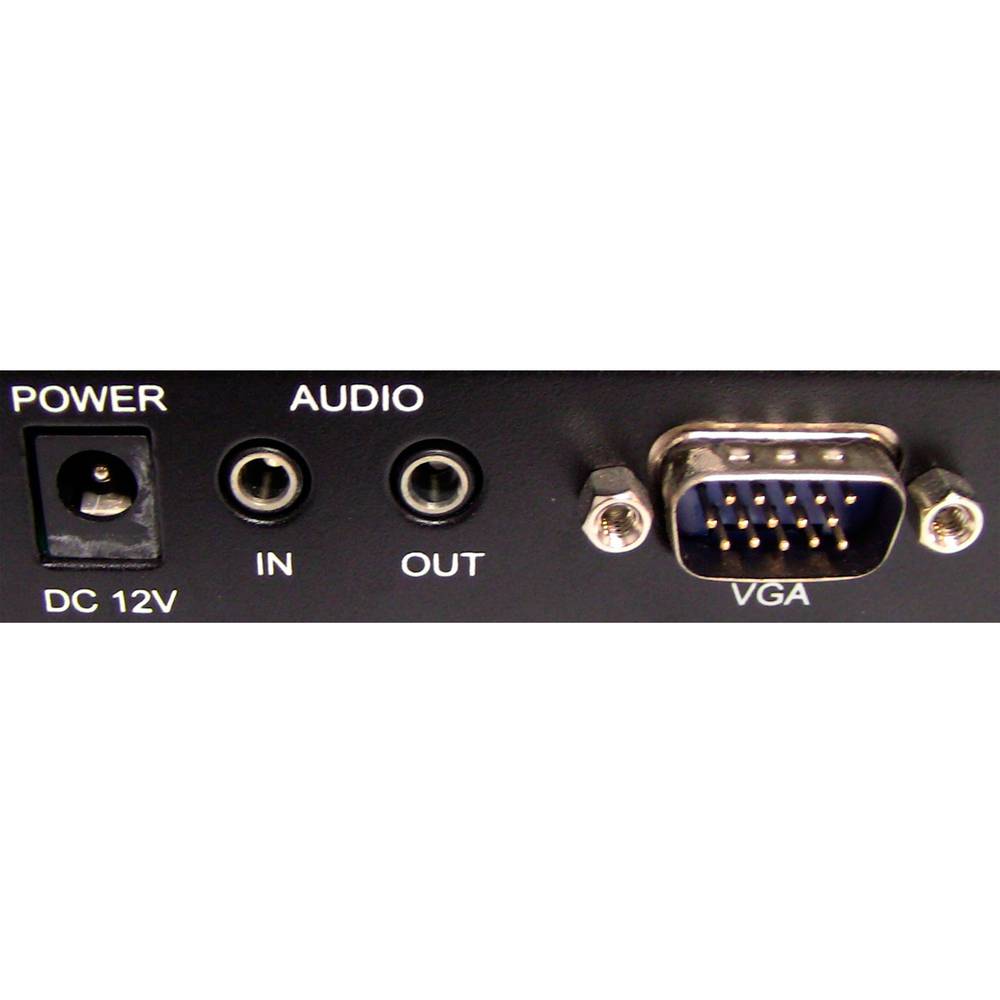

Local module connectors
  • 4 x RJ45 female: For interconnection with the remote modules.
  • 1 x DB15 male: VGA connector for connection to the computer or VGA video transmitter.

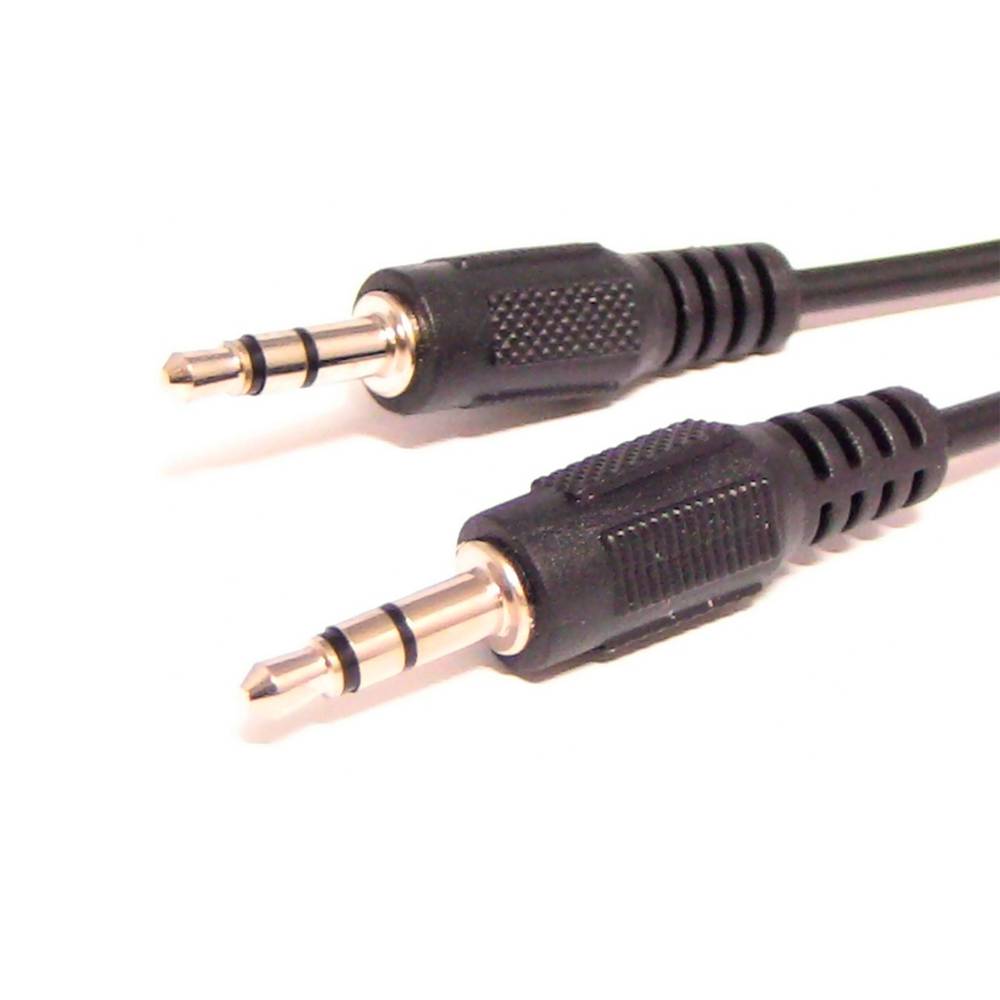

  • 1 x minijack 3.5mm female: Stereo analog audio connector for connection to the computer or audio transmitter. 3.5mm male to male minijack cable of 1m is supplied to remake this connection
  • 1 x DB15 female: VGA connector for connection of a local screen.
  • 1 x minijack 3.5mm female: Analog stereo audio connector for connection of local speakers or headphones.

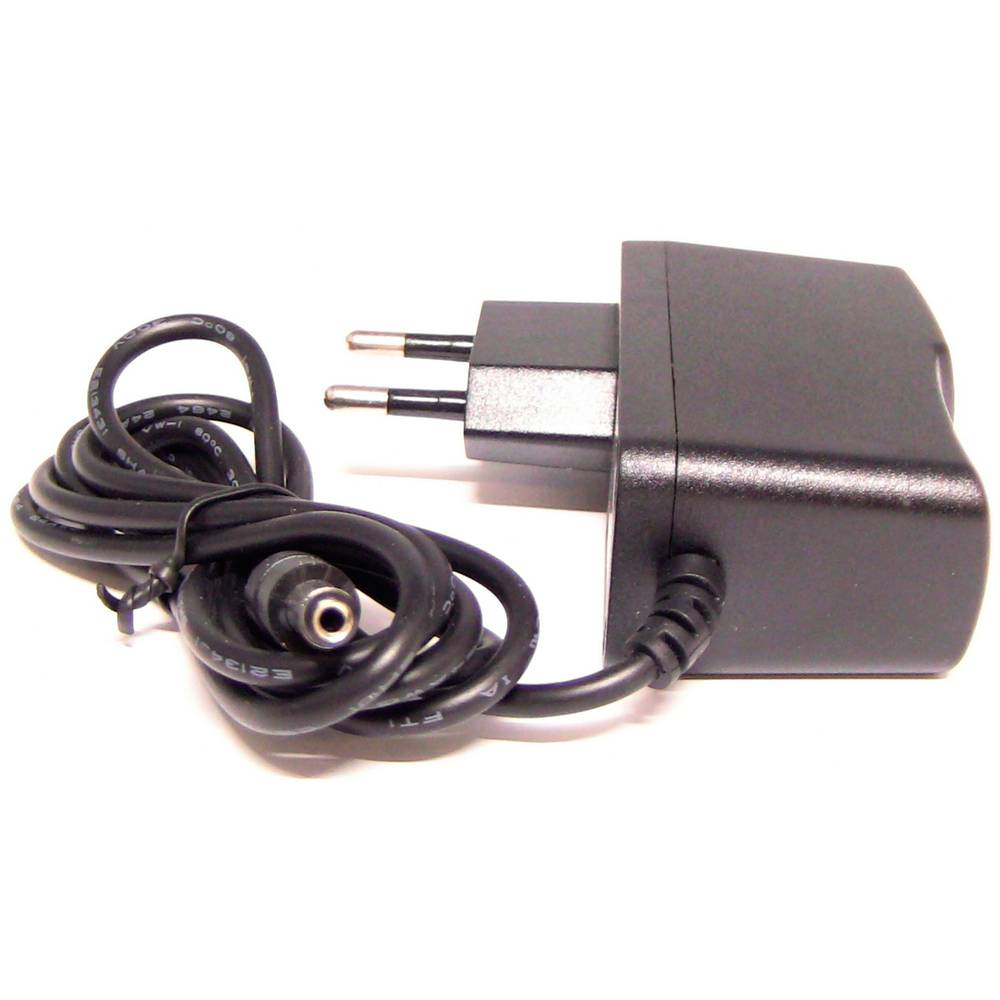

  • 1 x DC jack: For the connection of the 12 VDC power supply (included).

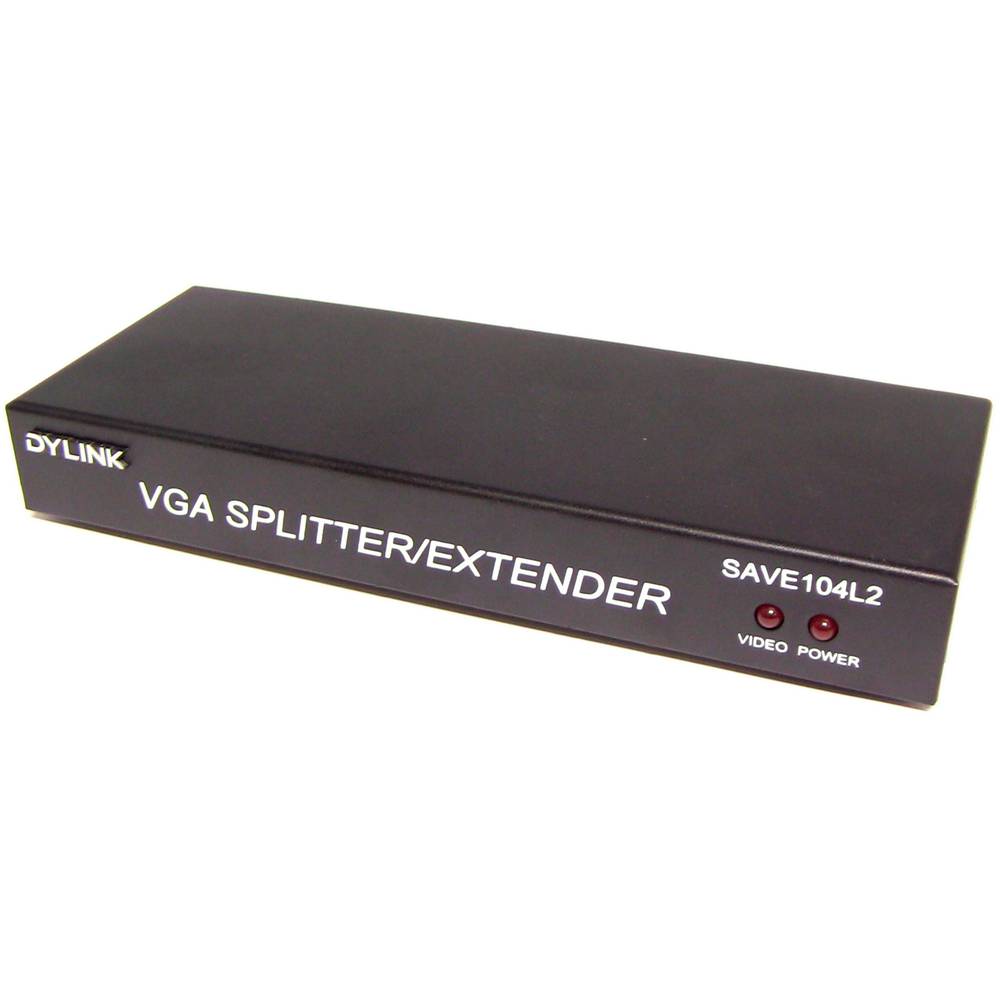

  • Status indicator LEDs: Power and Video.
Specifications
  • RequiresUTP cable Cat.5 or higher for the connection of the local and remote modules.
  • Maximum UTP cable distance: 300 m (depends on the REMOTE module purchased).
  • Compatible with VGA, SVGA and multi-sync monitors.
  • Maximum supported resolution: 1280 x 1024.
  • Module size: 203 x 74 x 29 mm.
  • It needs to be used in conjunction with a remote DYLINK references #LP8x.
  • Gross Weight: 940 g
  • Product size (width x depth x height): 20.2 x 8.0 x 2.8 cm
  • Number of packages: 1
  • Packages size: 24.7 x 17.4 x 9.5 cm
  • Master-pack: 1

Videos

play_button Watch video

Technical terms

  • Minijack 3.5
  • VGA
  • Types of network cables (UTP, FTP, STP)
  • VDC
  • RJ45
  • Jack connector
  • Categories network cables
  • DC jack connector
Minijack 3.5
The minijack 3.5mm is a popular connector used primarily for headphones although its functionality is much more varied.

It consists of a maximum of three connecting parts being the largest so-called mass or negative polarity and two of smaller size and located farther end of the connector, called living or positive that correspond to each channel, such three-part plug can transmit signals in two different channels, also known as stereo signals. It also exists in a mono minijack but version composed of only two parts, a body and a living or positive.
