Electric distribution box with 14 modules 17.5 mm IP40 for metal surface SPN

REF: DD005

Specifications

  • Metal distribution box with IP40 environmental protection.
  • Made of robust beige metal.
  • Compatible with the IEC60670-24 standard.
  • Maximum intensity: 100A.
  • Operating voltage: 240/415V.

Your price

PVP

14.22

5.55

Price including VAT: 5.55

PVD

12.50

4.88


Why different prices? Which one is mine? Check rate type

In stock

12/06/2019 6:50 p.m.
https://cablematic.com/en/products/electric-distribution-box-with-14-modules-175-mm-ip40-for-metal-surface-spn-DD005/

Electric distribution box with 14 modules 17.5 mm IP40 for metal surface SPN

REF: DD005

Your price

PVP

14.22

5.55

Price including VAT: 5.55

PVD

12.50

4.88


Why different prices? Which one is mine? Check rate type

In stock

Specifications

  • Metal distribution box with IP40 environmental protection.
  • Made of robust beige metal.
  • Compatible with the IEC60670-24 standard.
  • Maximum intensity: 100A.
  • Operating voltage: 240/415V.

More info

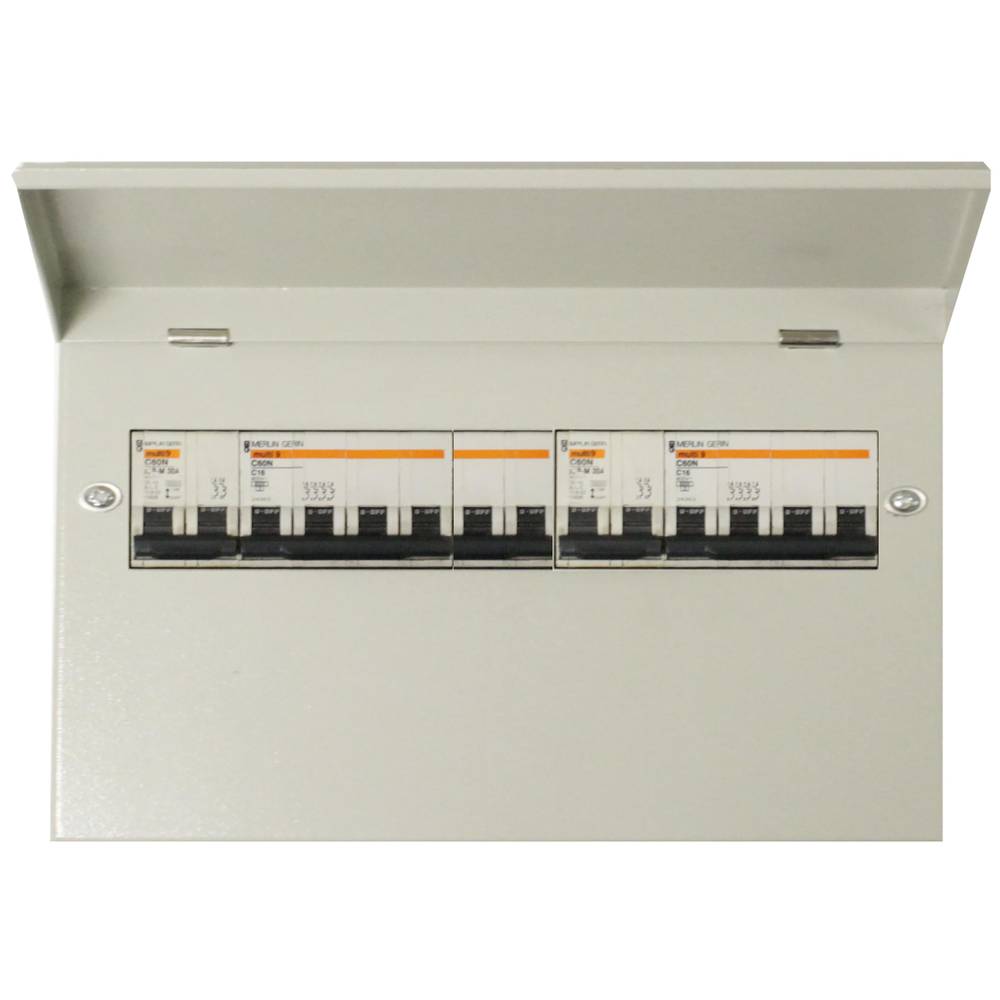

Metal surface distribution box IP40 of 14 modules in line. The distribution box allows the assembly of standard modules 18mm wide, on a DIN rail. Robust distribution box made of metal. Designed to be installed on a flat surface.

Specifications
  • Metal distribution box with IP40 environmental protection.
  • Made of robust beige metal.
  • Compatible with the IEC60670-24 standard.
  • Maximum intensity: 100A.
  • Operating voltage: 240/415V.
  • 35x7mm DIN rail for fixing the modules.

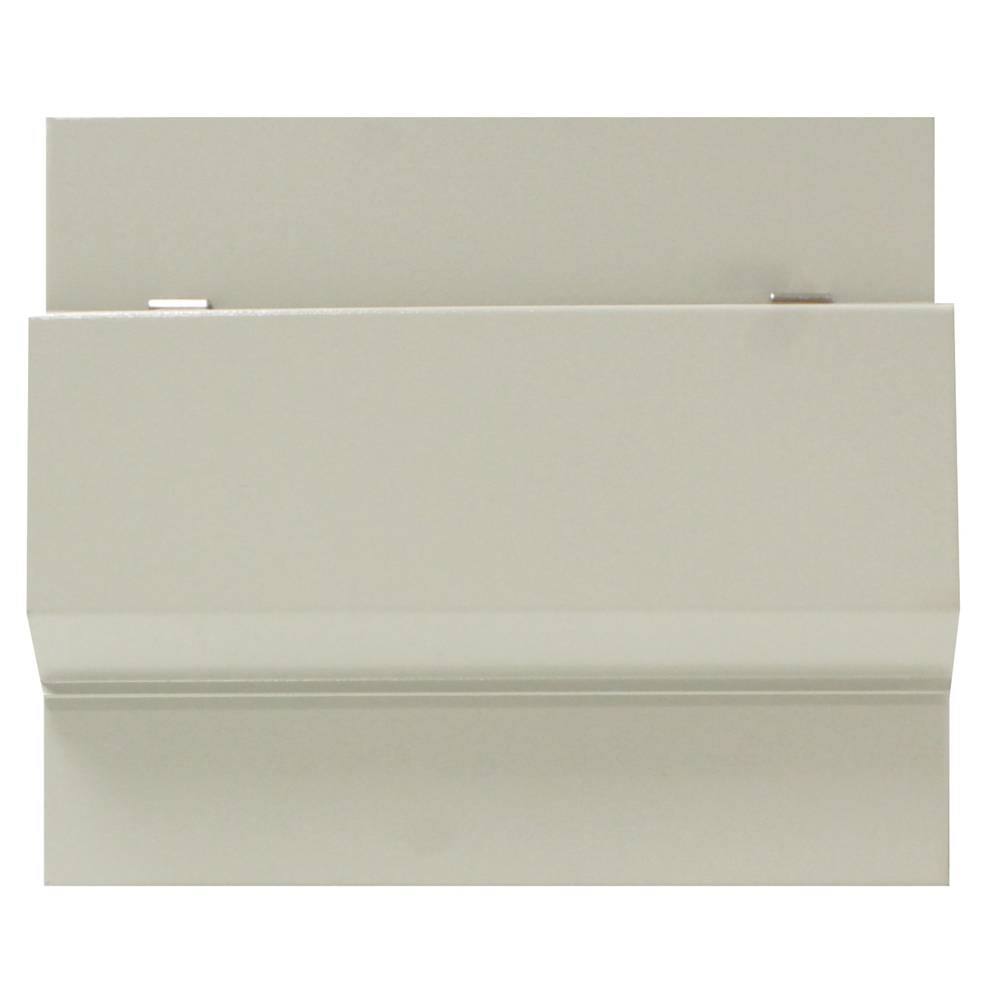

  • Front door for protection of the modules.
  • Front cover with fastening by screws.

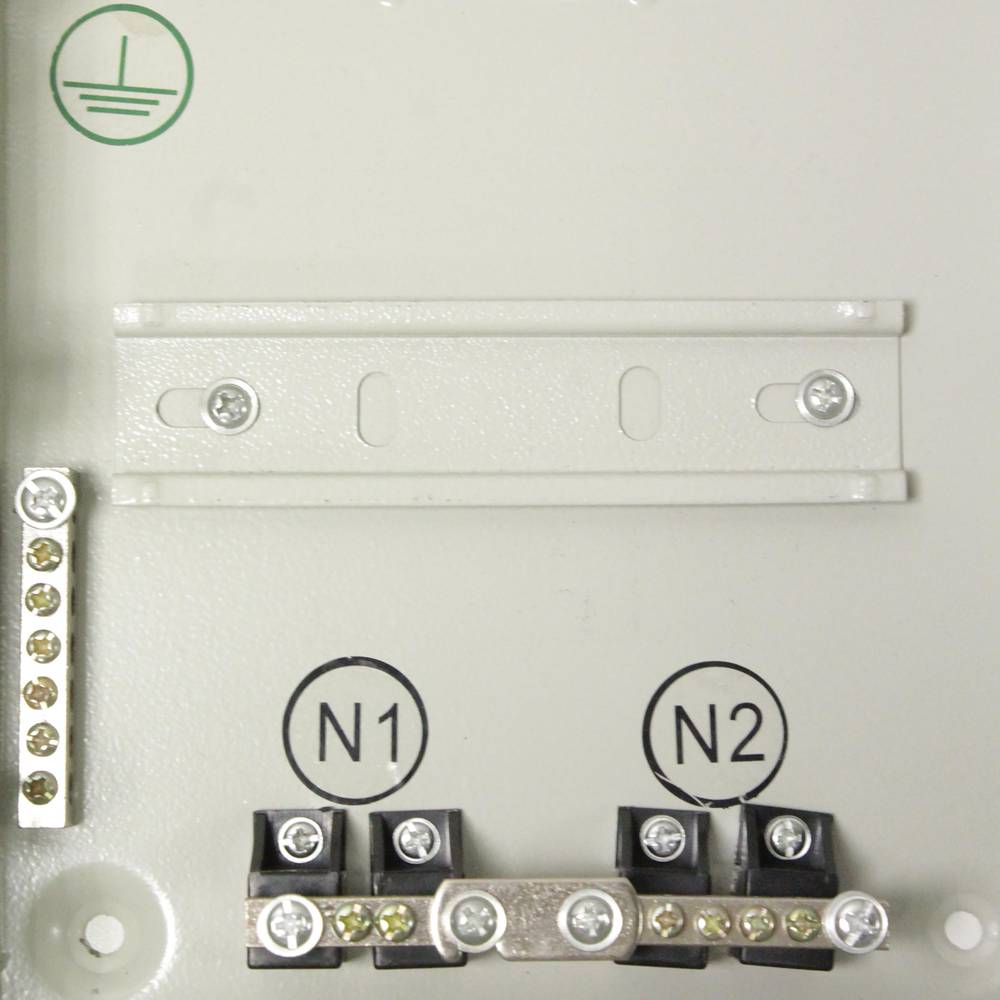

  • Terminals inside, for the connection of GND, N1 and N2. They allow the fixation of several cables in the same line.
  • Fixing to wall using screws (not included). It is fixed directly to the surface.
  • Model for the installation of 14 standard 18mm wide modules.
  • Size of the module window: 253 x 46 mm.
  • Distribution box size: 352 x 227 x 85 mm.
  • Gross Weight: 3.29 kg
  • Number of packages: 1
  • Packages size: 36.0 x 24.0 x 10.0 cm

Videos

Technical terms

  • SPN
SPN
SPN correspond to the English term Single Phase Node. Equivalent to the Spanish term phase. The phase term in domestic premises or homes means you have a single phase alternating current. Usually contracted power in homes is up to 10kW. The difference with the phase installations is that these can be divided into three phases, namely three alternating currents. The instalaciones-phase may also be divided into parts. Facilities include single-phase 3-wire cable 1. phase (black or brown cable) that is providing electricity. 2. Neutral (blue wire) is responsible for the electricity back where it came from creating a circle. 3. Physical cable (two colors) protects the energy absorbing phase of their environment, in some cases this third cable is not used, but isrecommended it for security. 1. In the image-phase power system three-phase power system 2.
