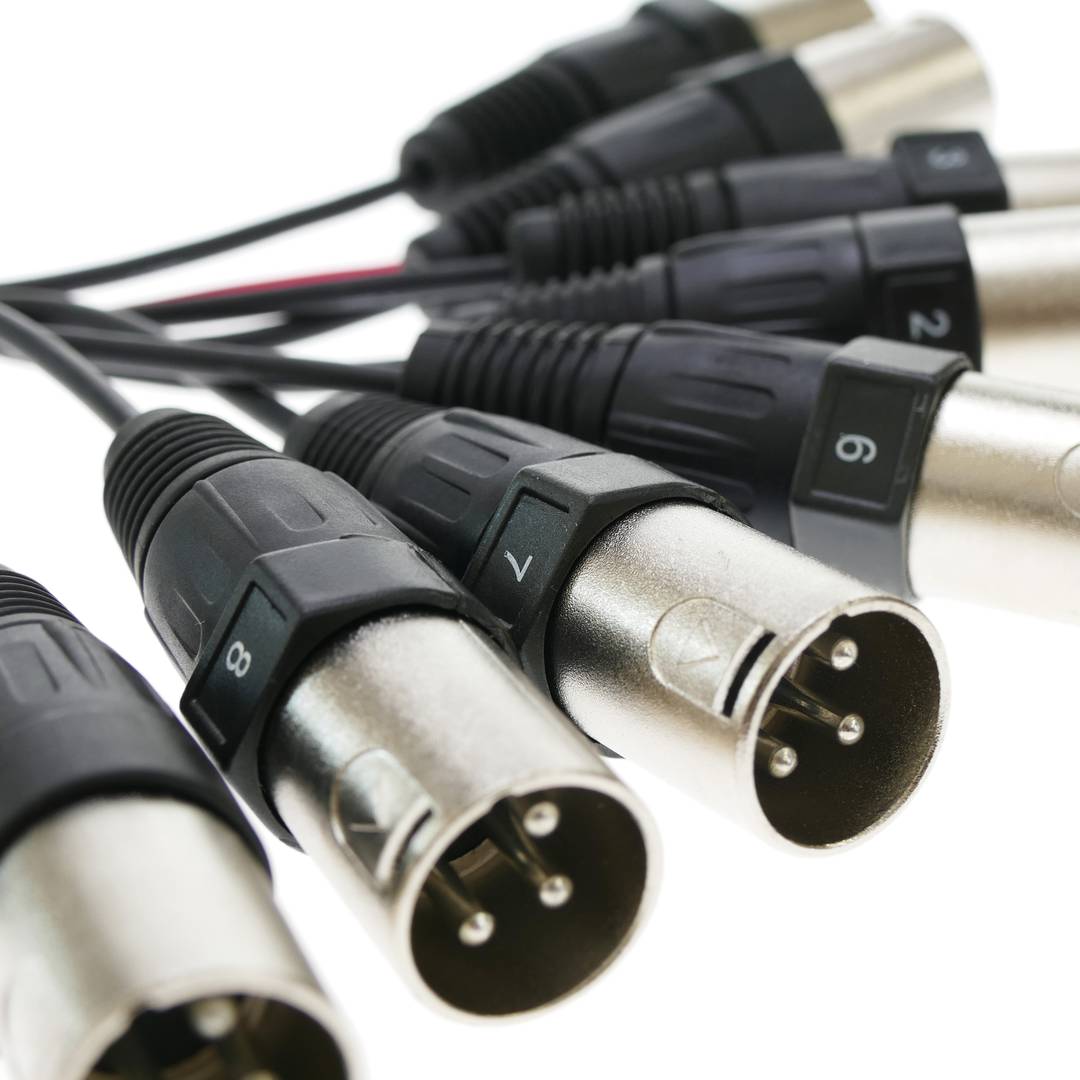

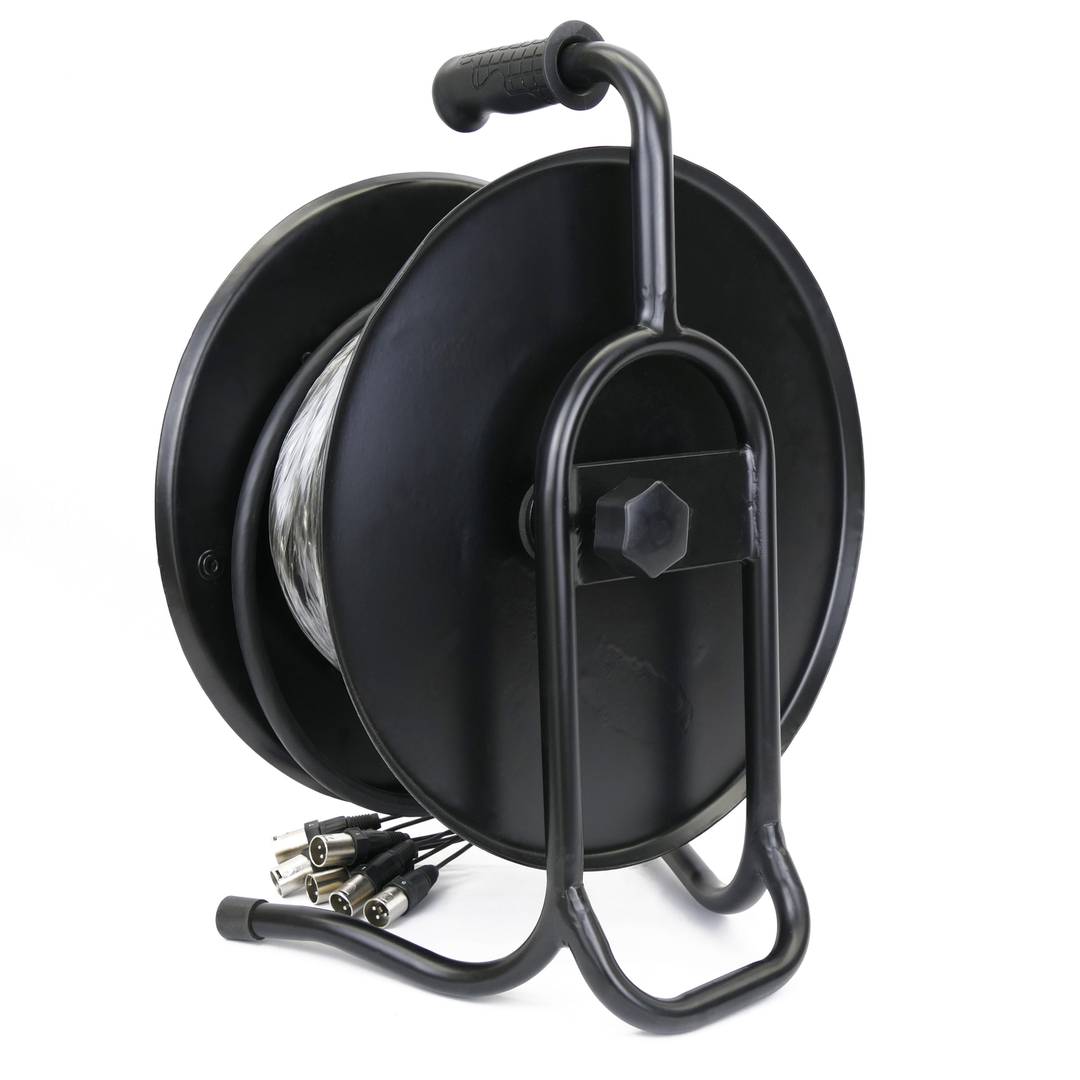

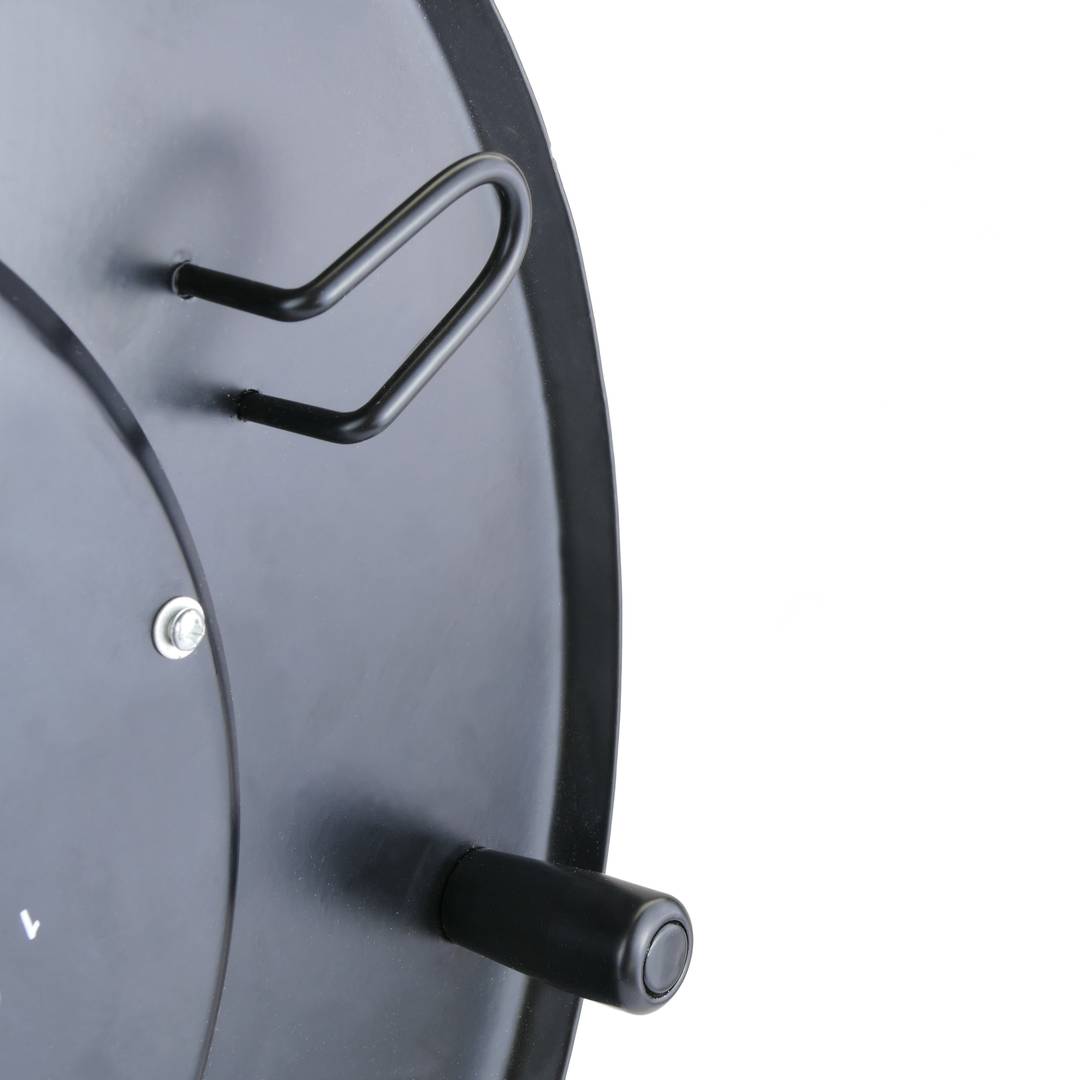

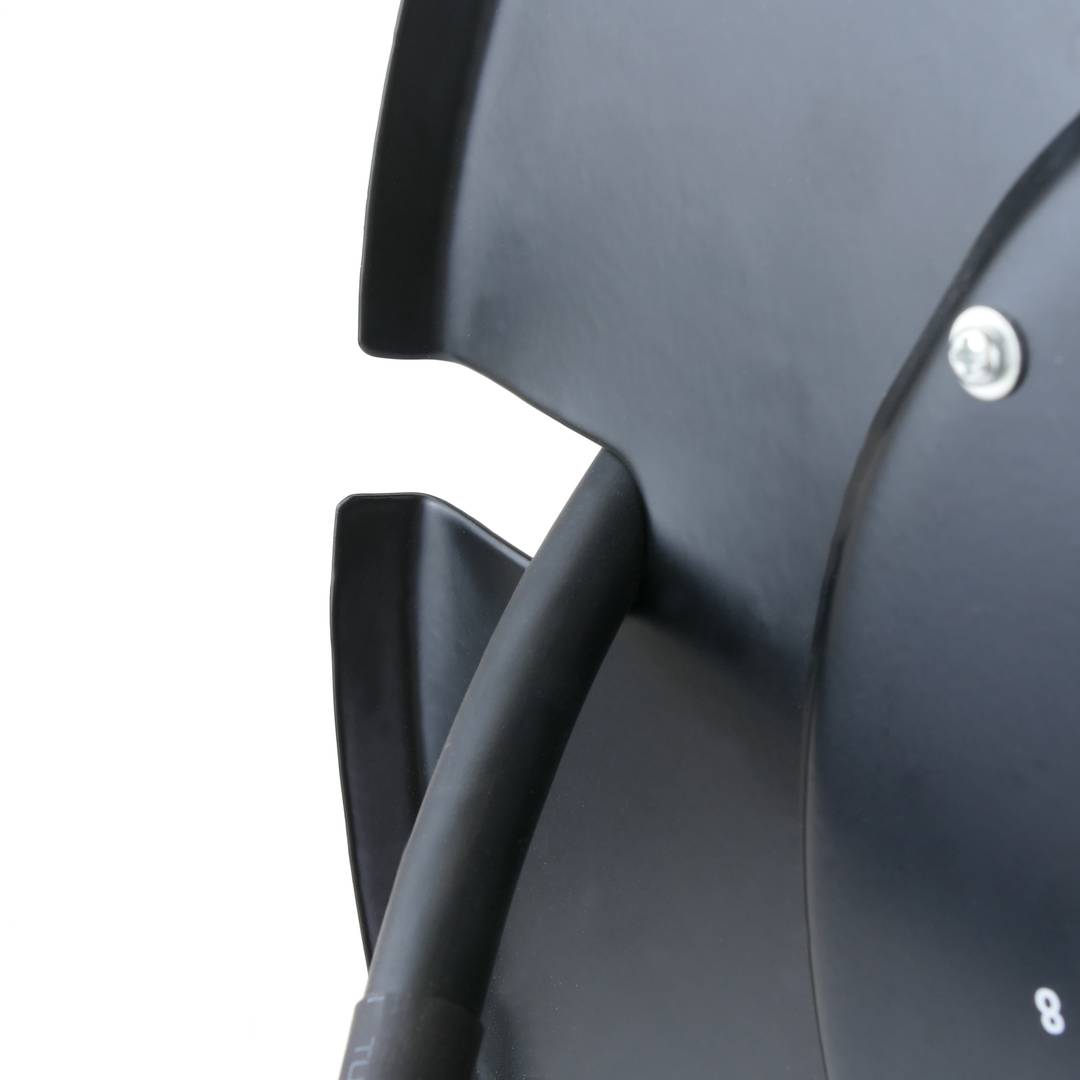

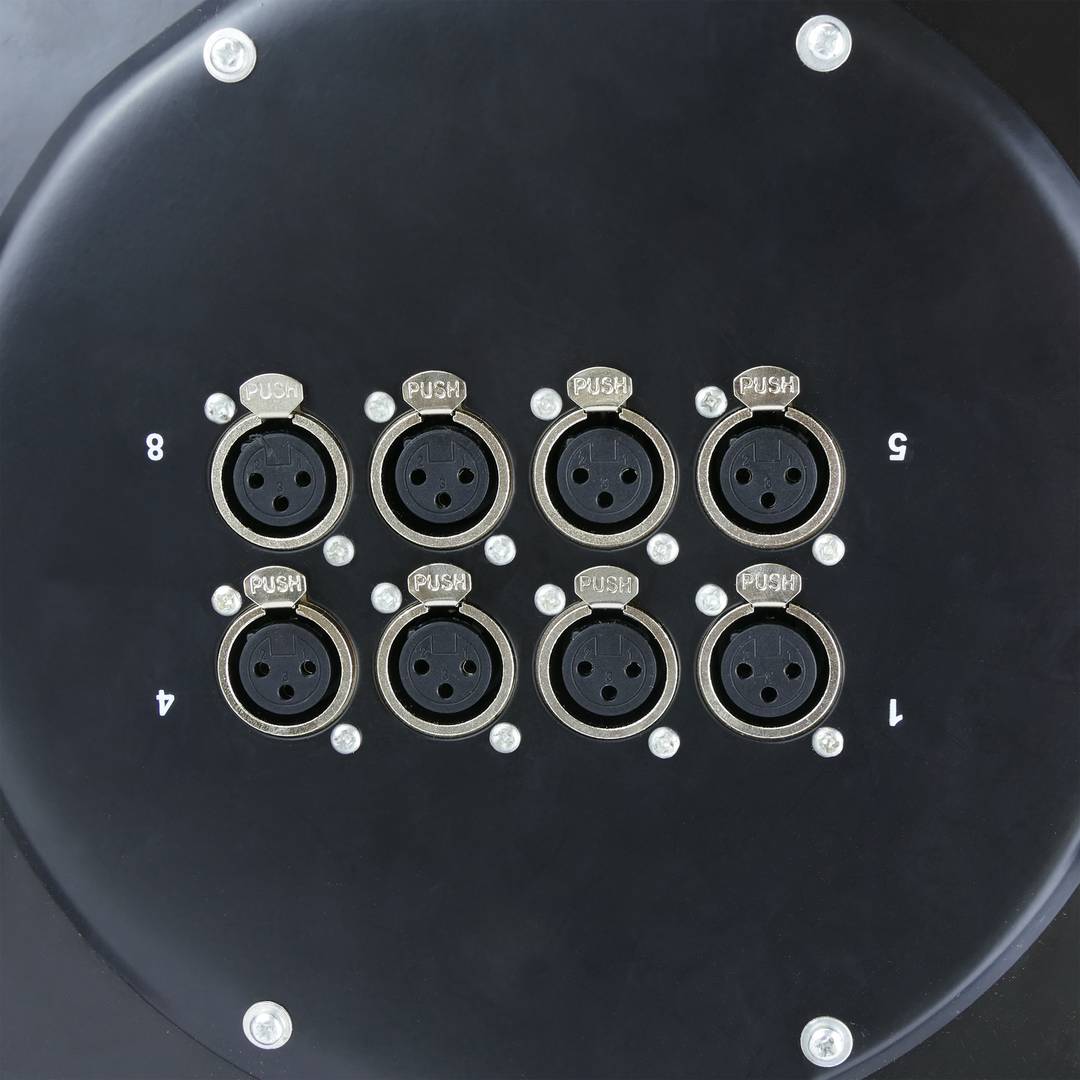

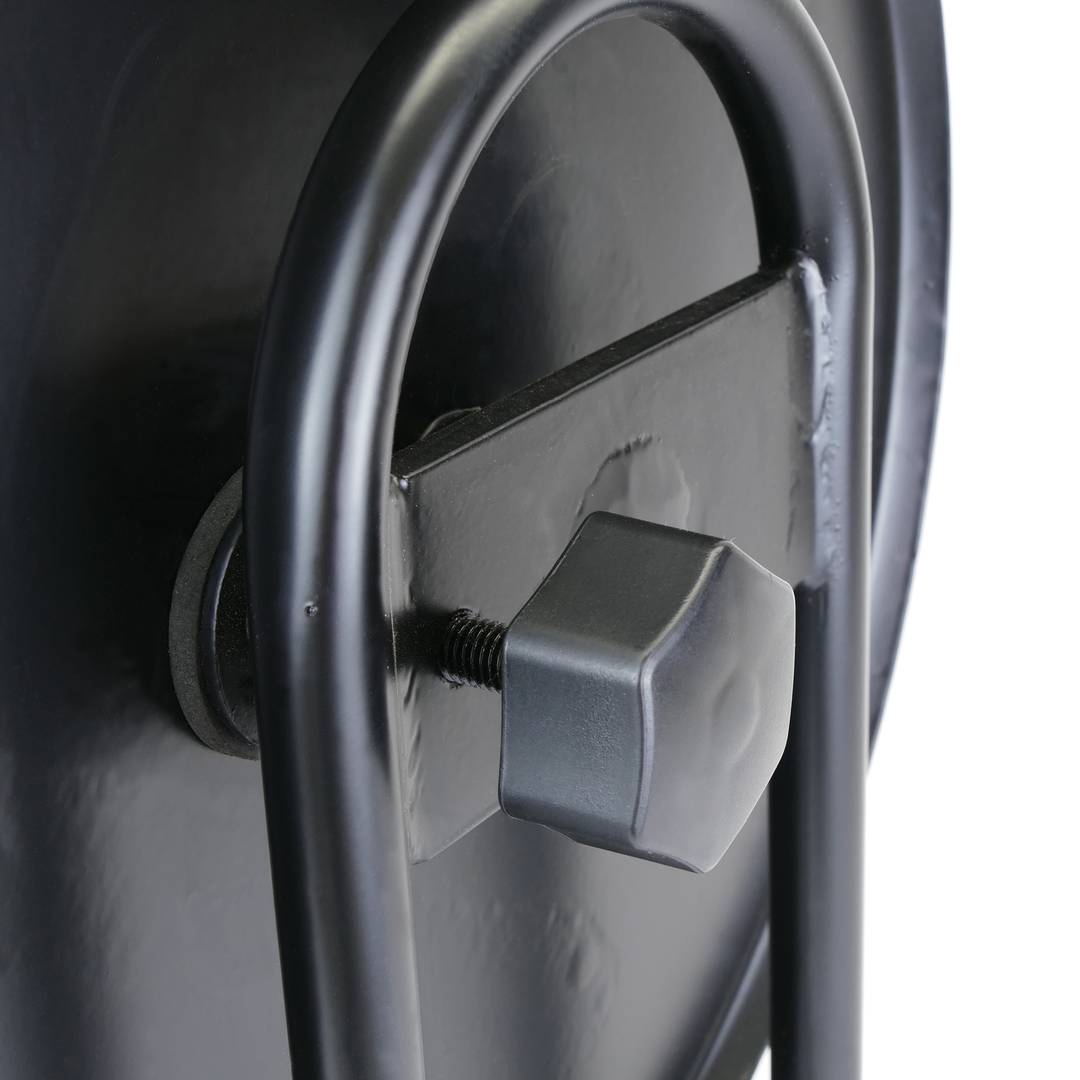

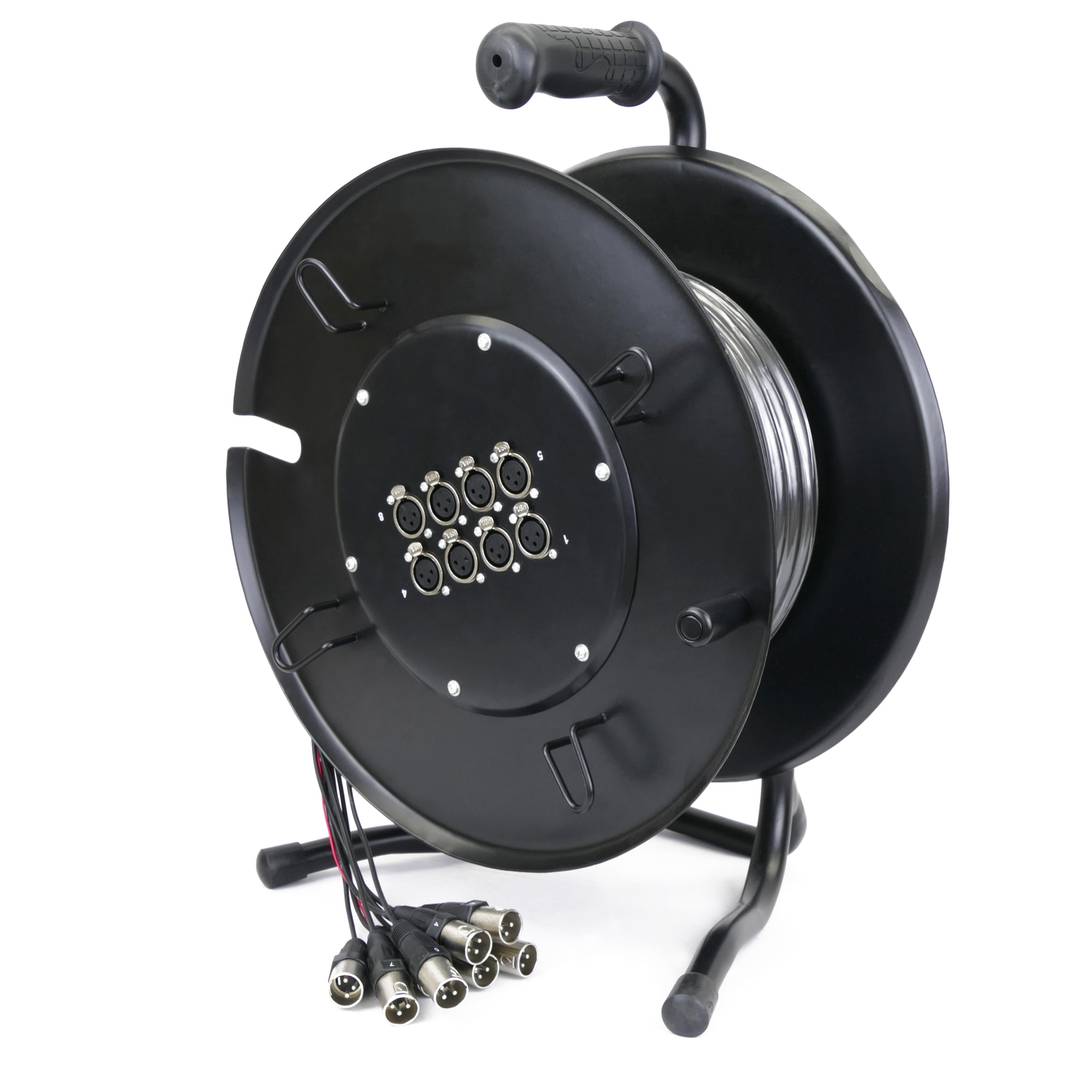

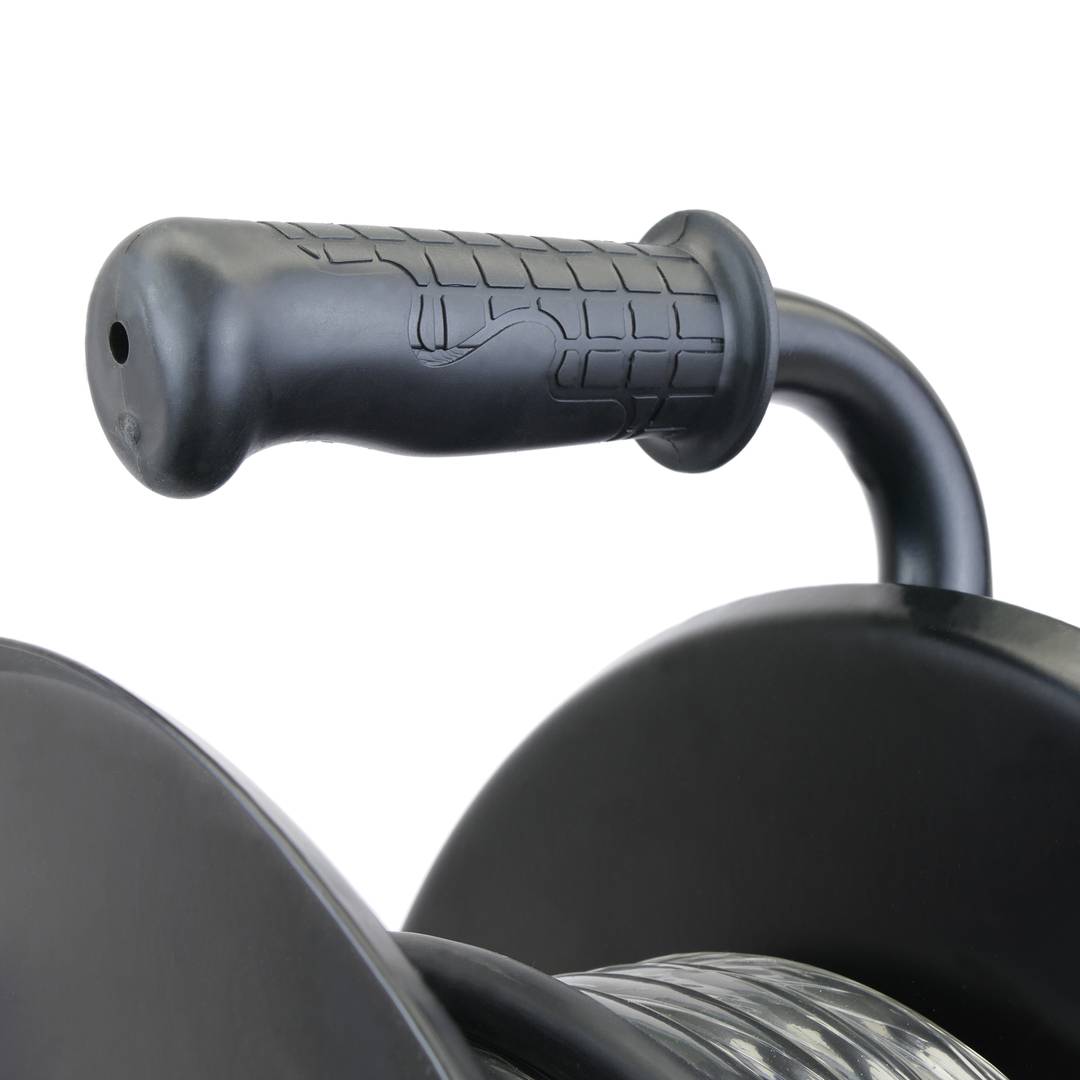

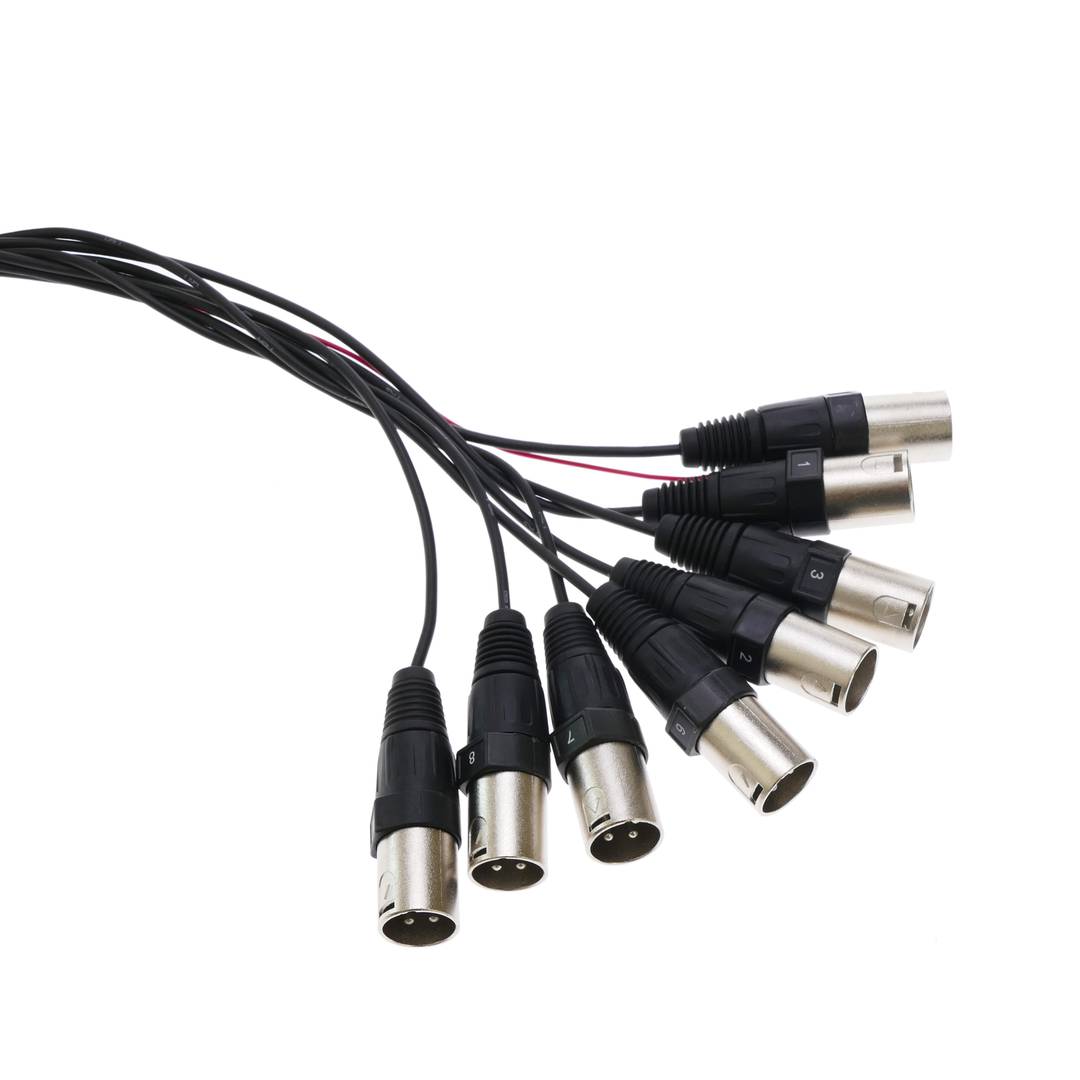

Extension Cable Reel 8 channel DMX512 DMX XLR3 25m

Impedance (Z) is the total opposition that a circuit offers to alternating current (AC) flow when a specific voltage is applied.

Unlike simple resistance, impedance is a complex quantity comprising resistance (the real part) and reactance (the imaginary part, representing inductive or capacitive effects). In the frequency domain, impedance is represented as a phasor, accounting for both magnitude and phase shift between voltage and current. In DC circuits, impedance reduces to pure resistance with zero phase angle.

Impedance management is critical in high-speed hardware design and signal integrity. In modern PCB manufacturing, controlled impedance ensures that high-frequency signals reach their destination without reflections, which is vital for PCIe or DDR5 performance.

Complex Domain Analysis

Mathematical modeling of impedance using the j-operator allows engineers to optimize filter performance and resonance characteristics in electronic systems.

Key Advantages

• Maximum power transfer through impedance matching.
• Minimized signal reflections in high-frequency transmission lines.
• Improved electromagnetic compatibility (EMC).

Note: Impedance is the cornerstone of modern AC circuit theory and high-frequency design.

DMX512 (Digital Multiplex) is a standard for digital communication networks that are commonly used to control stage lighting and effects via an RS-485 physical layer.

Imagine a universal remote that can talk to all the lights in a theater at once. It sends signals through a cable to tell each individual light exactly how bright to be, what color to turn, or where to point.

Serial Data Transmission

It uses asynchronous serial data containing values for 512 slots. Each slot value ranges from 0 to 255, representing the intensity or position of a specific fixture attribute.

Advantages

• Universal compatibility across manufacturers.
• Reliable daisy-chain wiring topology.
• Industry standard for live entertainment.

Always use a terminator plug at the end of the chain to ensure signal integrity.
