External Amplifier 802.11-b 200mW

REF: AN071

Specifications

  • Bi-directional amplifier that operates in the 2.4GHz band, ideal for applications based on 802.11-b wireless network.
  • Ideal to compensate the loss of power radiated by long distances of cables, to have more range, or other uses.
  • Manufactured in metal and totally airtight to be installed outdoors and with protection from electric shocks caused by external elements.

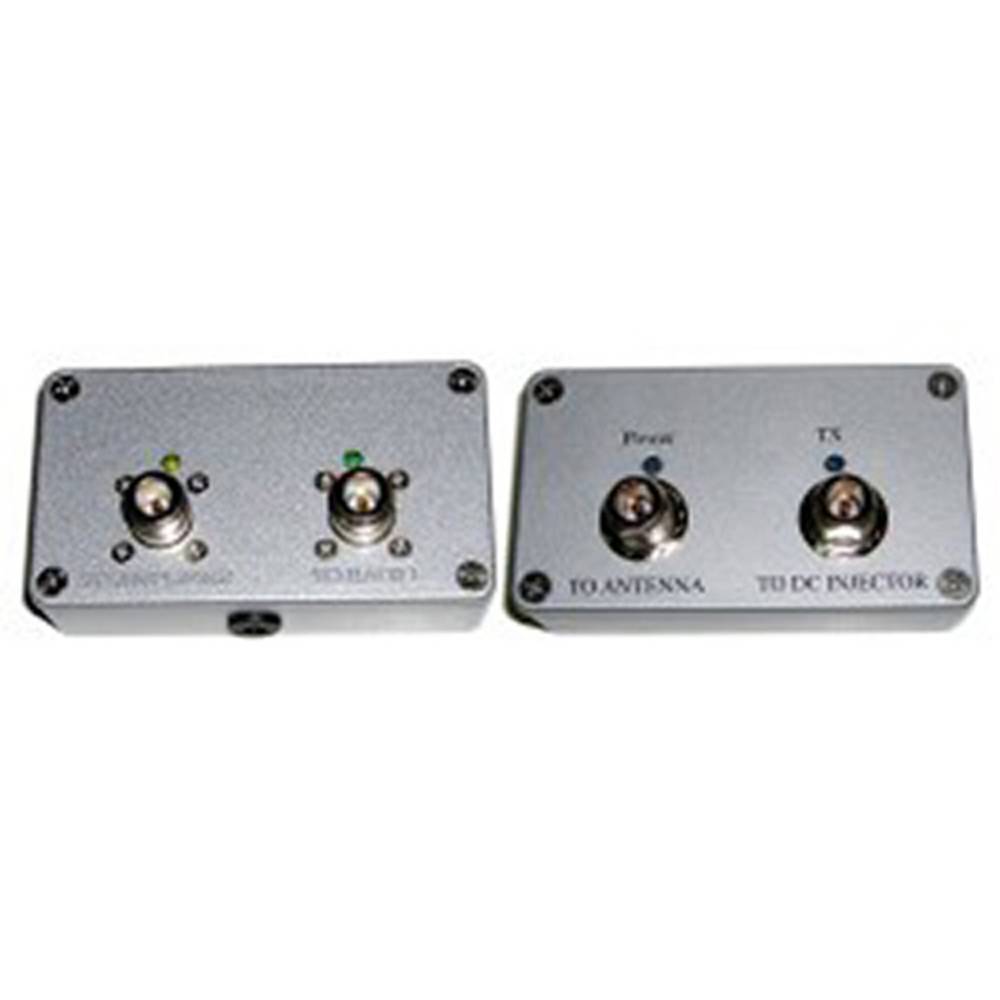

  • It is basically composed of three elements: the DC injector (or DC-Injector), the power supply and the outdoor amplifier.

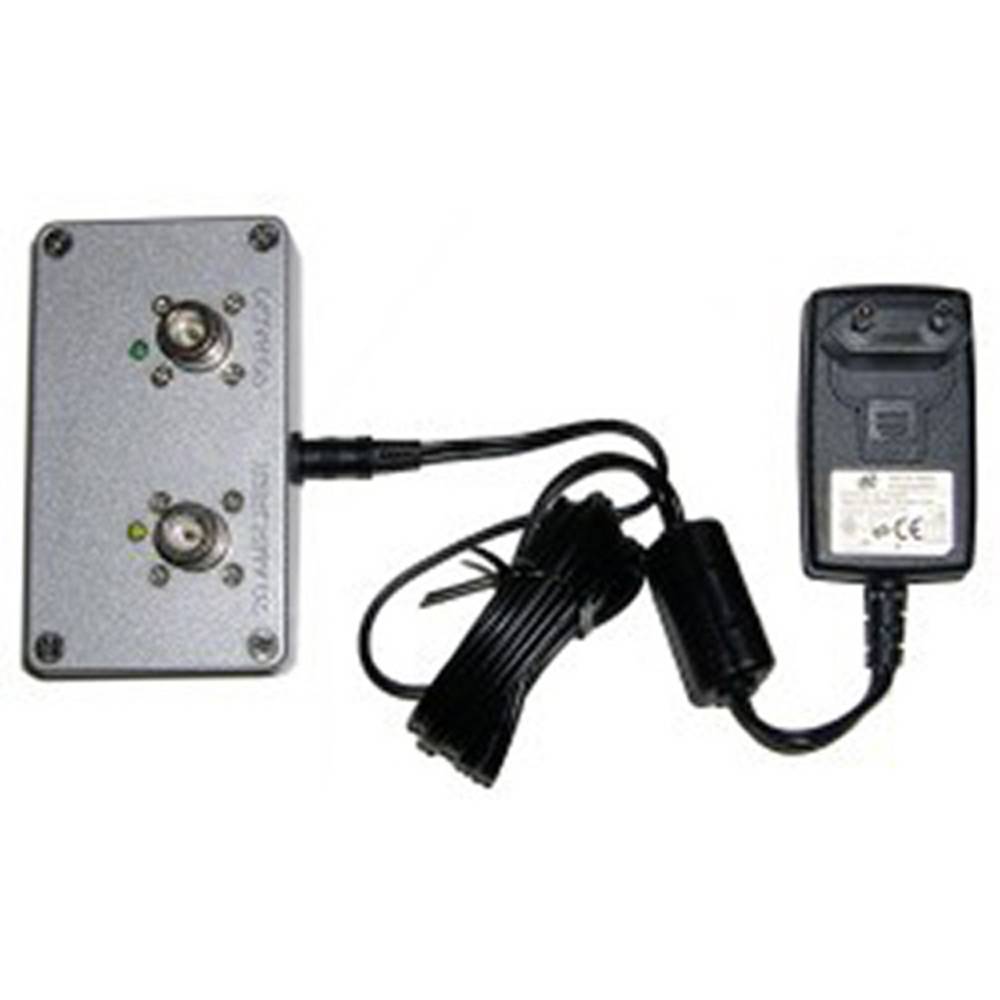

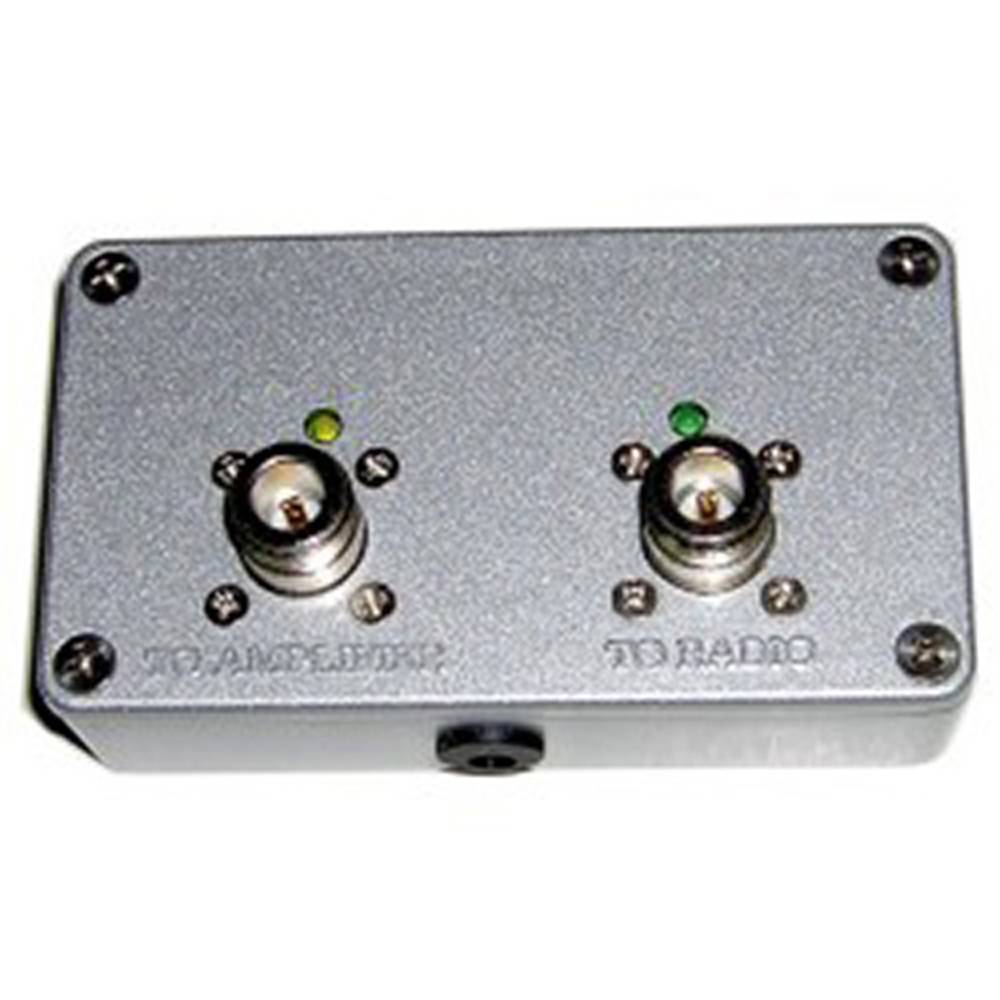

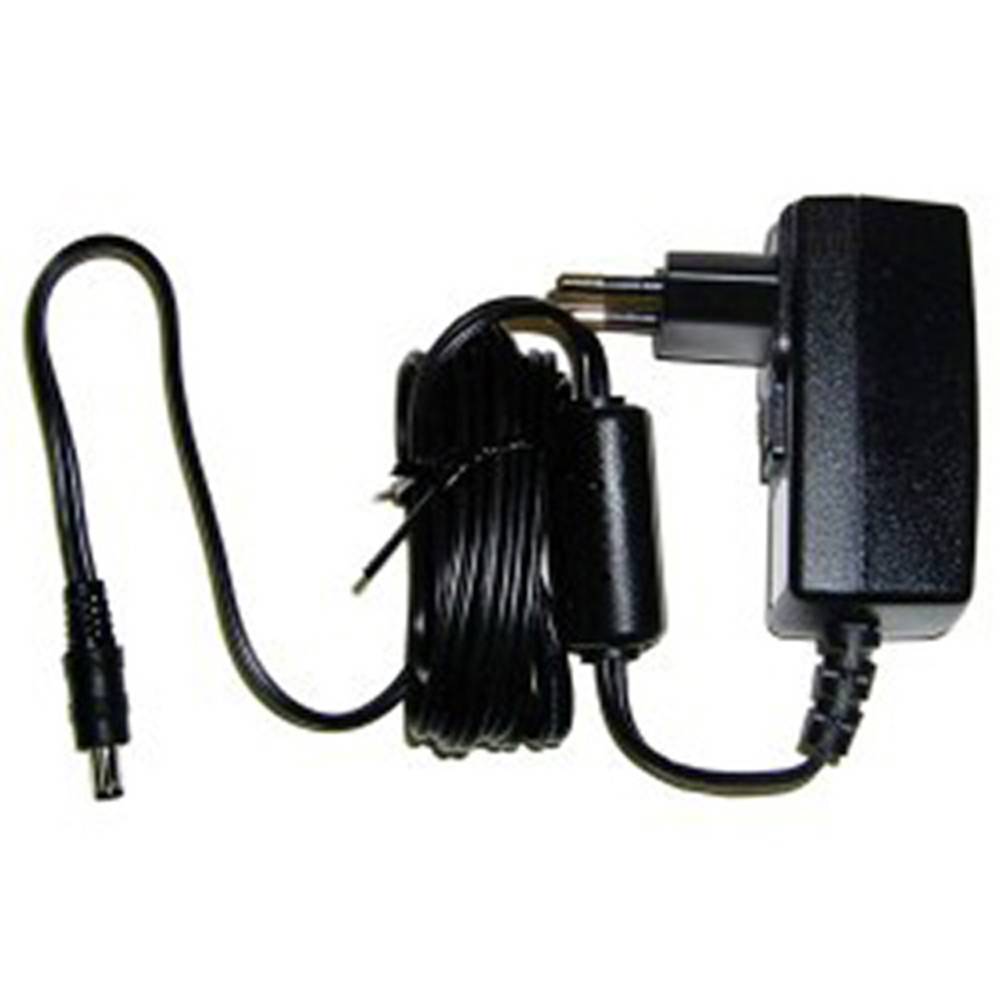

  • The DC injector is installed inside and unifies in the same cable that goes to the amplifier, the signal to be radiated (from the network equipment or similar) and the power supply (from the 6VDC power supply).

Your price

PVP

£30.09

£27.38

Price including VAT: £32.86

PVD

£24.73

£22.50


Why different prices? Which one is mine? Check rate type

In stock

External Amplifier 802.11-b 200mW

REF: AN071

Your price

PVP

£30.09

£27.38

Price including VAT: £32.86

PVD

£24.73

£22.50


Why different prices? Which one is mine? Check rate type

In stock

More info

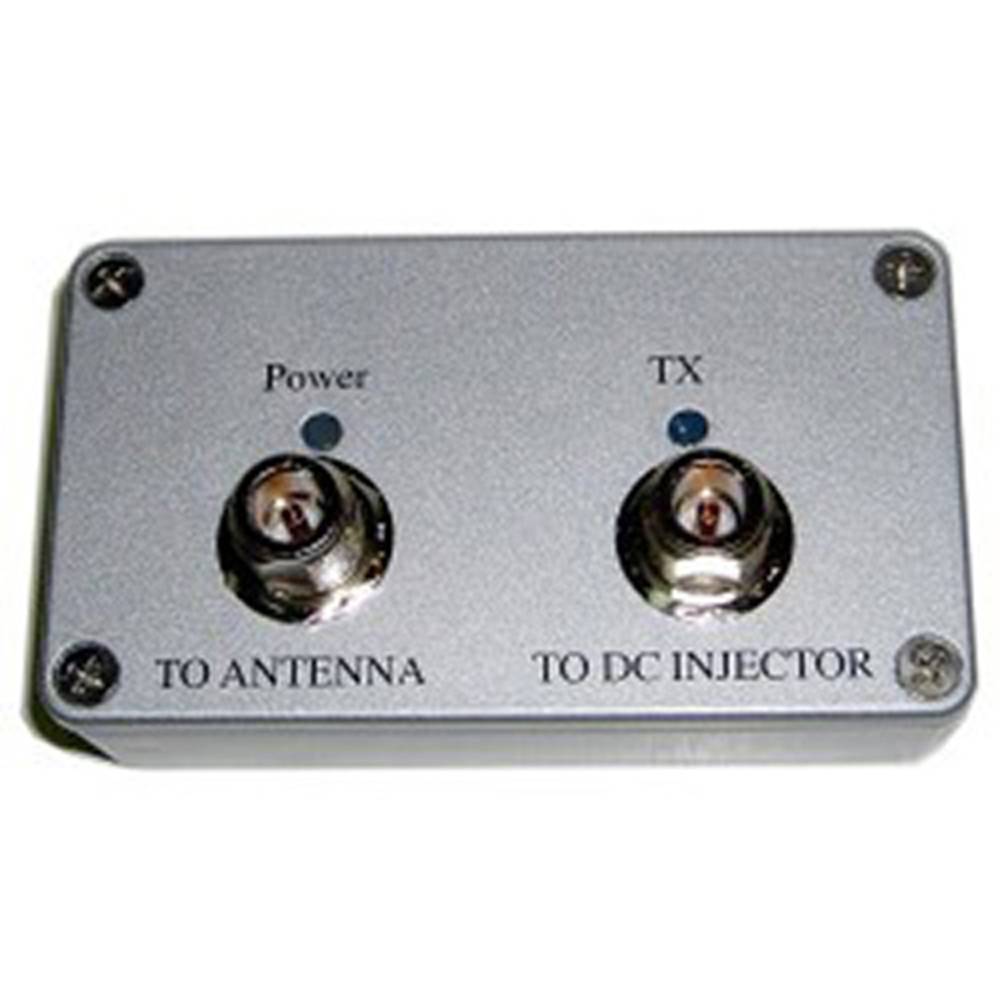

Bi-directional amplifier that operates in the 2.4GHz band, ideal for applications based on 802.11-b wireless network. Ideal to compensate the loss of power radiated by long distances of cables, to have more range, or other uses. Manufactured in metal and totally airtight to be installed outdoors and with protection from electric shocks caused by external elements. It is basically composed of three elements: the DC injector (or DC-Injector), the power supply and the outdoor amplifier. The DC injector is installed inside and unifies in the same cable that goes to the amplifier, the signal to be radiated (from the network equipment or similar) and the power supply (from the 6VDC power supply). The amplifier has an input from the DC injector and an output that goes to the antenna, and it amplifies thesignals sent and received, apart from separating the data signals from the electric signals, from which it is fed. Both the amplifier and the injector have N-Female connectors (50 Ohm). Transmission gain of 27dB (max adjusted automatically). Output power of 200 mW. Reception gain of 15dB (typical). Compatible with wireless networks that comply with the 802.11-b standard. Amplifier size of 115 x 65 x 48 mm. T7.8 x 5.6 x 2.9 cm injector size. Supplied with rSMA-Male to N-Male hose to connect to the injector to the access point. It also includes hardware to fix the external amplifier to the own mast.
  • Gross Weight: 1.09 kg
  • Number of packages: 1
  • Packages size:
    • Package 1: 0 Unit/s
